Goldstar
Room Air Conditioner

Model # R5206 Official Goldstar room air conditioner

Here are the diagrams and repair parts for Official Goldstar R5206 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

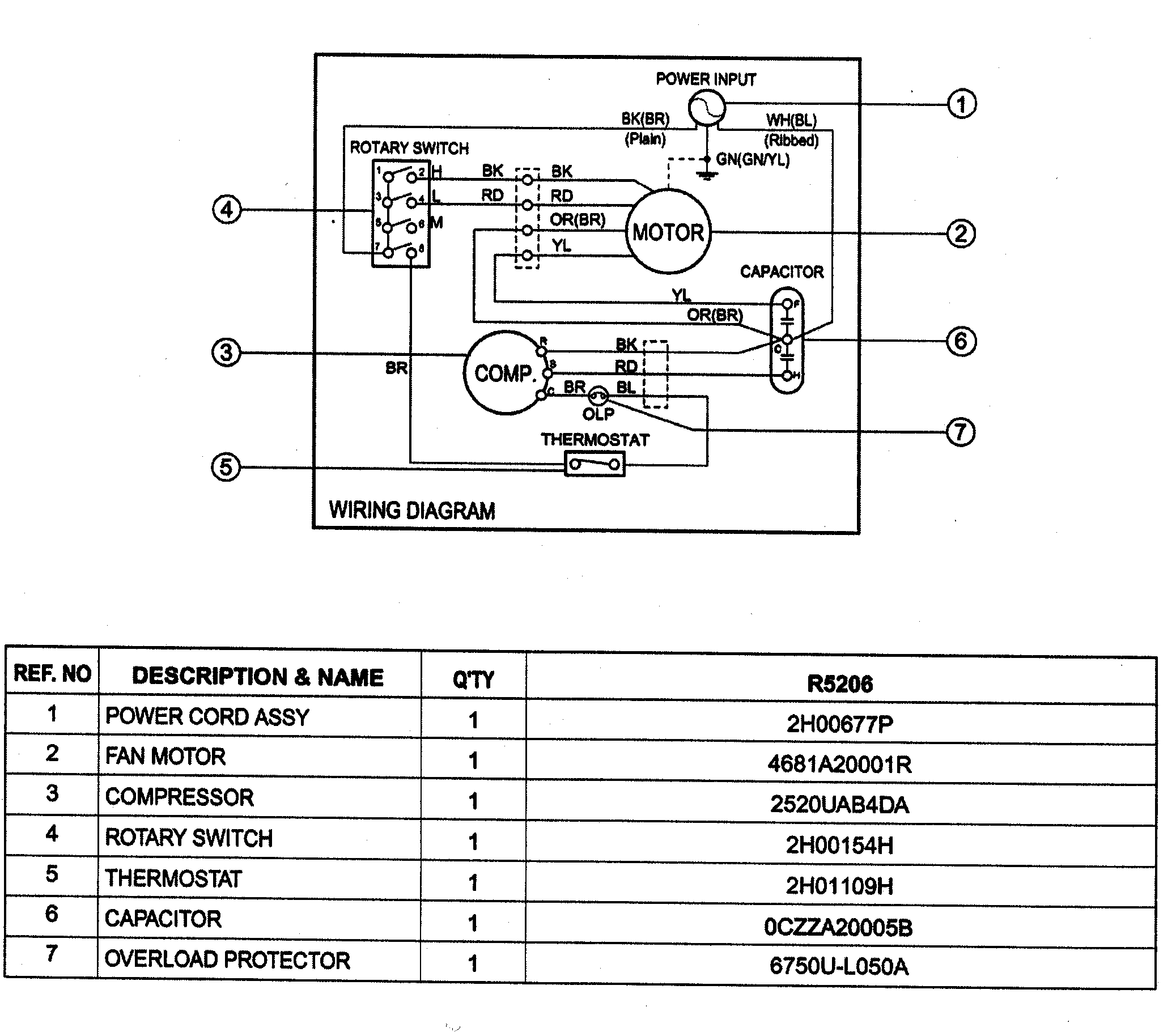

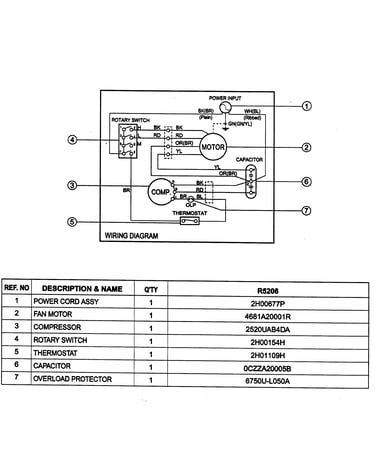

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |

Room Air Conditioner Fan Blade Clamp 3H02932B
#8602

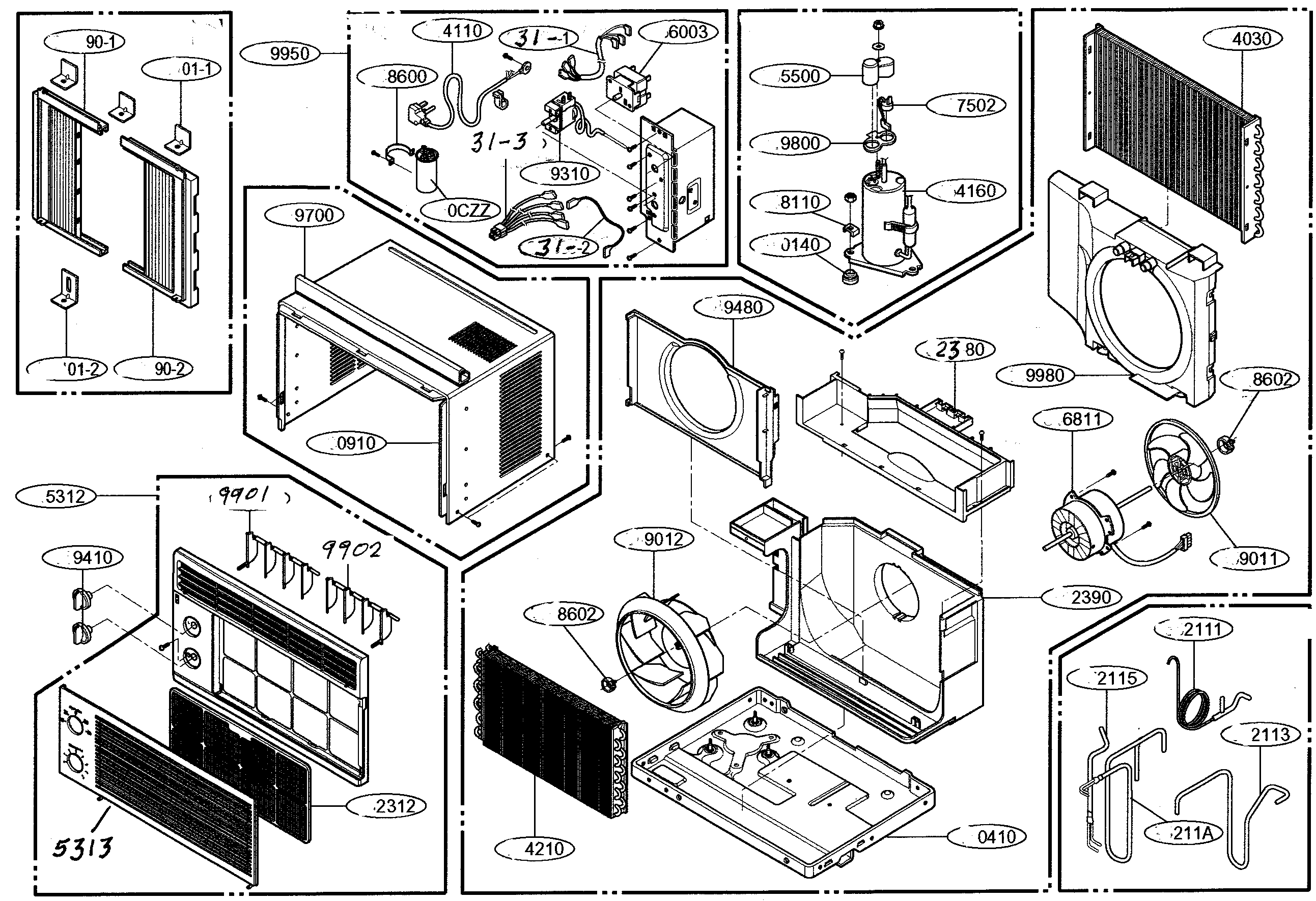

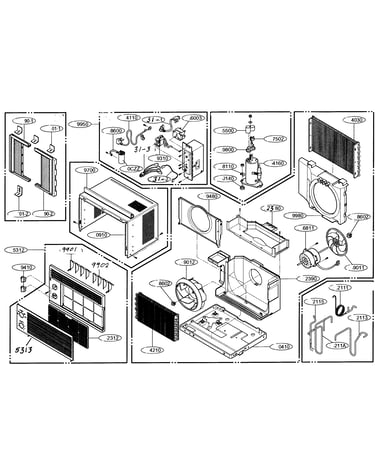

Cabinet parts diagram

Room air conditioner fan blade clamp

Part #3H02932B

This item is not returnable
$3.82
21% OFF Phone Price : $4.82
In Stock
Friedrich Room Air Conditioner Fan Motor Capacitor (replaces 6120ar2359v) 0CZZA20005B
#CZZ

Cabinet parts diagram

Friedrich room air conditioner fan motor capacitor (replaces 6120ar2359v)

Part #0CZZA20005B

$29.57
17% OFF Phone Price : $35.57
In Stock
Friedrich Room Air Conditioner Compressor Grommet 5040AR4195A
#140

Cabinet parts diagram

Friedrich room air conditioner compressor grommet

Part #5040AR4195A

This item is not returnable
In Stock
Goldstar Cover 3550-CL001D
#5500

Cabinet parts diagram

Goldstar cover

Part #3550-CL001D

In Stock
Vane 5990AR3190A
#9901

Cabinet parts diagram

Vane

Part #5990AR3190A

This item is not returnable
In Stock
Goldstar Fan Propeller 5901A20011A
#9011

Cabinet parts diagram

Goldstar fan propeller

Part #5901A20011A

In Stock
Vane 5990AR3190B
#9902

Cabinet parts diagram

Vane

Part #5990AR3190B

This item is not returnable
In Stock
Condenser 5403AR6200D
#4030

Cabinet parts diagram

Condenser

Part #5403AR6200D

In Stock
Comfort-aire Turbo Fan 5900A10005B
#9012

Cabinet parts diagram

Comfort-aire turbo fan

Part #5900A10005B

In Stock
Lead Wire 6877A20001A
#31-3

Cabinet parts diagram

Lead wire

Part #6877A20001A

In Stock
