DeWalt
Power Drill

Model # DW980K-2 Official DeWalt drill

Here are the diagrams and repair parts for Official DeWalt DW980K-2 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

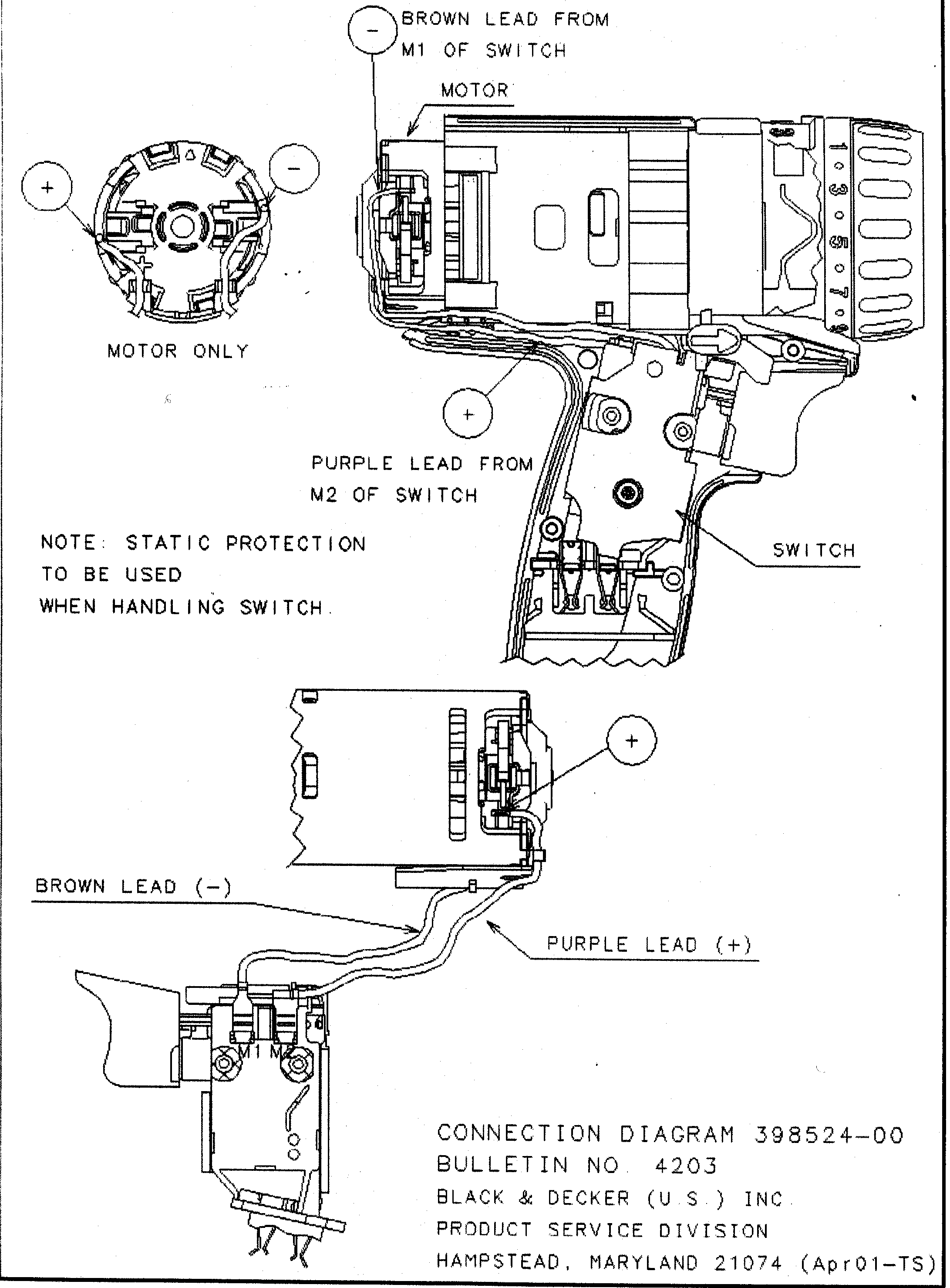

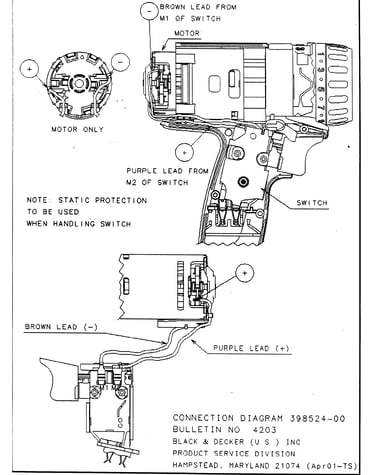

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |
Screw 148204-00
#17

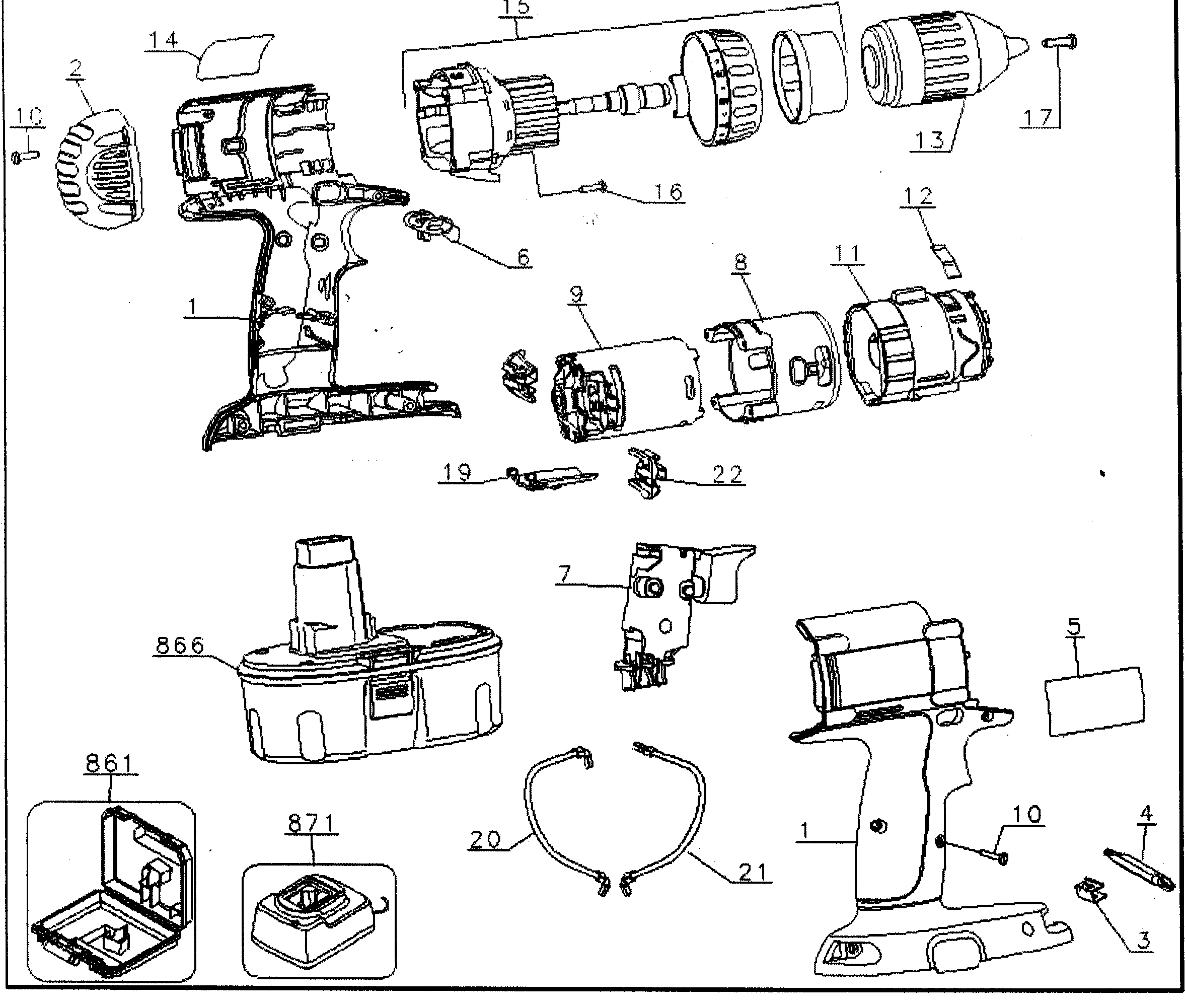

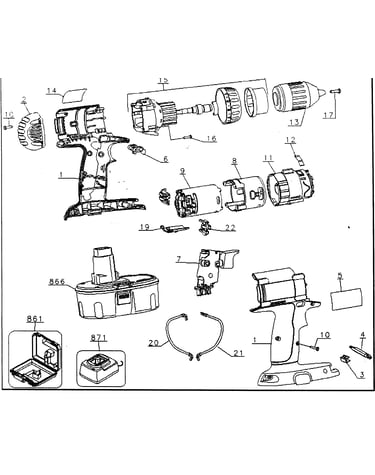

Drill diagram

Screw

Part #148204-00

The manufacturer no longer makes this part, and there's no substitute part

Guide 603529-00
#19

Drill diagram

Guide

Part #603529-00

The manufacturer no longer makes this part, and there's no substitute part

Lead Wire 398978-00
#20

Drill diagram

Lead wire

Part #398978-00

The manufacturer no longer makes this part, and there's no substitute part

Drill Bit Holder 148354-03
#3

Drill diagram

Drill bit holder

Part #148354-03

The manufacturer no longer makes this part, and there's no substitute part

Id Label 395657-00
#14

Drill diagram

Id label

Part #395657-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Clamshell 394511-00
#1

Drill diagram

Dewalt clamshell

Part #394511-00

The manufacturer no longer makes this part, and there's no substitute part

Drill Motor Brush 603754-01
#22

Drill diagram

Drill motor brush

Part #603754-01

The manufacturer no longer makes this part, and there's no substitute part

Battery, 12-volt DW9071
#866

Drill diagram

Battery, 12-volt

Part #DW9071

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 604228-00
#5

Drill diagram

Nameplate

Part #604228-00

The manufacturer no longer makes this part, and there's no substitute part

End Cap 394513-00
#2

Drill diagram

End cap

Part #394513-00

The manufacturer no longer makes this part, and there's no substitute part
