Hotpoint
Countertop Microwave

Model # RE101103 Official Hotpoint microwave

Here are the diagrams and repair parts for Official Hotpoint RE101103 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

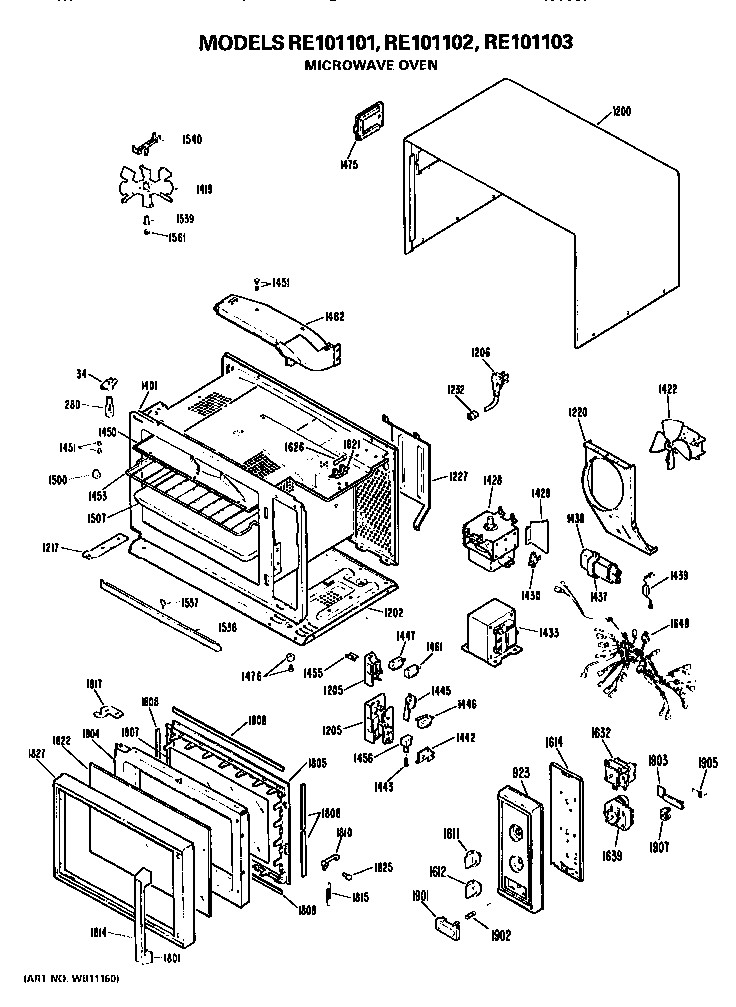

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |
Primary Switch WB24X368

#1447

All parts diagram

Primary switch

Part #WB24X368

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X368. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Diode WB27X350

#1439

All parts diagram

Diode

Part #WB27X350

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X350. Substitute parts can look different from the original.
BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Magnetron WB27X5334

#1428

All parts diagram

Magnetron

Part #WB27X5334

The manufacturer no longer makes this part, and there's no substitute part

Magnetron NOT AVAIL

#1428

All parts diagram

Magnetron

Part #NOT AVAIL

The manufacturer no longer makes this part, and there's no substitute part

Frame WB55X642

#1805

All parts diagram

Frame

Part #WB55X642

The manufacturer no longer makes this part, and there's no substitute part

Key-door-lower WB2X143

#1810

All parts diagram

Key-door-lower

Part #WB2X143

The manufacturer no longer makes this part, and there's no substitute part

Bracket Lever WB2X4059

#1442

All parts diagram

Bracket lever

Part #WB2X4059

The manufacturer no longer makes this part, and there's no substitute part

Bracket WB2X4677

#1437

All parts diagram

Bracket

Part #WB2X4677

The manufacturer no longer makes this part, and there's no substitute part

Trim-control Panel WB7X1545

#923

All parts diagram

Trim-control panel

Part #WB7X1545

The manufacturer no longer makes this part, and there's no substitute part

Pin Foot WB2X7376

#1476

All parts diagram

Pin foot

Part #WB2X7376

The manufacturer no longer makes this part, and there's no substitute part
