Model # AH118K2A2 Official White-Westinghouse room air conditioner - 5995202784

Here are the diagrams and repair parts for Official White-Westinghouse AH118K2A2 room air conditioner - 5995202784, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

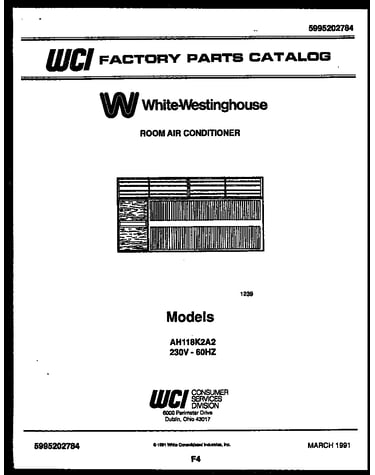

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |
Westinghouse Room Air Conditioner Filter Dryer 5300265301
#6

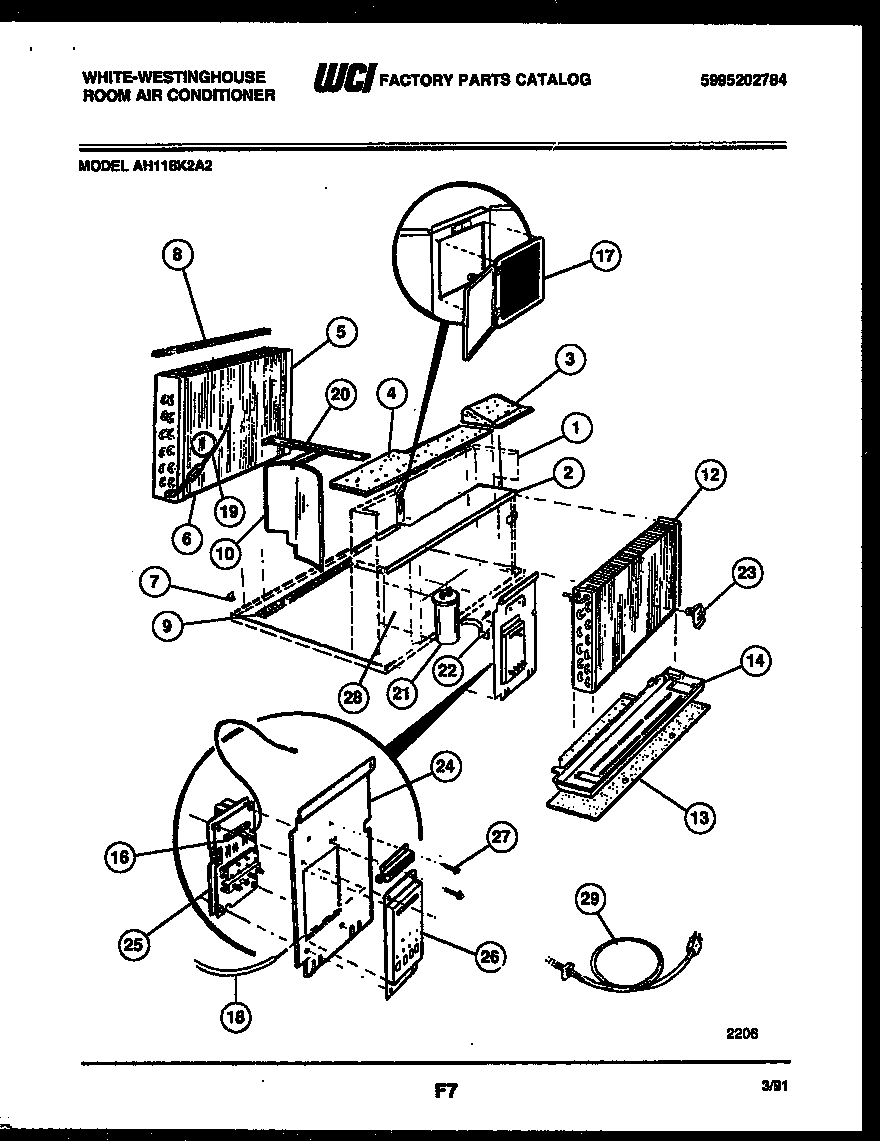

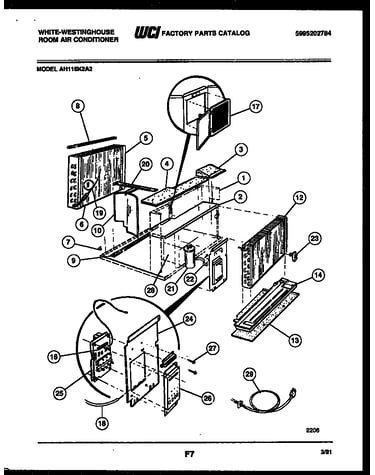

Electrical parts diagram

Westinghouse room air conditioner filter dryer

Part #5300265301

$212.62
In Stock
Screw 08016220
#27

Electrical parts diagram

Screw

Part #08016220

This item is not returnable
$2.16
In Stock
Screw 08012954
#7

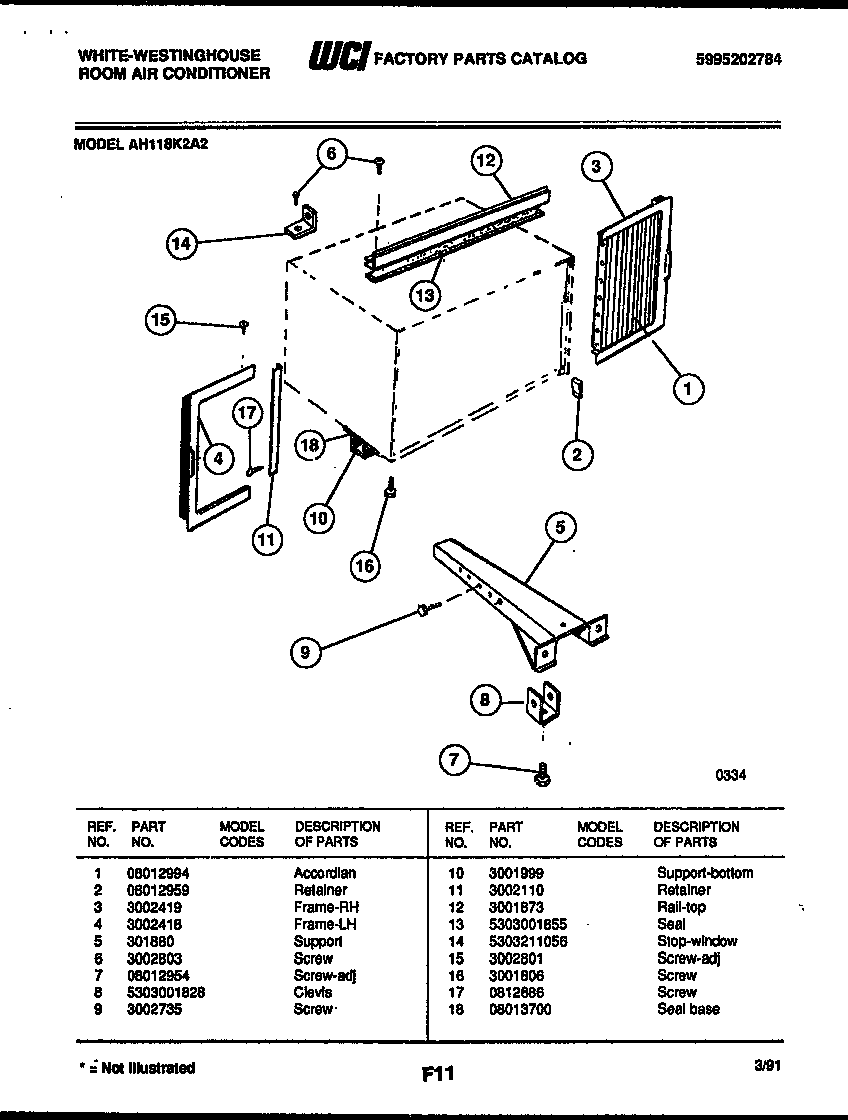

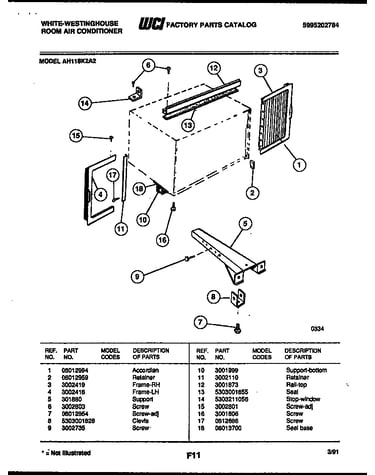

Cabinet and installation parts diagram

Screw

Part #08012954

This item is not returnable
$2.16
In Stock
Panel 5308006428
#2

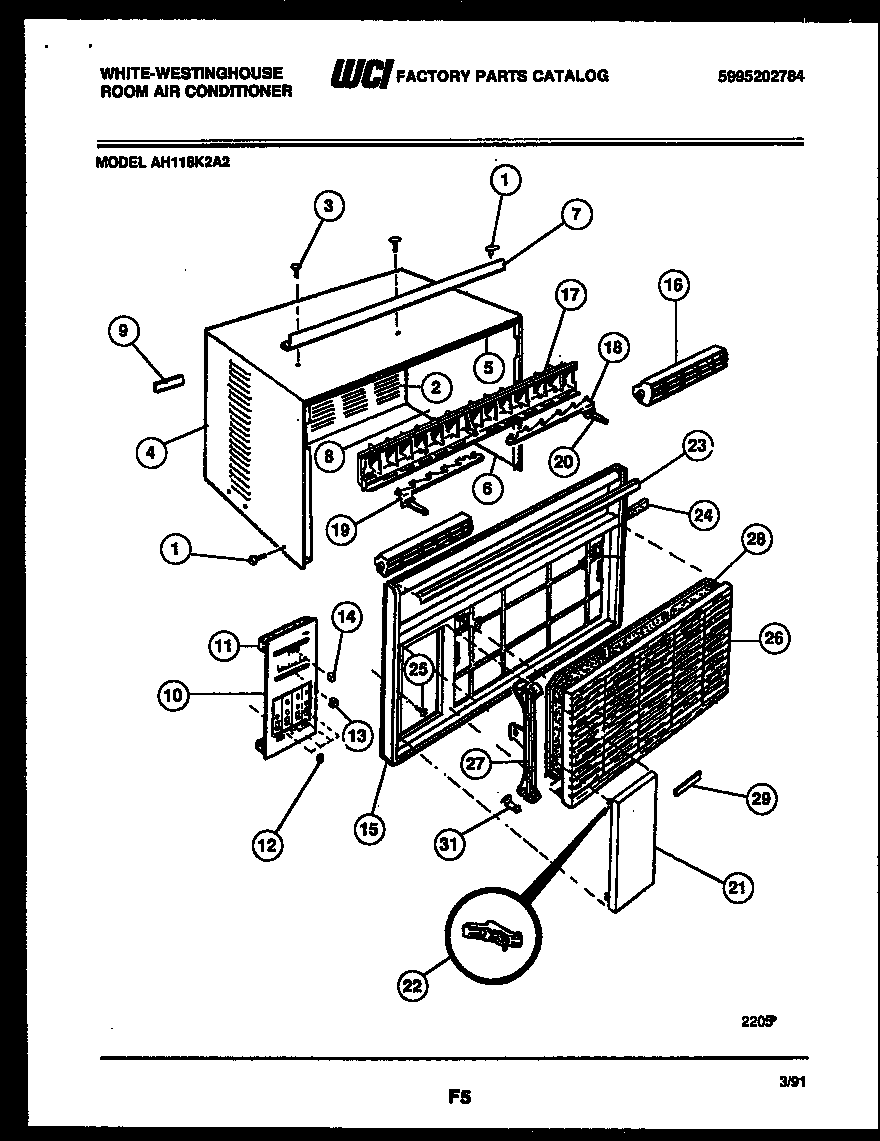

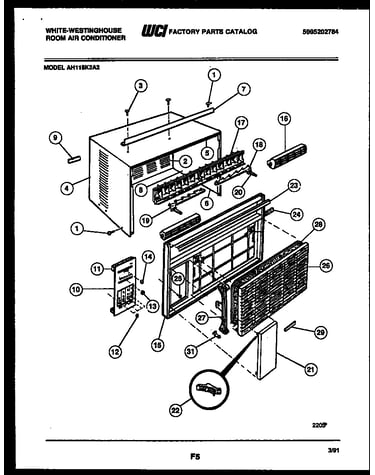

Cabinet parts diagram

Panel

Part #5308006428

$37.99
In Stock
White-westinghouse Nut 5303002952
#9

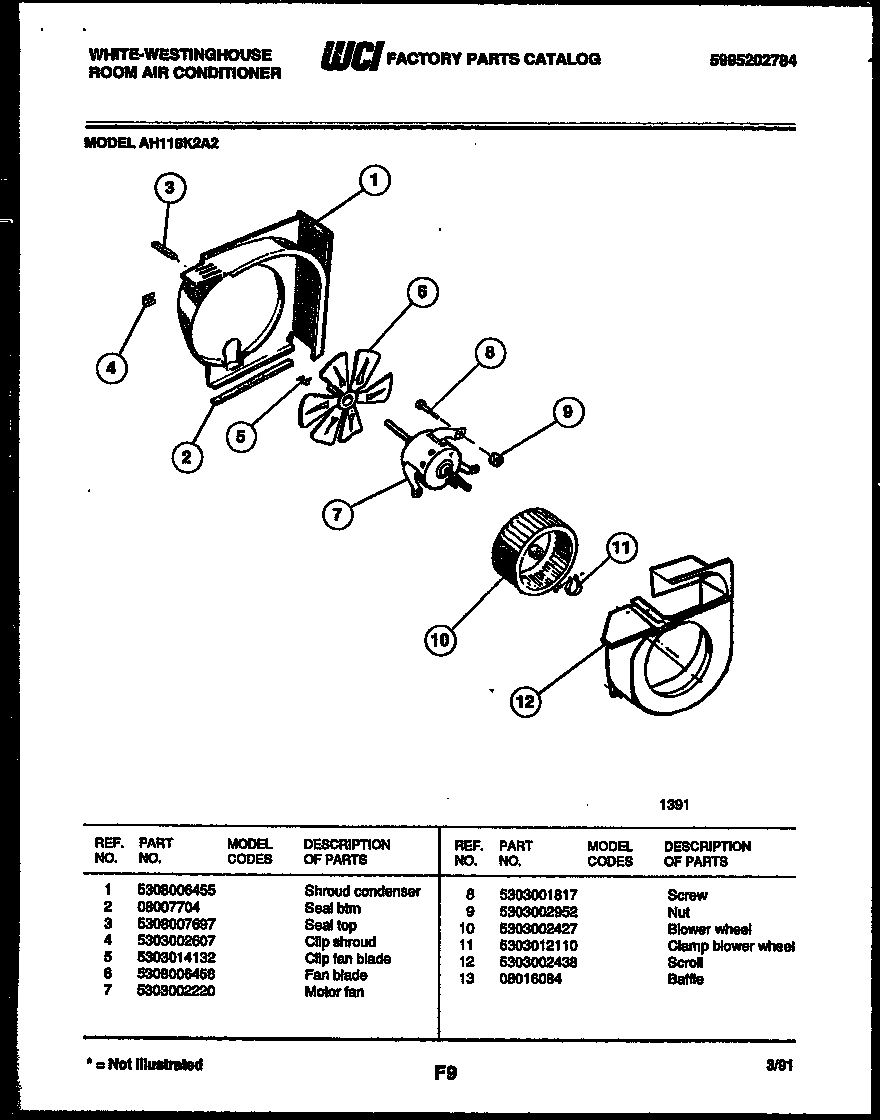

Air handling parts diagram

White-westinghouse nut

Part #5303002952

This item is not returnable
$2.16
In Stock
Door 5303012455
#17

Electrical parts diagram

Door

Part #5303012455

This item is not returnable
$5.99
In Stock
Strap 5303001770
#22

Electrical parts diagram

Strap

Part #5303001770

The manufacturer no longer makes this part, and there's no substitute part

Terminal Cover 3206230
#4

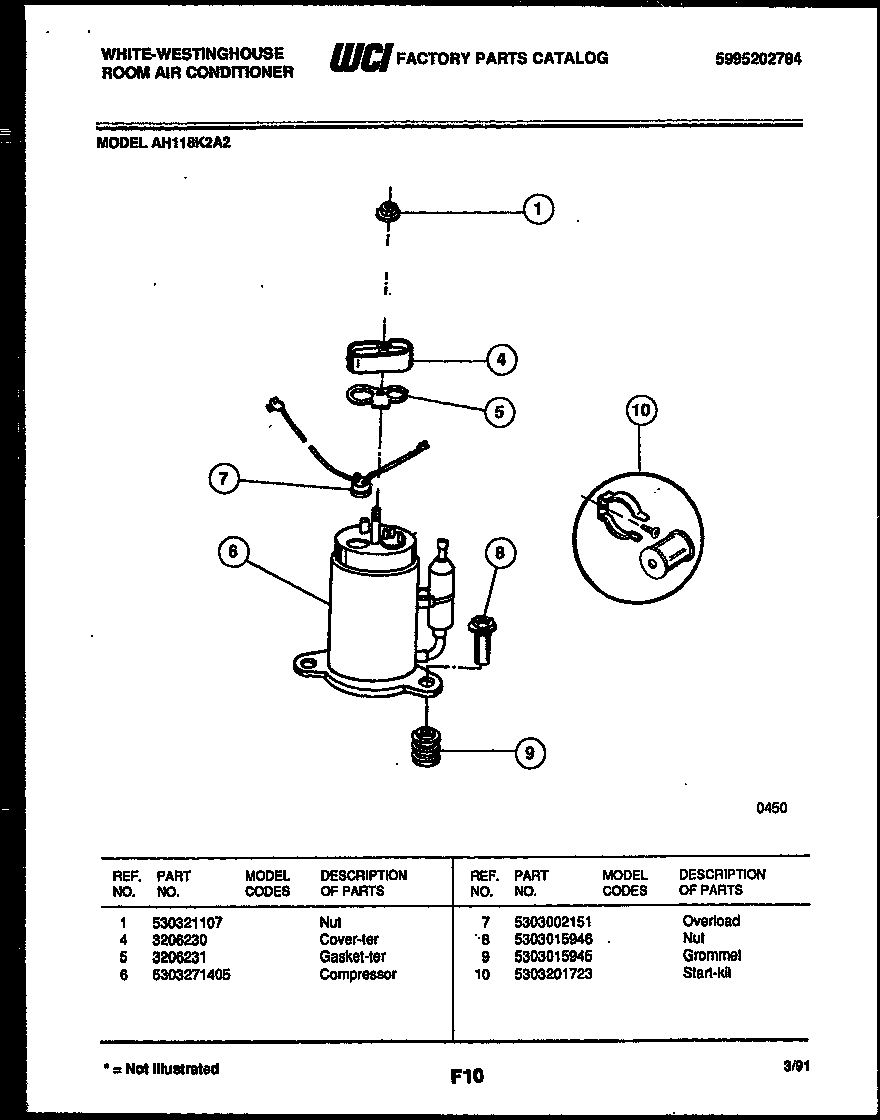

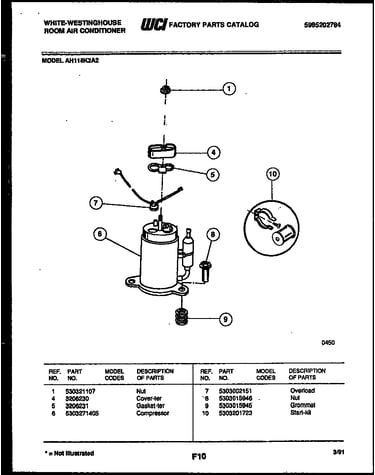

Compressor parts diagram

Terminal cover

Part #3206230

The manufacturer no longer makes this part, and there's no substitute part

Condenser 5303002242
#5

Electrical parts diagram

Condenser

Part #5303002242

The manufacturer no longer makes this part, and there's no substitute part

Frame 5308017244
#16

Cabinet parts diagram

Frame

Part #5308017244

The manufacturer no longer makes this part, and there's no substitute part
