Model # N9MSE1402420A1 Official ICP gas furnace

Here are the diagrams and repair parts for Official ICP N9MSE1402420A1 gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

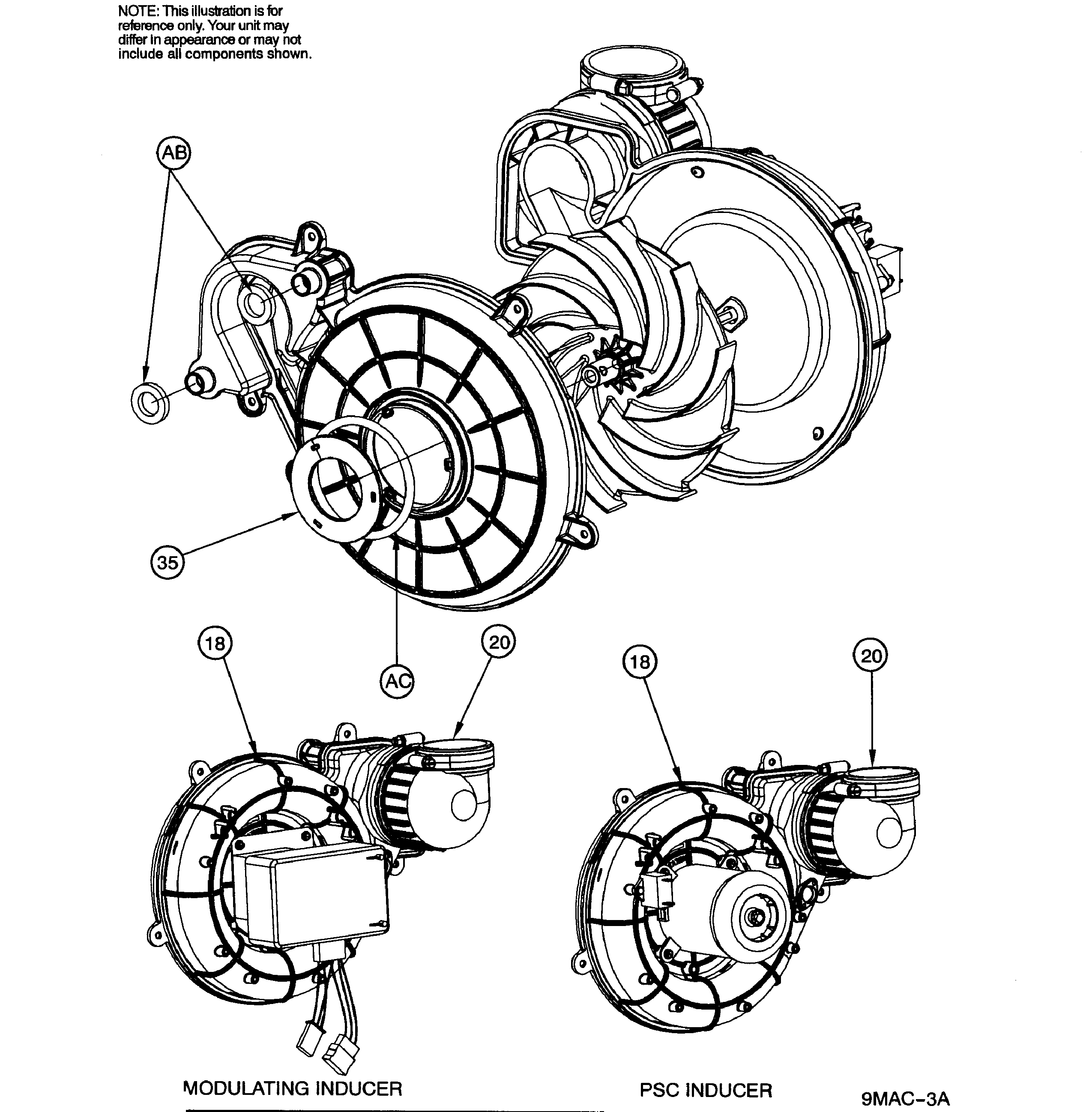

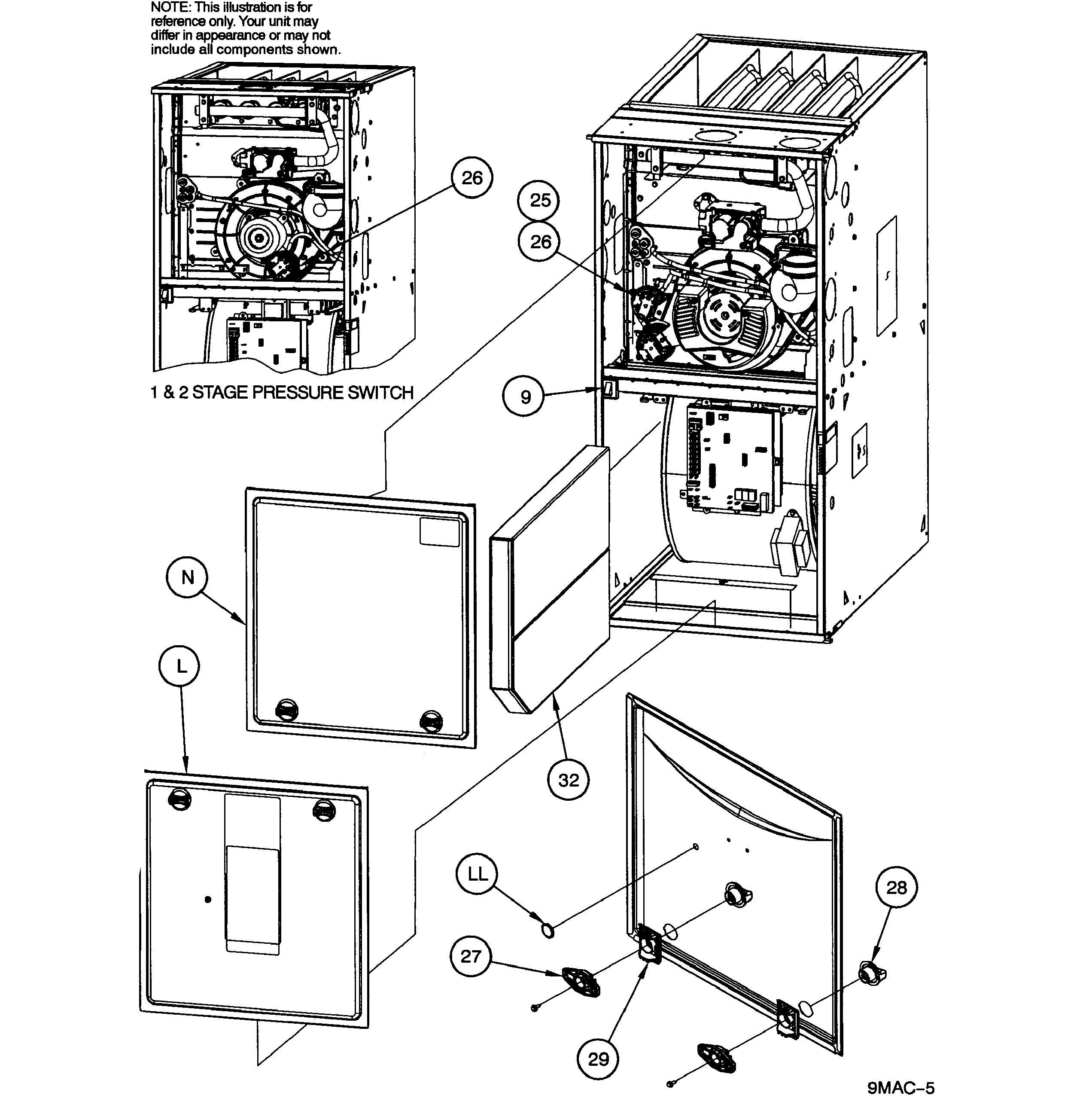

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Furnace Burner Igniter 1176919
#12

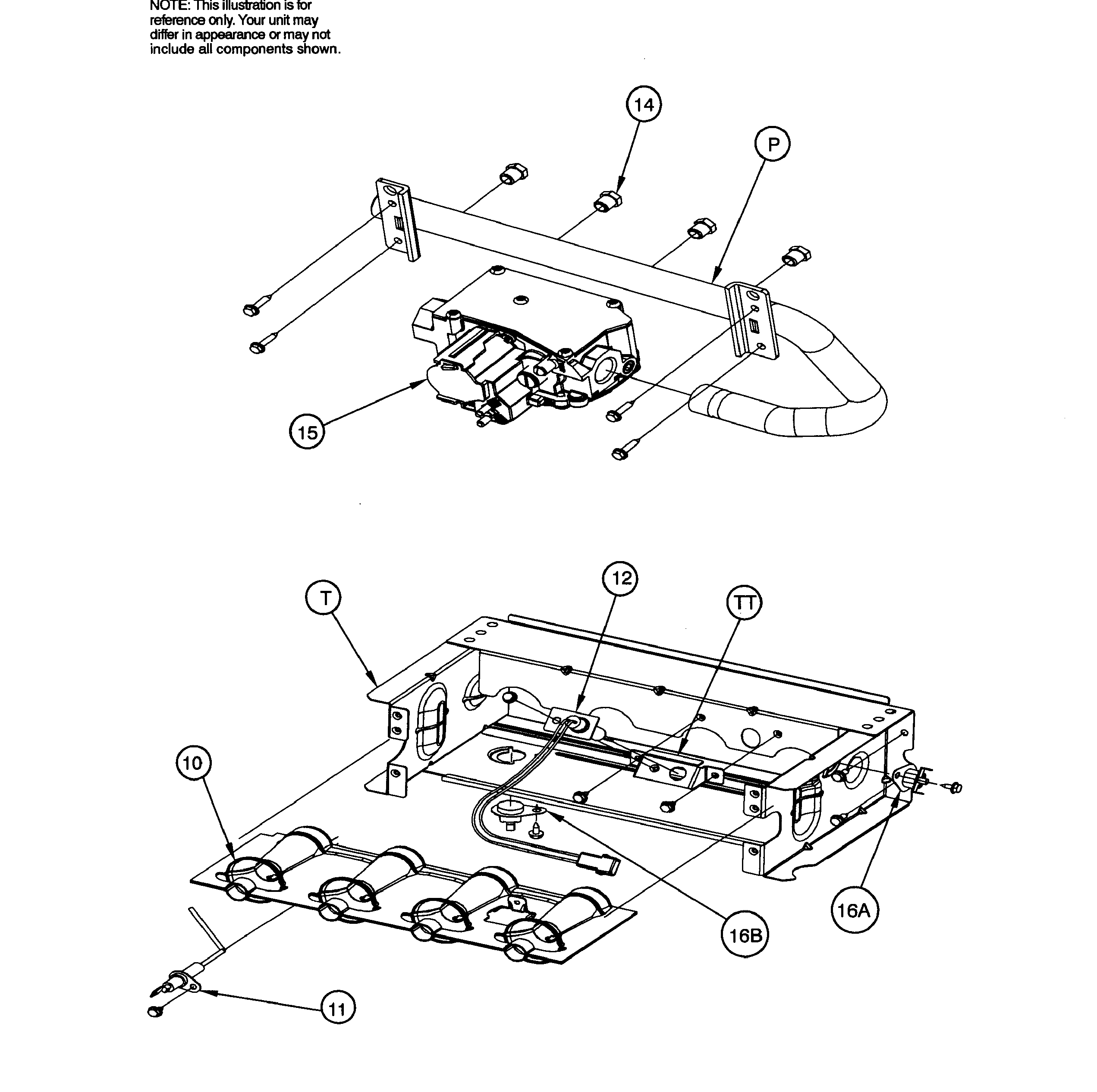

Burner assy diagram

Furnace burner igniter

Part #1176919

$62.36
In Stock
Furnace Electronic Control Board 1184594
#8

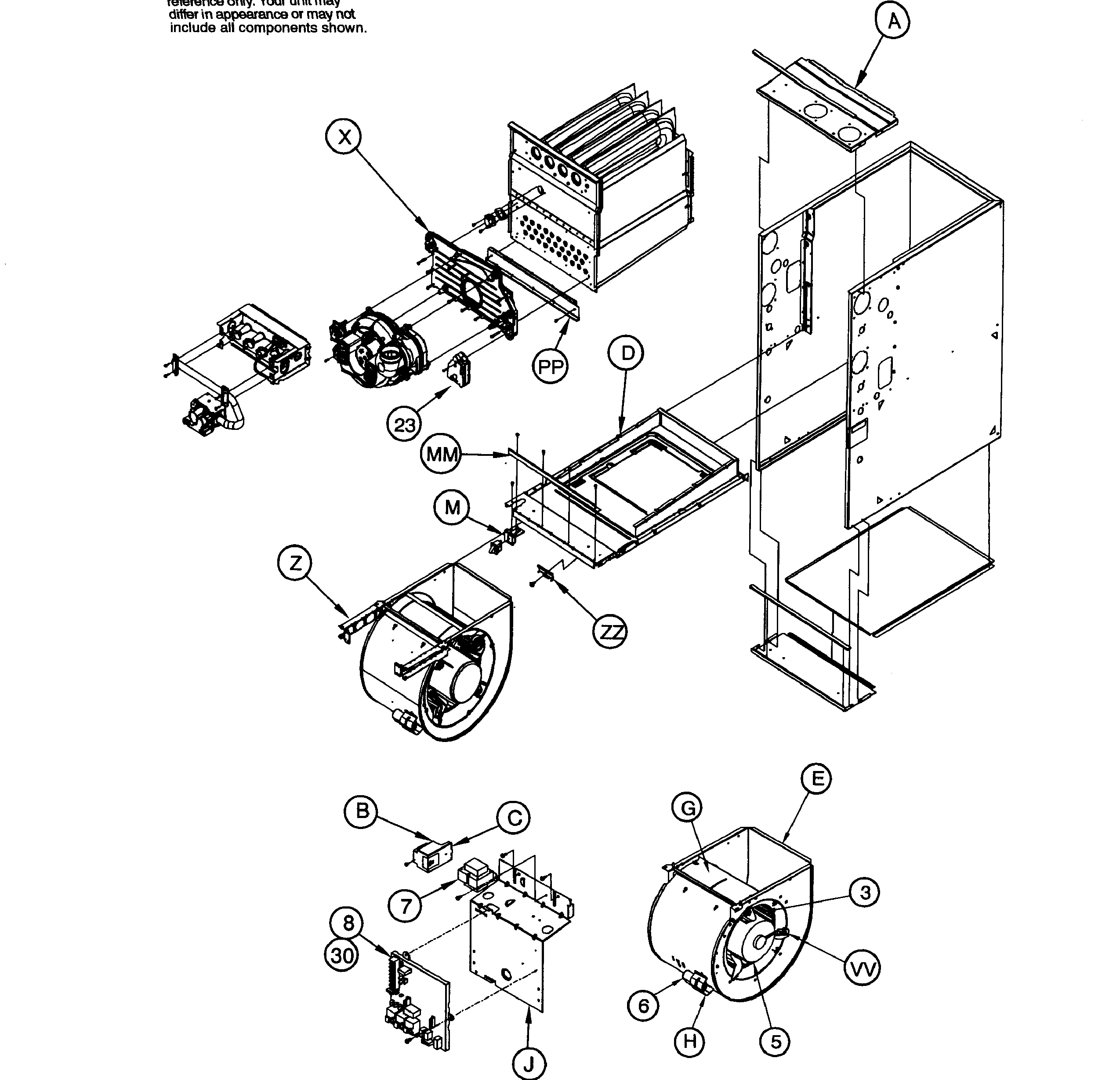

Main assy diagram

Furnace electronic control board

Part #1184594

$187.97 |
6% OFF Phone Price : $199.97
In Stock
Transformer 1177217
#7

Main assy diagram

Transformer

Part #1177217

The manufacturer no longer makes this part, and there's no substitute part

Gasket Mai 1184307
#EE

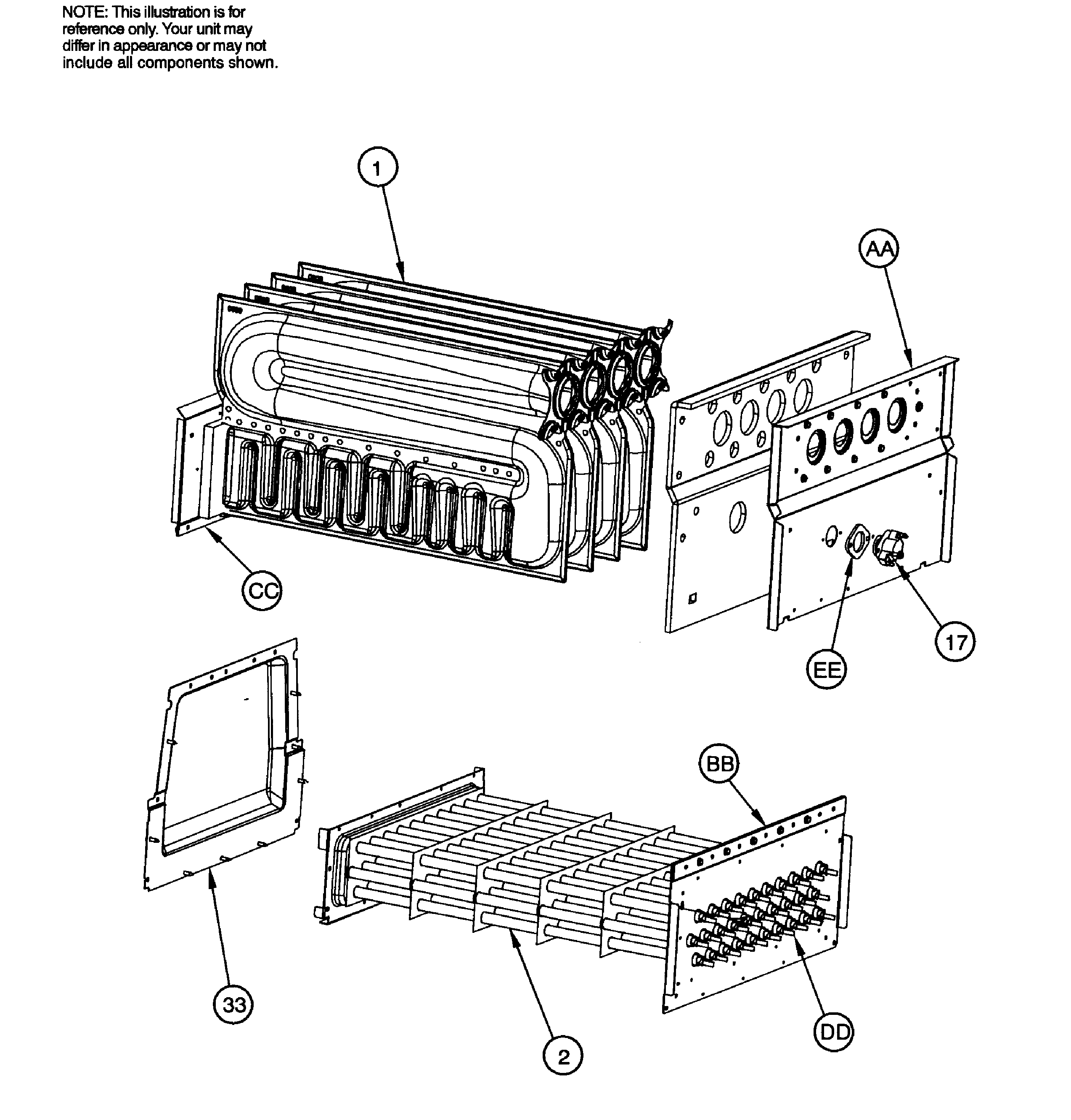

Heat exchange diagram

Gasket mai

Part #1184307

The manufacturer no longer makes this part, and there's no substitute part

Gasket Rea 1184306
#CC

Heat exchange diagram

Gasket rea

Part #1184306

$17.51
In Stock
Plate Assembly 1184273
#A

Main assy diagram

Plate assembly

Part #1184273

$132.26
In Stock
Gasket Fro 1184311
#BB

Heat exchange diagram

Gasket fro

Part #1184311

This item is not returnable
$6.31
In Stock
Kit Rubber 1184481
#NI

Main assy diagram

Kit rubber

Part #1184481

$63.42
In Stock
Drain Plug 1184338
#YY

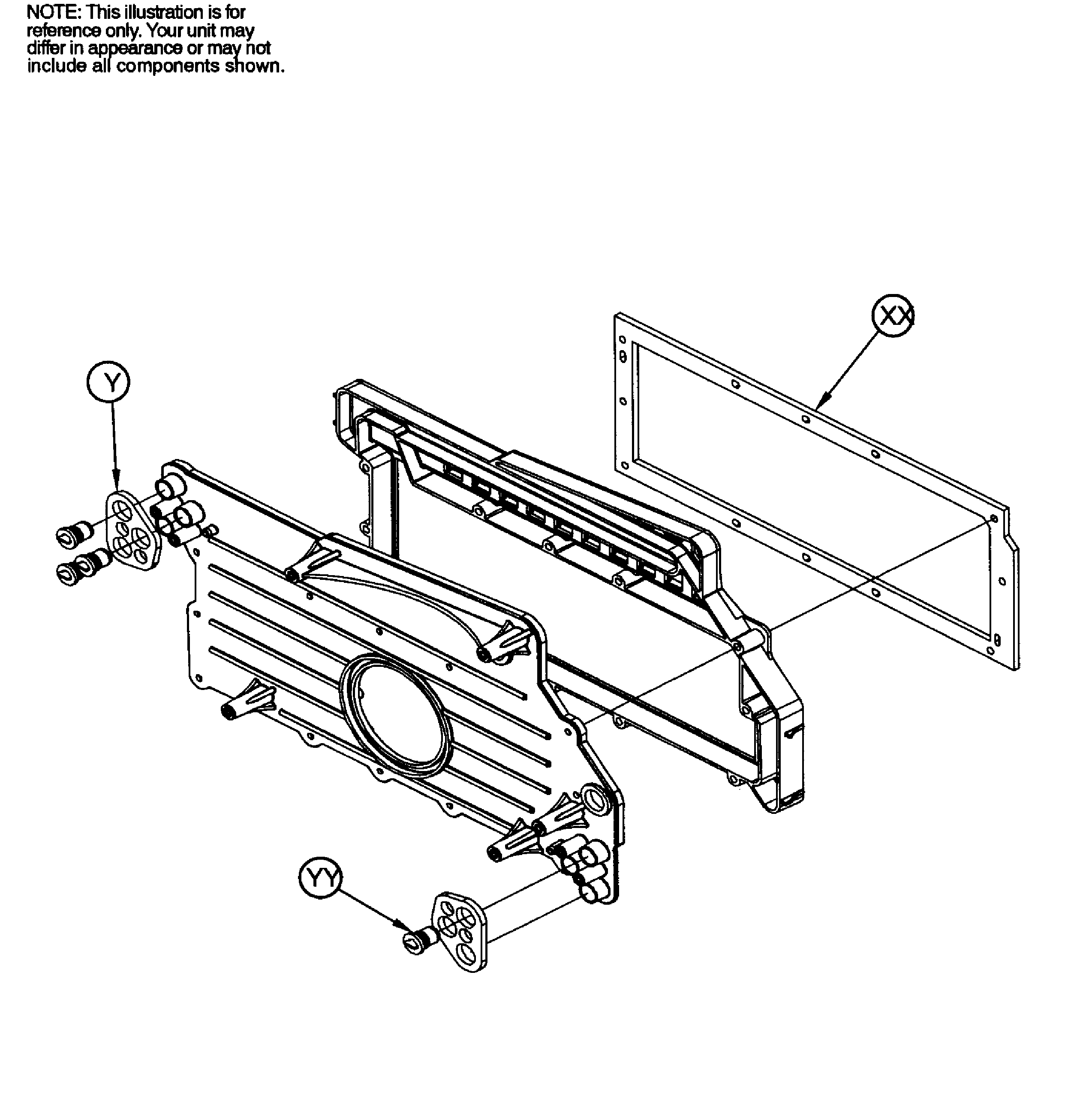

Collector box diagram

Drain plug

Part #1184338

This item is not returnable
$3.26
In Stock
Screw 1/4 1178570
#W

Main assy diagram

Screw 1/4

Part #1178570

This item is not returnable
$2.66
In Stock
