LG
Countertop Microwave

Model # LMH1017CVST Official LG microwave

Here are the diagrams and repair parts for Official LG LMH1017CVST microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

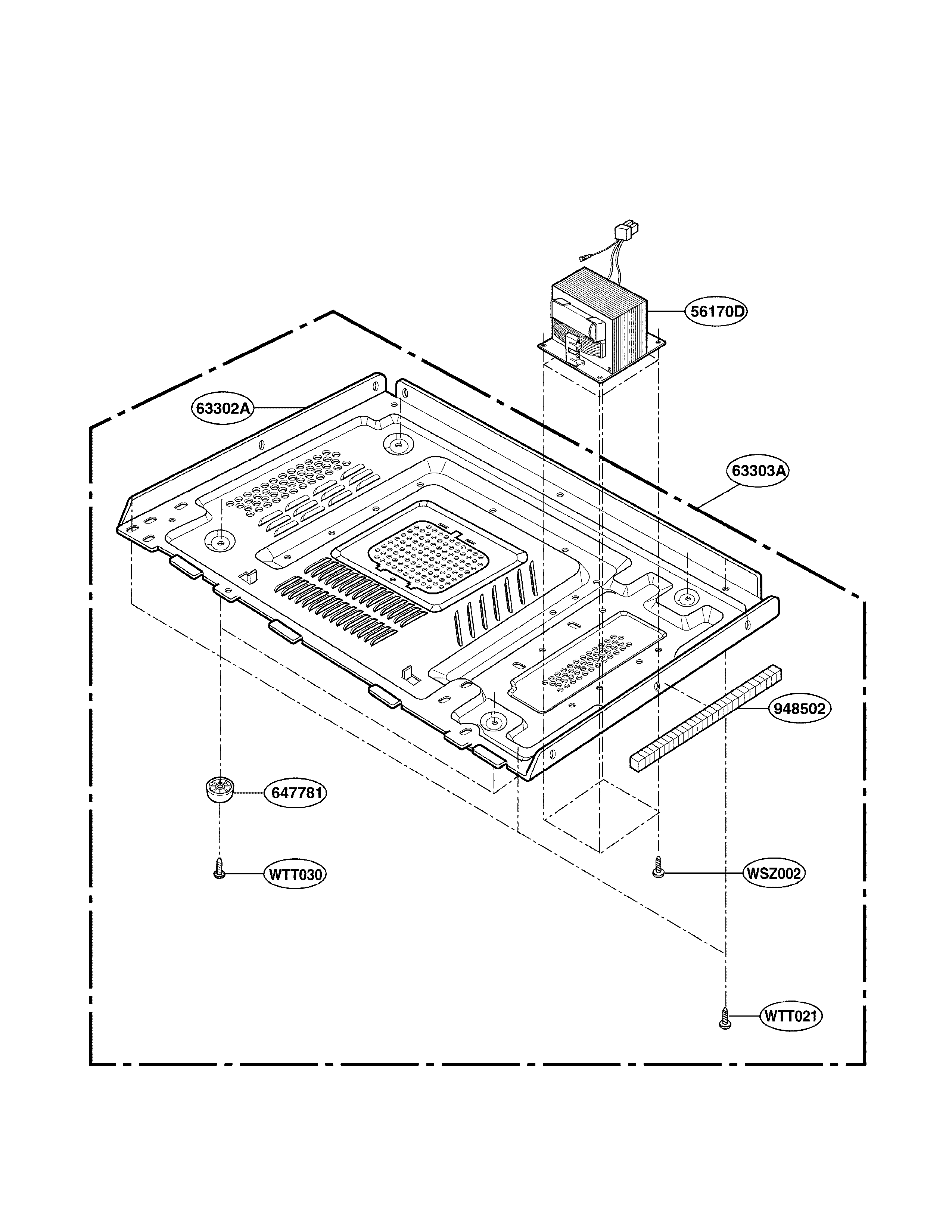

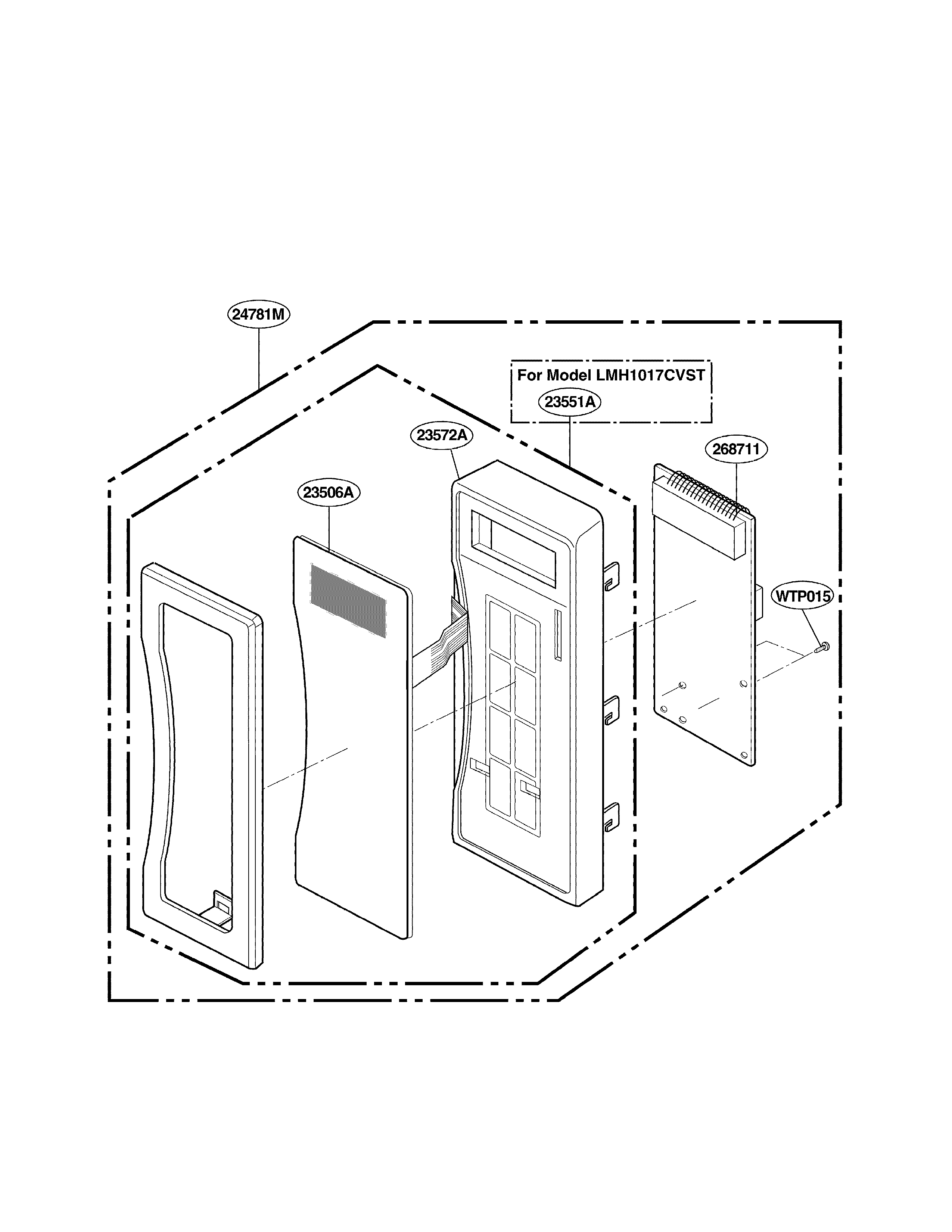

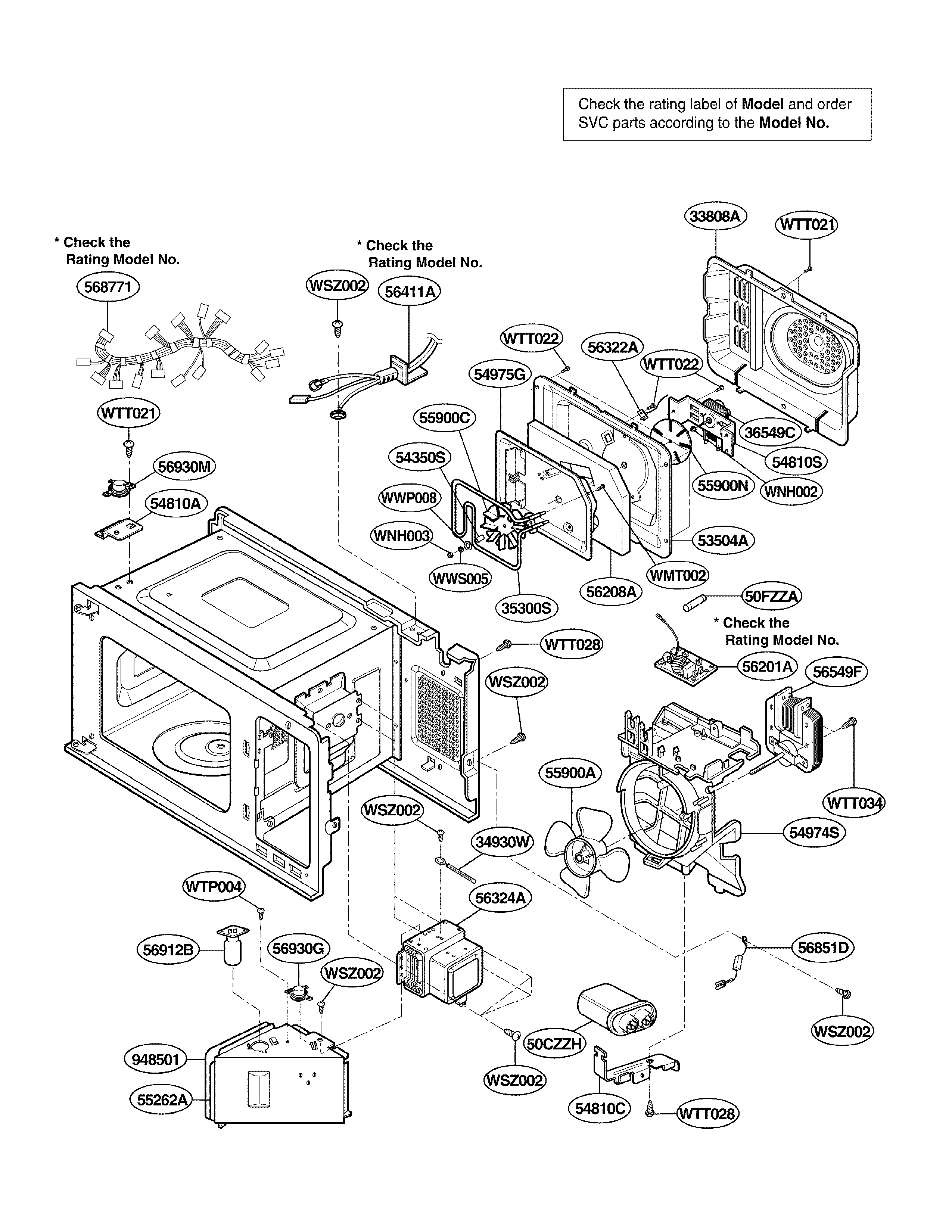

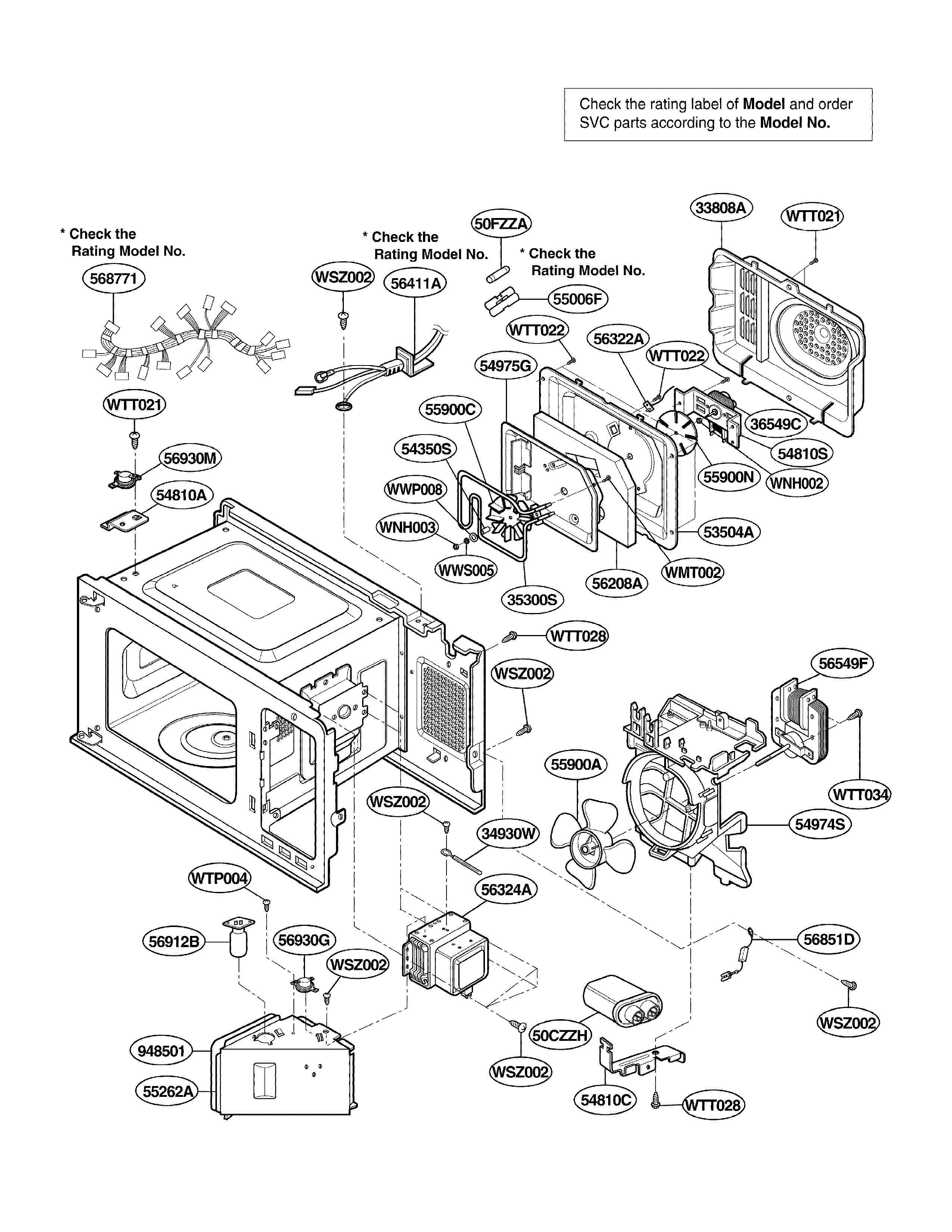

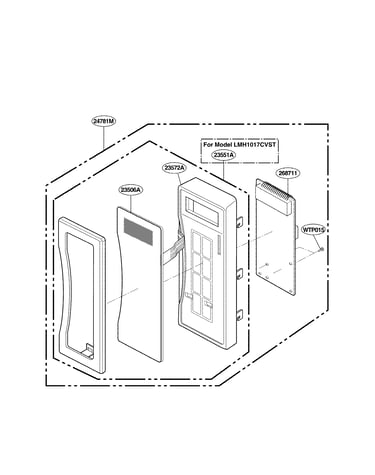

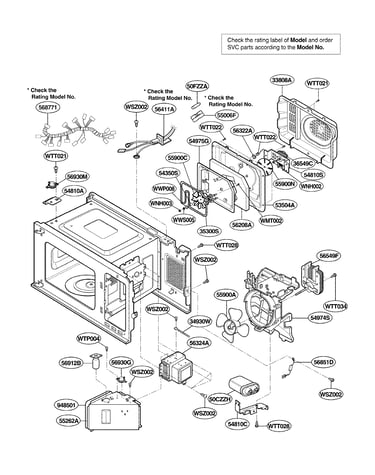

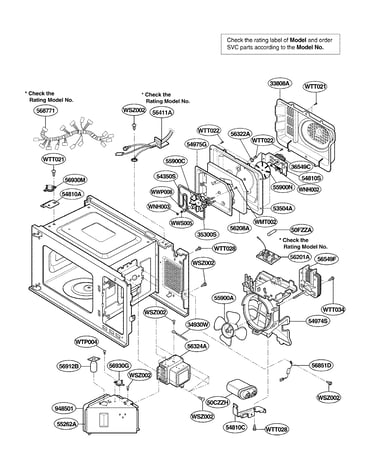

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Microwave Door Latch Hook 4026W2A015A
#1402

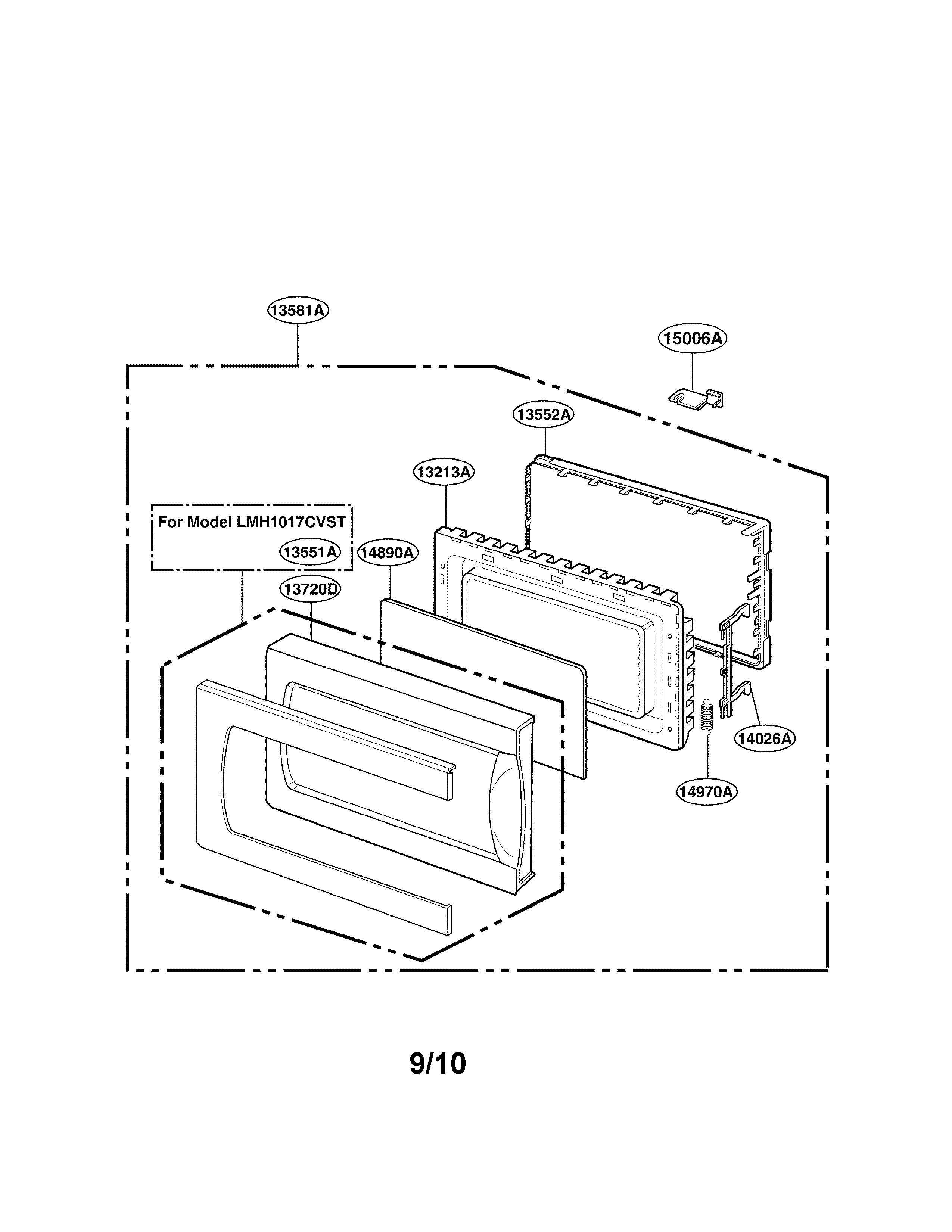

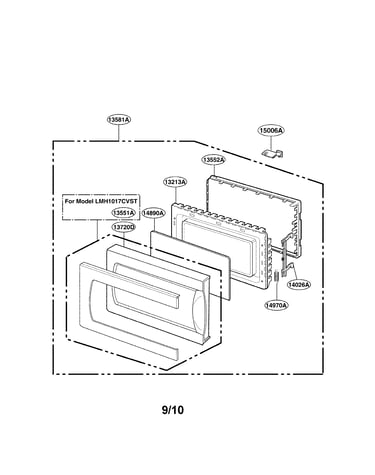

Door parts diagram

Microwave door latch hook

Part #4026W2A015A

Replaced by #4026W2A019C

?
Manufacturer substitution
This part replaces 4026W2A015A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Microwave Light Bulb (replaces 6912w3b002g) 6912W3B002L
Microwave light bulb (replaces 6912w3b002g)

Part #6912W3B002L

BEST SELLER
This item is not returnable
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Microwave Humidity Sensor 6501W1A013A
#5650

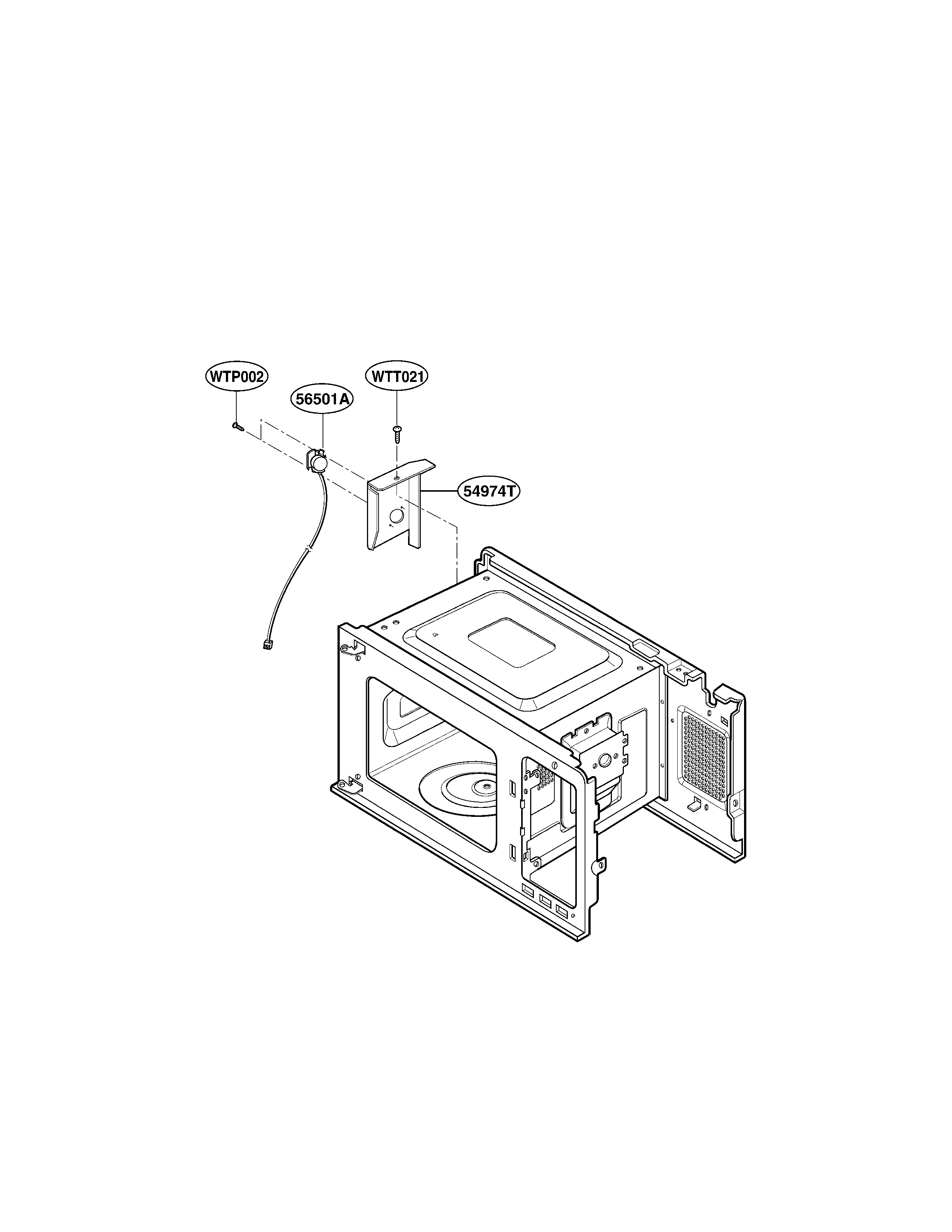

Sensor parts diagram

Microwave humidity sensor

Part #6501W1A013A

BEST SELLER
$45.81 |
12% OFF Phone Price : $51.81
In Stock
Lamp 6912W3B002G
Lamp

Part #6912W3B002G

Replaced by #6912W3B002L

?
Manufacturer substitution
This part replaces 6912W3B002G. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Shaft 3B72373D
#3437

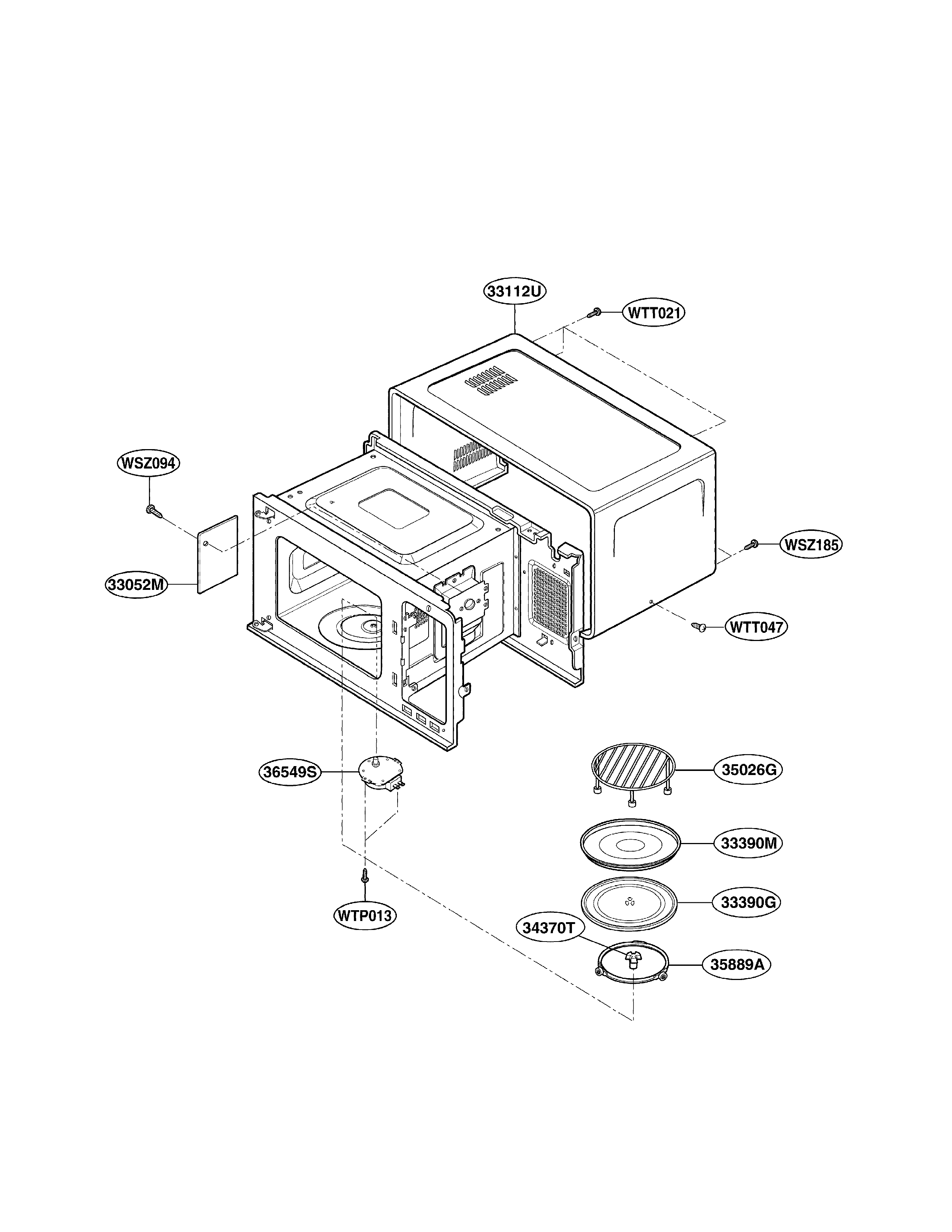

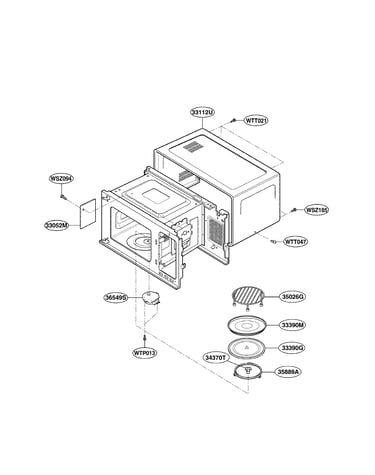

Oven cavity parts diagram

Shaft

Part #3B72373D

Replaced by #4370W1A006B

?
Manufacturer substitution
This part replaces 3B72373D. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.57 |
9% OFF Phone Price : $10.57
In Stock
Microwave Door Latch Holder 3500W1A013A
#4350

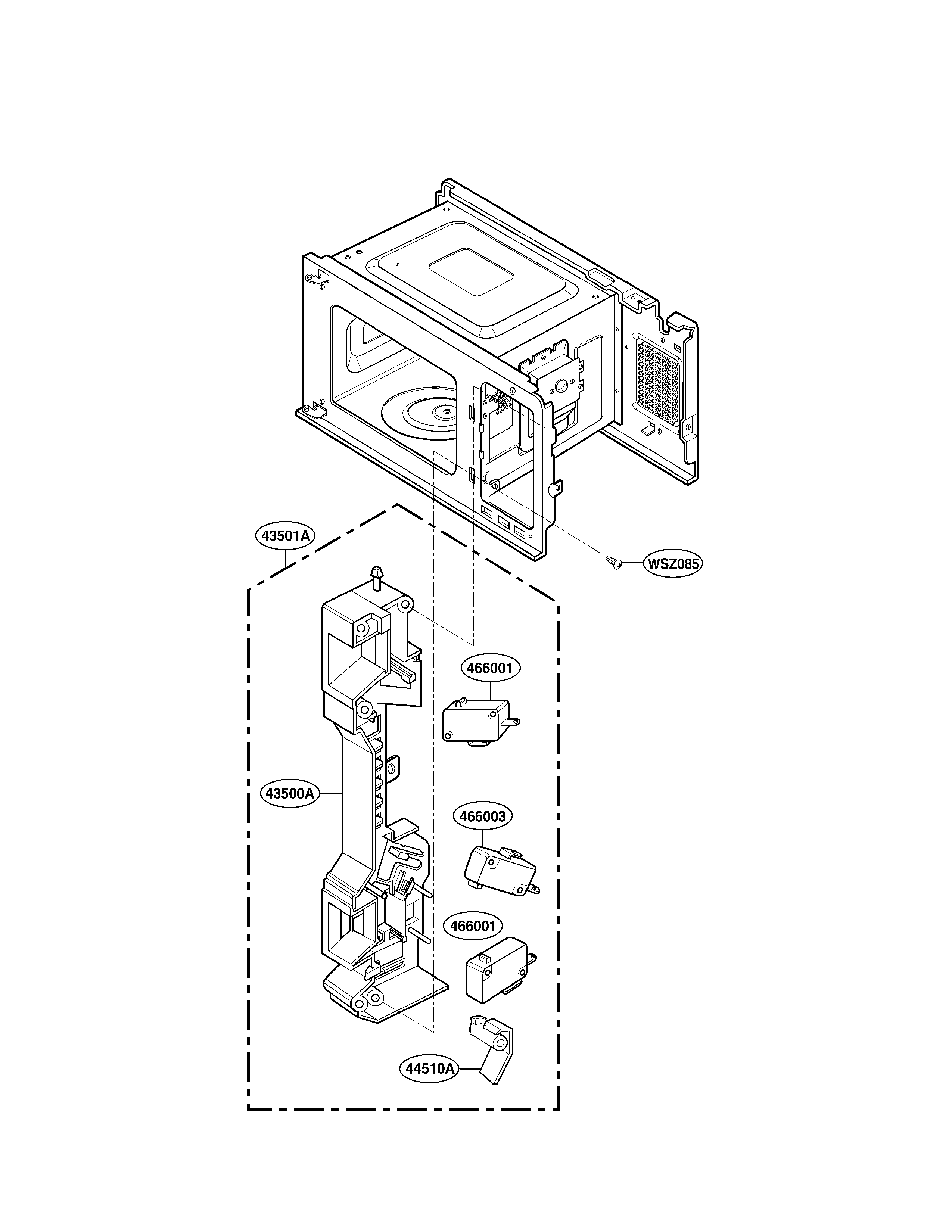

Latch board parts diagram

Microwave door latch holder

Part #3500W1A013A

Replaced by #3500W1A013R

?
Manufacturer substitution
This part replaces 3500W1A013A. Substitute parts can look different from the original.
This item is not returnable
$15.38 |
12% OFF Phone Price : $17.38
Back Order
Us Pressed Steel Microwave Screw 1TTL0402818
Us pressed steel microwave screw

Part #1TTL0402818

This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Us Pressed Steel Microwave Door Latch Lever 4510W4A005A
#4451

Latch board parts diagram

Us pressed steel microwave door latch lever

Part #4510W4A005A

This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Microwave Turntable Motor (replaces 2b72754e, 6549w2s002e) 6549W1S013A
#3654B

Oven cavity parts diagram

Microwave turntable motor (replaces 2b72754e, 6549w2s002e)

Part #6549W1S013A

$29.52 |
17% OFF Phone Price : $35.52
In Stock
Microwave Turntable Motor 2B72754E
#3654

Oven cavity parts diagram

Microwave turntable motor

Part #2B72754E

Replaced by #6549W1S013A

?
Manufacturer substitution
This part replaces 2B72754E. Substitute parts can look different from the original.
$29.52 |
17% OFF Phone Price : $35.52
In Stock
