Kenmore
Outdoor Grill

Model # 141229952 Official Kenmore patio heater

Here are the diagrams and repair parts for Official Kenmore 141229952 patio heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |
Push Cap PH004
#3

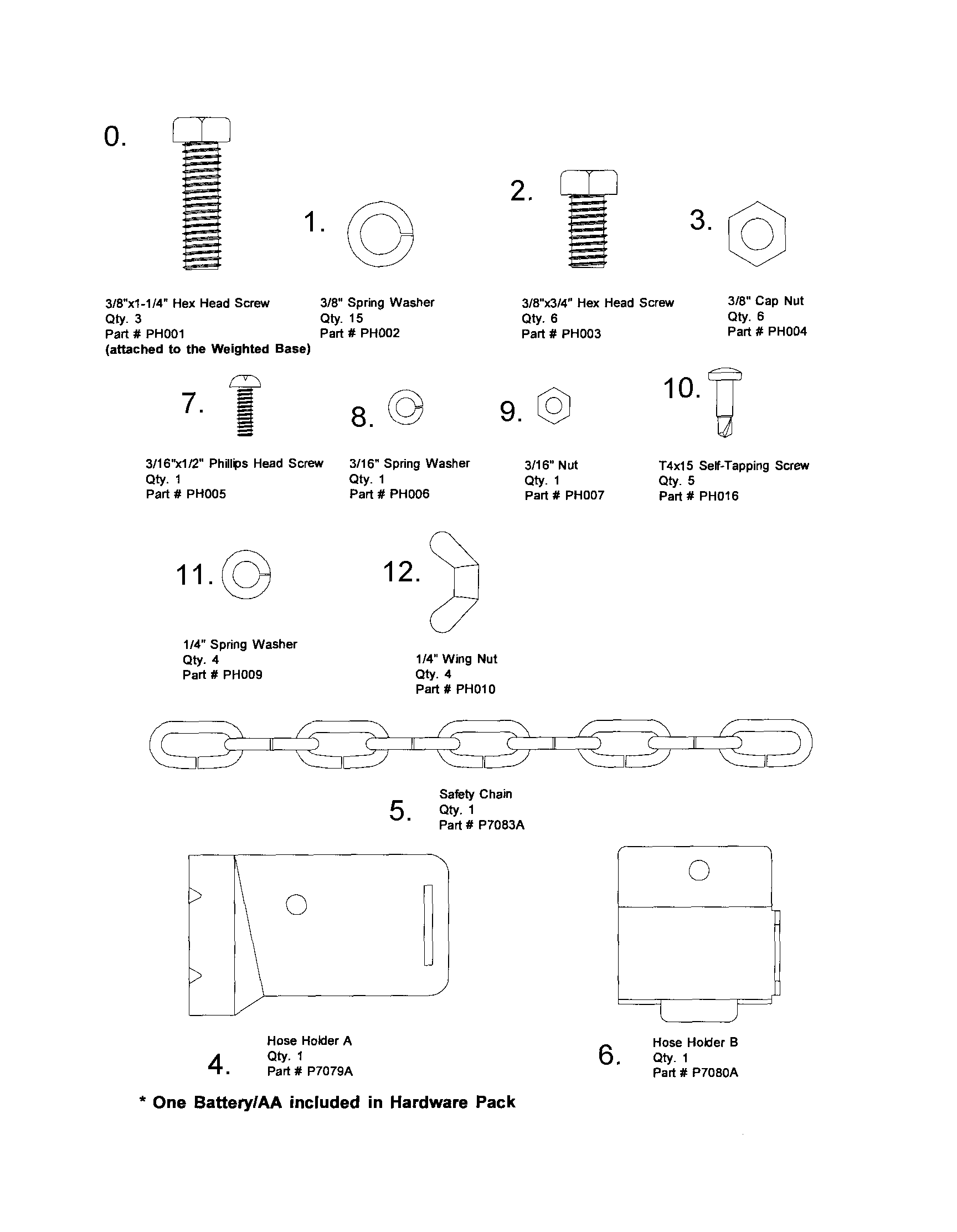

Hardware pack diagram

Push cap

Part #PH004

The manufacturer no longer makes this part, and there's no substitute part

Heater Head P7086A
#2

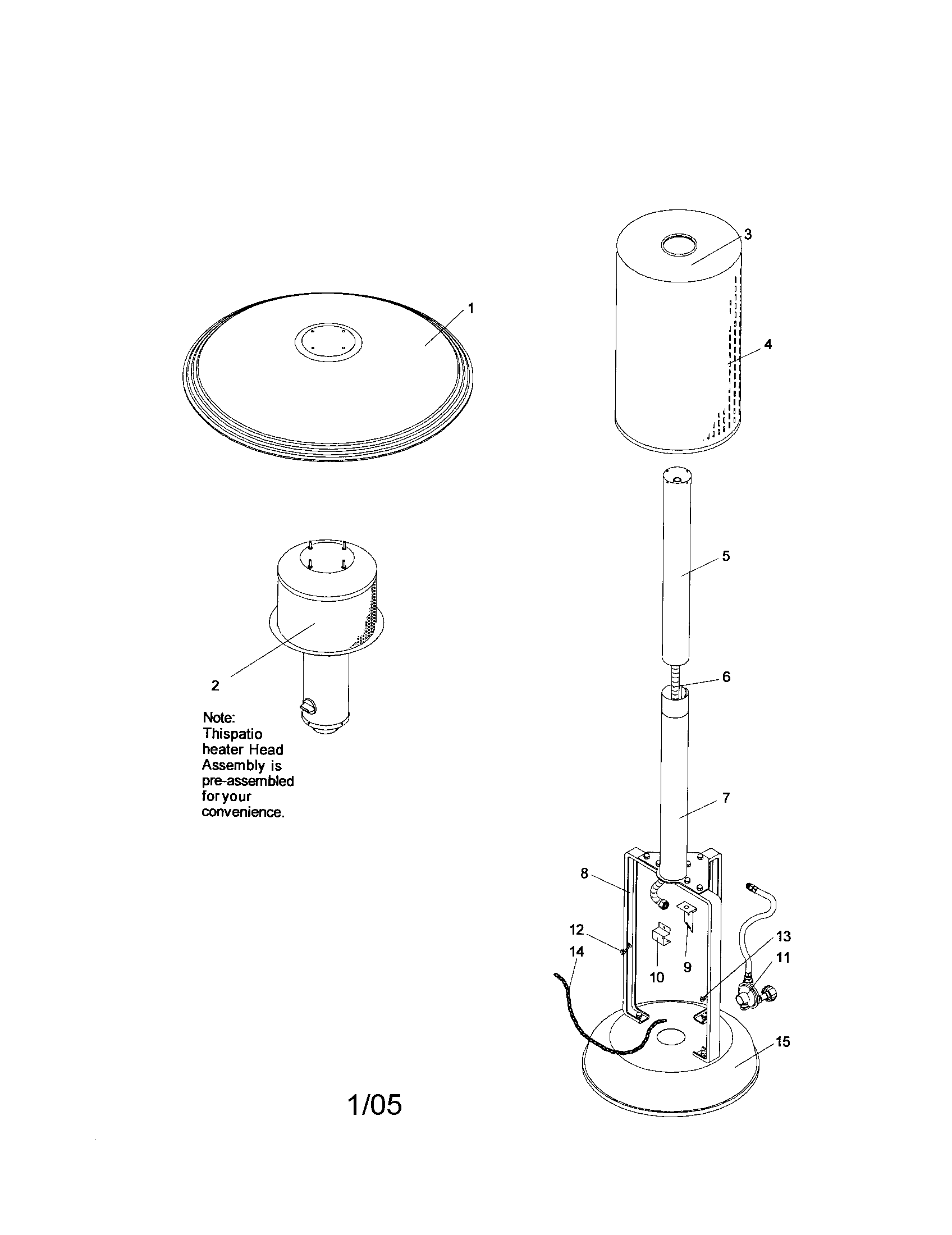

Patio heater diagram

Heater head

Part #P7086A

The manufacturer no longer makes this part, and there's no substitute part

Post P7077A
#7

Patio heater diagram

Post

Part #P7077A

The manufacturer no longer makes this part, and there's no substitute part

Holder P7080A
Holder

Part #P7080A

The manufacturer no longer makes this part, and there's no substitute part

Tank Cover P7074A
#4

Patio heater diagram

Tank cover

Part #P7074A

The manufacturer no longer makes this part, and there's no substitute part

Screw PH005
#7

Hardware pack diagram

Screw

Part #PH005

The manufacturer no longer makes this part, and there's no substitute part

Washer PH002
#1

Hardware pack diagram

Washer

Part #PH002

The manufacturer no longer makes this part, and there's no substitute part

Wing Nut PH010
#12

Hardware pack diagram

Wing nut

Part #PH010

The manufacturer no longer makes this part, and there's no substitute part

Chain Hook P05514045A
#13

Patio heater diagram

Chain hook

Part #P05514045A

The manufacturer no longer makes this part, and there's no substitute part

Chain Hook P7082A
#12

Patio heater diagram

Chain hook

Part #P7082A

The manufacturer no longer makes this part, and there's no substitute part
