Roper
Central Air Conditioner

Model # X24004A0 Official Roper air conditioner

Here are the diagrams and repair parts for Official Roper X24004A0 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

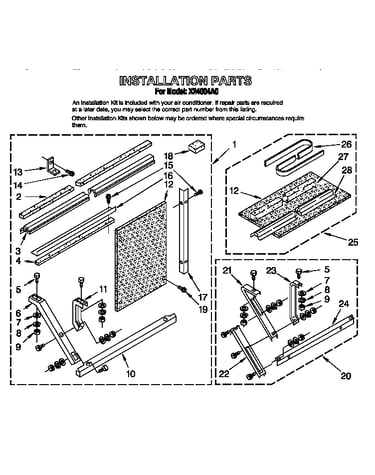

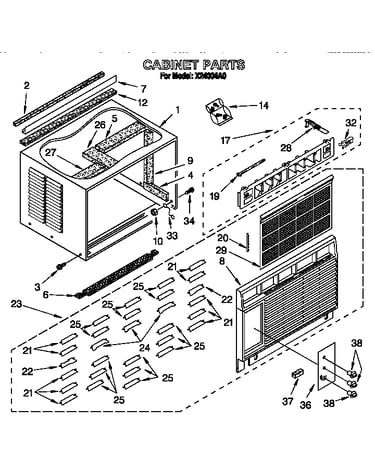

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 180 parts  |
Valve 876764
#6A

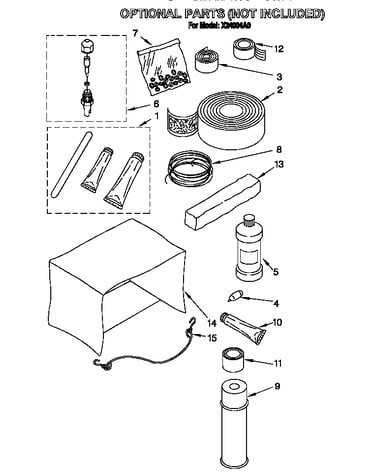

Optional parts (not included) diagram

Valve

Part #876764

Replaced by #876764

?
Manufacturer substitution
This part replaces 876764. Substitute parts can look different from the original.
BEST SELLER
$26.12 |
19% OFF Phone Price : $32.12
In Stock
Washer 1160880
#43

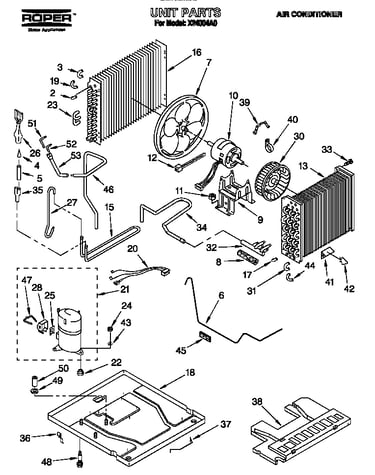

Unit diagram

Washer

Part #1160880

Replaced by #W11236646

?
Manufacturer substitution
This part replaces 1160880. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Refrigerator Screw 1157158
Refrigerator screw

Part #1157158

Replaced by #WP489069

?
Manufacturer substitution
This part replaces 1157158. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Sealer 212643
#12

Optional parts (not included) diagram

Sealer

Part #212643

Replaced by #212643

?
Manufacturer substitution
This part replaces 212643. Substitute parts can look different from the original.
This item is not returnable
$50.09 |
11% OFF Phone Price : $56.09
In Stock
Wire Tie 1159130
#18

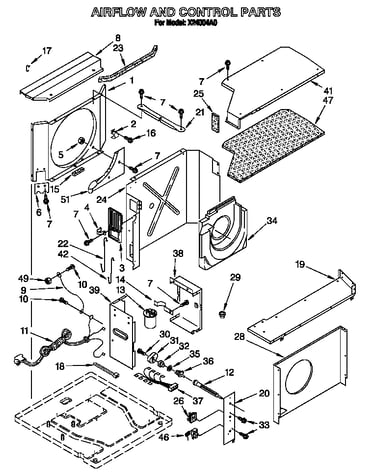

Air flow and control diagram

Wire tie

Part #1159130

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces 1159130. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Wire Tie 602851
#12

Unit diagram

Wire tie

Part #602851

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces 602851. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Sealer 99344
#13

Optional parts (not included) diagram

Sealer

Part #99344

Replaced by #4318168

?
Manufacturer substitution
This part replaces 99344. Substitute parts can look different from the original.
$29.89
In Stock
Refrigerant Access Valve, 5/8-in 978029
#6F

Optional parts (not included) diagram

Refrigerant access valve, 5/8-in

Part #978029

Replaced by #978029

?
Manufacturer substitution
This part replaces 978029. Substitute parts can look different from the original.
$41.18
In Stock
Clip, Shroud 1164511
#17

Air flow and control diagram

Clip, shroud

Part #1164511

This item is not returnable
$3.29
In Stock
Shroud Clip 1161248
#2

Air flow and control diagram

Shroud clip

Part #1161248

This item is not returnable
$3.29
In Stock
