Model # 73XCB112101E Official Carrier room air conditioner

Here are the diagrams and repair parts for Official Carrier 73XCB112101E room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

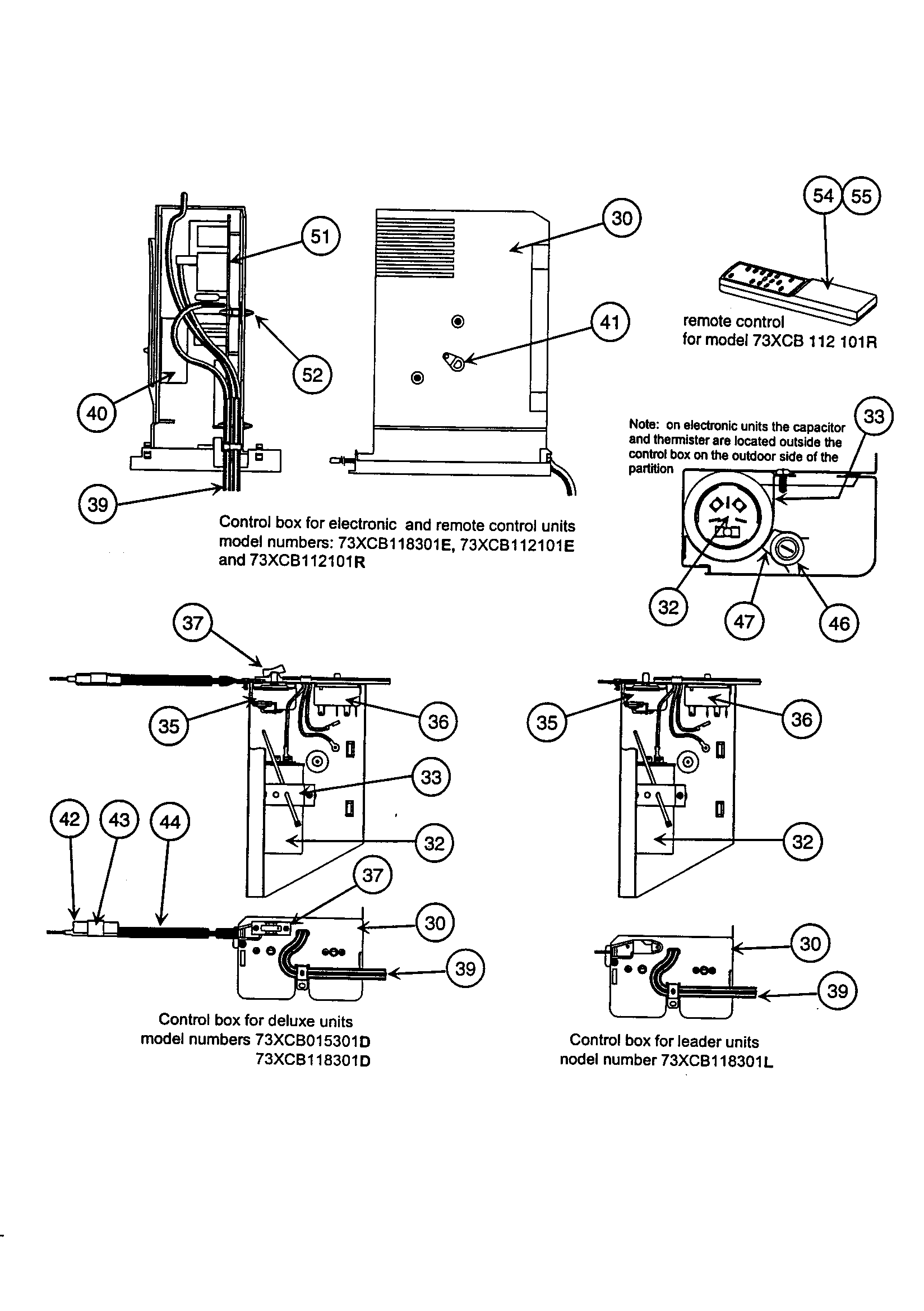

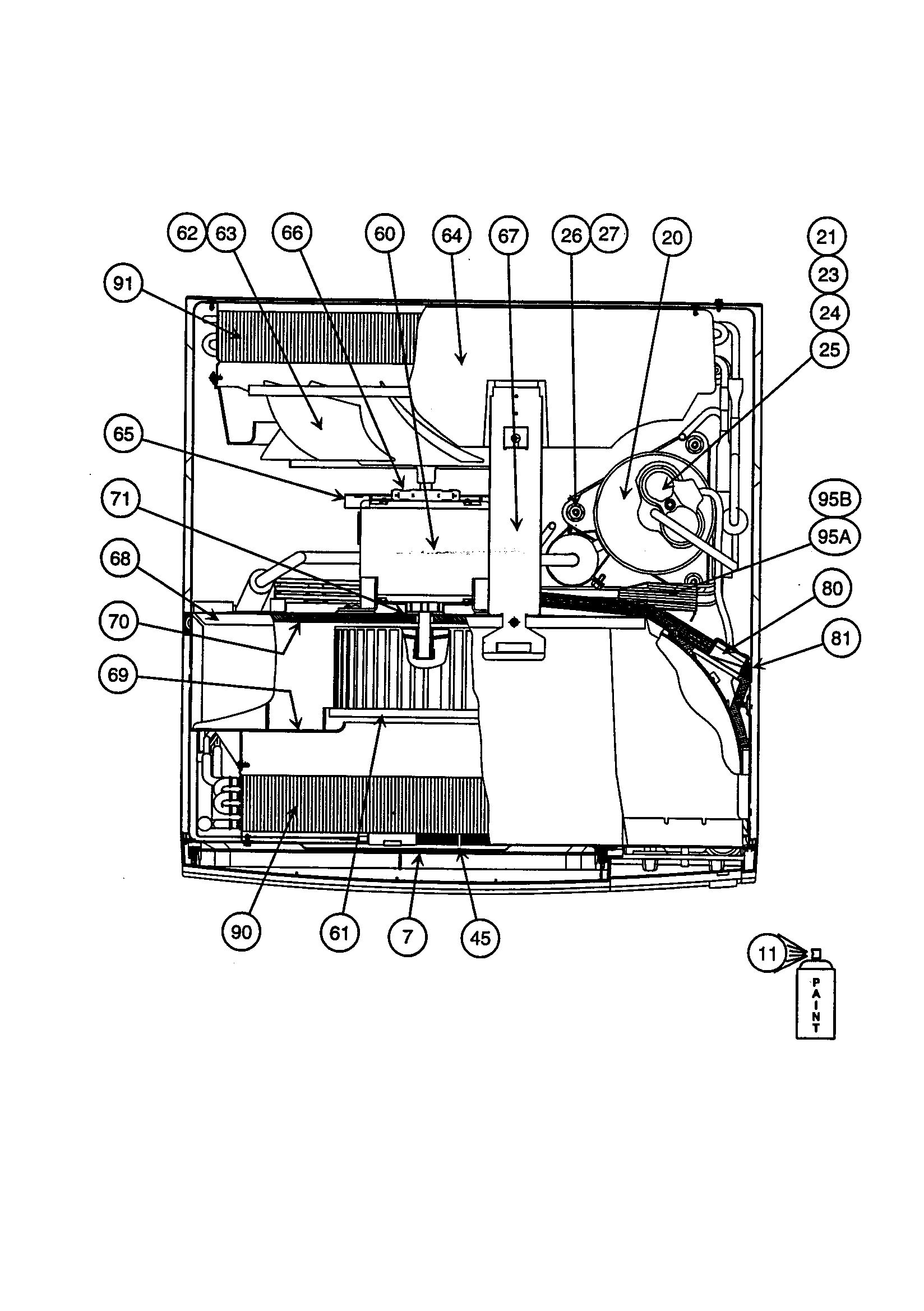

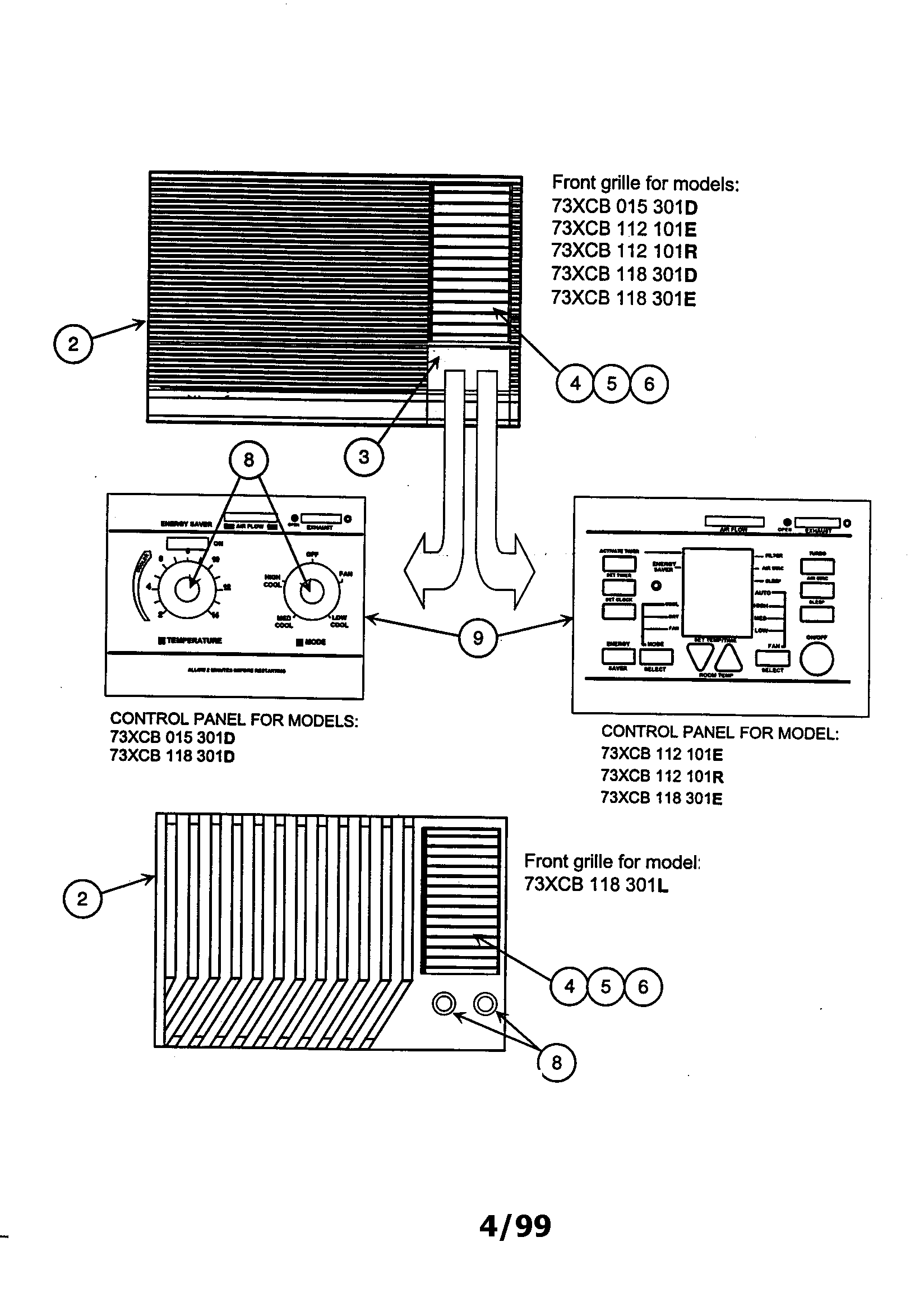

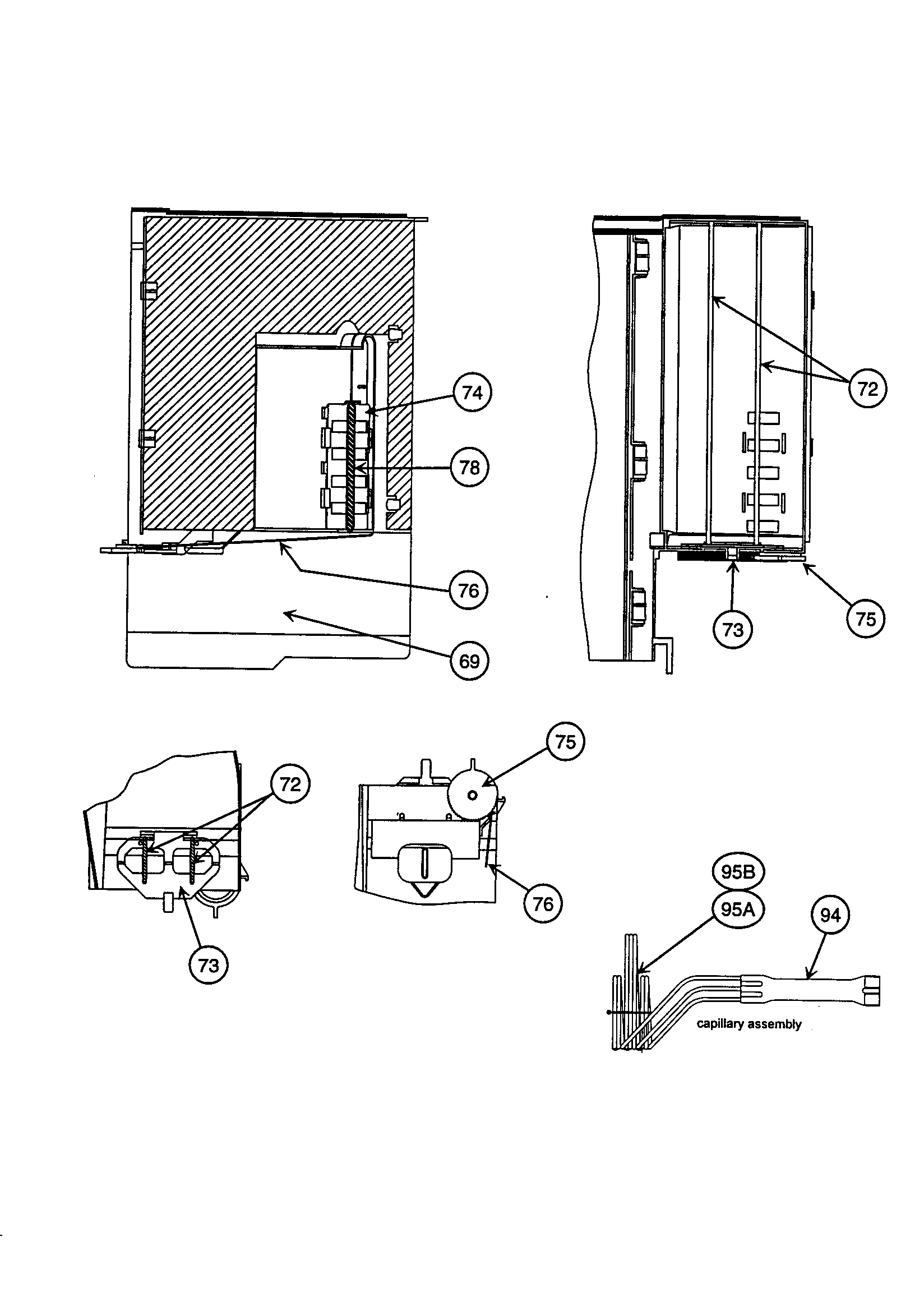

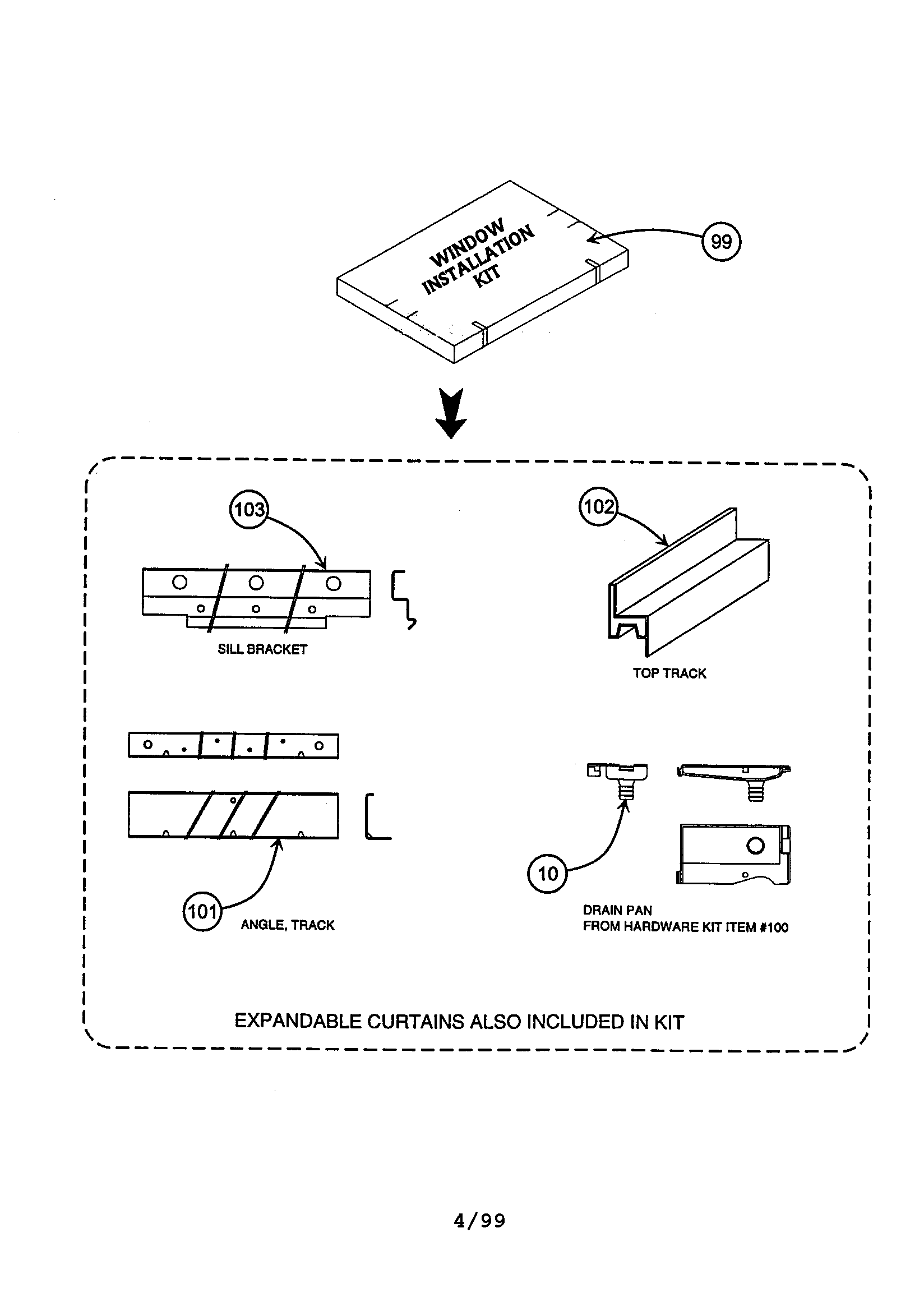

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Overload HN68GP154

#21

All parts diagram

Overload

Part #HN68GP154

$32.31
In Stock
Air Conditioner Exhaust Vent 03501031

#75

All parts diagram

Air conditioner exhaust vent

Part #03501031

$33.53
In Stock
Switch 06305012

#37

All parts diagram

Switch

Part #06305012

Replaced by #06305012

?
Manufacturer substitution
This part replaces 06305012. Substitute parts can look different from the original.
This item is not returnable
$5.34
In Stock
Fan Blade 17604014

#62

All parts diagram

Fan blade

Part #17604014

Replaced by #17604014

?
Manufacturer substitution
This part replaces 17604014. Substitute parts can look different from the original.
$97.51
In Stock
Cover Terminal 51cma109101b, 51cma115311k, 51cmb109101b, 51cmb109101k, 51cmb109111k 7AD9007D

#23

All parts diagram

Cover terminal 51cma109101b, 51cma115311k, 51cmb109101b, 51cmb109101k, 51cmb109111k

Part #7AD9007D

The manufacturer no longer makes this part, and there's no substitute part

Airsweep Motor (73xcb112101e) 25904021

#40

All parts diagram

Airsweep motor (73xcb112101e)

Part #25904021

The manufacturer no longer makes this part, and there's no substitute part

Louver 46406007

#4

All parts diagram

Louver

Part #46406007

The manufacturer no longer makes this part, and there's no substitute part

Compressor (73xcb015301d) P0331421

#20

All parts diagram

Compressor (73xcb015301d)

Part #P0331421

The manufacturer no longer makes this part, and there's no substitute part

Retainer, Circuit Board (2) (model 73yca121301r) 33701069

#52

All parts diagram

Retainer, circuit board (2) (model 73yca121301r)

Part #33701069

The manufacturer no longer makes this part, and there's no substitute part

Scroll 05812060

#69

All parts diagram

Scroll

Part #05812060

The manufacturer no longer makes this part, and there's no substitute part
