Model # H9MPD080J16A2 Official ICP 90+ single-stage gas furnace

Here are the diagrams and repair parts for Official ICP H9MPD080J16A2 90+ single-stage gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Cap Rnrd 1094956
#7

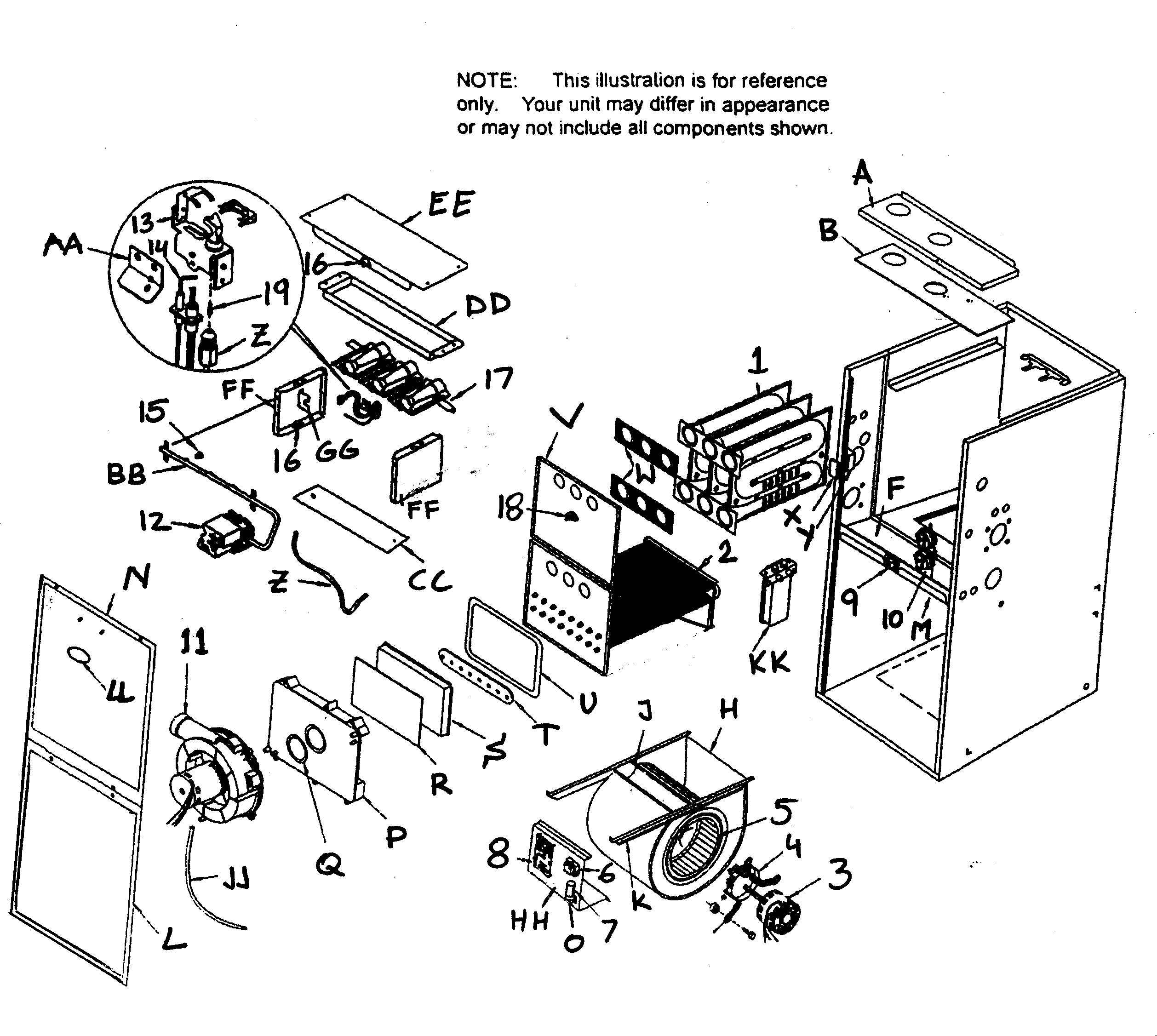

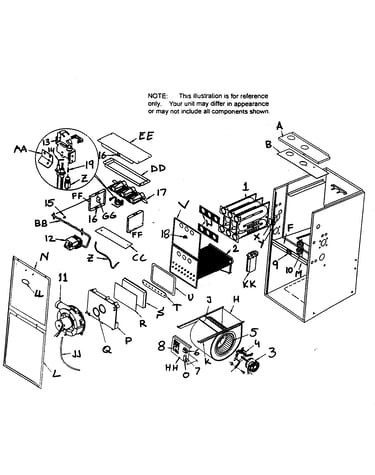

Furnace diagram

Cap rnrd

Part #1094956

Replaced by #12908

?
Manufacturer substitution
This part replaces 1094956. Substitute parts can look different from the original.
This item is not returnable
$5.26 |
16% OFF Phone Price : $6.26
Back Order
Furnace Blower 1013188
#11

Furnace diagram

Furnace blower

Part #1013188

Replaced by #1172823

?
Manufacturer substitution
This part replaces 1013188. Substitute parts can look different from the original.
$214.67 |
5% OFF Phone Price : $226.67
In Stock
Control Board 1012358
#8

Furnace diagram

Control board

Part #1012358

Replaced by #ST9120U1011

?
Manufacturer substitution
This part replaces 1012358. Substitute parts can look different from the original.
$278.27 |
$12.00 OFF Phone Price : $290.27
In Stock
Furnace Blower Fan Wheel (replaces 1009147) 1011420
#5

Furnace diagram

Furnace blower fan wheel (replaces 1009147)

Part #1011420

$160.43 |
7% OFF Phone Price : $172.43
In Stock
Furnace Temperature Limit Switch 1013102
#16

Furnace diagram

Furnace temperature limit switch

Part #1013102

$15.62 |
11% OFF Phone Price : $17.62
In Stock
Gas Valve 1013350
#12

Furnace diagram

Gas valve

Part #1013350

Replaced by #SV9641M4510

?
Manufacturer substitution
This part replaces 1013350. Substitute parts can look different from the original.
$659.47 |
$12.00 OFF Phone Price : $671.47
In Stock
Furnace Blower Fan Motor (replaces 1172488) 1009052
#3

Furnace diagram

Furnace blower fan motor (replaces 1172488)

Part #1009052

$493.80 |
$12.00 OFF Phone Price : $505.80
In Stock
Furnace Burner (replaces 1012384) 1008725
#17

Furnace diagram

Furnace burner (replaces 1012384)

Part #1008725

$129.04
In Stock
Cnvrg Kit 1013816
#NI

Furnace diagram

Cnvrg kit

Part #1013816

$104.98
In Stock
Gasket 1012595
#U

Furnace diagram

Gasket

Part #1012595

$22.91
In Stock
