Model # SDR-H40P Official Panasonic digital camcorder

Here are the diagrams and repair parts for Official Panasonic SDR-H40P digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |
Panasonic Dc Cable K2GJ2DC00020
#NI

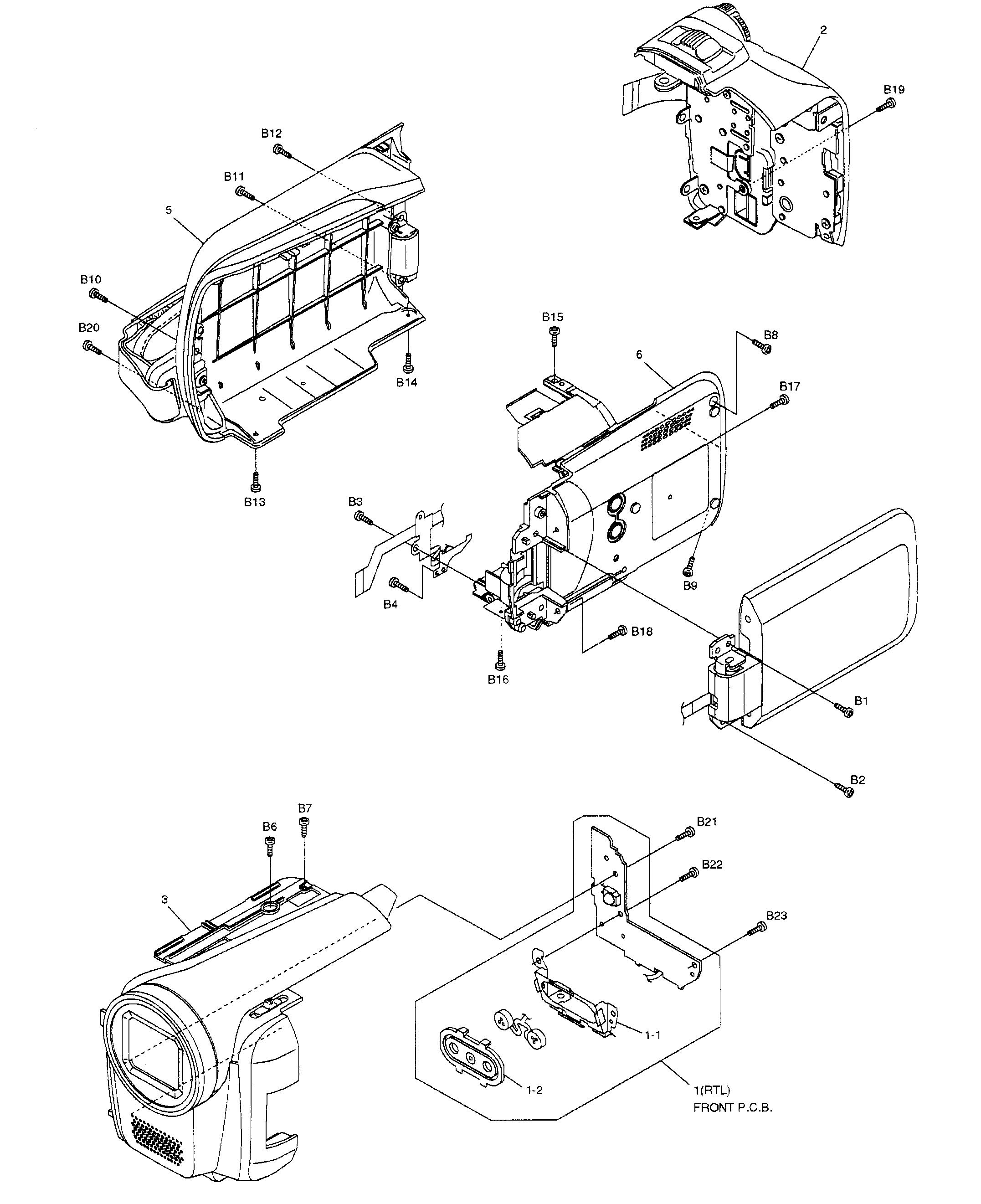

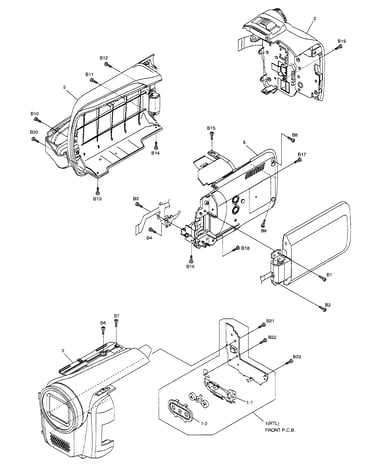

Frame assy diagram

Panasonic dc cable

Part #K2GJ2DC00020

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Sd Harness LSJB8448
#112

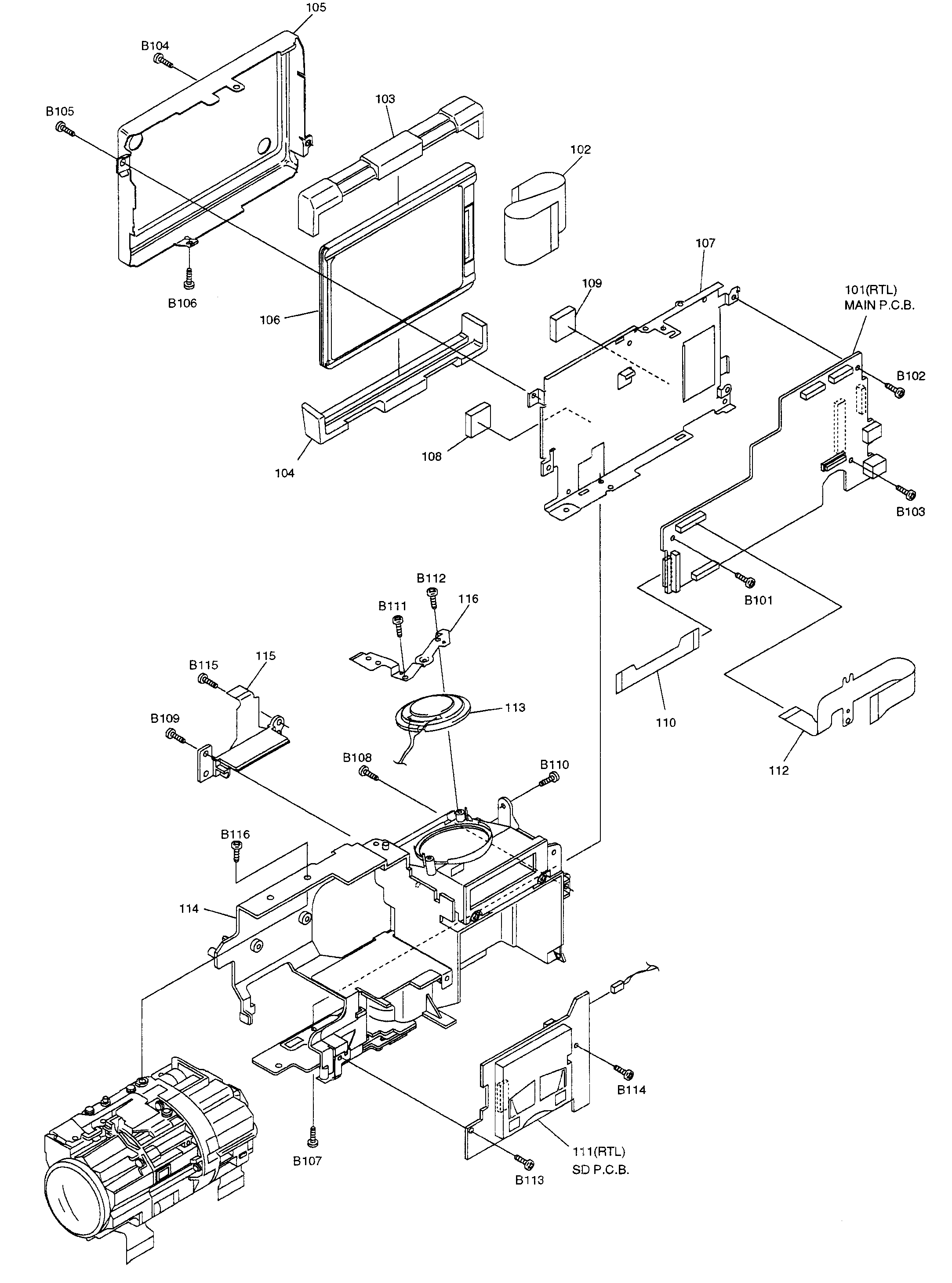

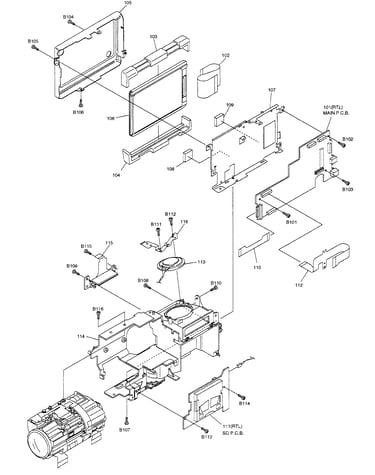

Hard drive assy diagram

Panasonic sd harness

Part #LSJB8448

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Reflection Sheet LSGL1527
#213

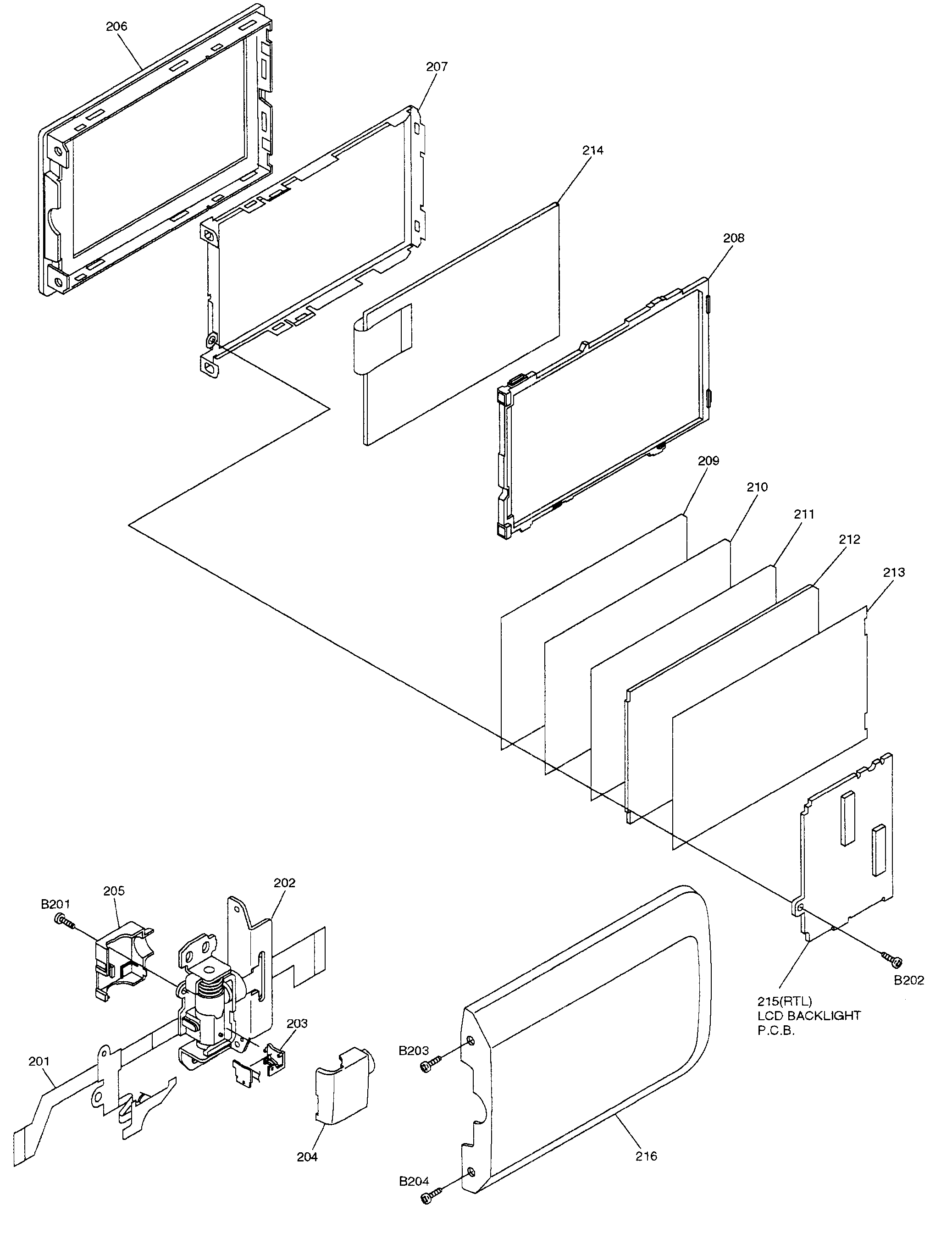

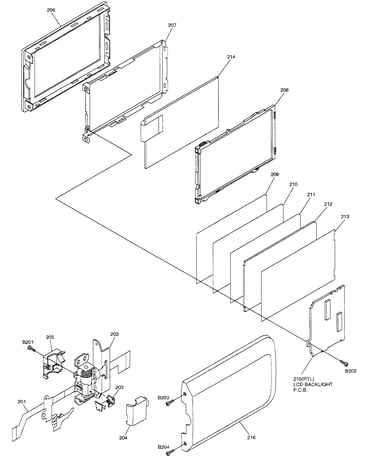

Lcd assy diagram

Panasonic reflection sheet

Part #LSGL1527

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Fr Harness LSJB8450
#110

Hard drive assy diagram

Panasonic fr harness

Part #LSJB8450

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Terminal LSEK0838
#115

Hard drive assy diagram

Panasonic terminal

Part #LSEK0838

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Out Cover LSKM1688
#204

Lcd assy diagram

Panasonic out cover

Part #LSKM1688

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Focus Motor L6HA66NB0010
#41-2

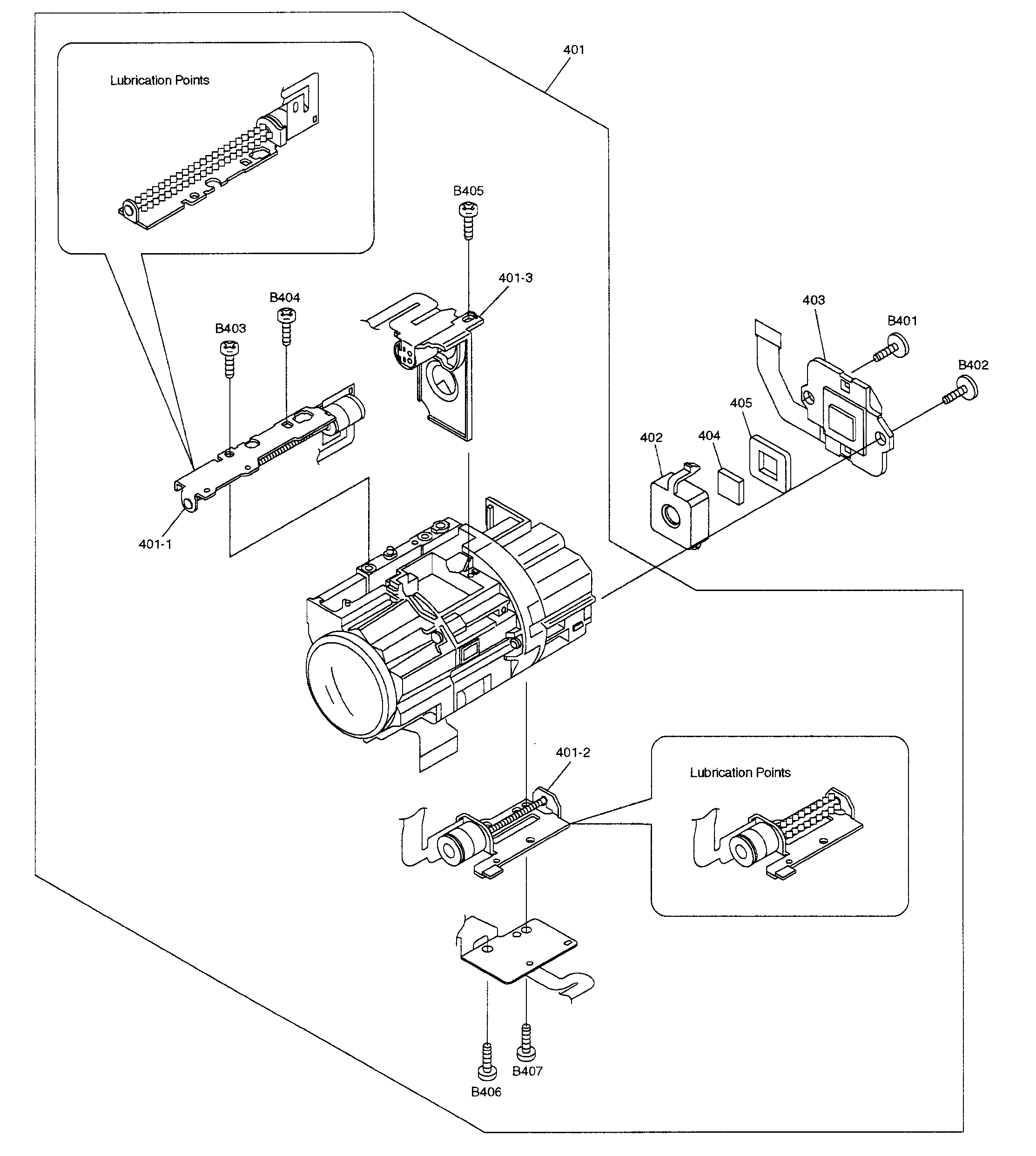

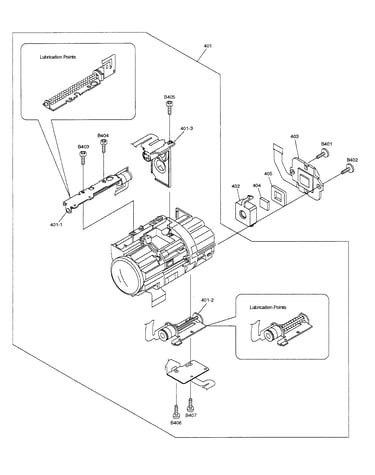

Lens assy diagram

Panasonic focus motor

Part #L6HA66NB0010

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Cover LSKM1689
#205

Lcd assy diagram

Panasonic cover

Part #LSKM1689

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Hdd Cable LSJB8451
#102

Hard drive assy diagram

Panasonic hdd cable

Part #LSJB8451

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Front Pcb LSEP8445A1
#1

Frame assy diagram

Panasonic front pcb

Part #LSEP8445A1

The manufacturer no longer makes this part, and there's no substitute part
