Model # F8MVL1352422A1 Official ICP gas furnace

Here are the diagrams and repair parts for Official ICP F8MVL1352422A1 gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Furnace Gas Valve 1183456
#15

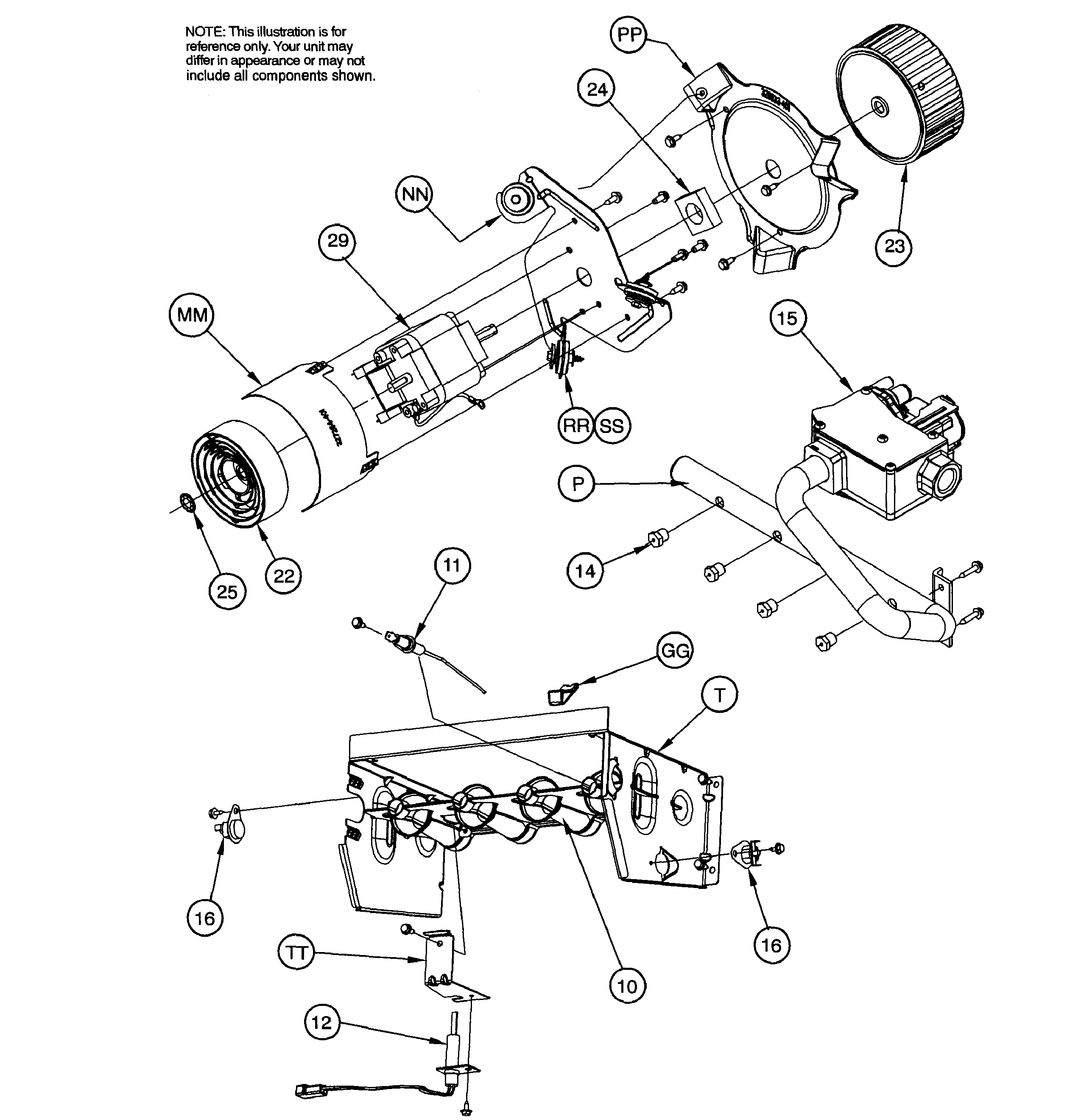

Main assy diagram

Furnace gas valve

Part #1183456

The manufacturer no longer makes this part, and there's no substitute part

Furnace Burner Igniter 1176919
#12

Main assy diagram

Furnace burner igniter

Part #1176919

$62.36
In Stock
Transformer 1177217
#7

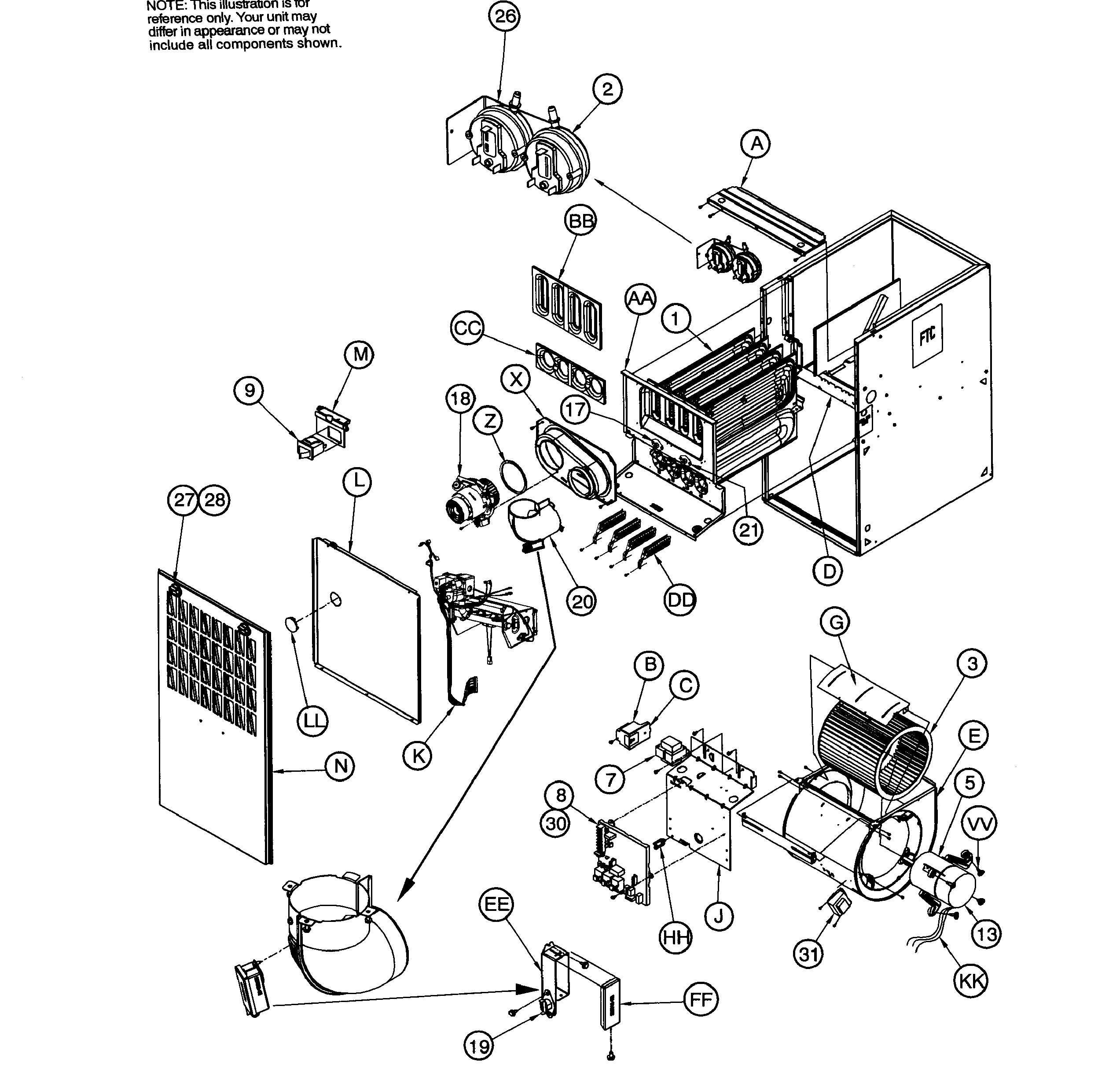

Cabinet assy diagram

Transformer

Part #1177217

The manufacturer no longer makes this part, and there's no substitute part

Bracket,mt 1183445
#NN

Main assy diagram

Bracket,mt

Part #1183445

$18.17
In Stock
Brackt Ign 1183455
#TT

Main assy diagram

Brackt ign

Part #1183455

This item is not returnable
$2.16
In Stock
Kit Gasket 1183413
#NI

Cabinet assy diagram

Kit gasket

Part #1183413

$36.76
In Stock
Clip,harne 1176946
#HH

Cabinet assy diagram

Clip,harne

Part #1176946

This item is not returnable
$2.16
In Stock
Wheel Blow 1176937
#3

Cabinet assy diagram

Wheel blow

Part #1176937

$222.40
In Stock
Furnace Burner 1176918
#10

Main assy diagram

Furnace burner

Part #1176918

$43.22
In Stock
Support Bu 1177032
#T

Main assy diagram

Support bu

Part #1177032

$24.36
In Stock
