RCA
Compact VHS-C Camcorder

Model # CC1000 Official RCA camcorder

Here are the diagrams and repair parts for Official RCA CC1000 camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
0sc27040 227040

#NI

All parts diagram

0sc27040

Part #227040

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual IB-CC1000

#NI

All parts diagram

Owner's manual

Part #IB-CC1000

The manufacturer no longer makes this part, and there's no substitute part

Adapter VCA115

#NI

All parts diagram

Adapter

Part #VCA115

The manufacturer no longer makes this part, and there's no substitute part

Knob 226793
#5

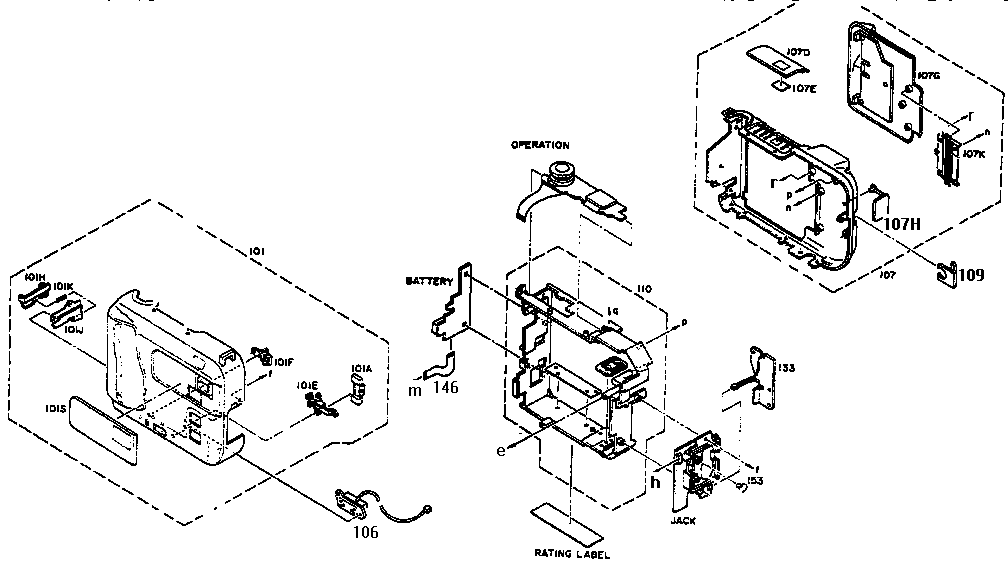

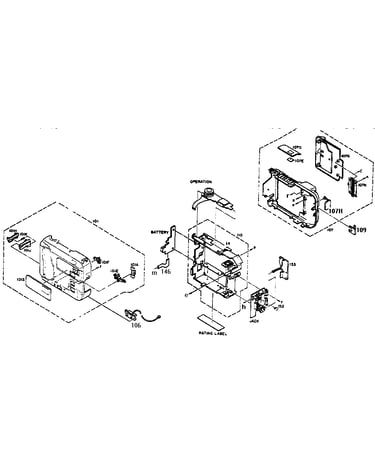

Replacement parts diagram

Knob

Part #226793

The manufacturer no longer makes this part, and there's no substitute part

Loc-107e:window 226799
#12

Replacement parts diagram

Loc-107e:window

Part #226799

The manufacturer no longer makes this part, and there's no substitute part

Loc-107k:shaft Assy Holder 226802
#15

Replacement parts diagram

Loc-107k:shaft assy holder

Part #226802

The manufacturer no longer makes this part, and there's no substitute part

Loc-133:l/b Assy Base 226815
#18

Replacement parts diagram

Loc-133:l/b assy base

Part #226815

The manufacturer no longer makes this part, and there's no substitute part

Cable 218409

#NI

All parts diagram

Cable

Part #218409

The manufacturer no longer makes this part, and there's no substitute part

Loc-101a:zoom Button 226790
#2

Replacement parts diagram

Loc-101a:zoom button

Part #226790

The manufacturer no longer makes this part, and there's no substitute part

Loc-107g:cassette Assy Cover 226800
#13

Replacement parts diagram

Loc-107g:cassette assy cover

Part #226800

The manufacturer no longer makes this part, and there's no substitute part
