Model # AH127J2A2 Official White-Westinghouse room air conditioner - l290905

Here are the diagrams and repair parts for Official White-Westinghouse AH127J2A2 room air conditioner - l290905, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Door 2627D77H02
#10

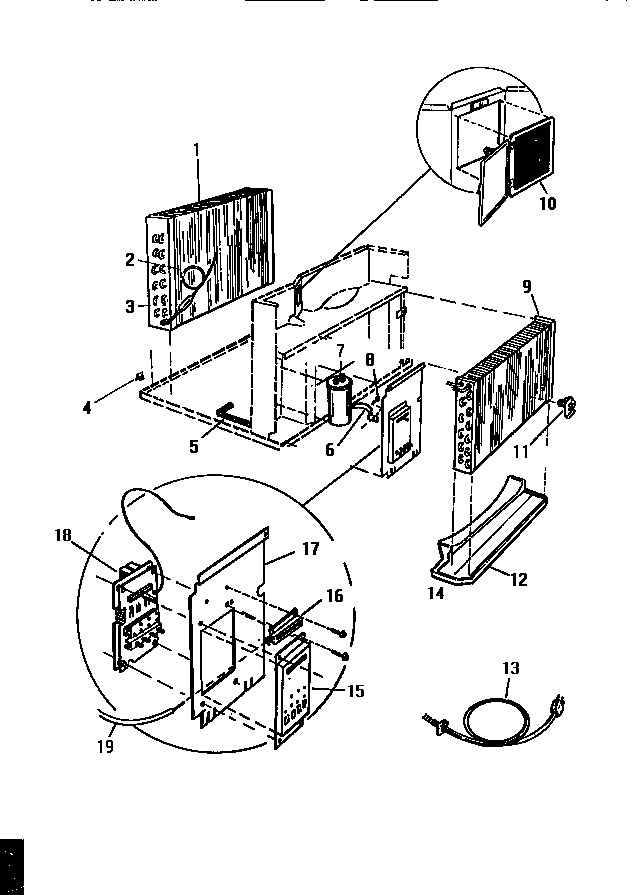

Control parts diagram

Door

Part #2627D77H02

Replaced by #5303012455

?
Manufacturer substitution
This part replaces 2627D77H02. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
Screw C506417
#5

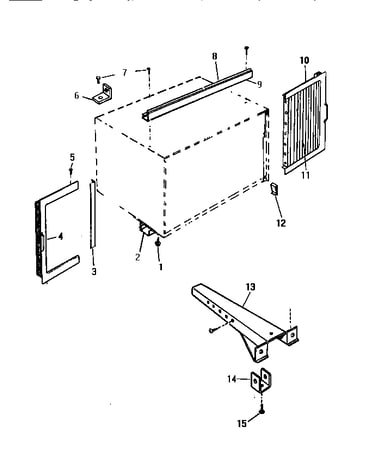

Window mounting diagram

Screw

Part #C506417

The manufacturer no longer makes this part, and there's no substitute part

Clamp A264601
#9

Air handling parts diagram

Clamp

Part #A264601

The manufacturer no longer makes this part, and there's no substitute part

Clip A135101
#12

Window mounting diagram

Clip

Part #A135101

The manufacturer no longer makes this part, and there's no substitute part

Trim Front A344903
#9

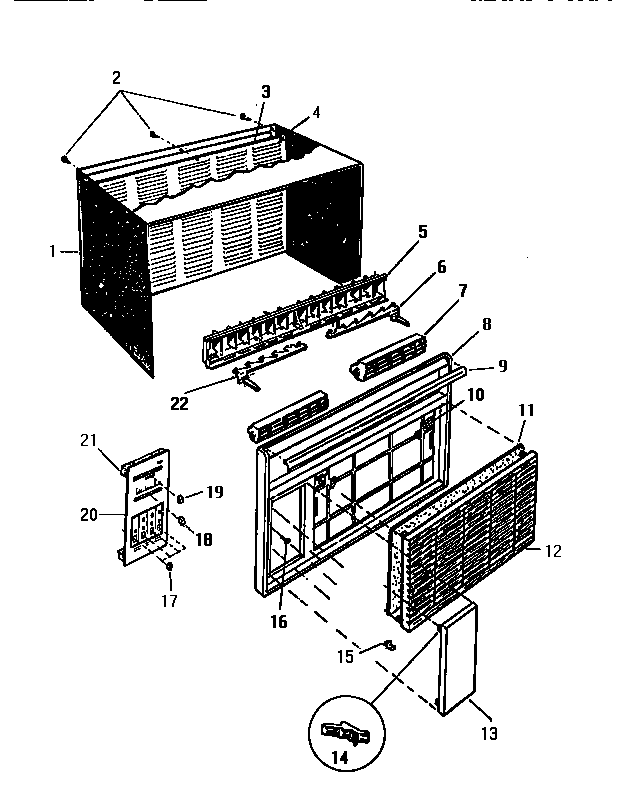

Cabinet, front, wrapper diagram

Trim front

Part #A344903

The manufacturer no longer makes this part, and there's no substitute part

Screw-capacitor C603734
#8

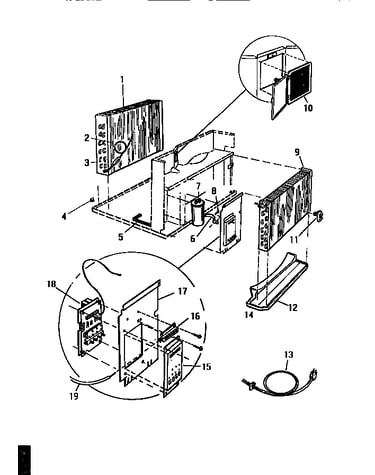

Control parts diagram

Screw-capacitor

Part #C603734

The manufacturer no longer makes this part, and there's no substitute part

Nut 684B618H04
#4

Cabinet, front, wrapper diagram

Nut

Part #684B618H04

The manufacturer no longer makes this part, and there's no substitute part

Clevis A133901
#14

Window mounting diagram

Clevis

Part #A133901

The manufacturer no longer makes this part, and there's no substitute part

Dial Plate A464302
#20

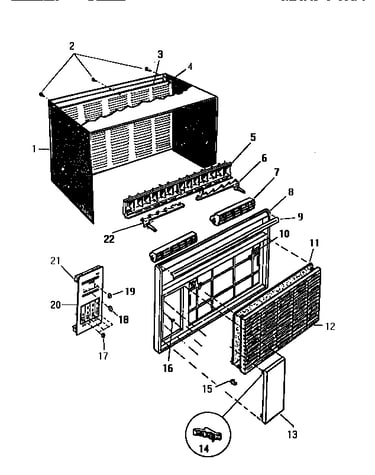

Cabinet, front, wrapper diagram

Dial plate

Part #A464302

The manufacturer no longer makes this part, and there's no substitute part

Clip A140401
#10

Cabinet, front, wrapper diagram

Clip

Part #A140401

The manufacturer no longer makes this part, and there's no substitute part
