Model # RE243K0 Official Whirlpool room air conditioner

Here are the diagrams and repair parts for Official Whirlpool RE243K0 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

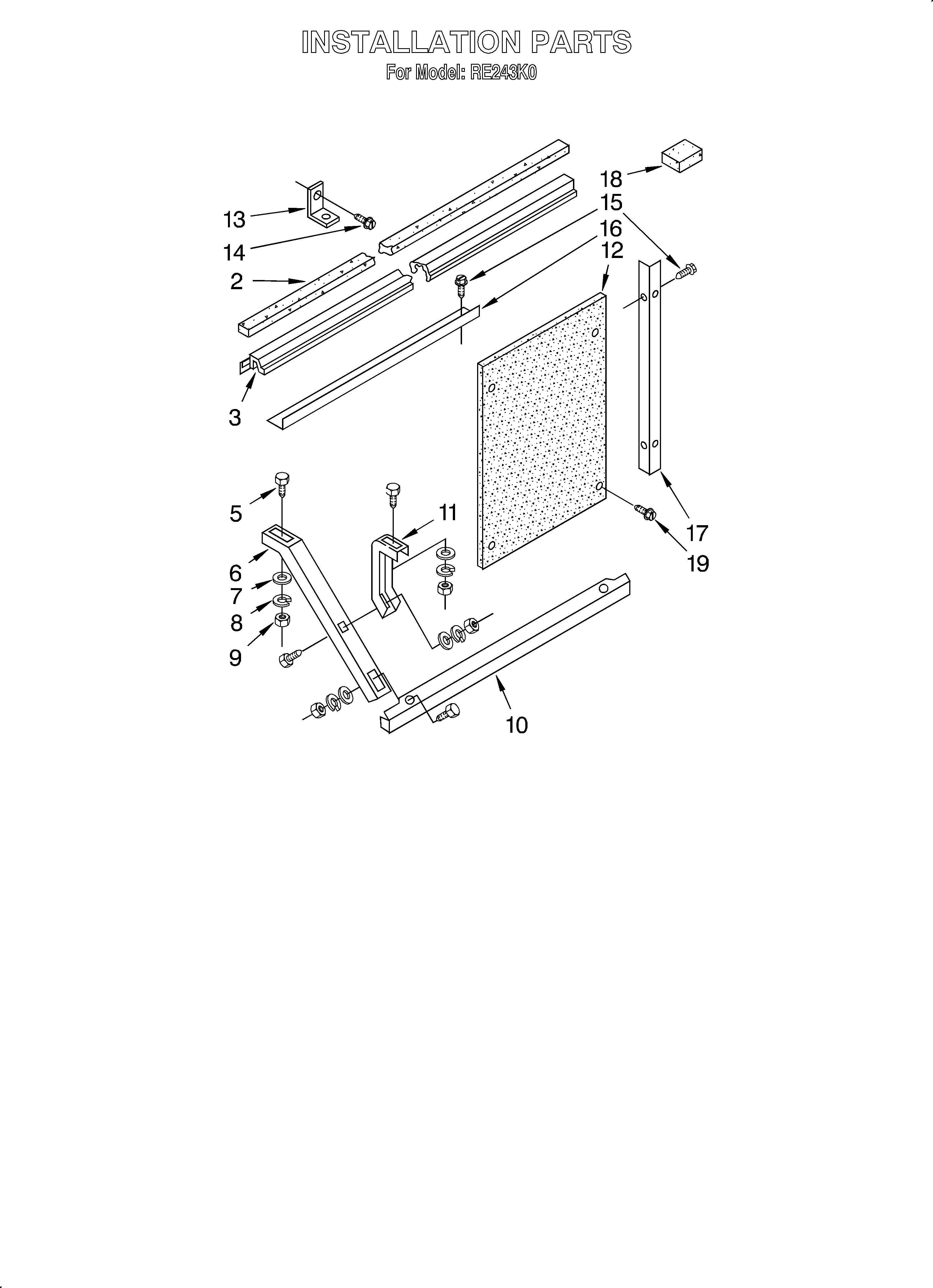

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 152 parts  |
Cement 279368
#10

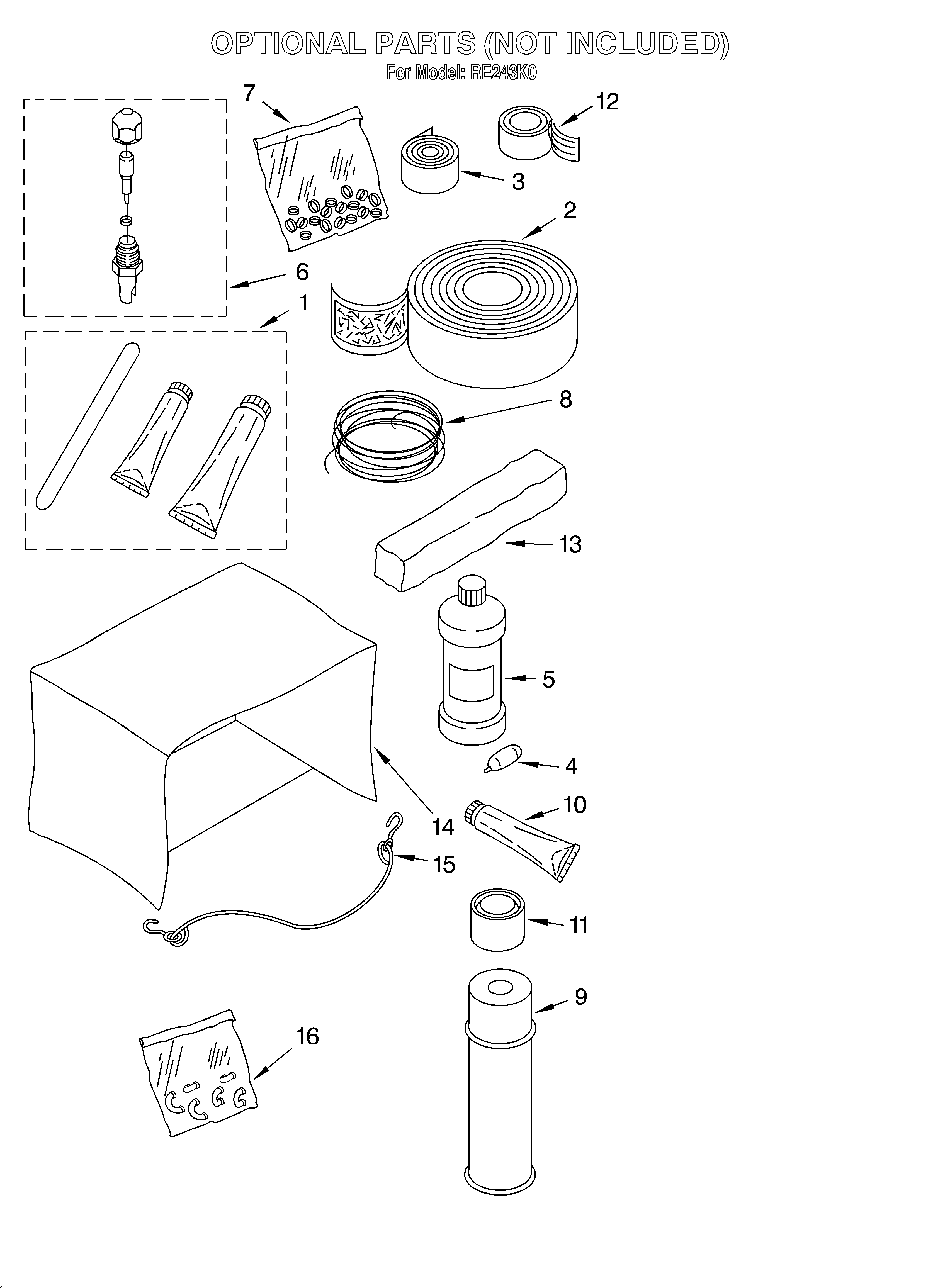

Optional diagram

Cement

Part #279368

Replaced by #WP279368

?
Manufacturer substitution
This part replaces 279368. Substitute parts can look different from the original.
BEST SELLER
$42.72 |
12% OFF Phone Price : $48.72
In Stock
Valve 876764
#6

Optional diagram

Valve

Part #876764

Replaced by #876764

?
Manufacturer substitution
This part replaces 876764. Substitute parts can look different from the original.
BEST SELLER
$26.12 |
19% OFF Phone Price : $32.12
In Stock
Washer 1160880
#43

Unit/literature diagram

Washer

Part #1160880

Replaced by #W11236646

?
Manufacturer substitution
This part replaces 1160880. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Valve Kit 978026
#6B

Optional diagram

Valve kit

Part #978026

Replaced by #978026

?
Manufacturer substitution
This part replaces 978026. Substitute parts can look different from the original.
$34.19 |
15% OFF Phone Price : $40.19
In Stock
Wire Tie 602851
#12

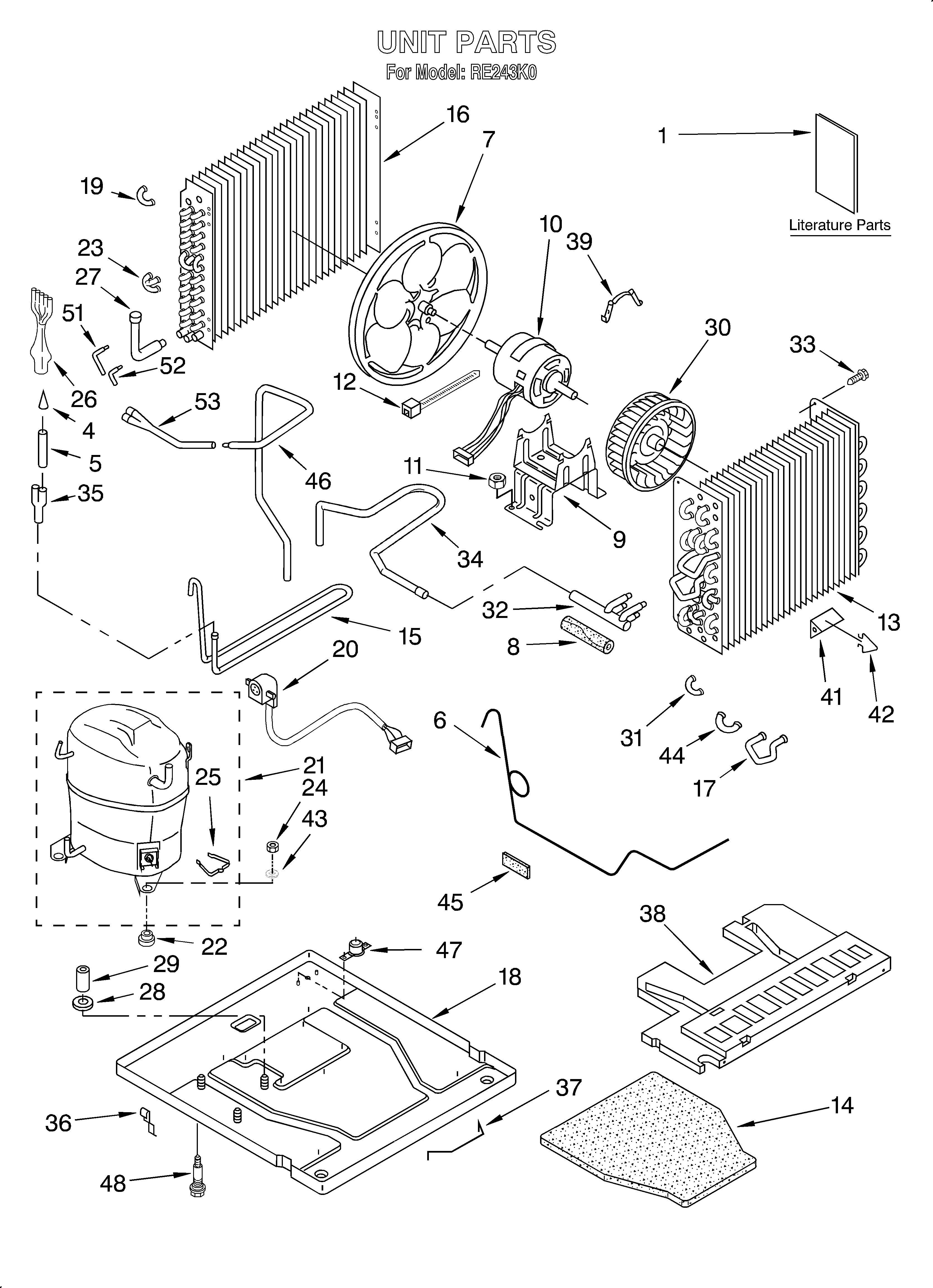

Unit/literature diagram

Wire tie

Part #602851

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces 602851. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Wire Tie 1159130
#18

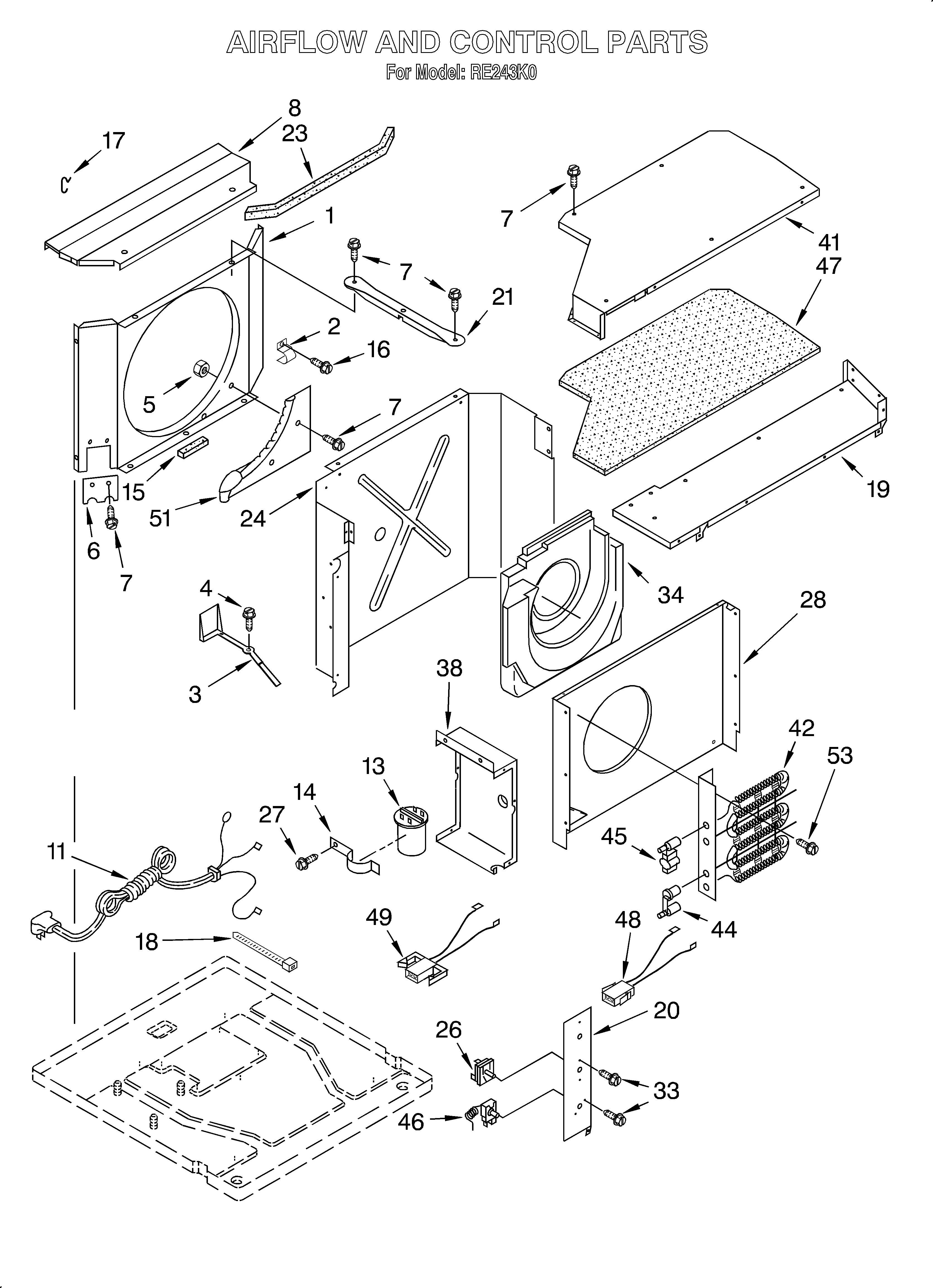

Air flow and control diagram

Wire tie

Part #1159130

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces 1159130. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Room Air Conditioner Rotary Switch Knob 8031121
#38

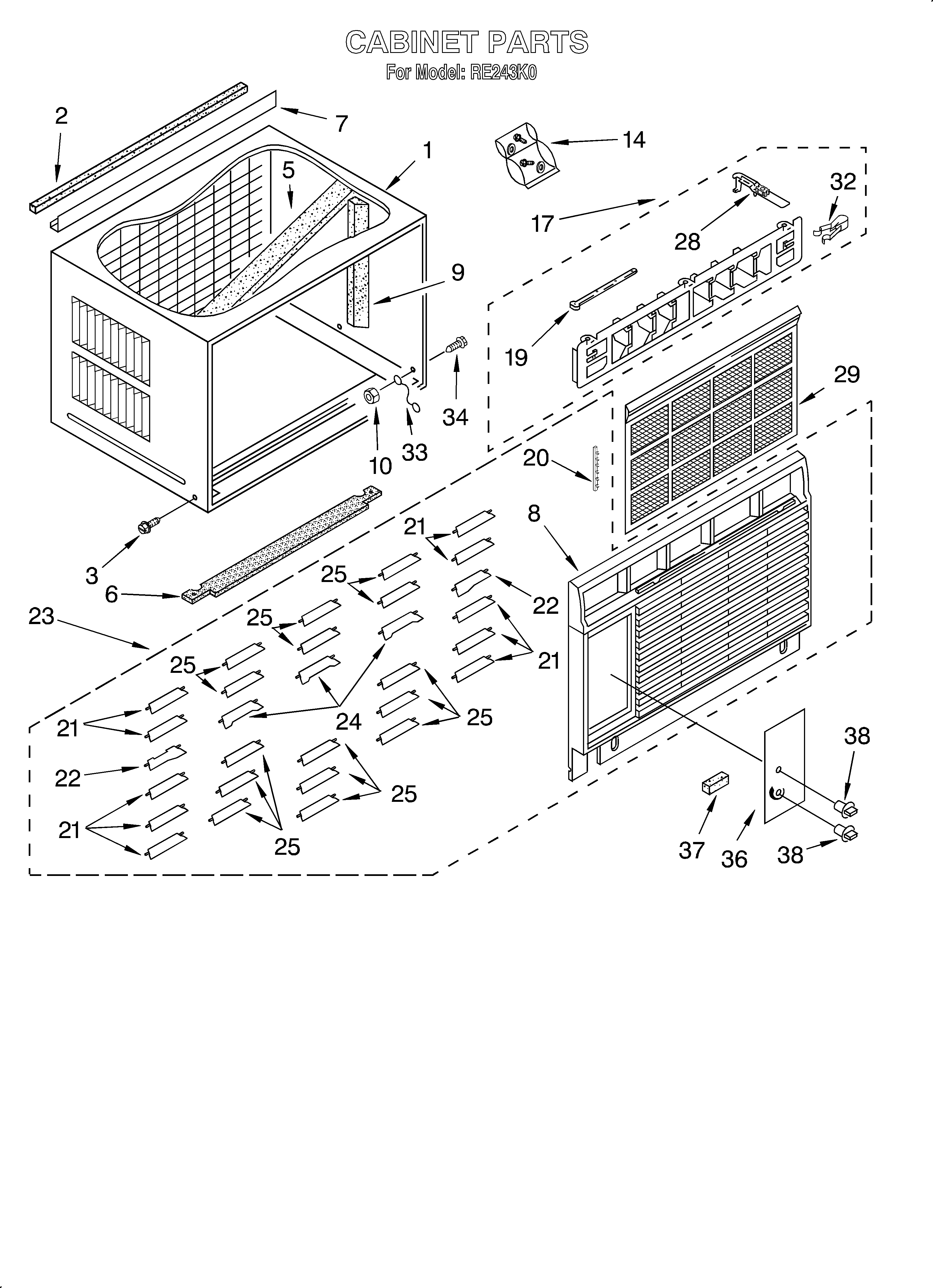

Cabinet diagram

Room air conditioner rotary switch knob

Part #8031121

Replaced by #WP8031121

?
Manufacturer substitution
This part replaces 8031121. Substitute parts can look different from the original.
$35.94 |
14% OFF Phone Price : $41.94
In Stock
Sealer 99344
#13

Optional diagram

Sealer

Part #99344

Replaced by #4318168

?
Manufacturer substitution
This part replaces 99344. Substitute parts can look different from the original.
$29.89
In Stock
Valve Kit 978027
#6C

Optional diagram

Valve kit

Part #978027

Replaced by #978027

?
Manufacturer substitution
This part replaces 978027. Substitute parts can look different from the original.
$38.69 |
13% OFF Phone Price : $44.69
In Stock
Valve Kit 978030
#6F

Optional diagram

Valve kit

Part #978030

Replaced by #978030

?
Manufacturer substitution
This part replaces 978030. Substitute parts can look different from the original.
$40.49 |
13% OFF Phone Price : $46.49
In Stock
