Model # FF1DNA018000AAAA Official Carrier fan coil

Here are the diagrams and repair parts for Official Carrier FF1DNA018000AAAA fan coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

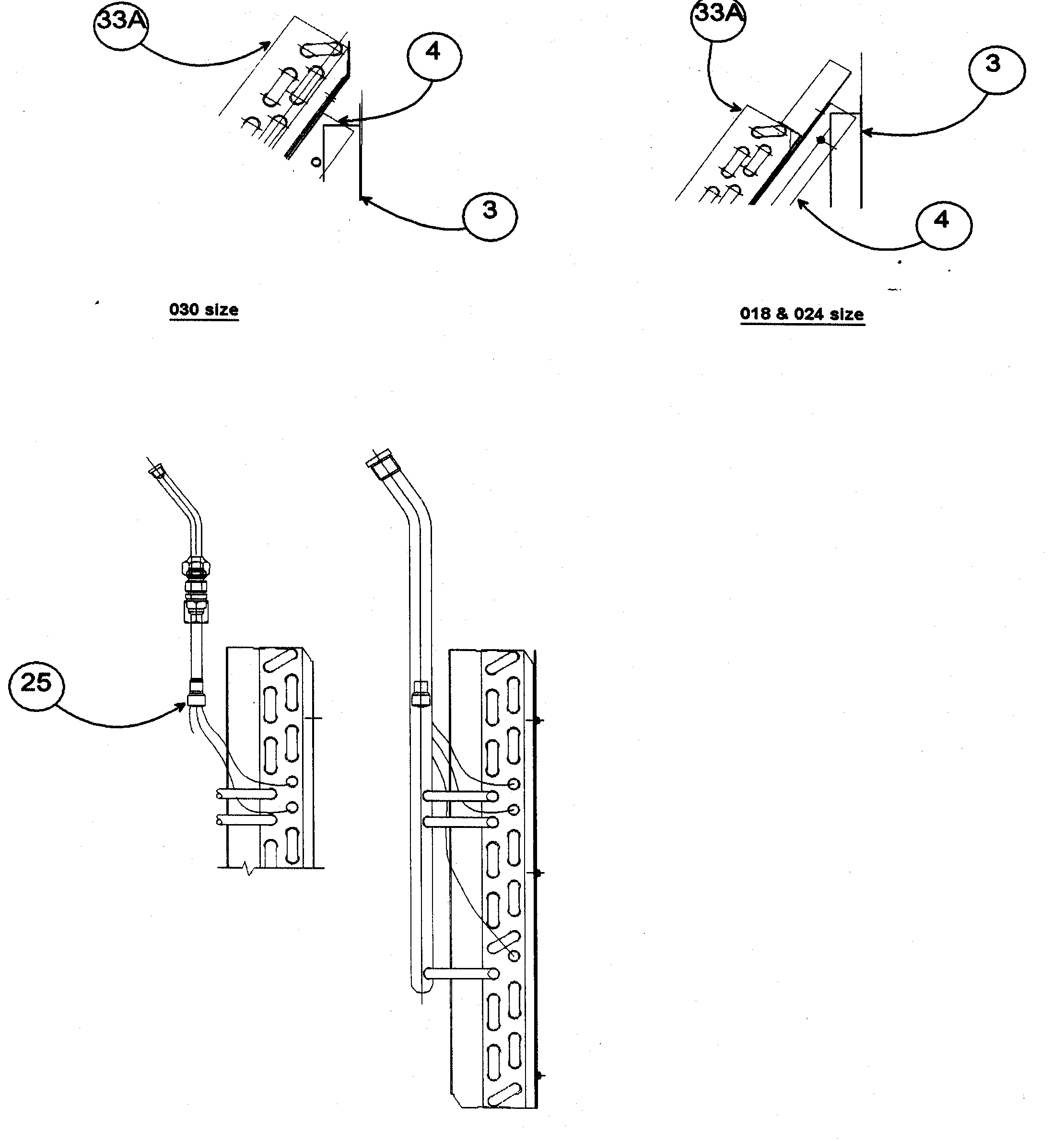

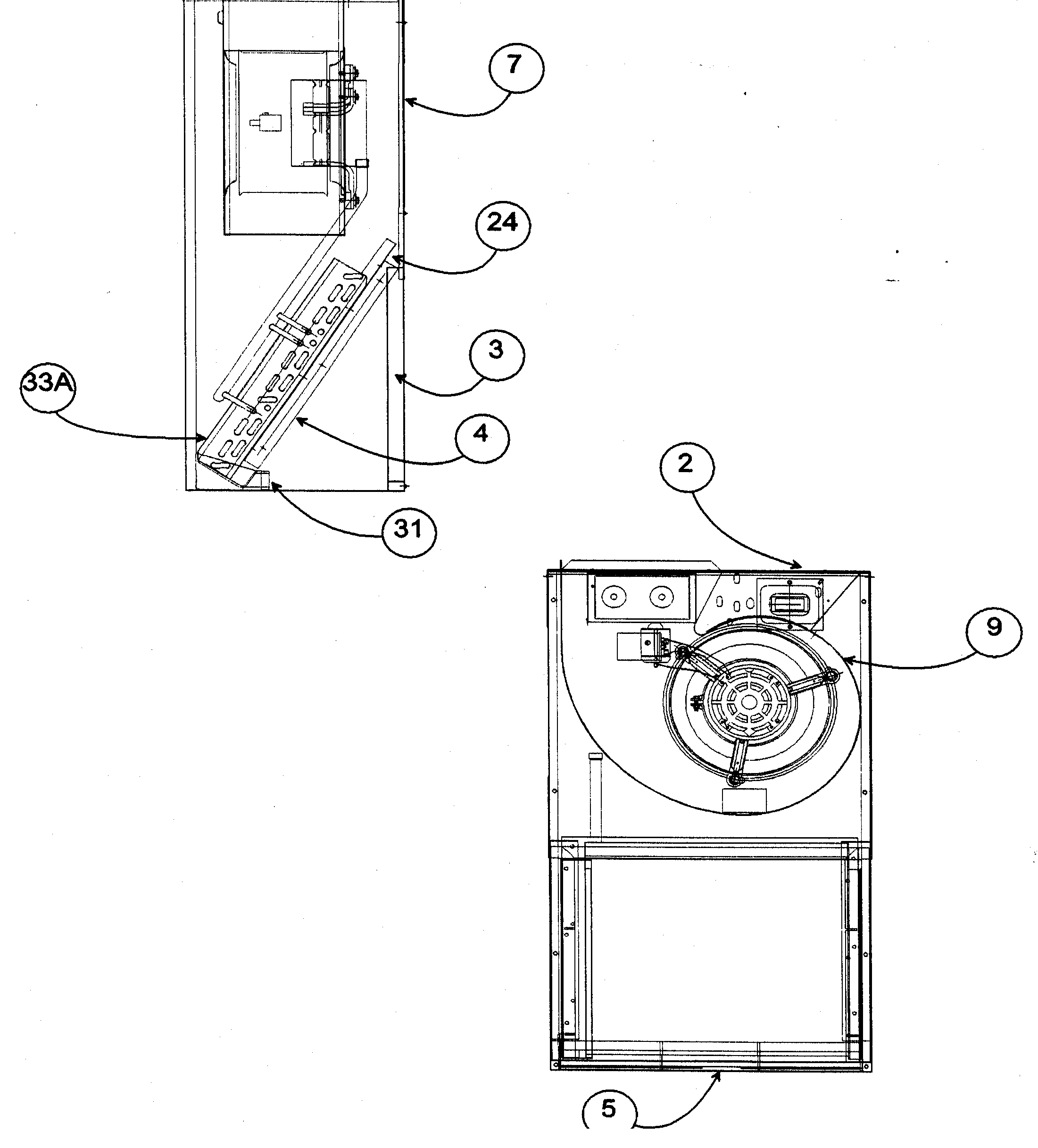

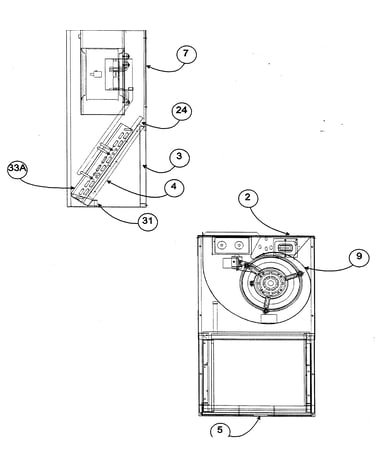

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Capactr Run P291-0503
#19

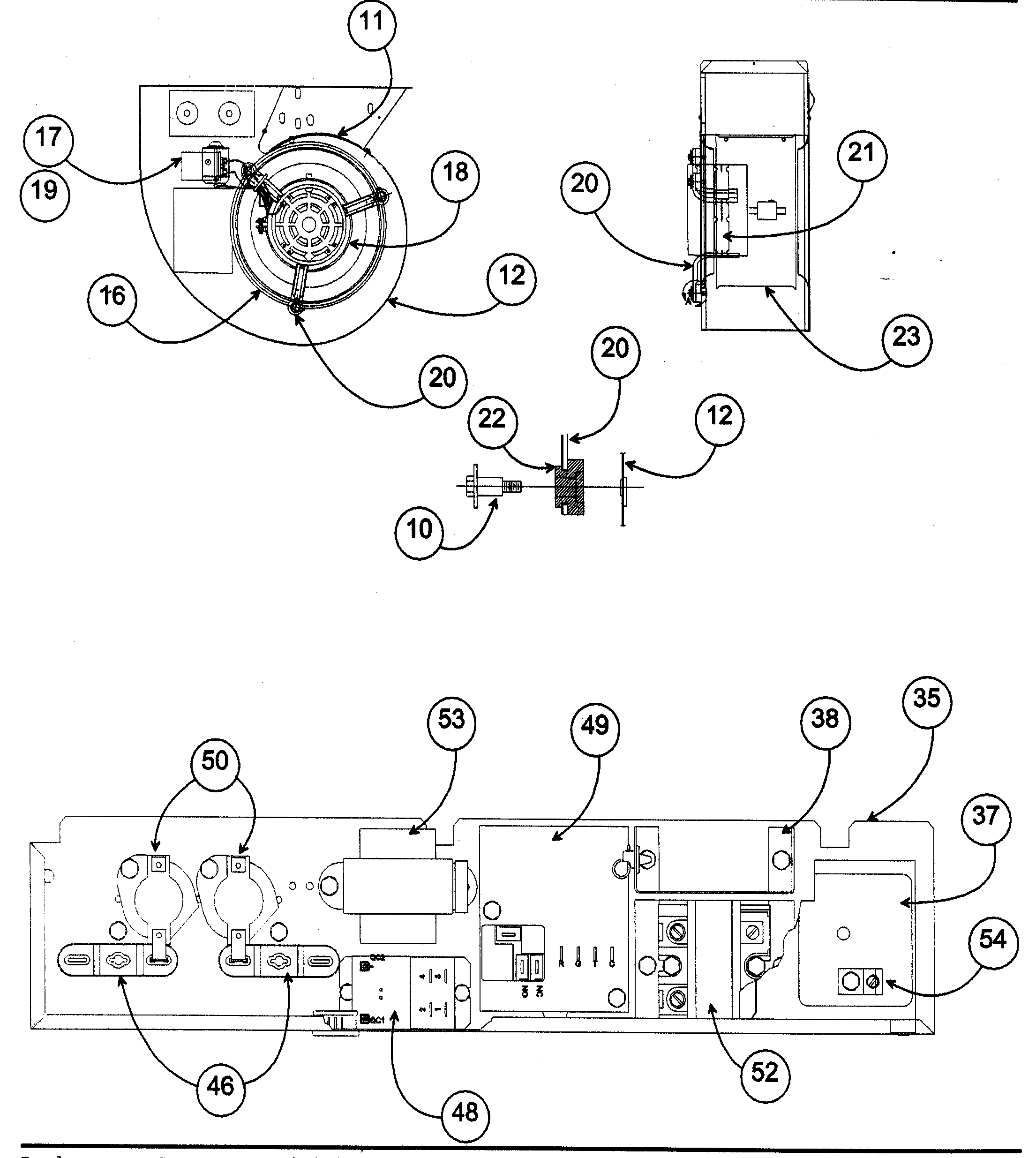

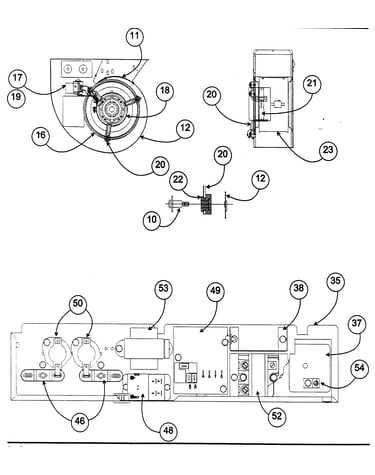

Control assy diagram

Capactr run

Part #P291-0503

Replaced by #12005

?
Manufacturer substitution
This part replaces P291-0503. Substitute parts can look different from the original.
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Grommet P251-0079
#22

Control assy diagram

Grommet

Part #P251-0079

$7.97
In Stock
Arm HC98ZZ252
#20

Control assy diagram

Arm

Part #HC98ZZ252

$9.89
In Stock
Sw Temp Act HH19ZA940
#50

Control assy diagram

Sw temp act

Part #HH19ZA940

$72.44
In Stock
Connector HY90AZ021
#54

Control assy diagram

Connector

Part #HY90AZ021

This item is not returnable
$6.40
In Stock
Element Kit L3-05453-28
#46A

Control assy diagram

Element kit

Part #L3-05453-28

$565.05
In Stock
Element Kit L3-05453-30
#46B

Control assy diagram

Element kit

Part #L3-05453-30

$559.35
In Stock
Motor HC31AE232
#18

Control assy diagram

Motor

Part #HC31AE232

$522.02
In Stock
Central Air Conditioner Air Handler Blower Wheel LA22XC059
#23

Control assy diagram

Central air conditioner air handler blower wheel

Part #LA22XC059

$155.96
In Stock
Mtr Mnt Band P251-0078
#21

Control assy diagram

Mtr mnt band

Part #P251-0078

$24.58
In Stock
