Amana
Countertop Microwave

Model # U3100I.B Official Amana microwave

Here are the diagrams and repair parts for Official Amana U3100IB microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

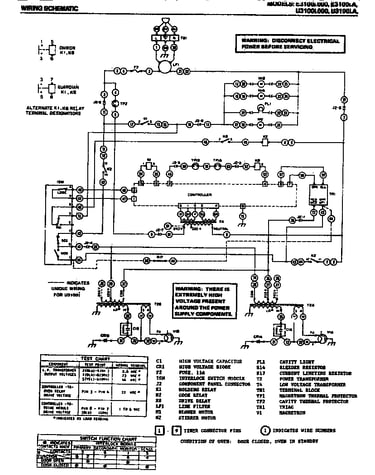

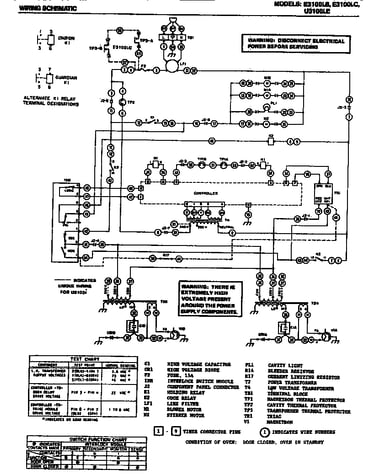

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
Outer Window (.000, .a, .b, .c) (includes Ref. No. 43) M70D158
#41

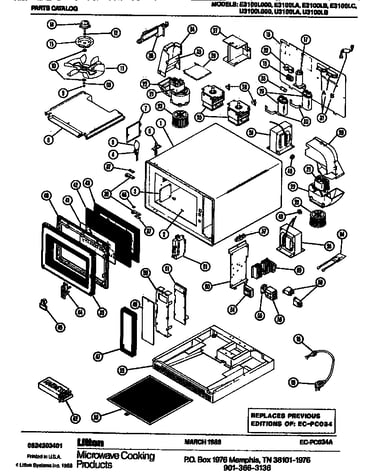

Replacement parts diagram

Outer window (.000, .a, .b, .c) (includes ref. no. 43)

Part #M70D158

The manufacturer no longer makes this part, and there's no substitute part

Screw M1D475
Screw

Part #M1D475

The manufacturer no longer makes this part, and there's no substitute part

Foam Tape (3 Feet Per Package) M2D703
#25D

Replacement parts diagram

Foam tape (3 feet per package)

Part #M2D703

The manufacturer no longer makes this part, and there's no substitute part

Nut, Filter Line Mtg. M1D728
#17B

Replacement parts diagram

Nut, filter line mtg.

Part #M1D728

The manufacturer no longer makes this part, and there's no substitute part

Clip, Inlay Mounting M2D660
#39C

Replacement parts diagram

Clip, inlay mounting

Part #M2D660

The manufacturer no longer makes this part, and there's no substitute part

Power Cord M26D28
#19

Replacement parts diagram

Power cord

Part #M26D28

The manufacturer no longer makes this part, and there's no substitute part

Rtv Sealant M13D2
#2B

Replacement parts diagram

Rtv sealant

Part #M13D2

The manufacturer no longer makes this part, and there's no substitute part

Backer Plate M82D210
#50A

Replacement parts diagram

Backer plate

Part #M82D210

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer Mtg. M1D138
#17C

Replacement parts diagram

Lock washer mtg.

Part #M1D138

The manufacturer no longer makes this part, and there's no substitute part

Toroid M5D369
#48

Replacement parts diagram

Toroid

Part #M5D369

The manufacturer no longer makes this part, and there's no substitute part
