Makita
Drill/Driver

Model # 6303H Official Makita 1/2" drill

Here are the diagrams and repair parts for Official Makita 6303H 1/2" drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Flt Hd Scrw 251441-5
#1

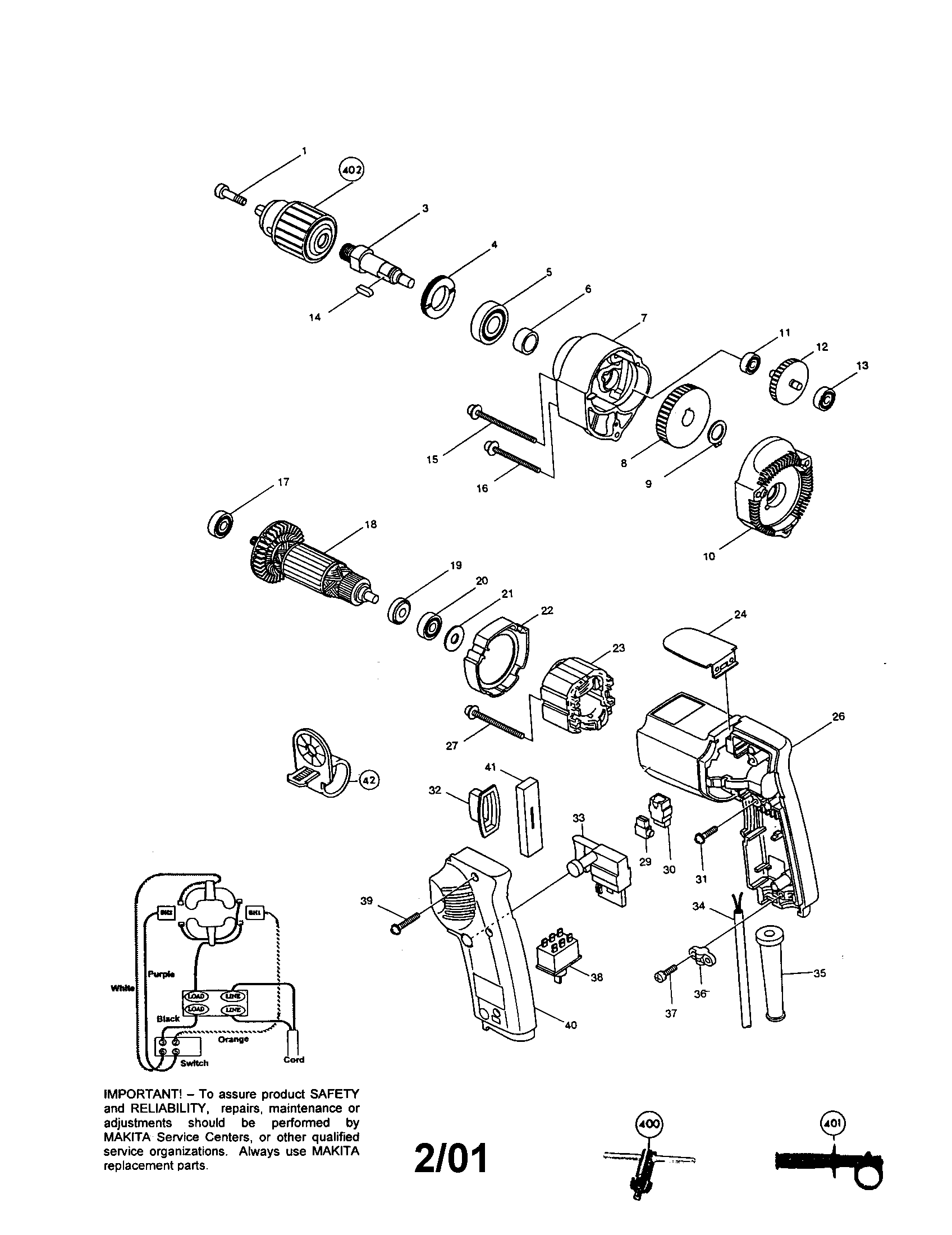

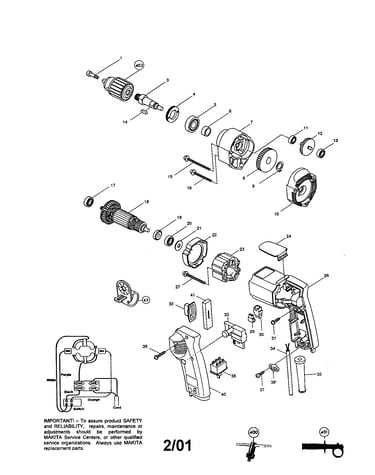

1/2" (13mm) drill diagram

Flt hd scrw

Part #251441-5

The manufacturer no longer makes this part, and there's no substitute part

Pn Hd Scrw 911178-3
#16

1/2" (13mm) drill diagram

Pn hd scrw

Part #911178-3

The manufacturer no longer makes this part, and there's no substitute part

Screw 911124-6
#31

1/2" (13mm) drill diagram

Screw

Part #911124-6

The manufacturer no longer makes this part, and there's no substitute part

Dust Cover 421144-7
#32

1/2" (13mm) drill diagram

Dust cover

Part #421144-7

The manufacturer no longer makes this part, and there's no substitute part

Strain Relef 687002-9
#36

1/2" (13mm) drill diagram

Strain relef

Part #687002-9

The manufacturer no longer makes this part, and there's no substitute part

Key Holder 410102-8
#42

1/2" (13mm) drill diagram

Key holder

Part #410102-8

The manufacturer no longer makes this part, and there's no substitute part

Bearing 211031-6
#17

1/2" (13mm) drill diagram

Bearing

Part #211031-6

The manufacturer no longer makes this part, and there's no substitute part

Grip 122593-8
#401

1/2" (13mm) drill diagram

Grip

Part #122593-8

The manufacturer no longer makes this part, and there's no substitute part

Gr Hsng Cvr 157904-8
#10

1/2" (13mm) drill diagram

Gr hsng cvr

Part #157904-8

The manufacturer no longer makes this part, and there's no substitute part

Washer 681614-0
#19

1/2" (13mm) drill diagram

Washer

Part #681614-0

The manufacturer no longer makes this part, and there's no substitute part
