Model # U5213-930 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U5213-930 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |

Vacuum Wheel Retainer 36131056
#33

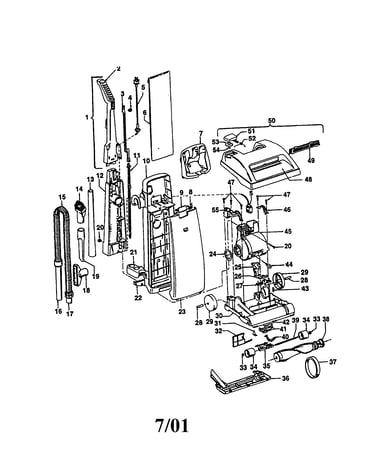

Upright vac diagram

Vacuum wheel retainer

Part #36131056

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Spring 34572002
#31

Upright vac diagram

Vacuum spring

Part #34572002

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Furniture Nozzle 38614036
#18

Upright vac diagram

Vacuum furniture nozzle

Part #38614036

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Duct Seal 38783020
#18

Motor diagram

Kenmore duct seal

Part #38783020

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Height Adjuster Indicator Knob 38567014
#26

Upright vac diagram

Vacuum height adjuster indicator knob

Part #38567014

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Mounting Bolt And Nut 40201085
#20

Upright vac diagram

Vacuum motor mounting bolt and nut

Part #40201085

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Switch 28218043
#12

Motor diagram

Kenmore vacuum switch

Part #28218043

The manufacturer no longer makes this part, and there's no substitute part

Valve Gate 38718005
#32

Upright vac diagram

Valve gate

Part #38718005

The manufacturer no longer makes this part, and there's no substitute part

Rod Switch 38458046
#11

Upright vac diagram

Rod switch

Part #38458046

The manufacturer no longer makes this part, and there's no substitute part

Regina Vacuum Screw 21447217
#47

Upright vac diagram

Regina vacuum screw

Part #21447217

The manufacturer no longer makes this part, and there's no substitute part
