Model # NDGE100BF01 Official ICP induced combustion counterflow gas furnaces

Here are the diagrams and repair parts for Official ICP NDGE100BF01 induced combustion counterflow gas furnaces, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Module 1005651
#5

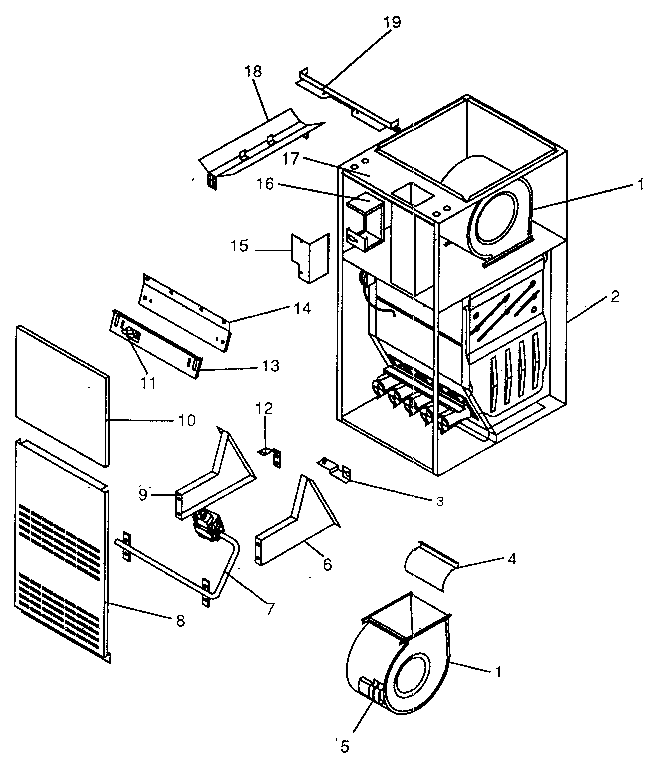

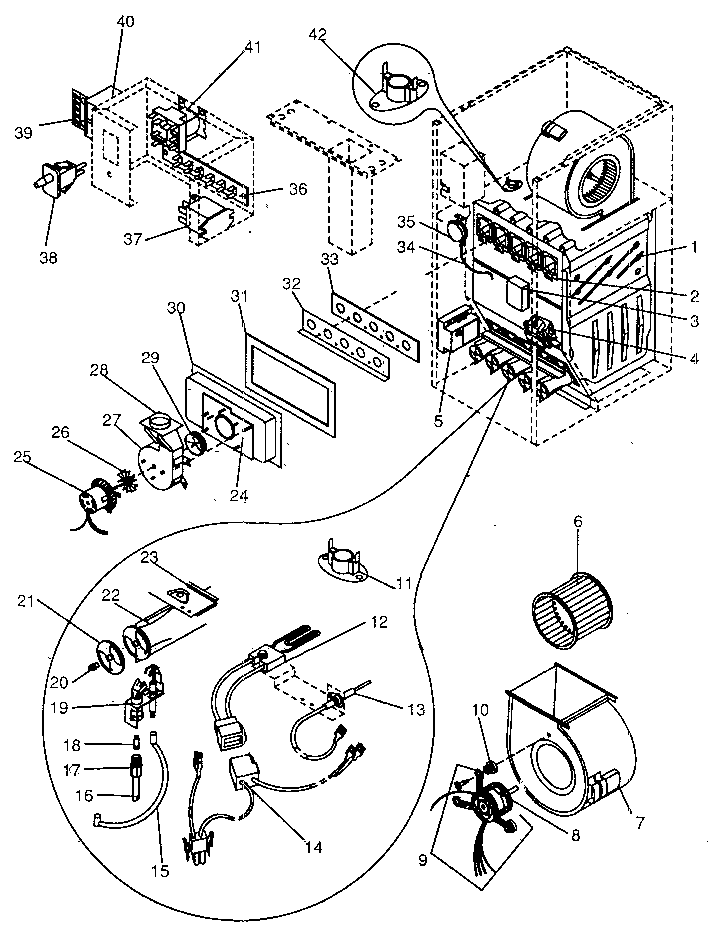

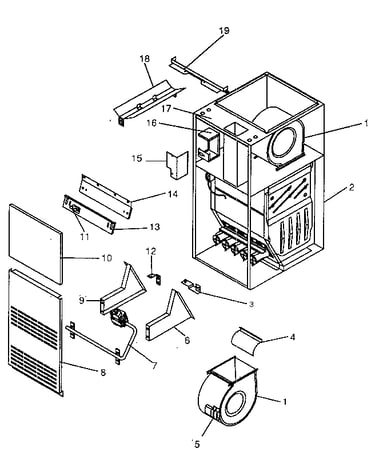

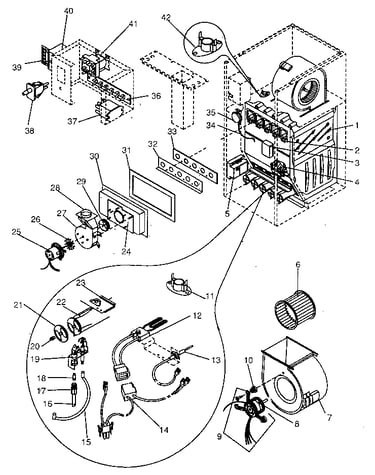

Functional replacement parts diagram

Module

Part #1005651

The manufacturer no longer makes this part, and there's no substitute part

Furnace Blower Fan Wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, H600587) 600587
#6

Functional replacement parts diagram

Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20 |
8% OFF Phone Price : $142.20
In Stock
Switch 611872
#38

Functional replacement parts diagram

Switch

Part #611872

$25.58
In Stock
Board Termin 612254
#39

Functional replacement parts diagram

Board termin

Part #612254

$20.06
In Stock
Furnace Burner 613709
#22

Functional replacement parts diagram

Furnace burner

Part #613709

$177.29 |
6% OFF Phone Price : $189.29
In Stock
Gasket 1005373
#31

Functional replacement parts diagram

Gasket

Part #1005373

$8.00
In Stock
Switch 1005577
#35

Functional replacement parts diagram

Switch

Part #1005577

$161.42
In Stock
Furnace Blower Fan Motor Mounting Kit 609227
#9

Functional replacement parts diagram

Furnace blower fan motor mounting kit

Part #609227

$113.60
In Stock
Cllectr Box 1005379
#30

Functional replacement parts diagram

Cllectr box

Part #1005379

$145.18
In Stock
Furnace Fan Control Relay 1000742
#37

Functional replacement parts diagram

Furnace fan control relay

Part #1000742

$35.62 |
14% OFF Phone Price : $41.62
In Stock
