Eureka
Upright Vacuum

Model # 4386AT-2 Official Eureka upright vacuum

Here are the diagrams and repair parts for Official Eureka 4386AT-2 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

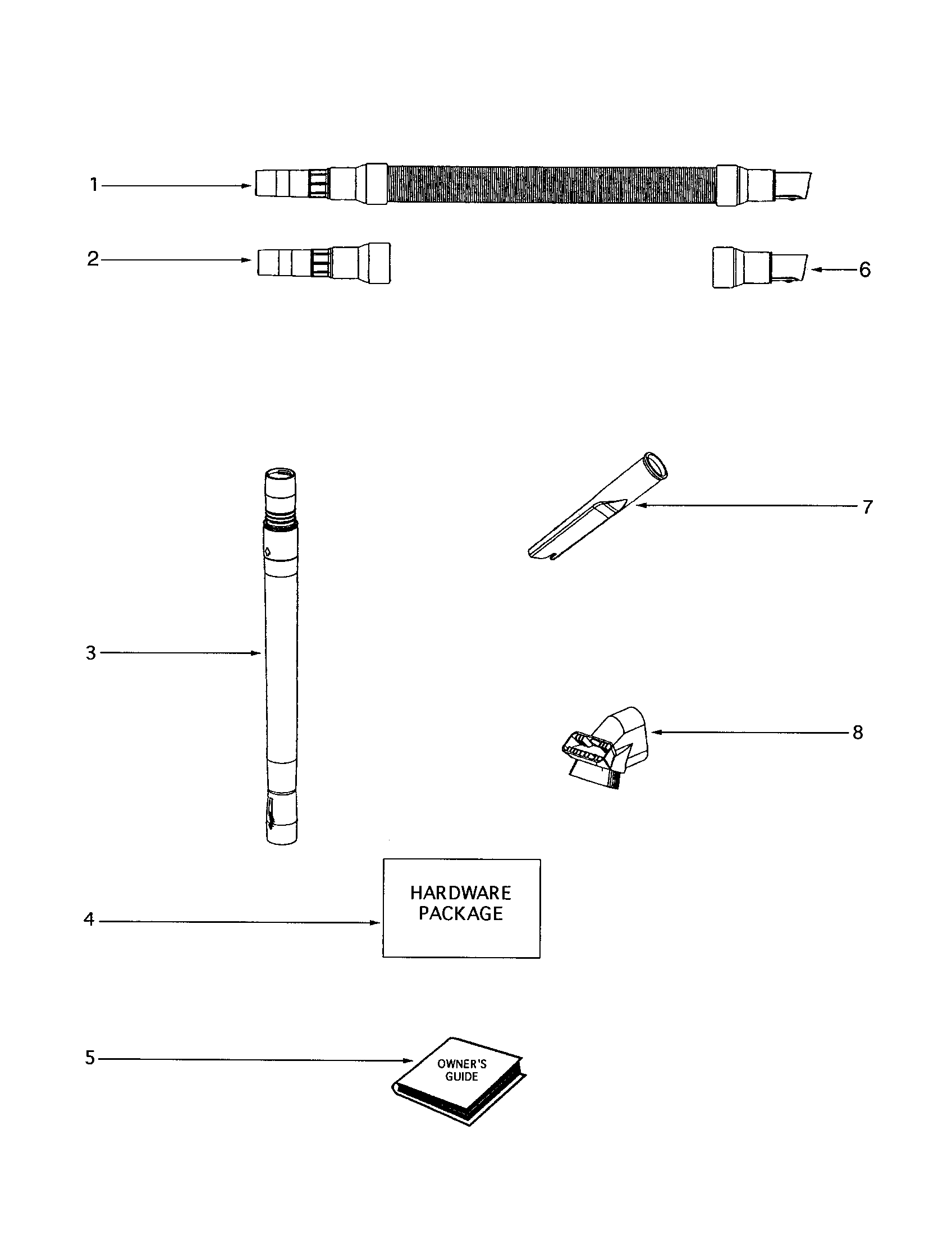

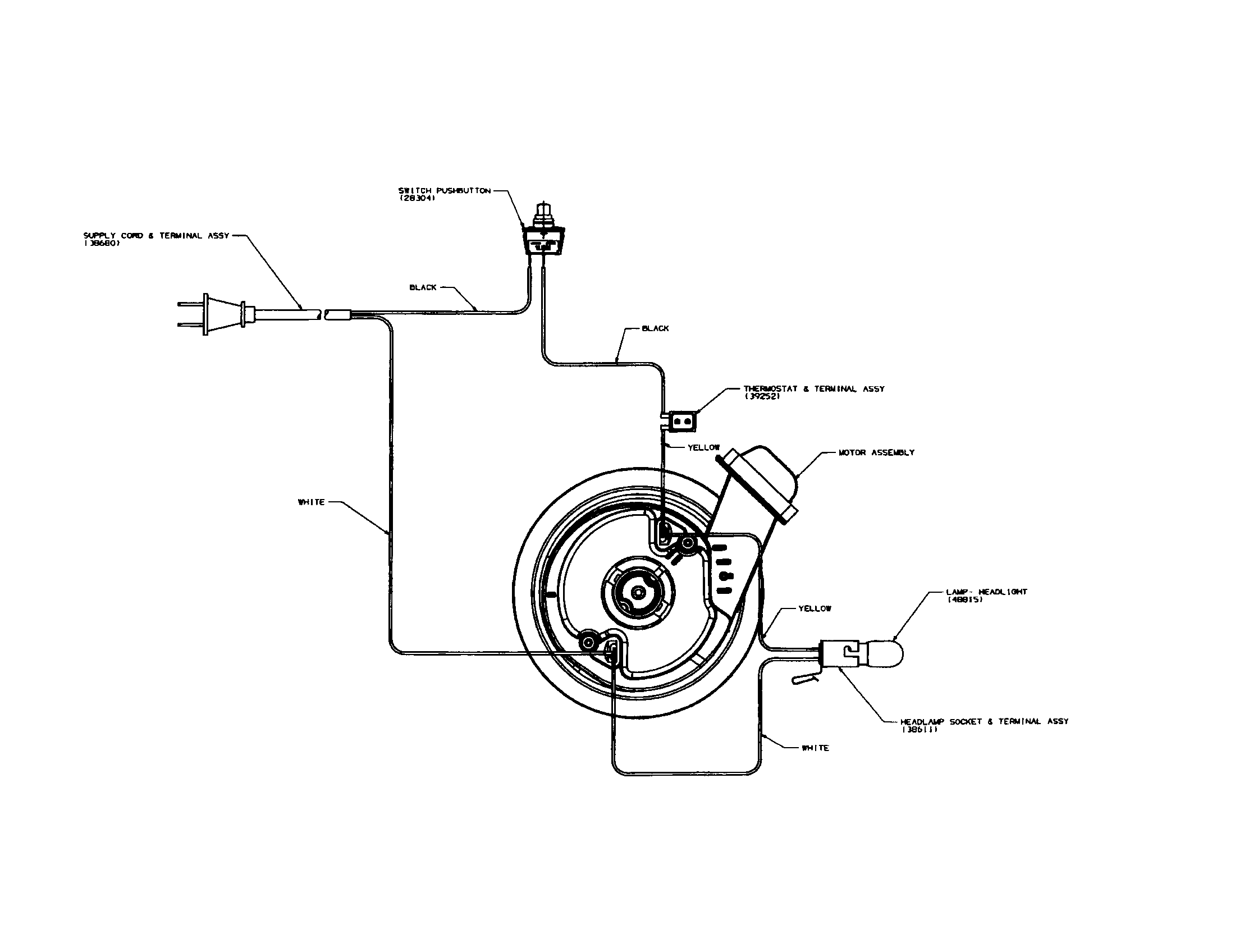

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Vacuum Wheel 72117-119N
#17

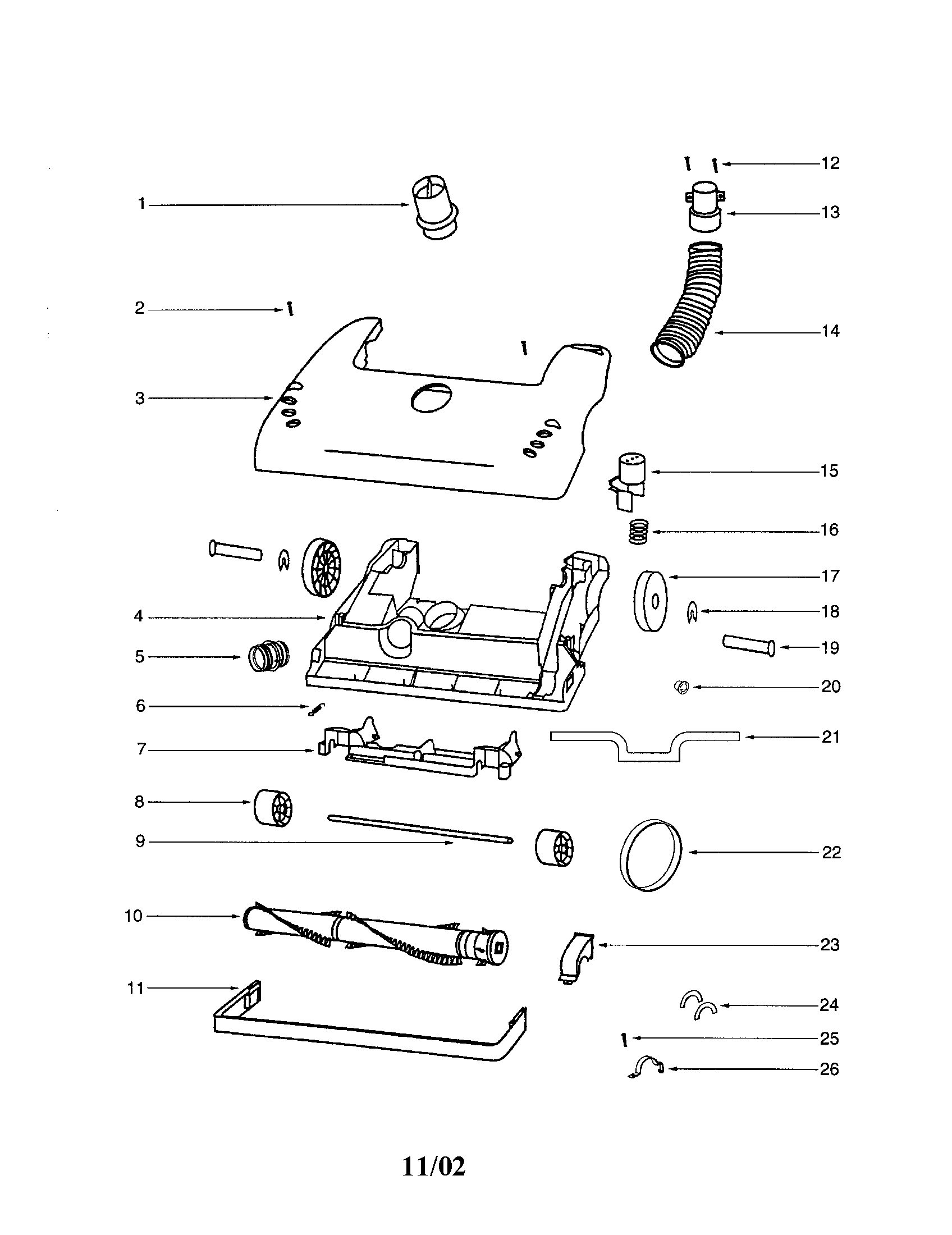

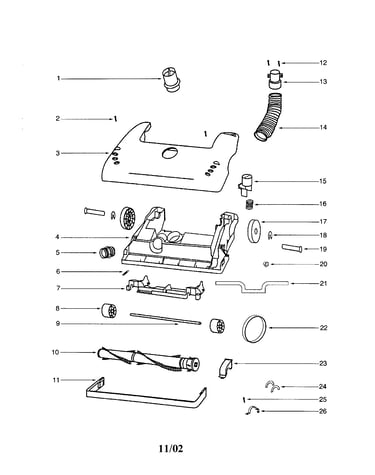

Hood/base diagram

Vacuum wheel

Part #72117-119N

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 39252-2
#20

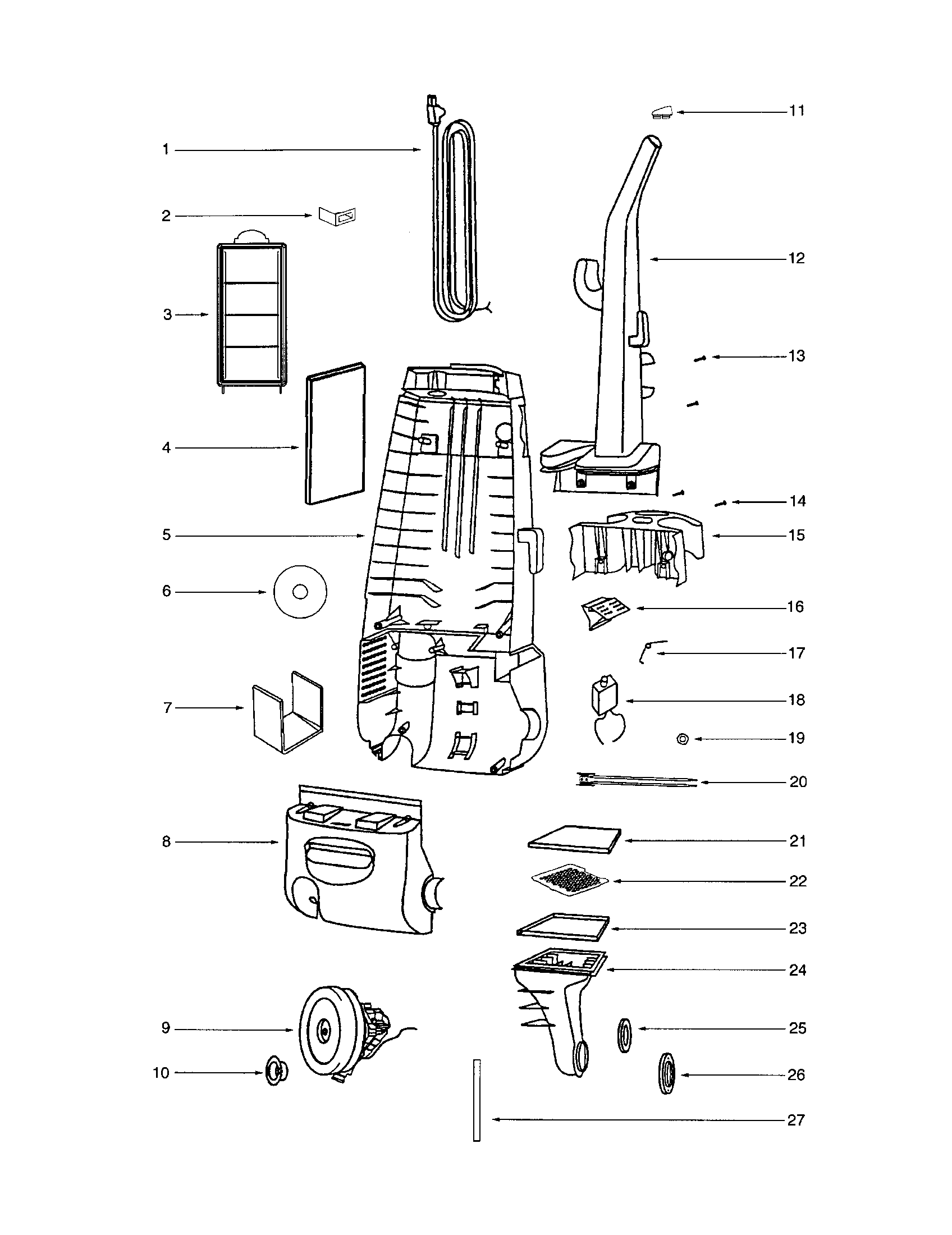

Handle/motor cover/motor diagram

Thermostat

Part #39252-2

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw, 10-pack 53238-44
Vacuum screw, 10-pack

Part #53238-44

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27962
#27

Handle/motor cover/motor diagram

Gasket

Part #27962

The manufacturer no longer makes this part, and there's no substitute part

Foam Sound 72224-1
#7

Handle/motor cover/motor diagram

Foam sound

Part #72224-1

The manufacturer no longer makes this part, and there's no substitute part

Gasket 58506-1
#21

Hood/base diagram

Gasket

Part #58506-1

The manufacturer no longer makes this part, and there's no substitute part

Switch Shield 71645
#2

Handle/motor cover/motor diagram

Switch shield

Part #71645

The manufacturer no longer makes this part, and there's no substitute part

Gasket 59297-2SV
#12

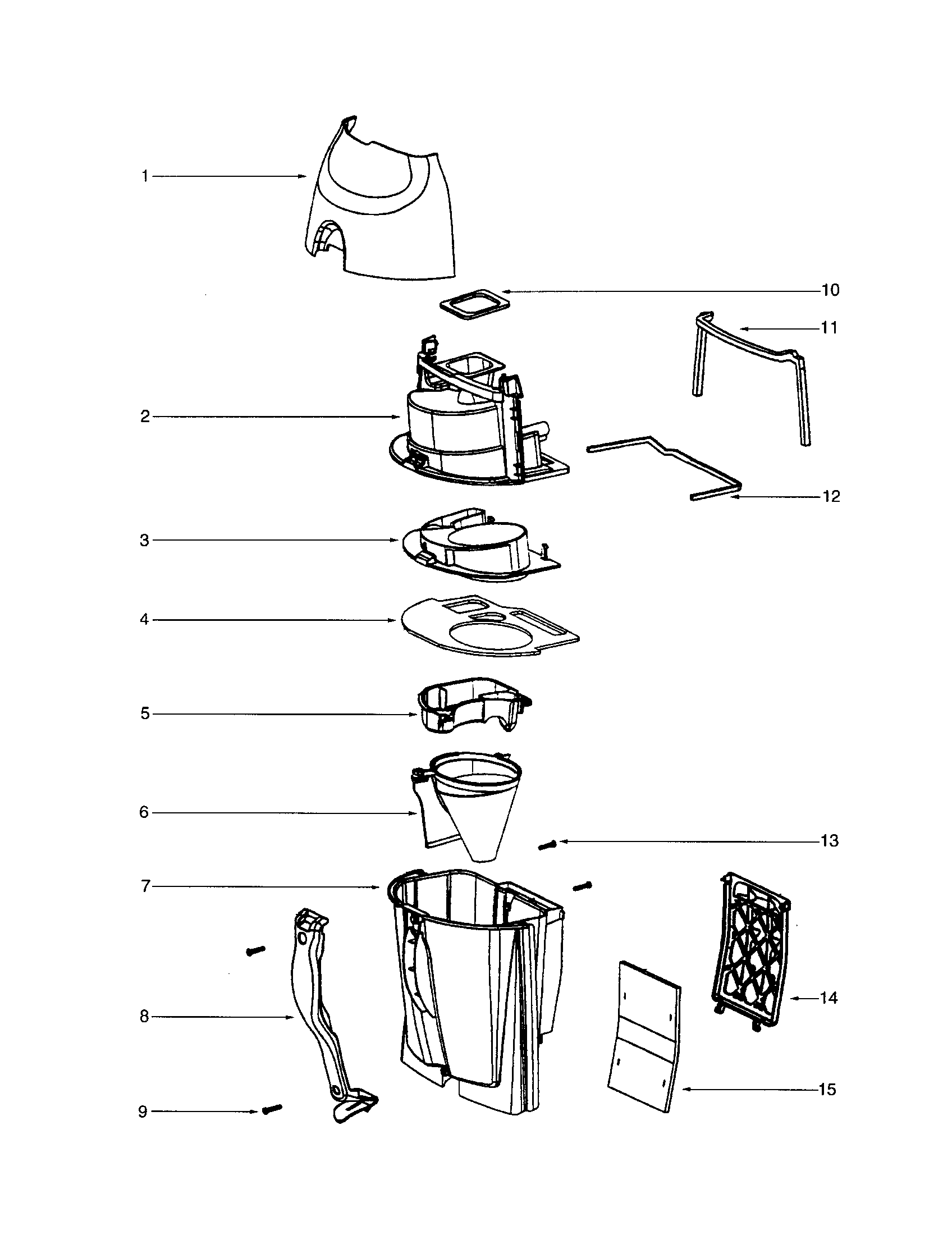

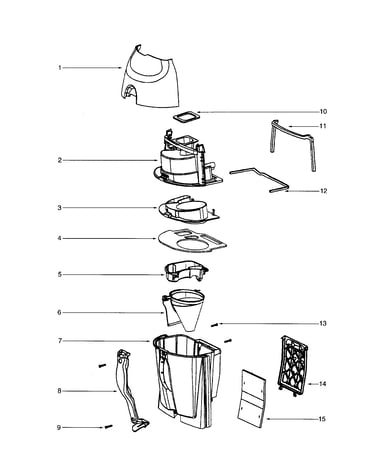

Cyclone funnel/cyclone diagram

Gasket

Part #59297-2SV

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel Axle Bracket 14993C-119N
#7

Hood/base diagram

Vacuum wheel axle bracket

Part #14993C-119N

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Furniture Guard 15237A-288N
#11

Hood/base diagram

Vacuum furniture guard

Part #15237A-288N

The manufacturer no longer makes this part, and there's no substitute part
