Model # EC-14TXT6 Official Sharp vacuum cleaner

Here are the diagrams and repair parts for Official Sharp EC-14TXT6 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

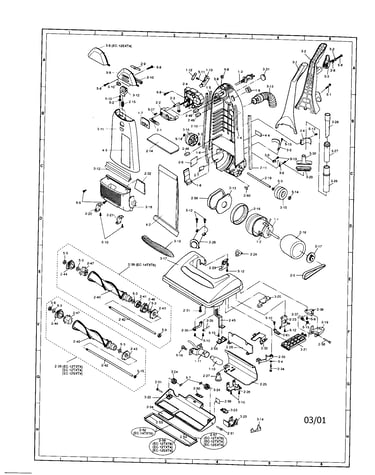

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 160 parts  |

Body GBDYUA050VBFA
#3-08

Upright vac diagram

Body

Part #GBDYUA050VBFA

The manufacturer no longer makes this part, and there's no substitute part

Plate LPLT-A025VBW0
#2-28

Upright vac diagram

Plate

Part #LPLT-A025VBW0

The manufacturer no longer makes this part, and there's no substitute part

Power Cord FACC-A021VBE0
#1-03A

Upright vac diagram

Power cord

Part #FACC-A021VBE0

The manufacturer no longer makes this part, and there's no substitute part

Motor Brush QBRSCA018ABE0
#1-02

Upright vac diagram

Motor brush

Part #QBRSCA018ABE0

The manufacturer no longer makes this part, and there's no substitute part

Washer LX-WZA009VBE0
#5-03

Upright vac diagram

Washer

Part #LX-WZA009VBE0

The manufacturer no longer makes this part, and there's no substitute part

Screw; 4mm X 16mm XZPSD40P16000
Screw; 4mm x 16mm

Part #XZPSD40P16000

The manufacturer no longer makes this part, and there's no substitute part

E-ring XRESE50-06000
#5-14

Upright vac diagram

E-ring

Part #XRESE50-06000

The manufacturer no longer makes this part, and there's no substitute part

Body Seal PTPEHA012VBE0
#2-59

Upright vac diagram

Body seal

Part #PTPEHA012VBE0

The manufacturer no longer makes this part, and there's no substitute part

Panel [ec-12txt4] HPNL-A021VBRC
#3-09C

Upright vac diagram

Panel [ec-12txt4]

Part #HPNL-A021VBRC

The manufacturer no longer makes this part, and there's no substitute part

Wheel GBDY-A025VBFA
#3-15

Upright vac diagram

Wheel

Part #GBDY-A025VBFA

The manufacturer no longer makes this part, and there's no substitute part
