Model # 5007S Official Makita cut saw

Here are the diagrams and repair parts for Official Makita 5007S cut saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |

Rubber Pin 263002-9
#22

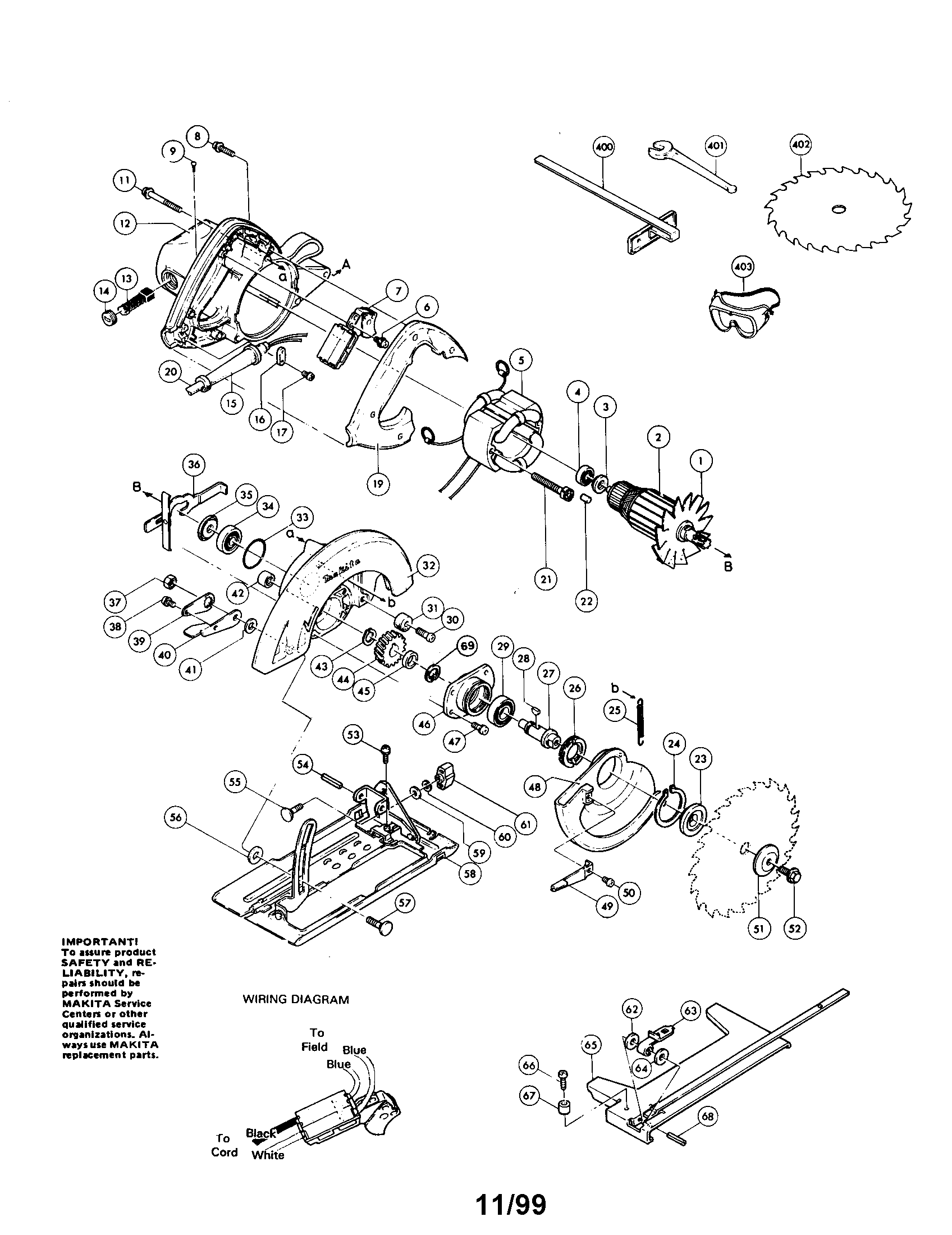

Square cut saw diagram

Rubber pin

Part #263002-9

The manufacturer no longer makes this part, and there's no substitute part

Lever 341417-1
#49

Square cut saw diagram

Lever

Part #341417-1

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 941151-9
#59

Square cut saw diagram

Flat washer

Part #941151-9

The manufacturer no longer makes this part, and there's no substitute part

Bearing 211106-1
#34

Square cut saw diagram

Bearing

Part #211106-1

The manufacturer no longer makes this part, and there's no substitute part

Rivet 953106-2
#9

Square cut saw diagram

Rivet

Part #953106-2

The manufacturer no longer makes this part, and there's no substitute part

Screw 911273-9
#11

Square cut saw diagram

Screw

Part #911273-9

The manufacturer no longer makes this part, and there's no substitute part

Bolt 251644-1
#52

Square cut saw diagram

Bolt

Part #251644-1

The manufacturer no longer makes this part, and there's no substitute part

Retainer Ring 961201-4
#24

Square cut saw diagram

Retainer ring

Part #961201-4

The manufacturer no longer makes this part, and there's no substitute part

Flange 224151-7
#23

Square cut saw diagram

Flange

Part #224151-7

The manufacturer no longer makes this part, and there's no substitute part

Rbbr Sleeve 262502-6
#31

Square cut saw diagram

Rbbr sleeve

Part #262502-6

The manufacturer no longer makes this part, and there's no substitute part
