Hedge Trimmer

Model # 358796370 Official Craftsman hedge trimmer

Here are the diagrams and repair parts for Official Craftsman 358796370 hedge trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

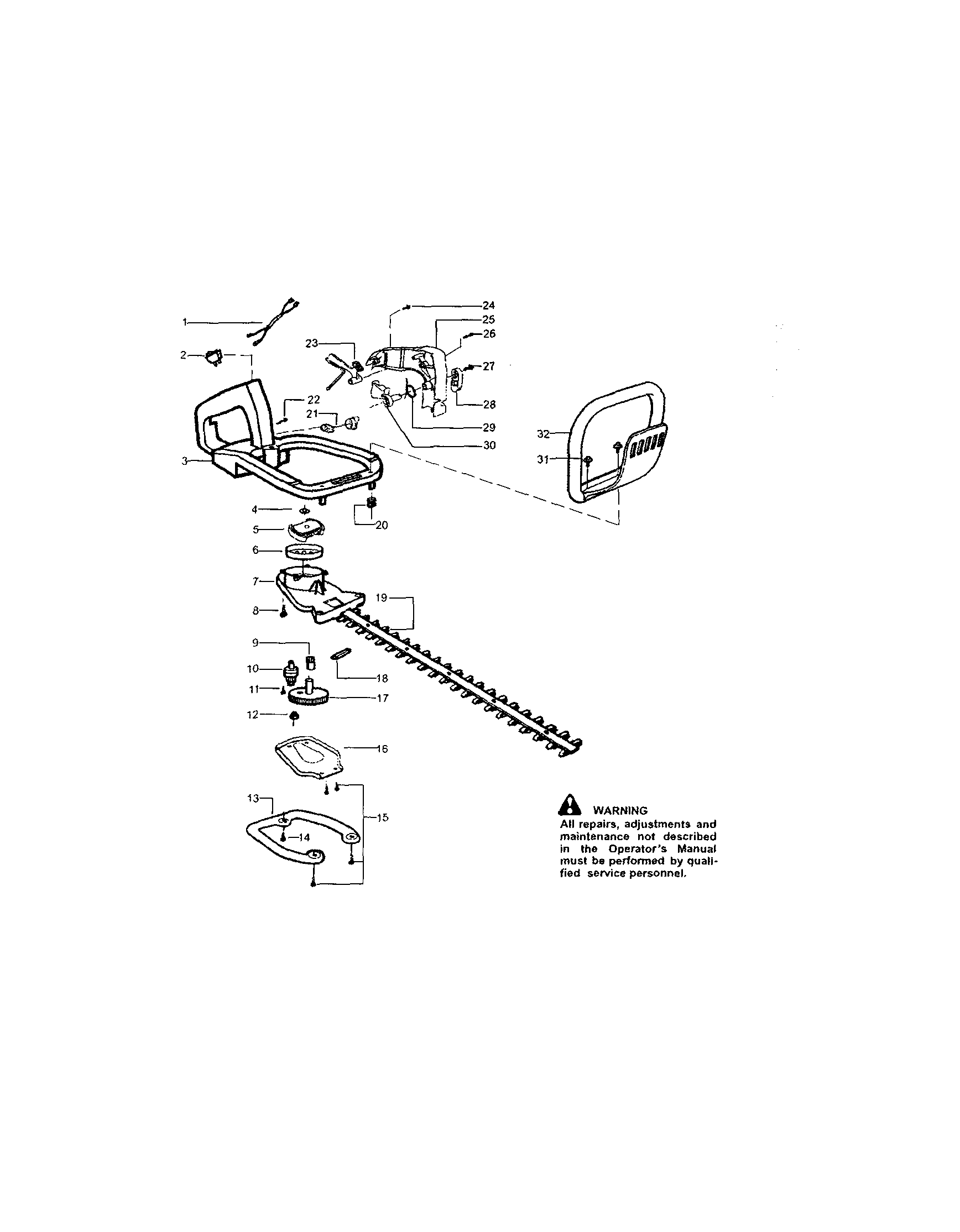

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |
Lawn & Garden Equipment Fuel Line, Small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404) 530069247
#52

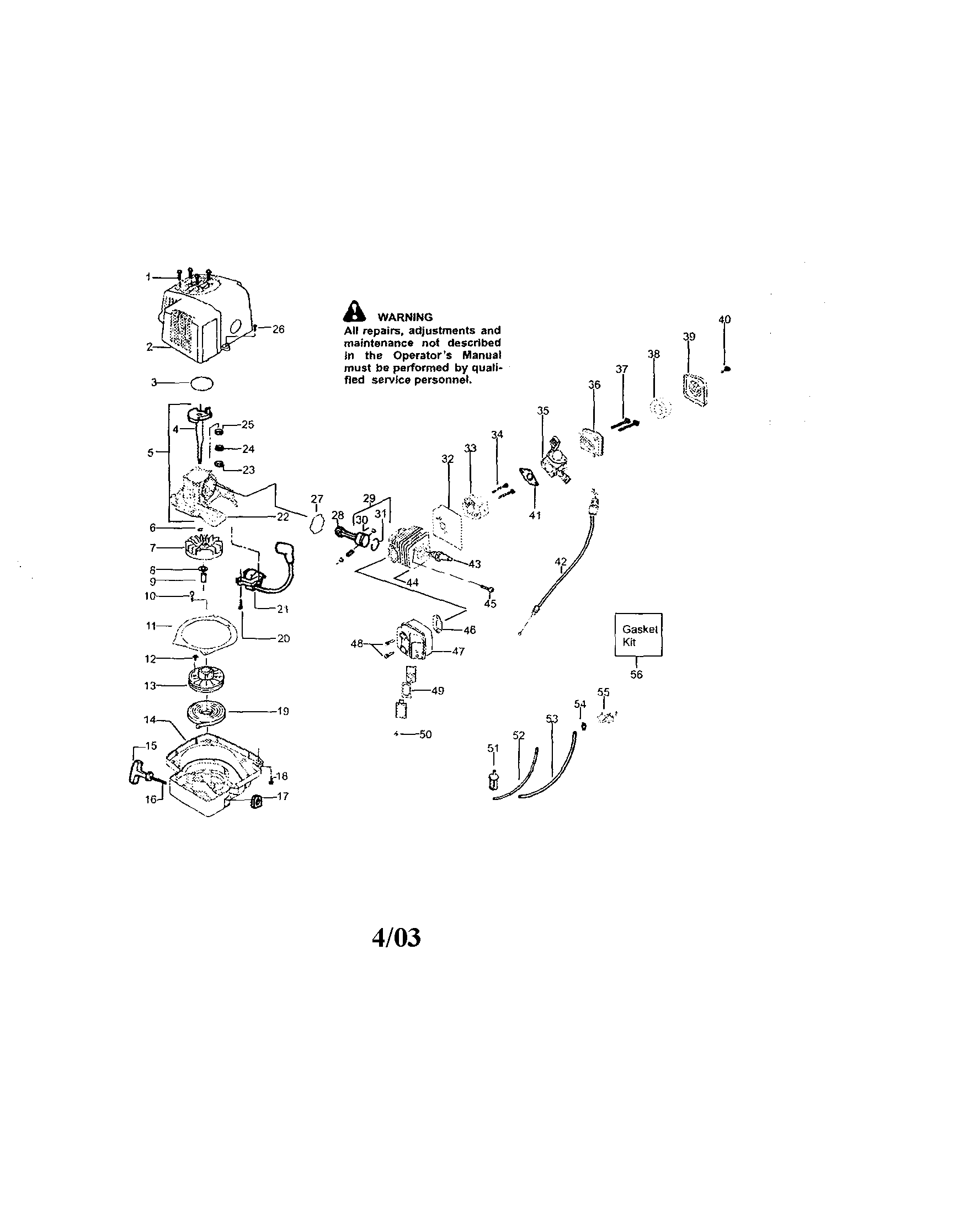

Crankshaft/crancase/cylinder diagram

Lawn & garden equipment fuel line, small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404)

Part #530069247

BEST SELLER
$10.11 |
17% OFF Phone Price : $12.11
In Stock
Lawn & Garden Equipment Fuel Line, Large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216) 530069216
#53

Crankshaft/crancase/cylinder diagram

Lawn & garden equipment fuel line, large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216)

Part #530069216

BEST SELLER
$14.44 |
12% OFF Phone Price : $16.44
In Stock
Chainsaw Fuel Line Fitting (replaces 530-023877) 530023877
#54

Crankshaft/crancase/cylinder diagram

Chainsaw fuel line fitting (replaces 530-023877)

Part #530023877

BEST SELLER
This item is not returnable
$7.20 |
12% OFF Phone Price : $8.20
In Stock
Ignition Module 530039221
#21

Crankshaft/crancase/cylinder diagram

Ignition module

Part #530039221

Replaced by #501092801

?
Manufacturer substitution
This part replaces 530039221. Substitute parts can look different from the original.
BEST SELLER
$30.33 |
17% OFF Phone Price : $36.33
In Stock
Line Trimmer Air Filter (replaces 5300479-32, 530-047932) 530047932
#38

Crankshaft/crancase/cylinder diagram

Line trimmer air filter (replaces 5300479-32, 530-047932)

Part #530047932

This item is not returnable
$7.20 |
12% OFF Phone Price : $8.20
In Stock
Piston Ring 530055120
#31

Crankshaft/crancase/cylinder diagram

Piston ring

Part #530055120

Replaced by #545154001

?
Manufacturer substitution
This part replaces 530055120. Substitute parts can look different from the original.
This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
Hedge Trimmer Carburetor (replaces 530071601) 530071633
#35

Crankshaft/crancase/cylinder diagram

Hedge trimmer carburetor (replaces 530071601)

Part #530071633

$48.77 |
11% OFF Phone Price : $54.77
In Stock
Hedge Trimmer Fuel Filter 530095992
#51

Crankshaft/crancase/cylinder diagram

Hedge trimmer fuel filter

Part #530095992

This item is not returnable
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lawn & Garden Equipment Screw 530016357
#20

Crankshaft/crancase/cylinder diagram

Lawn & garden equipment screw

Part #530016357

This item is not returnable
$5.54
In Stock
Edger Recoil Starter Handle 530027569
#15

Crankshaft/crancase/cylinder diagram

Edger recoil starter handle

Part #530027569

This item is not returnable
$7.40
In Stock
