Model # 2901A Official Eureka upright vacuum

Here are the diagrams and repair parts for Official Eureka 2901A upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |

Screw 62082
#26

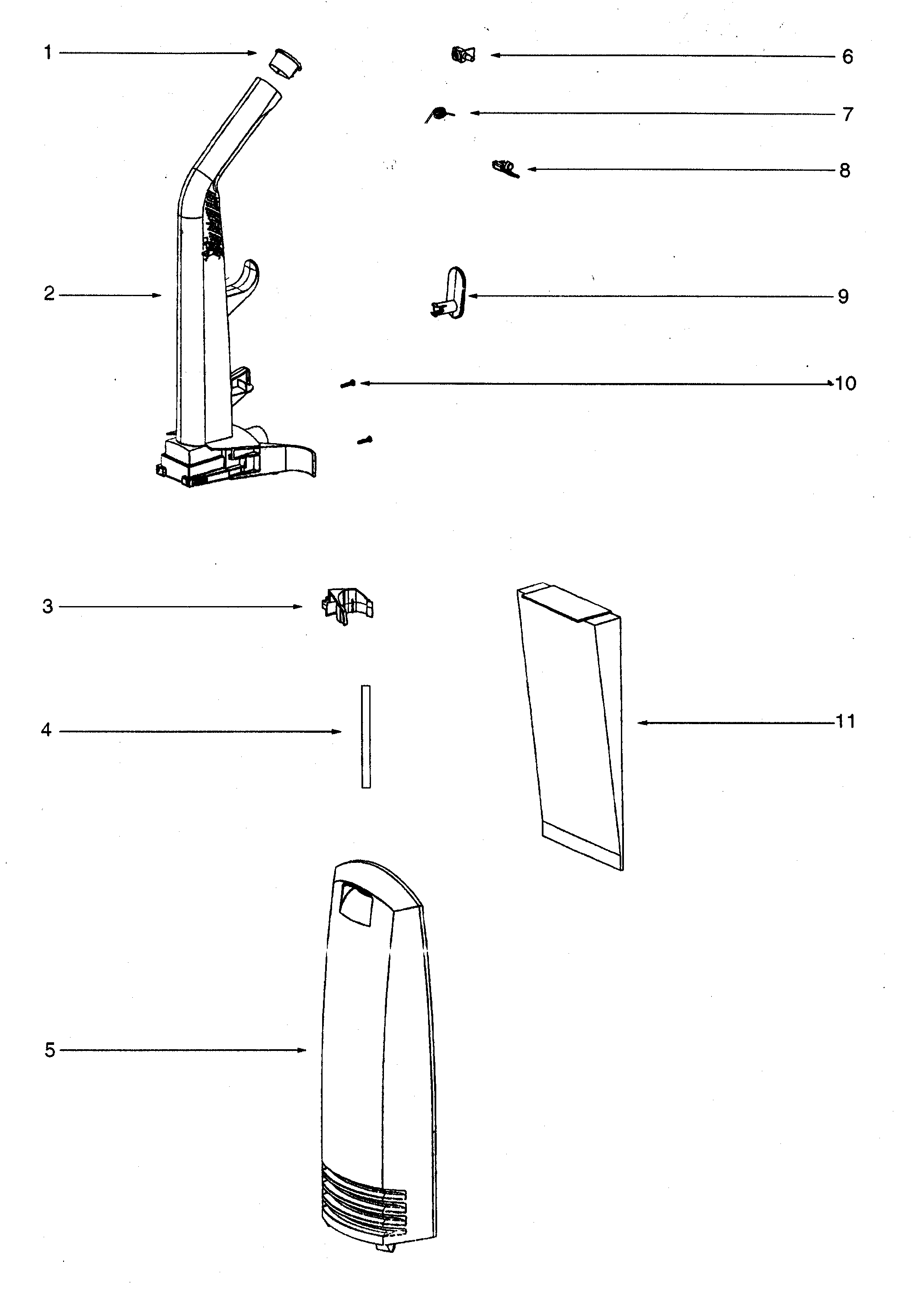

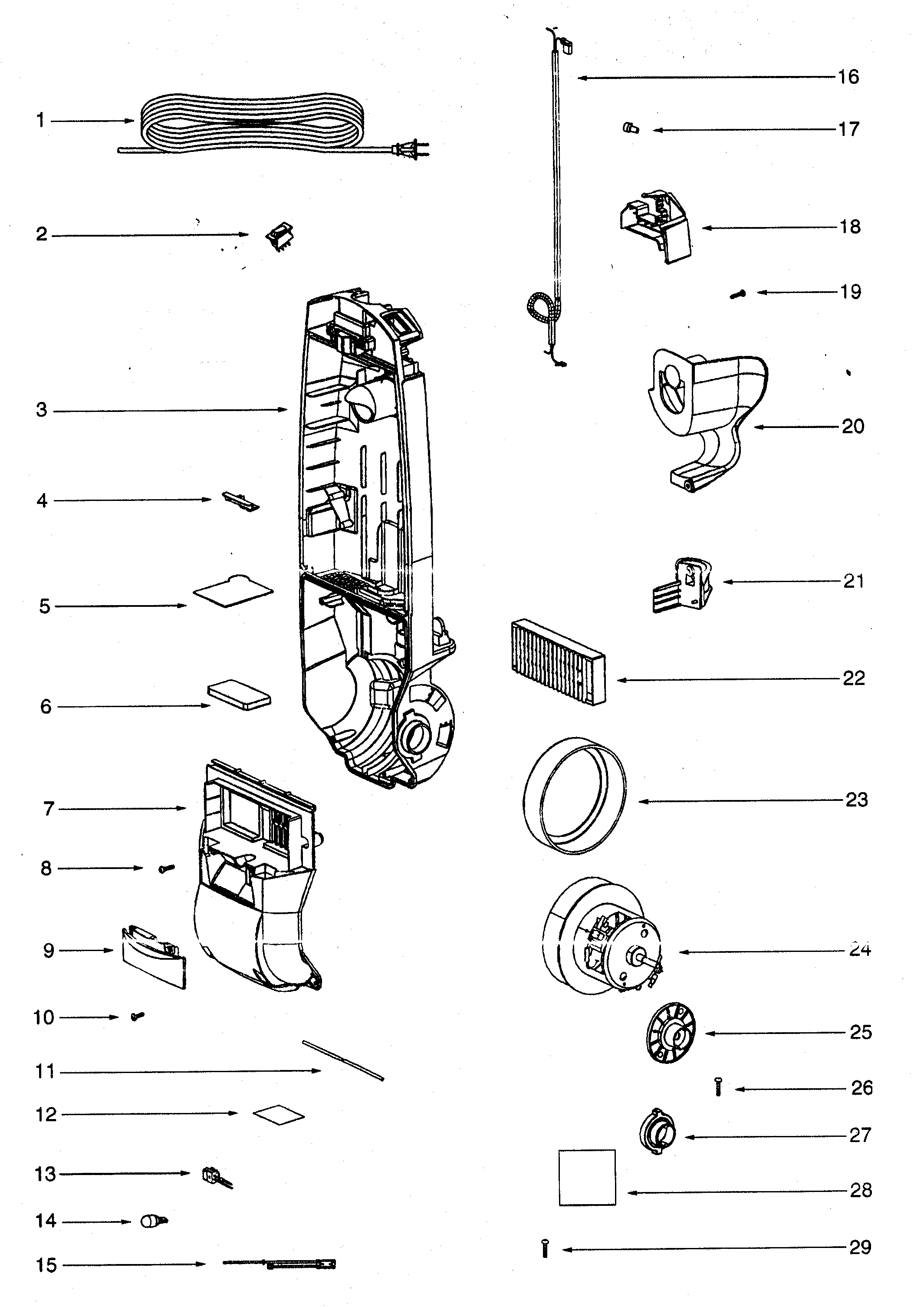

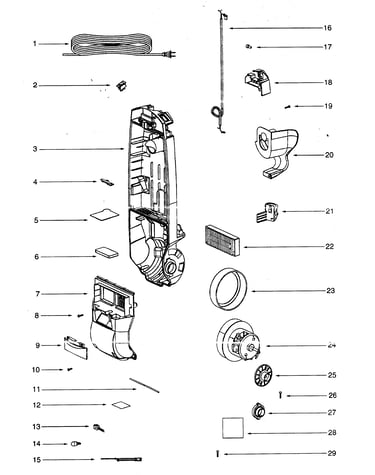

Housing assy diagram

Screw

Part #62082

The manufacturer no longer makes this part, and there's no substitute part

Cover 72456-355N
#18

Housing assy diagram

Cover

Part #72456-355N

The manufacturer no longer makes this part, and there's no substitute part

Cover 62074-2
#7

Housing assy diagram

Cover

Part #62074-2

The manufacturer no longer makes this part, and there's no substitute part

Bushin Axl 72113-1
#18

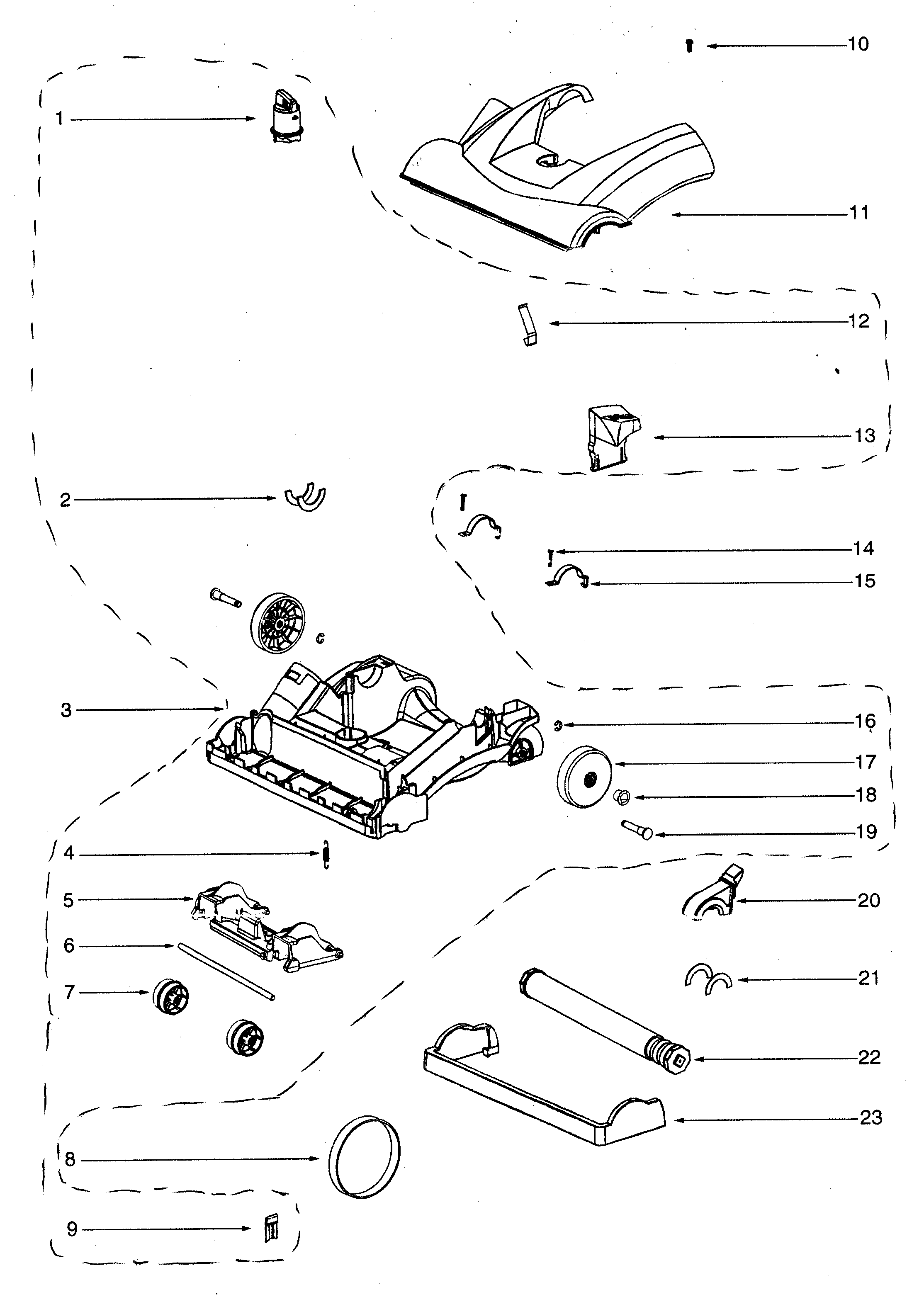

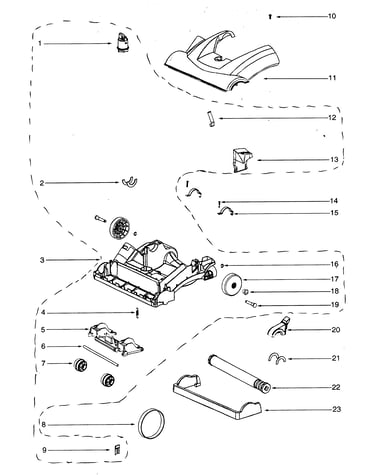

Base assy diagram

Bushin axl

Part #72113-1

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel Axle, Front 71478
#6

Base assy diagram

Vacuum wheel axle, front

Part #71478

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Dust Brush 60990-2
#7

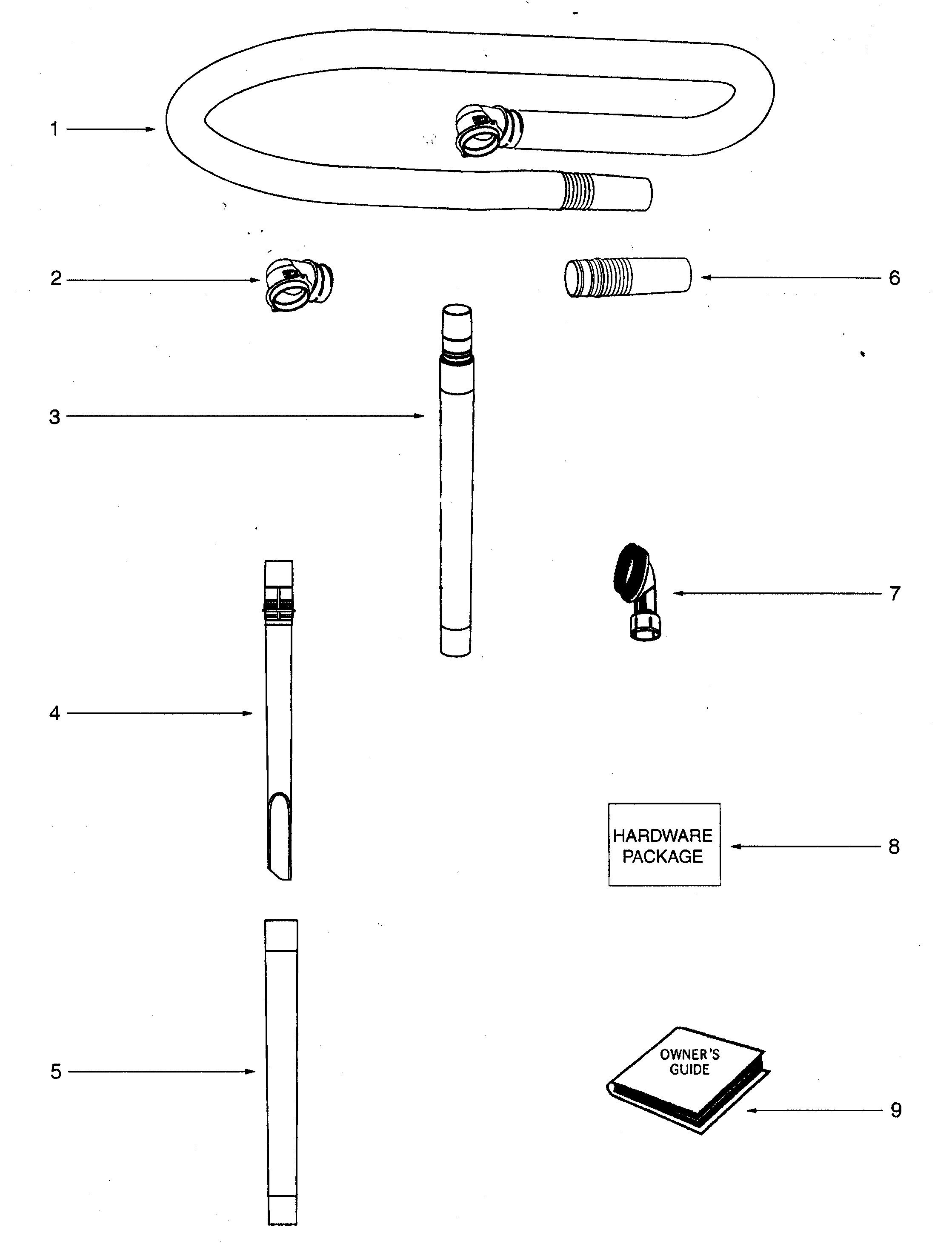

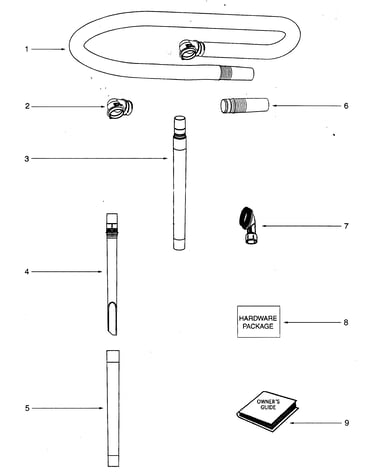

Accessorys diagram

Vacuum dust brush

Part #60990-2

The manufacturer no longer makes this part, and there's no substitute part

Release 72473-355N
#13

Base assy diagram

Release

Part #72473-355N

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Power Cord 39585-9
#1

Housing assy diagram

Vacuum power cord

Part #39585-9

The manufacturer no longer makes this part, and there's no substitute part

Electrolux Vacuum Spring 54943
#4

Base assy diagram

Electrolux vacuum spring

Part #54943

The manufacturer no longer makes this part, and there's no substitute part

Guard 72474-355N
#23

Base assy diagram

Guard

Part #72474-355N

The manufacturer no longer makes this part, and there's no substitute part
