Model # 1006238280 Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 1006238280 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |

Slide 50544P1152
#46

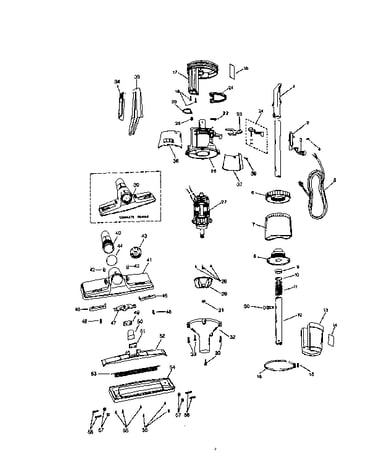

Unit parts diagram

Slide

Part #50544P1152

The manufacturer no longer makes this part, and there's no substitute part

Filter Bag 25057P1
#7

Unit parts diagram

Filter bag

Part #25057P1

The manufacturer no longer makes this part, and there's no substitute part

Data Label 24897P1
#18

Unit parts diagram

Data label

Part #24897P1

The manufacturer no longer makes this part, and there's no substitute part

Connection Nozzle 24396P3046
#40

Unit parts diagram

Connection nozzle

Part #24396P3046

The manufacturer no longer makes this part, and there's no substitute part

Cord 24453P4046
#5

Unit parts diagram

Cord

Part #24453P4046

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 25038P2

#NI

All parts diagram

Owner's manual

Part #25038P2

The manufacturer no longer makes this part, and there's no substitute part

Warning Label 24455P1
#14

Unit parts diagram

Warning label

Part #24455P1

The manufacturer no longer makes this part, and there's no substitute part

Motor Housing Screw 03498
#38

Unit parts diagram

Motor housing screw

Part #03498

The manufacturer no longer makes this part, and there's no substitute part

Filter Clamp 24624P1046
#16

Unit parts diagram

Filter clamp

Part #24624P1046

The manufacturer no longer makes this part, and there's no substitute part

Guide 50543P2046
#52

Unit parts diagram

Guide

Part #50543P2046

The manufacturer no longer makes this part, and there's no substitute part
