Model # LC-70LE732UN Official Sharp lcd television

Here are the diagrams and repair parts for Official Sharp LC-70LE732UN lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Cord QCNW-M035WJQZ
#38

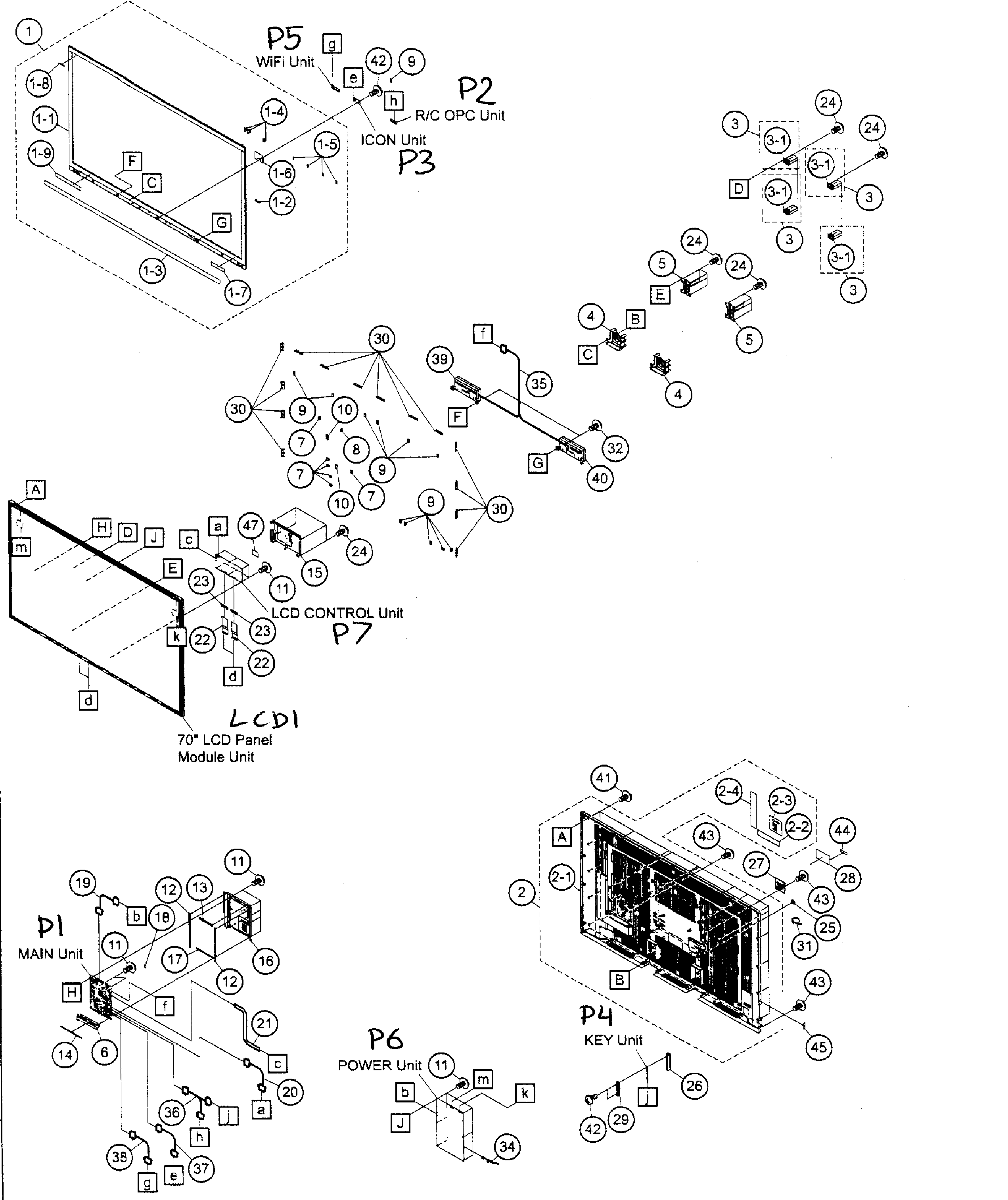

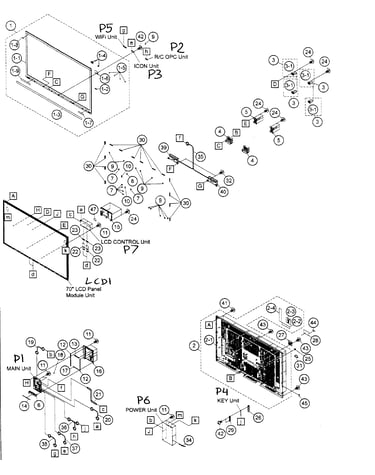

Cabinet parts diagram

Cord

Part #QCNW-M035WJQZ

The manufacturer no longer makes this part, and there's no substitute part

Cord QCNW-M033WJQZ
#36

Cabinet parts diagram

Cord

Part #QCNW-M033WJQZ

The manufacturer no longer makes this part, and there's no substitute part

Sharp Support CANGKD303WJ01
#NI

Cabinet parts diagram

Sharp support

Part #CANGKD303WJ01

The manufacturer no longer makes this part, and there's no substitute part

Wifi Unit RUNTKA810WJQZ
#P5

Cabinet parts diagram

Wifi unit

Part #RUNTKA810WJQZ

The manufacturer no longer makes this part, and there's no substitute part

Cord QCNW-M029WJQZ
#19

Cabinet parts diagram

Cord

Part #QCNW-M029WJQZ

The manufacturer no longer makes this part, and there's no substitute part

Sharp Main Pcb DKEYMF733FM19
#P1

Cabinet parts diagram

Sharp main pcb

Part #DKEYMF733FM19

The manufacturer no longer makes this part, and there's no substitute part

Speaker,r RSP-ZA539WJQZ
#40

Cabinet parts diagram

Speaker,r

Part #RSP-ZA539WJQZ

The manufacturer no longer makes this part, and there's no substitute part

Television Ir Sensor And Power Board DUNTKF494FM01
#P2

Cabinet parts diagram

Television ir sensor and power board

Part #DUNTKF494FM01

The manufacturer no longer makes this part, and there's no substitute part

Shaft GCOVAE164WJ3A
#4

Cabinet parts diagram

Shaft

Part #GCOVAE164WJ3A

The manufacturer no longer makes this part, and there's no substitute part

Power Pcb RUNTKA857WJQZ
#P6

Cabinet parts diagram

Power pcb

Part #RUNTKA857WJQZ

The manufacturer no longer makes this part, and there's no substitute part
