Model # 22050400 Official LXI solid state 8-track stereo tape player

Here are the diagrams and repair parts for Official LXI 22050400 solid state 8-track stereo tape player, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

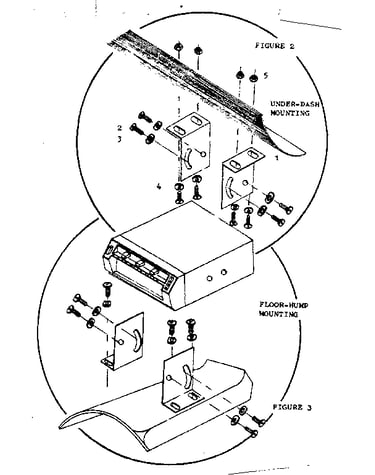

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Heat Sink 4-15017
#19

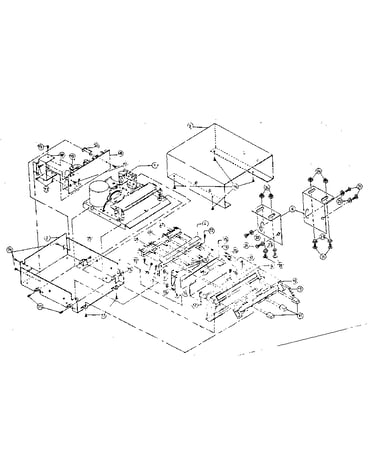

Cabinet and chassis diagram

Heat sink

Part #4-15017

The manufacturer no longer makes this part, and there's no substitute part

Screw 4-15024
#76

Cabinet and chassis diagram

Screw

Part #4-15024

The manufacturer no longer makes this part, and there's no substitute part

Indicator 4-15039
#88

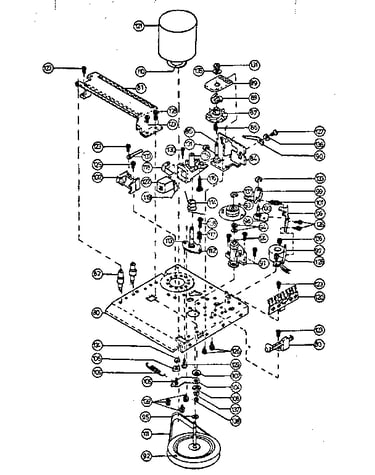

Tape mechanism chassis diagram

Indicator

Part #4-15039

The manufacturer no longer makes this part, and there's no substitute part

Flywhl Brng 4-15042
#91

Tape mechanism chassis diagram

Flywhl brng

Part #4-15042

The manufacturer no longer makes this part, and there's no substitute part

Cart Door 4-15012
#14

Cabinet and chassis diagram

Cart door

Part #4-15012

The manufacturer no longer makes this part, and there's no substitute part

Spring 4-15088
#137

Tape mechanism chassis diagram

Spring

Part #4-15088

The manufacturer no longer makes this part, and there's no substitute part

Motor Pull 4-15061
#110

Tape mechanism chassis diagram

Motor pull

Part #4-15061

The manufacturer no longer makes this part, and there's no substitute part

Pan Screw 4-15079
#128

Tape mechanism chassis diagram

Pan screw

Part #4-15079

The manufacturer no longer makes this part, and there's no substitute part

Top Cabinet 4-15002
#3

Cabinet and chassis diagram

Top cabinet

Part #4-15002

The manufacturer no longer makes this part, and there's no substitute part

Washer 4-15087
#136

Tape mechanism chassis diagram

Washer

Part #4-15087

The manufacturer no longer makes this part, and there's no substitute part
