Model # 143670022 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143670022 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 194 parts  |
Screw 30688
#82

Replacement parts diagram

Screw

Part #30688

Replaced by #30063

?
Manufacturer substitution
This part replaces 30688. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Screw 30564
#34

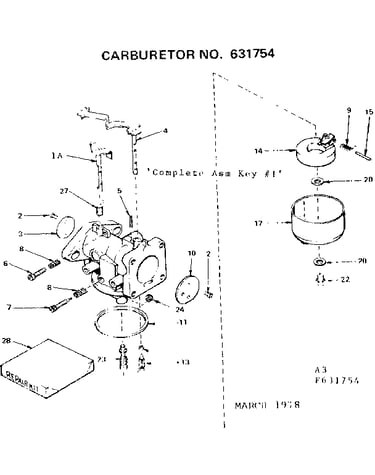

Replacement parts diagram

Screw

Part #30564

Replaced by #650451

?
Manufacturer substitution
This part replaces 30564. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Lauson Lawn & Garden Equipment Engine O-ring 33590
#40

Replacement parts diagram

Lauson lawn & garden equipment engine o-ring

Part #33590

This item is not returnable
$2.16
In Stock
Lauson Gear 33844
#5

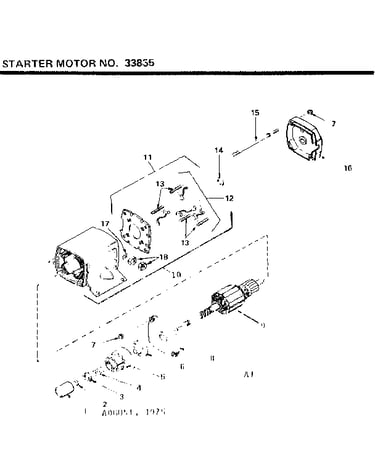

Starter motor diagram

Lauson gear

Part #33844

$39.73
In Stock
Lauson Lawn & Garden Equipment Engine Starter Pinion Gear Retainer Ring 33842
#2

Starter motor diagram

Lauson lawn & garden equipment engine starter pinion gear retainer ring

Part #33842

This item is not returnable
$4.43
In Stock
Valve Spring 33507
#23

Replacement parts diagram

Valve spring

Part #33507

This item is not returnable
$4.17
In Stock
Lawn & Garden Equipment Engine Recoil Starter Pulley 31980
#93

Replacement parts diagram

Lawn & garden equipment engine recoil starter pulley

Part #31980

$33.71
In Stock
Carburetor Lawn & Garden Equipment Engine Carburetor Float 27105
#14

Replacement parts diagram

Carburetor lawn & garden equipment engine carburetor float

Part #27105

$24.67
In Stock
Cook Top Side Trim Kit Retaining Ring 29193
#38

Replacement parts diagram

Cook top side trim kit retaining ring

Part #29193

This item is not returnable
$2.16
In Stock
Lawn & Garden Equipment Washer 30590A
#29

Replacement parts diagram

Lawn & garden equipment washer

Part #30590A

Replaced by #651080

?
Manufacturer substitution
This part replaces 30590A. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
