Model # 611205220 Official Sears lavatory faucet

Here are the diagrams and repair parts for Official Sears 611205220 lavatory faucet, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Body 12153A
#17

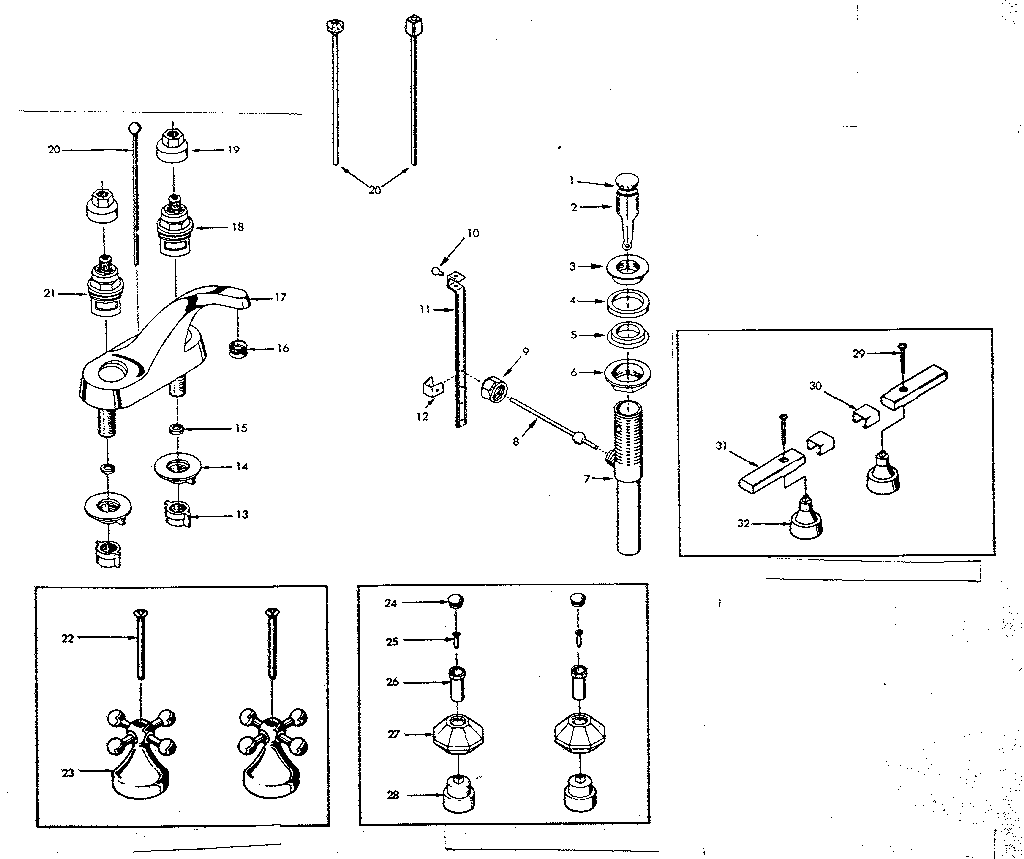

Unit parts diagram

Body

Part #12153A

The manufacturer no longer makes this part, and there's no substitute part

Cartridge A1107L
Cartridge

Part #A1107L

The manufacturer no longer makes this part, and there's no substitute part

Handle 87031
#31A

Unit parts diagram

Handle

Part #87031

The manufacturer no longer makes this part, and there's no substitute part

Seal Flange 56012
#4

Unit parts diagram

Seal flange

Part #56012

The manufacturer no longer makes this part, and there's no substitute part

Handle 87032
#27A

Unit parts diagram

Handle

Part #87032

The manufacturer no longer makes this part, and there's no substitute part

Cartridge A1107R
#18A

Unit parts diagram

Cartridge

Part #A1107R

The manufacturer no longer makes this part, and there's no substitute part

Aerator (with Water Conserving Device) N/P
Aerator (with water conserving device)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Lift Rod A0679A
#20B

Unit parts diagram

Lift rod

Part #A0679A

The manufacturer no longer makes this part, and there's no substitute part

Lift Rod A0678A
#20A

Unit parts diagram

Lift rod

Part #A0678A

The manufacturer no longer makes this part, and there's no substitute part

Screw 23045
#10

Unit parts diagram

Screw

Part #23045

The manufacturer no longer makes this part, and there's no substitute part
