GE
Countertop Microwave

Model # JES633WN02 Official GE microwave

Here are the diagrams and repair parts for Official GE JES633WN02 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Sw-secondary WB24X796

#1446

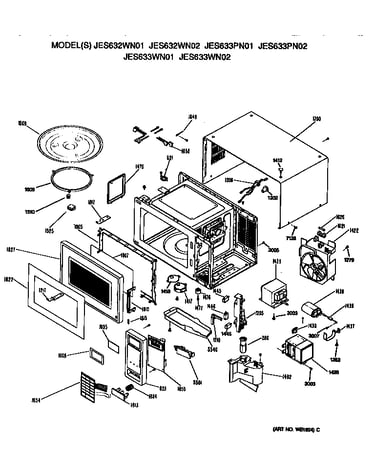

All parts diagram

Sw-secondary

Part #WB24X796

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X796. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Primary Switch WB24X439

#1445

All parts diagram

Primary switch

Part #WB24X439

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X439. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Fuse WB27X713

#1626

All parts diagram

Fuse

Part #WB27X713

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X713. Substitute parts can look different from the original.
BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Diode WB27X330

#1439

All parts diagram

Diode

Part #WB27X330

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X330. Substitute parts can look different from the original.
BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Flame Sensor WB20X141

#1121

All parts diagram

Flame sensor

Part #WB20X141

Replaced by #WB27X10195

?
Manufacturer substitution
This part replaces WB20X141. Substitute parts can look different from the original.
$24.89 |
19% OFF Phone Price : $30.89
In Stock
Use And Care Guide 49-8494

#9999

All parts diagram

Use and care guide

Part #49-8494

$8.49
In Stock
Sc Washer WB1X1436

#3003

All parts diagram

Sc washer

Part #WB1X1436

Replaced by #WB01X10084

?
Manufacturer substitution
This part replaces WB1X1436. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Lever Doo WB6X197

#5591

All parts diagram

Lever doo

Part #WB6X197

The manufacturer no longer makes this part, and there's no substitute part

Film Wind WB6X373

#1608

All parts diagram

Film wind

Part #WB6X373

The manufacturer no longer makes this part, and there's no substitute part

Door Film WB6X201

#1807

All parts diagram

Door film

Part #WB6X201

The manufacturer no longer makes this part, and there's no substitute part
