Model # S5602070 Official Hoover canister vacuum

Here are the diagrams and repair parts for Official Hoover S5602070 canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |

Mount 59132040
#14

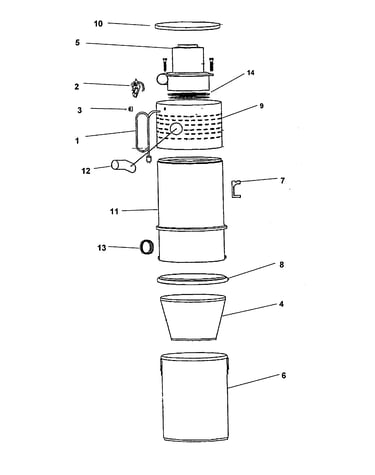

Complete assembly diagram

Mount

Part #59132040

The manufacturer no longer makes this part, and there's no substitute part

Control Module 59132006
#2

Complete assembly diagram

Control module

Part #59132006

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord 59132011
#1

Complete assembly diagram

Ac cord

Part #59132011

The manufacturer no longer makes this part, and there's no substitute part

Bracket 59132022
#7

Complete assembly diagram

Bracket

Part #59132022

The manufacturer no longer makes this part, and there's no substitute part

Brush 59132010
#5C

Complete assembly diagram

Brush

Part #59132010

The manufacturer no longer makes this part, and there's no substitute part

Adapter 59132038
#12

Complete assembly diagram

Adapter

Part #59132038

The manufacturer no longer makes this part, and there's no substitute part

Cvs Turbine Acc Kit (series 10) (non-illus) S5678---
#16

Complete assembly diagram

Cvs turbine acc kit (series 10) (non-illus)

Part #S5678---

The manufacturer no longer makes this part, and there's no substitute part

Grommet Intake (series 10) 93001033
#13

Complete assembly diagram

Grommet intake (series 10)

Part #93001033

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Switch 59132005
#3

Complete assembly diagram

Vacuum switch

Part #59132005

The manufacturer no longer makes this part, and there's no substitute part

Manual Owners (series 10) (non-illus) 93001035
#15A

Complete assembly diagram

Manual owners (series 10) (non-illus)

Part #93001035

The manufacturer no longer makes this part, and there's no substitute part
