Panasonic
DVD Player

Model # SC-PM91DP Official Panasonic dvd tabletop

Here are the diagrams and repair parts for Official Panasonic SC-PM91DP dvd tabletop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |
Motor Capacitor REM0120
#NI

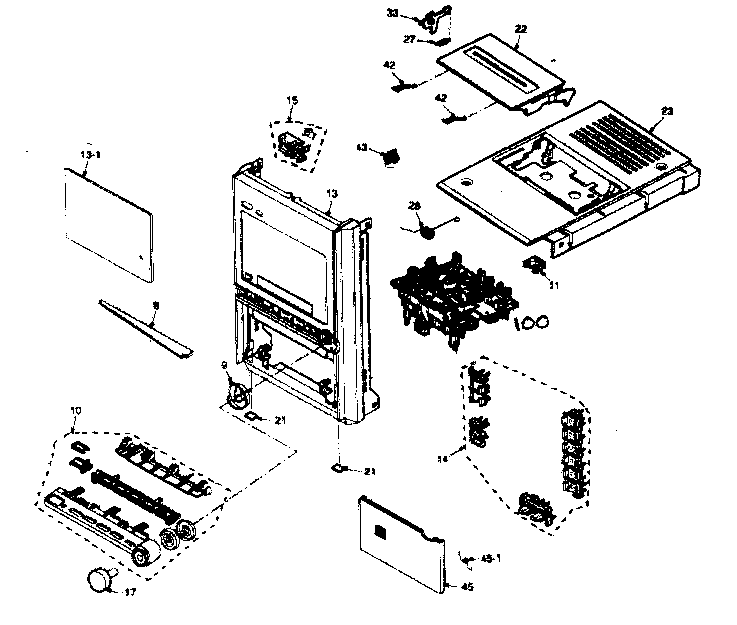

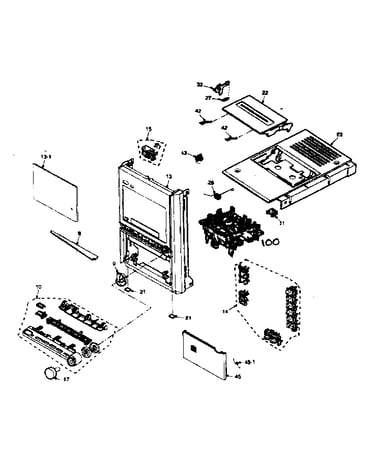

Receiver diagram

Motor capacitor

Part #REM0120

The manufacturer no longer makes this part, and there's no substitute part

Res, 2.4k ERJ2RHD242X
#NI

Receiver diagram

Res, 2.4k

Part #ERJ2RHD242X

The manufacturer no longer makes this part, and there's no substitute part

Res,15k 2w ERJ2GEJ153X
#NI

Receiver diagram

Res,15k 2w

Part #ERJ2GEJ153X

The manufacturer no longer makes this part, and there's no substitute part

Cover RKK-HTR0051K
#NI

Receiver diagram

Cover

Part #RKK-HTR0051K

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C0GAG0000007
#NI

Receiver diagram

Integrated circuit

Part #C0GAG0000007

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit RSN315H41-P
#NI

Receiver diagram

Integrated circuit

Part #RSN315H41-P

The manufacturer no longer makes this part, and there's no substitute part

Res,270 2w ERJ2RHD271X
#NI

Receiver diagram

Res,270 2w

Part #ERJ2RHD271X

The manufacturer no longer makes this part, and there's no substitute part

Res, 1k 2w ERJ2RHD102X
#NI

Receiver diagram

Res, 1k 2w

Part #ERJ2RHD102X

The manufacturer no longer makes this part, and there's no substitute part

Relay K6B1AEA00003
#NI

Receiver diagram

Relay

Part #K6B1AEA00003

The manufacturer no longer makes this part, and there's no substitute part

Ic,2ch Dac C0FBBK000049
#NI

Receiver diagram

Ic,2ch dac

Part #C0FBBK000049

The manufacturer no longer makes this part, and there's no substitute part
