GMC
Central Air Conditioner

Model # CL60-3EB Official GMC condensing unit

Here are the diagrams and repair parts for Official GMC CL60-3EB condensing unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Filter Drier B12192-17
#17

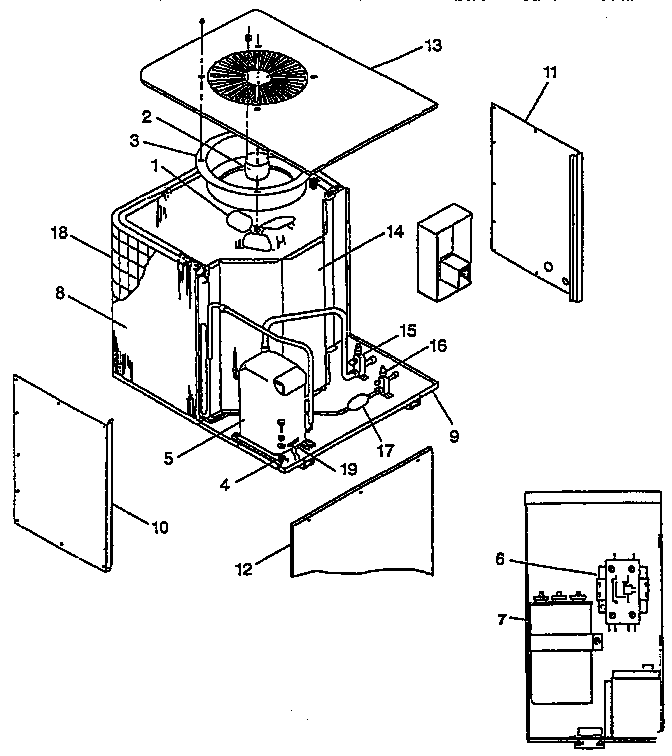

Unit parts diagram

Filter drier

Part #B12192-17

Replaced by #163S

?
Manufacturer substitution
This part replaces B12192-17. Substitute parts can look different from the original.
$48.94 |
11% OFF Phone Price : $54.94
In Stock
Spray Paint, Coil Brown B260S8300
#20A

Unit parts diagram

Spray paint, coil brown

Part #B260S8300

The manufacturer no longer makes this part, and there's no substitute part

Access Panel 17793-03P
#12

Unit parts diagram

Access panel

Part #17793-03P

The manufacturer no longer makes this part, and there's no substitute part

Rt Side Pnl 17792-10P
#11

Unit parts diagram

Rt side pnl

Part #17792-10P

The manufacturer no longer makes this part, and there's no substitute part

Contactor (pgx036050-3a, Pg036075-3a, Pg036100-3a) B13603-02
#6

Unit parts diagram

Contactor (pgx036050-3a, pg036075-3a, pg036100-3a)

Part #B13603-02

The manufacturer no longer makes this part, and there's no substitute part

Base Valve 7 B12825-43
#15

Unit parts diagram

Base valve 7

Part #B12825-43

The manufacturer no longer makes this part, and there's no substitute part

Crankcase He B12437-33
#19

Unit parts diagram

Crankcase he

Part #B12437-33

The manufacturer no longer makes this part, and there's no substitute part

Compressor Grommet B13395-30
#4

Unit parts diagram

Compressor grommet

Part #B13395-30

The manufacturer no longer makes this part, and there's no substitute part

Spray Paint B260S8290
#20

Unit parts diagram

Spray paint

Part #B260S8290

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade, 2 B10867-50
#1

Unit parts diagram

Fan blade, 2

Part #B10867-50

The manufacturer no longer makes this part, and there's no substitute part
