Model # AUH4860ZGDA2 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AUH4860ZGDA2 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

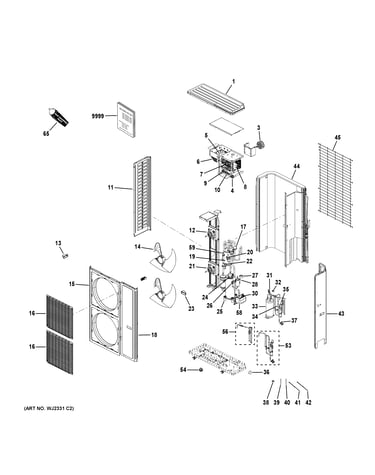

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |
Accumulator WP53X27535
#33

Commercial air conditioner diagram

Accumulator

Part #WP53X27535

$150.00
In Stock
Valve Cover WJ76X29567
#58

Commercial air conditioner diagram

Valve cover

Part #WJ76X29567

$9.23
In Stock
Left Side Panel WP71X27515
#11

Commercial air conditioner diagram

Left side panel

Part #WP71X27515

$117.60
In Stock
Reversing Valve Assembley WP53X27544
#17

Commercial air conditioner diagram

Reversing valve assembley

Part #WP53X27544

$449.67
In Stock
Condenser WP88X27524
#44

Commercial air conditioner diagram

Condenser

Part #WP88X27524

$1765.94
In Stock
Side Handle WP65X27529
#13

Commercial air conditioner diagram

Side handle

Part #WP65X27529

$13.43
In Stock
4 Way Valve Coil WP53X26531
#38

Commercial air conditioner diagram

4 way valve coil

Part #WP53X26531

$24.89
In Stock
Pressure Saftey Switch WP20X26532
#20

Commercial air conditioner diagram

Pressure saftey switch

Part #WP20X26532

$23.77
In Stock
Pressure Transducer WP20X27554
#26

Commercial air conditioner diagram

Pressure transducer

Part #WP20X27554

$186.80
In Stock
Electronic E X Pansion Valve WP20X27532
#27

Commercial air conditioner diagram

Electronic e x pansion valve

Part #WP20X27532

$102.06
In Stock
