Model # AU9875AT Official Eureka upright vacuum

Here are the diagrams and repair parts for Official Eureka AU9875AT upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

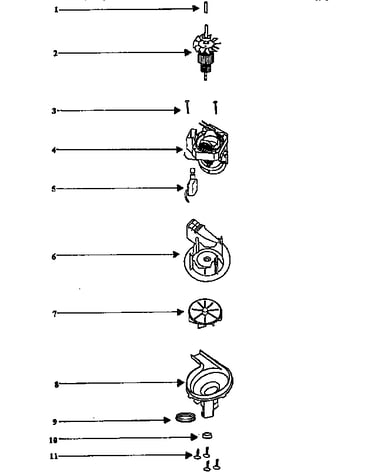

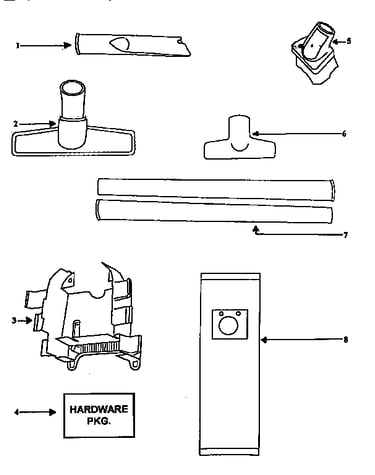

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Axle 38242
#26

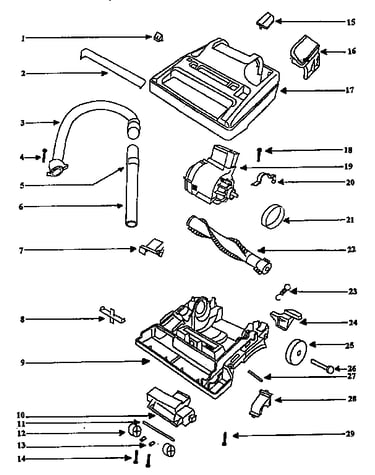

Nozzle and motor assembly diagram

Axle

Part #38242

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw, 10-pack 53238-8
Vacuum screw, 10-pack

Part #53238-8

The manufacturer no longer makes this part, and there's no substitute part

Gasket 57692-1
#9B

Nozzle and motor assembly diagram

Gasket

Part #57692-1

The manufacturer no longer makes this part, and there's no substitute part

Axle 57567-1
#11

Nozzle and motor assembly diagram

Axle

Part #57567-1

The manufacturer no longer makes this part, and there's no substitute part

Housing 02055-1
#18

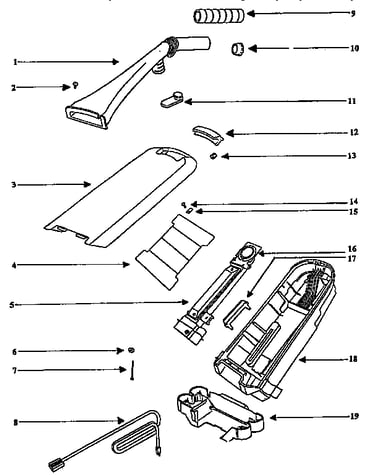

Handle and bag housing diagram

Housing

Part #02055-1

The manufacturer no longer makes this part, and there's no substitute part

Washer 56376
#6

Handle and bag housing diagram

Washer

Part #56376

The manufacturer no longer makes this part, and there's no substitute part

Belt Guard 38063
#9A

Nozzle and motor assembly diagram

Belt guard

Part #38063

The manufacturer no longer makes this part, and there's no substitute part

Carriag Clip 54417-1
Carriag clip

Part #54417-1

The manufacturer no longer makes this part, and there's no substitute part

Screw 53238-28
#7

Handle and bag housing diagram

Screw

Part #53238-28

The manufacturer no longer makes this part, and there's no substitute part

Slide 38240-1
#8

Nozzle and motor assembly diagram

Slide

Part #38240-1

The manufacturer no longer makes this part, and there's no substitute part
