DeWalt
Hammer Drill

Model # DC233KL TYPE2 Official DeWalt hammer drill

Here are the diagrams and repair parts for Official DeWalt DC233KL-TYPE2 hammer drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |
Ram 492830-00
#222

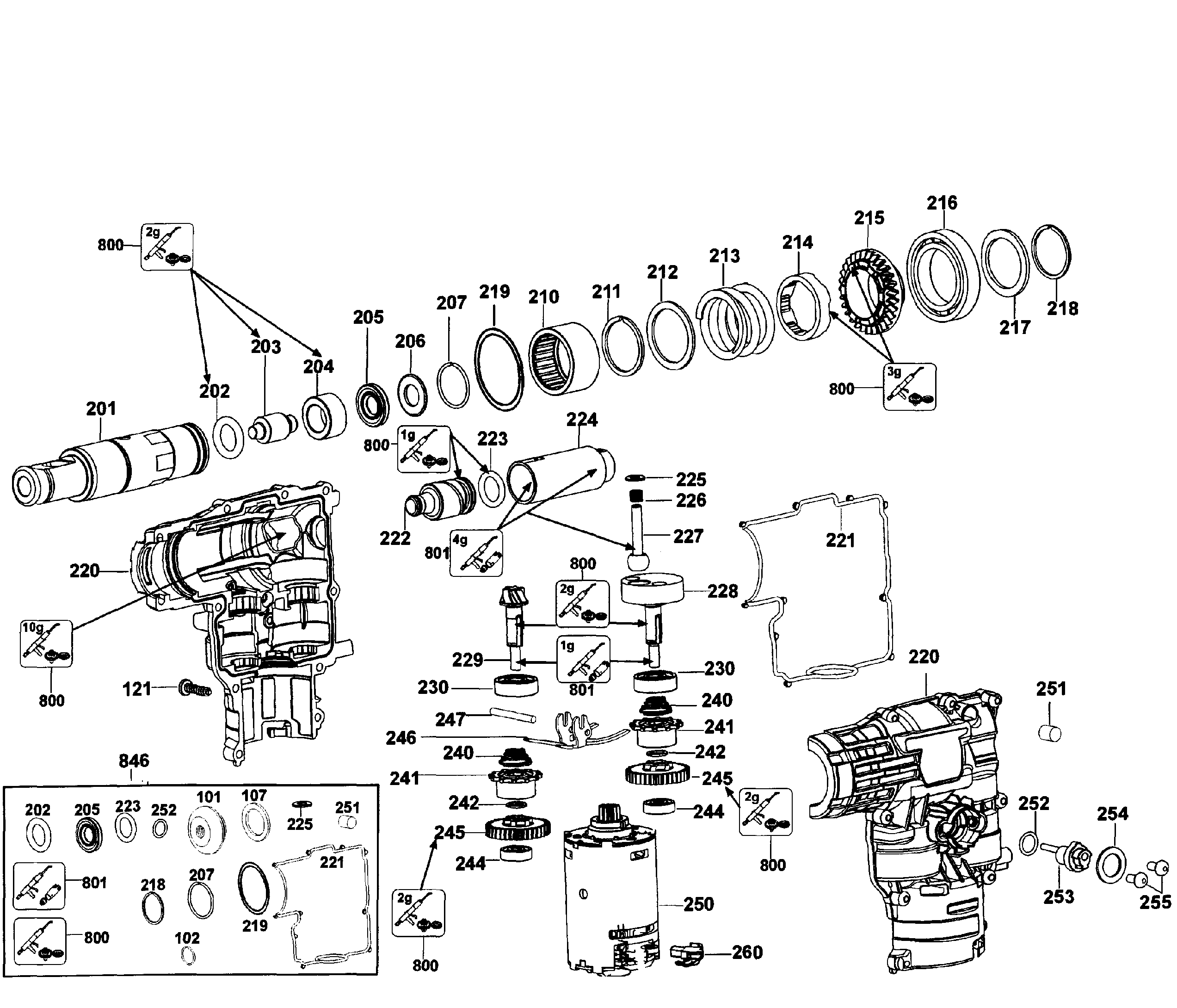

Motor assy diagram

Ram

Part #492830-00

The manufacturer no longer makes this part, and there's no substitute part

Pin 590312-00
#247

Motor assy diagram

Pin

Part #590312-00

The manufacturer no longer makes this part, and there's no substitute part

Bearing 590302-00
#210

Motor assy diagram

Bearing

Part #590302-00

The manufacturer no longer makes this part, and there's no substitute part

O-ring 323711-34
#252

Motor assy diagram

O-ring

Part #323711-34

The manufacturer no longer makes this part, and there's no substitute part

Cover 574937-00
#110

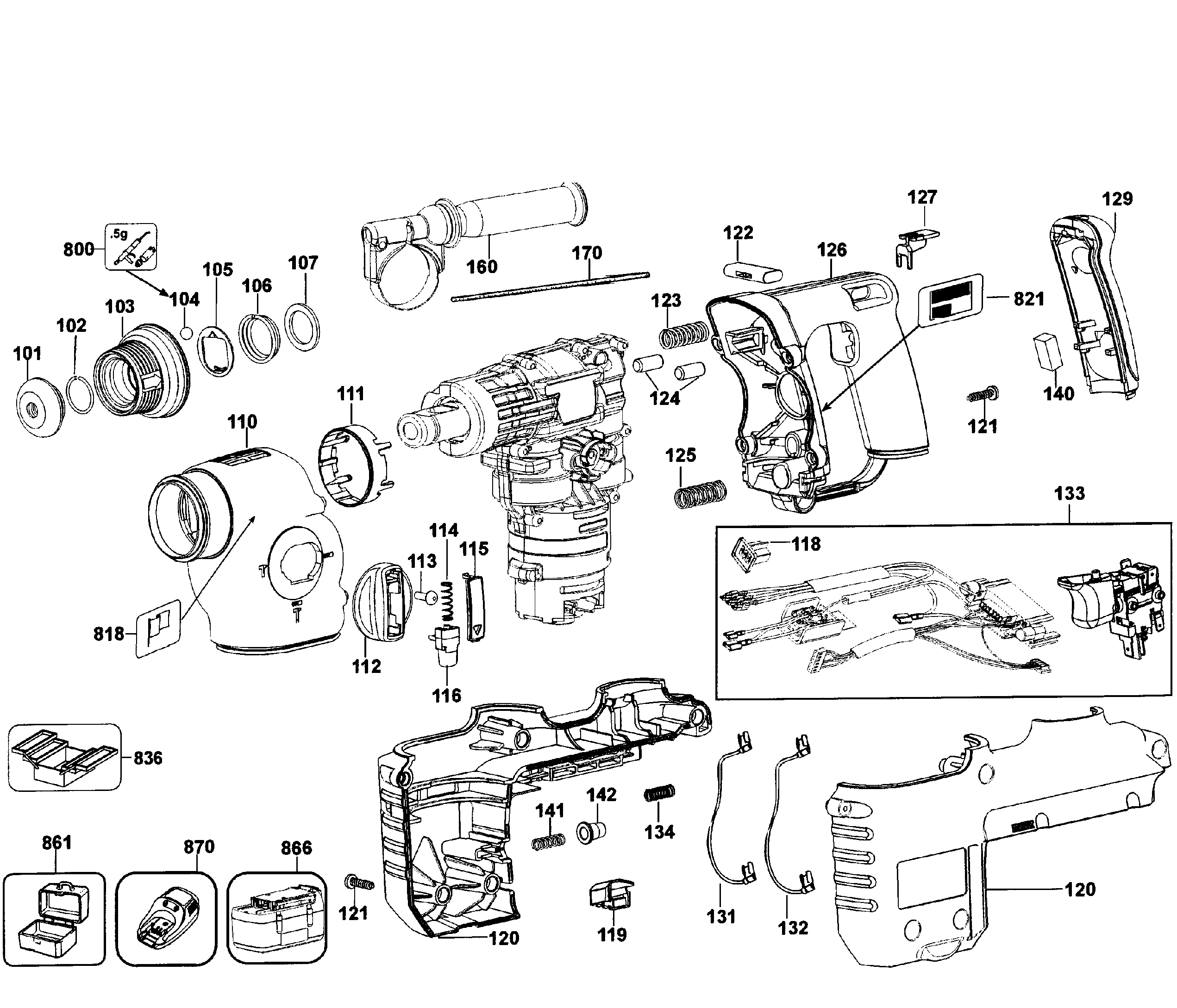

Drill hammer diagram

Cover

Part #574937-00

The manufacturer no longer makes this part, and there's no substitute part

Cap 575026-00
#115

Drill hammer diagram

Cap

Part #575026-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 490129-00
#255

Motor assy diagram

Screw

Part #490129-00

The manufacturer no longer makes this part, and there's no substitute part

Ring 579212-00
#102

Drill hammer diagram

Ring

Part #579212-00

The manufacturer no longer makes this part, and there's no substitute part

Slider 578218-00
#122

Drill hammer diagram

Slider

Part #578218-00

The manufacturer no longer makes this part, and there's no substitute part

Washer 327087-00
#206

Motor assy diagram

Washer

Part #327087-00

The manufacturer no longer makes this part, and there's no substitute part
