Model # 917631139 Official Craftsman chainsaw

Here are the diagrams and repair parts for Official Craftsman 917631139 chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Diaphragm 631136
#22

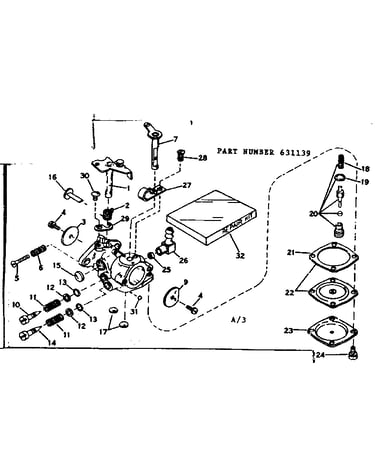

Replacement parts diagram

Diaphragm

Part #631136

Replaced by #49-002

?
Manufacturer substitution
This part replaces 631136. Substitute parts can look different from the original.
This item is not returnable
$6.30 |
14% OFF Phone Price : $7.30
In Stock
Washer 630739
#12

Replacement parts diagram

Washer

Part #630739

Replaced by #630739

?
Manufacturer substitution
This part replaces 630739. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Cover 630751
#23

Replacement parts diagram

Cover

Part #630751

Replaced by #630751

?
Manufacturer substitution
This part replaces 630751. Substitute parts can look different from the original.
This item is not returnable
$10.62 |
16% OFF Phone Price : $12.62
In Stock
Shutter 631140
#9

Replacement parts diagram

Shutter

Part #631140

Replaced by #630736

?
Manufacturer substitution
This part replaces 631140. Substitute parts can look different from the original.
This item is not returnable
$3.49
In Stock
Spring 630738
#11

Replacement parts diagram

Spring

Part #630738

Replaced by #630738

?
Manufacturer substitution
This part replaces 630738. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Spring 630766
#6

Replacement parts diagram

Spring

Part #630766

Replaced by #630766

?
Manufacturer substitution
This part replaces 630766. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Screw 630898
#10

Replacement parts diagram

Screw

Part #630898

Replaced by #630898

?
Manufacturer substitution
This part replaces 630898. Substitute parts can look different from the original.
This item is not returnable
$2.69
In Stock
Needle 631120
#20

Replacement parts diagram

Needle

Part #631120

Replaced by #630932A

?
Manufacturer substitution
This part replaces 631120. Substitute parts can look different from the original.
This item is not returnable
$10.23
In Stock
Gasket 630750
#21

Replacement parts diagram

Gasket

Part #630750

Replaced by #630750A

?
Manufacturer substitution
This part replaces 630750. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Plug 630748
#15

Replacement parts diagram

Plug

Part #630748

Replaced by #53-006

?
Manufacturer substitution
This part replaces 630748. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
