Model # JE42004 Official GE countertop microwave

Here are the diagrams and repair parts for Official GE JE42004 countertop microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

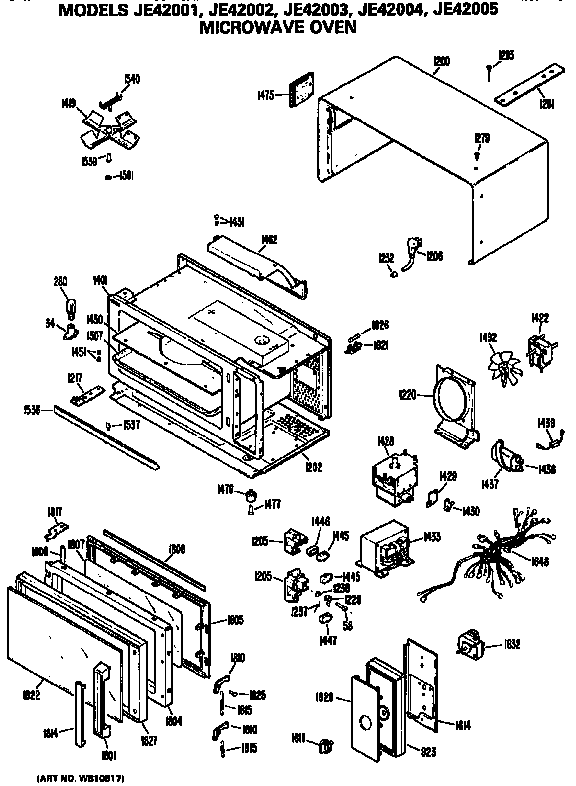

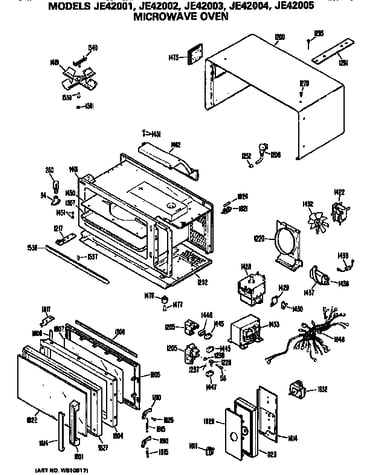

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Micro-switch WB24X329

#1445

All parts diagram

Micro-switch

Part #WB24X329

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X329. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Diode WB27X330

#1439

All parts diagram

Diode

Part #WB27X330

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X330. Substitute parts can look different from the original.
BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Panel-doo WB55X561

#1822

All parts diagram

Panel-doo

Part #WB55X561

$47.49
In Stock
Magnetron NOT AVAIL

#1428

All parts diagram

Magnetron

Part #NOT AVAIL

The manufacturer no longer makes this part, and there's no substitute part

Timer WB19X5276

#1632

All parts diagram

Timer

Part #WB19X5276

The manufacturer no longer makes this part, and there's no substitute part

Lower Switch WB24X328

#1448

All parts diagram

Lower switch

Part #WB24X328

The manufacturer no longer makes this part, and there's no substitute part

High-voltage Capacitor Bracket WB2X4626

#1437

All parts diagram

High-voltage capacitor bracket

Part #WB2X4626

The manufacturer no longer makes this part, and there's no substitute part

Cover WB2X4625

#1220

All parts diagram

Cover

Part #WB2X4625

The manufacturer no longer makes this part, and there's no substitute part

Escutcheon WB7X1468

#1628

All parts diagram

Escutcheon

Part #WB7X1468

The manufacturer no longer makes this part, and there's no substitute part

Choke WB55X566

#1804

All parts diagram

Choke

Part #WB55X566

The manufacturer no longer makes this part, and there's no substitute part
