Kenmore Elite
Gas Water Heater

Model # 153331000 Official Kenmore Elite gas water heater

Here are the diagrams and repair parts for Official Kenmore Elite 153331000 gas water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Anode Mg/n 9004333005
#BA

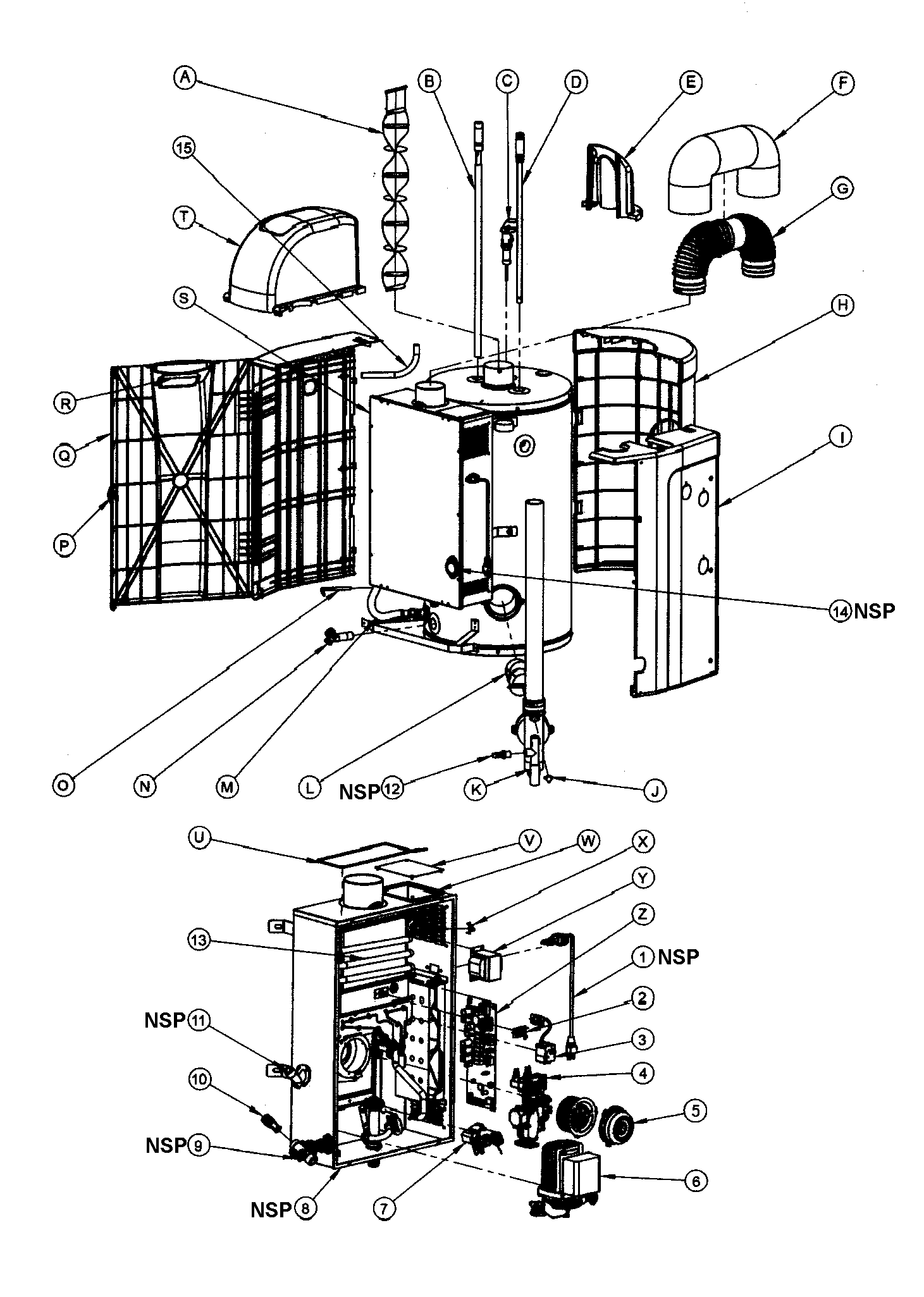

Water heater diagram

Anode mg/n

Part #9004333005

Replaced by #100300397

?
Manufacturer substitution
This part replaces 9004333005. Substitute parts can look different from the original.
$55.38 |
10% OFF Phone Price : $61.38
In Stock
Anode 9008027005
#BB

Water heater diagram

Anode

Part #9008027005

$60.38
In Stock
Fuse,trans 9007431015
#NI

Water heater diagram

Fuse,trans

Part #9007431015

Replaced by #100112005

?
Manufacturer substitution
This part replaces 9007431015. Substitute parts can look different from the original.
$27.78
In Stock
Switch 9007211015
#J

Water heater diagram

Switch

Part #9007211015

Replaced by #100111814

?
Manufacturer substitution
This part replaces 9007211015. Substitute parts can look different from the original.
$45.56
In Stock
Thermistor 9007177005
#O

Water heater diagram

Thermistor

Part #9007177005

Replaced by #100111780

?
Manufacturer substitution
This part replaces 9007177005. Substitute parts can look different from the original.
$91.11
In Stock
Display 9007425005
#RA

Water heater diagram

Display

Part #9007425005

Replaced by #100111999

?
Manufacturer substitution
This part replaces 9007425005. Substitute parts can look different from the original.
$105.00
In Stock
Water Valve 9007424005
#7

Water heater diagram

Water valve

Part #9007424005

Replaced by #100111998

?
Manufacturer substitution
This part replaces 9007424005. Substitute parts can look different from the original.
$170.00
In Stock
Fuse Pcb 9007427015
#NI

Water heater diagram

Fuse pcb

Part #9007427015

Replaced by #100112001

?
Manufacturer substitution
This part replaces 9007427015. Substitute parts can look different from the original.
$31.11
In Stock
Condensate 9007205005
#K

Water heater diagram

Condensate

Part #9007205005

Replaced by #100111808

?
Manufacturer substitution
This part replaces 9007205005. Substitute parts can look different from the original.
$112.00
In Stock
Pcb Control 9007440005
#ZA

Water heater diagram

Pcb control

Part #9007440005

Replaced by #100112014

?
Manufacturer substitution
This part replaces 9007440005. Substitute parts can look different from the original.
$513.33
In Stock
