Model # AZ31H15D3DV6 Official GE zoneline air conditioner

Here are the diagrams and repair parts for Official GE AZ31H15D3DV6 zoneline air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |
Room Air Conditioner Rotary Switch WP28X56
#86

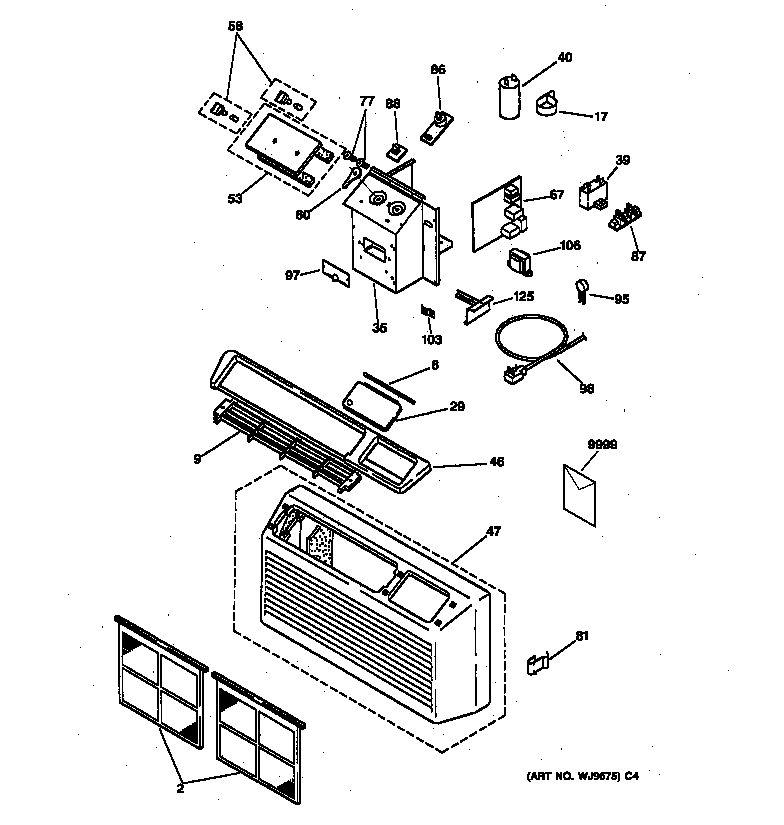

Controls & grill assembly diagram

Room air conditioner rotary switch

Part #WP28X56

$88.34 |
6% OFF Phone Price : $94.34
In Stock
Zoneline 310 49-7284
#9999B

Controls & grill assembly diagram

Zoneline 310

Part #49-7284

Replaced by #49-7366

?
Manufacturer substitution
This part replaces 49-7284. Substitute parts can look different from the original.
$8.49
In Stock
Mounting Plate WP65X12
#64

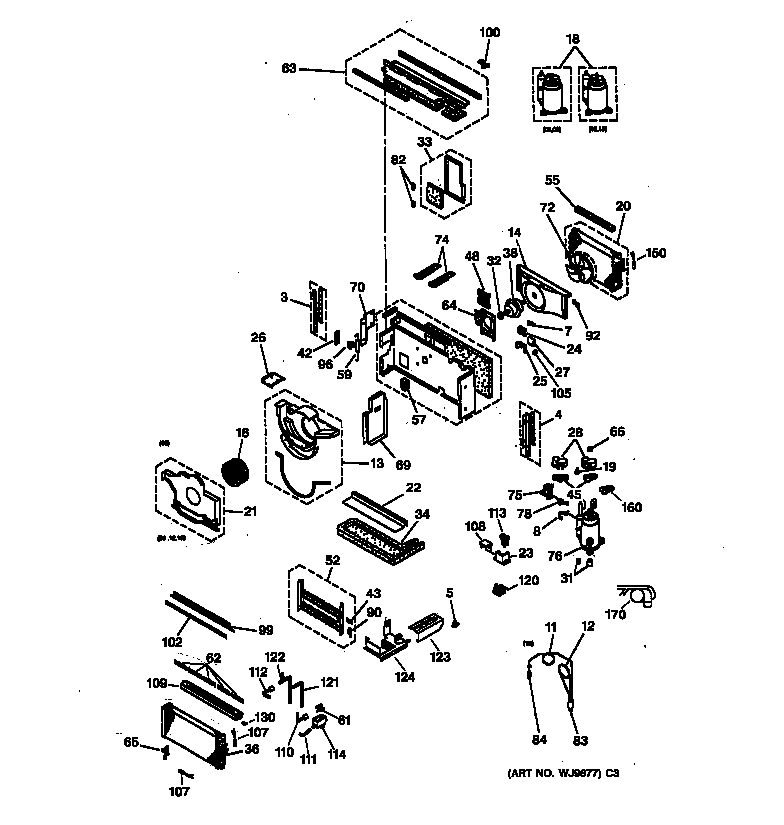

Motor, compressor & system components diagram

Mounting plate

Part #WP65X12

The manufacturer no longer makes this part, and there's no substitute part

Drain Tube WP40X01
#110

Motor, compressor & system components diagram

Drain tube

Part #WP40X01

The manufacturer no longer makes this part, and there's no substitute part

Mini Manual 31-60177
#9999A

Controls & grill assembly diagram

Mini manual

Part #31-60177

The manufacturer no longer makes this part, and there's no substitute part

Transformer WP27X43
#106

Controls & grill assembly diagram

Transformer

Part #WP27X43

The manufacturer no longer makes this part, and there's no substitute part

Escutcheon WP7X69
#53

Controls & grill assembly diagram

Escutcheon

Part #WP7X69

The manufacturer no longer makes this part, and there's no substitute part

Tube Seal WP43X33
#57

Motor, compressor & system components diagram

Tube seal

Part #WP43X33

The manufacturer no longer makes this part, and there's no substitute part

Grommet WJ1X883
#31

Motor, compressor & system components diagram

Grommet

Part #WJ1X883

The manufacturer no longer makes this part, and there's no substitute part

Power Clamp WJ3X340
#103

Controls & grill assembly diagram

Power clamp

Part #WJ3X340

The manufacturer no longer makes this part, and there's no substitute part
