Countertop Microwave

Model # LRM1250W Official LG microwave

Here are the diagrams and repair parts for Official LG LRM1250W microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

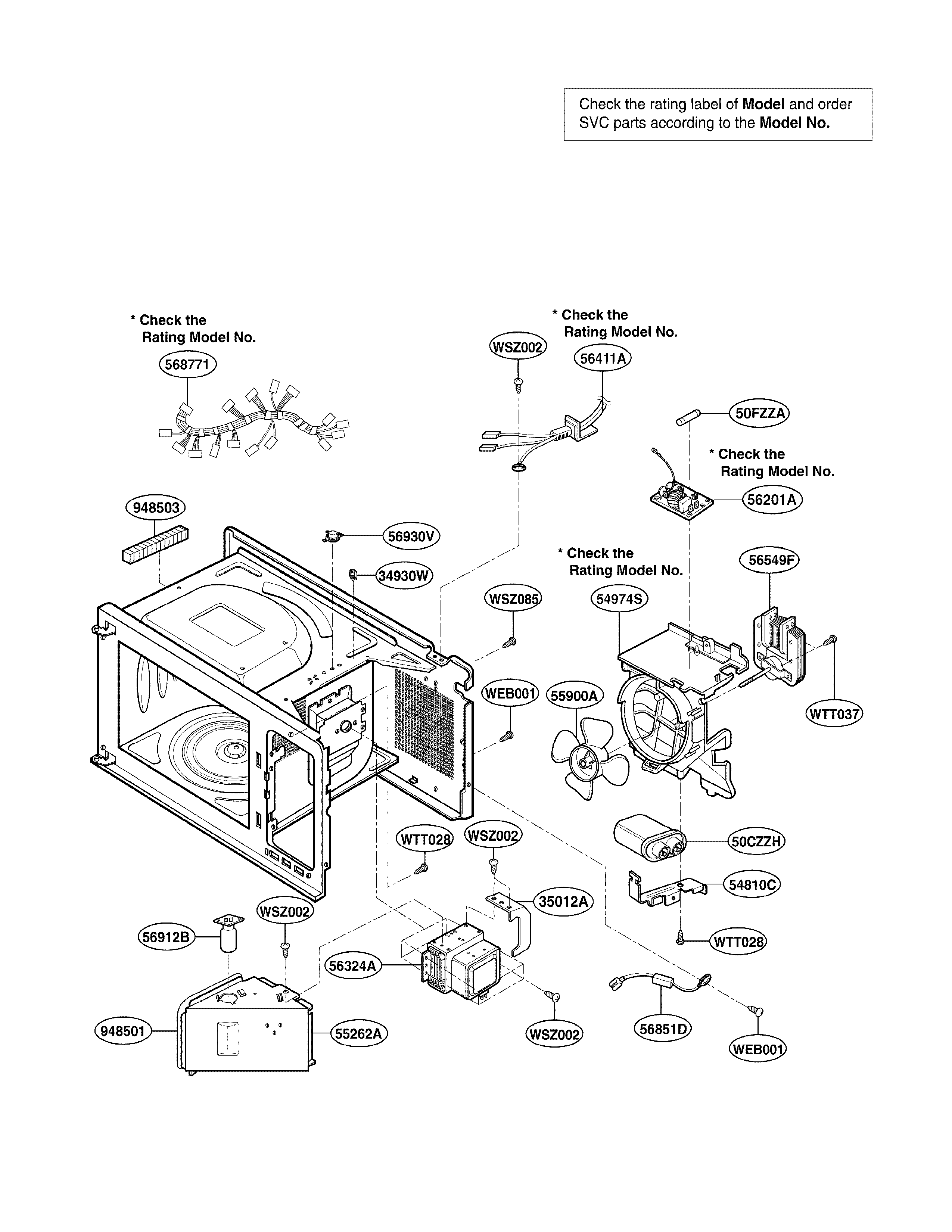

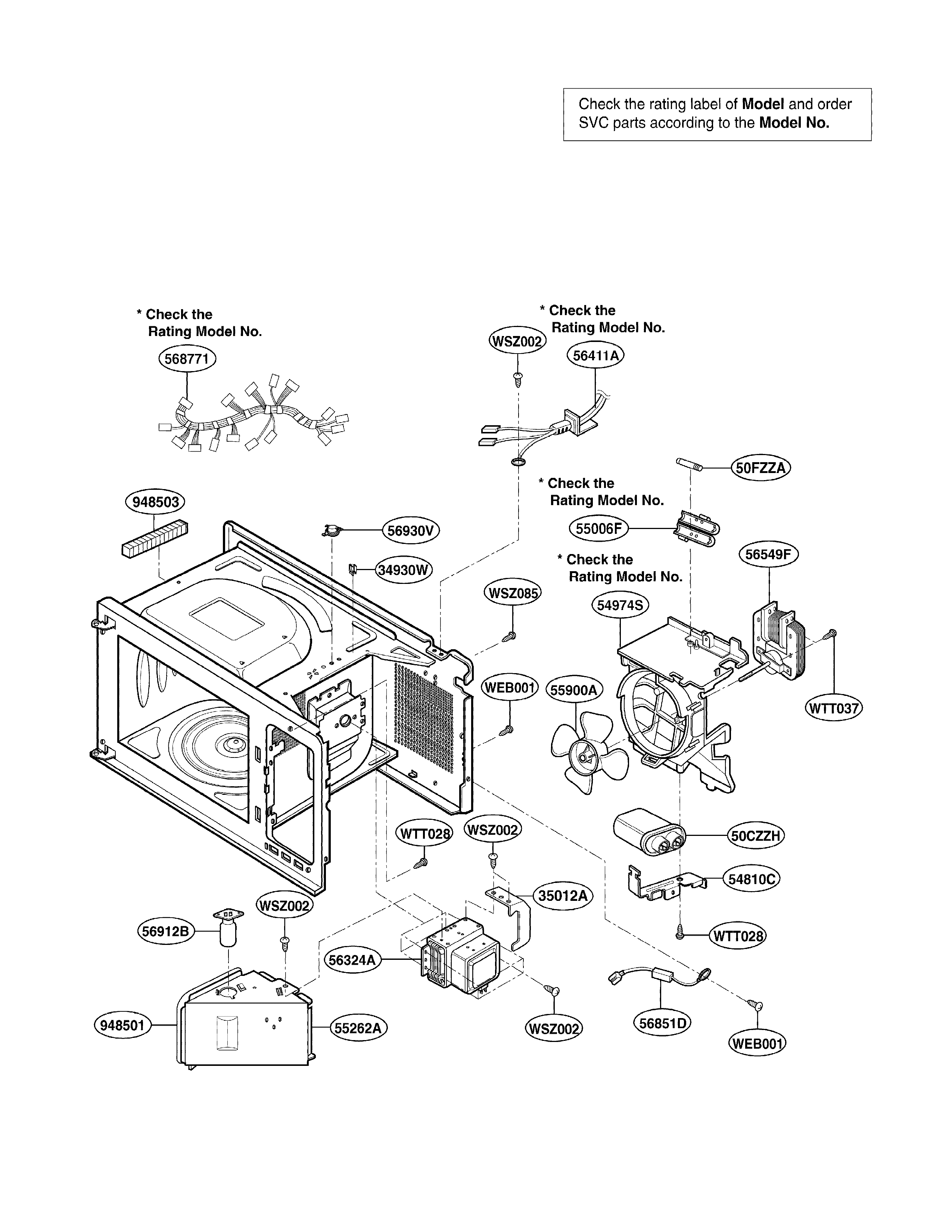

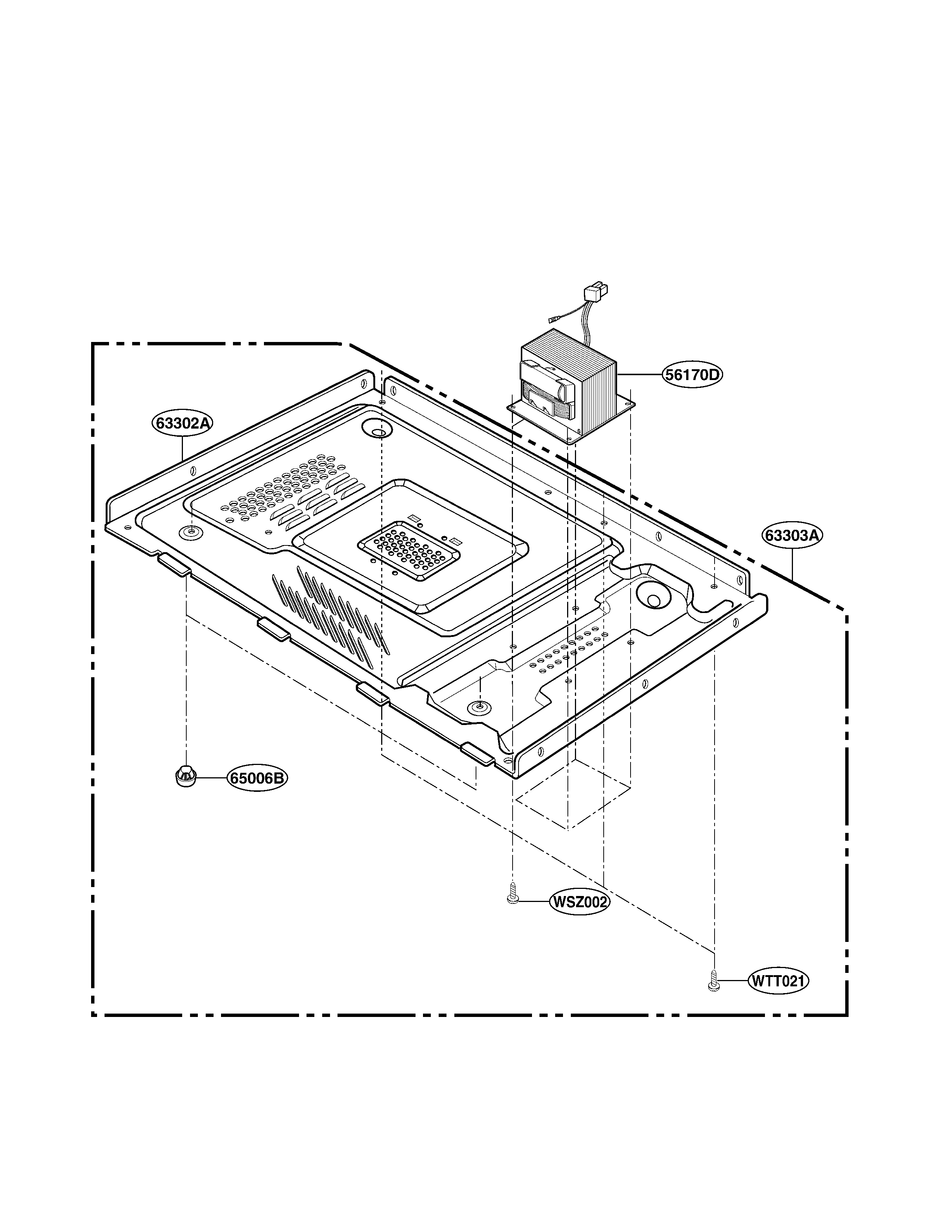

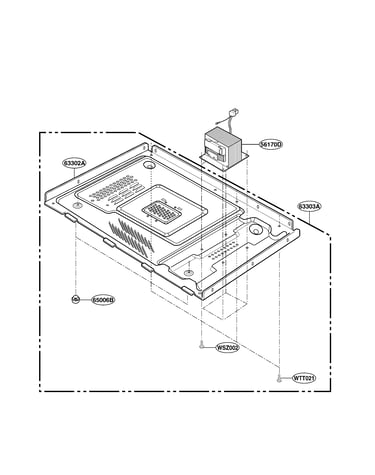

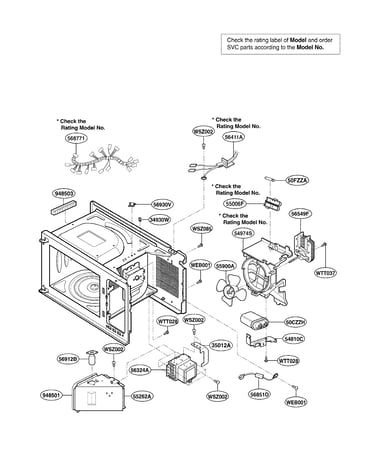

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Microwave Magnetron (replaces 6324w1a001h) 6324W1A001L
Microwave magnetron (replaces 6324w1a001h)

Part #6324W1A001L

BEST SELLER
$91.94 |
6% OFF Phone Price : $97.94
In Stock
Microwave High-voltage Diode 6021W3B001R
Microwave high-voltage diode

Part #6021W3B001R

Replaced by #6021W3B001V

?
Manufacturer substitution
This part replaces 6021W3B001R. Substitute parts can look different from the original.
BEST SELLER
$8.73 |
10% OFF Phone Price : $9.73
In Stock
Capacitor 0CZZW1H005A
Capacitor

Part #0CZZW1H005A

Replaced by #0CZZW1H004B

?
Manufacturer substitution
This part replaces 0CZZW1H005A. Substitute parts can look different from the original.
BEST SELLER
$28.54 |
17% OFF Phone Price : $34.54
In Stock
Microwave Door Interlock Switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f) 6600W1K001C
#4660A

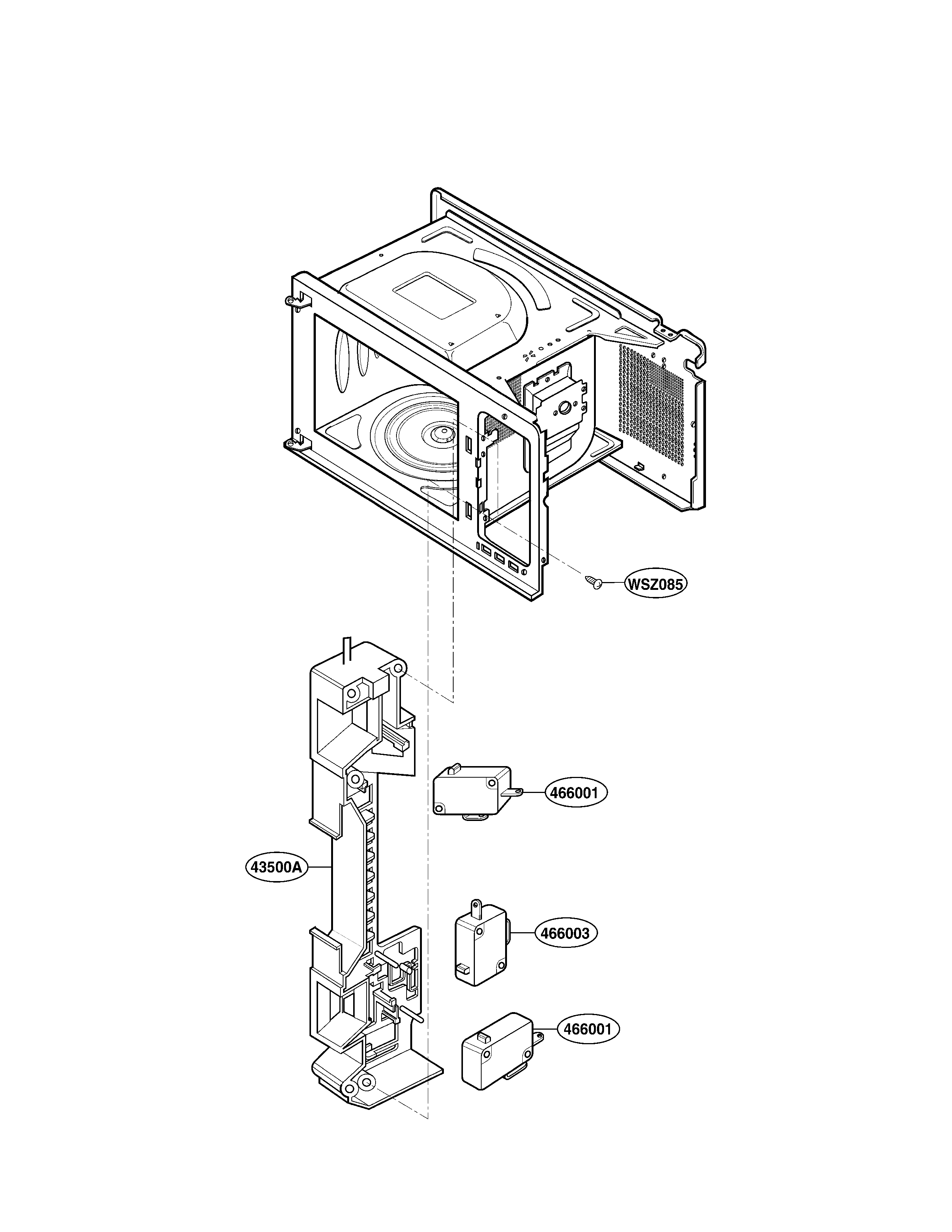

Latch board parts diagram

Microwave door interlock switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f)

Part #6600W1K001C

BEST SELLER
$11.77 |
15% OFF Phone Price : $13.77
In Stock
Microwave Door Interlock Switch (replaces 6600w1k003d) 6600W1K001D
#4660

Latch board parts diagram

Microwave door interlock switch (replaces 6600w1k003d)

Part #6600W1K001D

BEST SELLER
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Microwave Light Bulb (replaces 6912w3b002g) 6912W3B002L
Microwave light bulb (replaces 6912w3b002g)

Part #6912W3B002L

BEST SELLER
This item is not returnable
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Microwave Turntable Motor (replaces 6549w1s011c, 6549w1s017a) 6549W1S011B
#3654

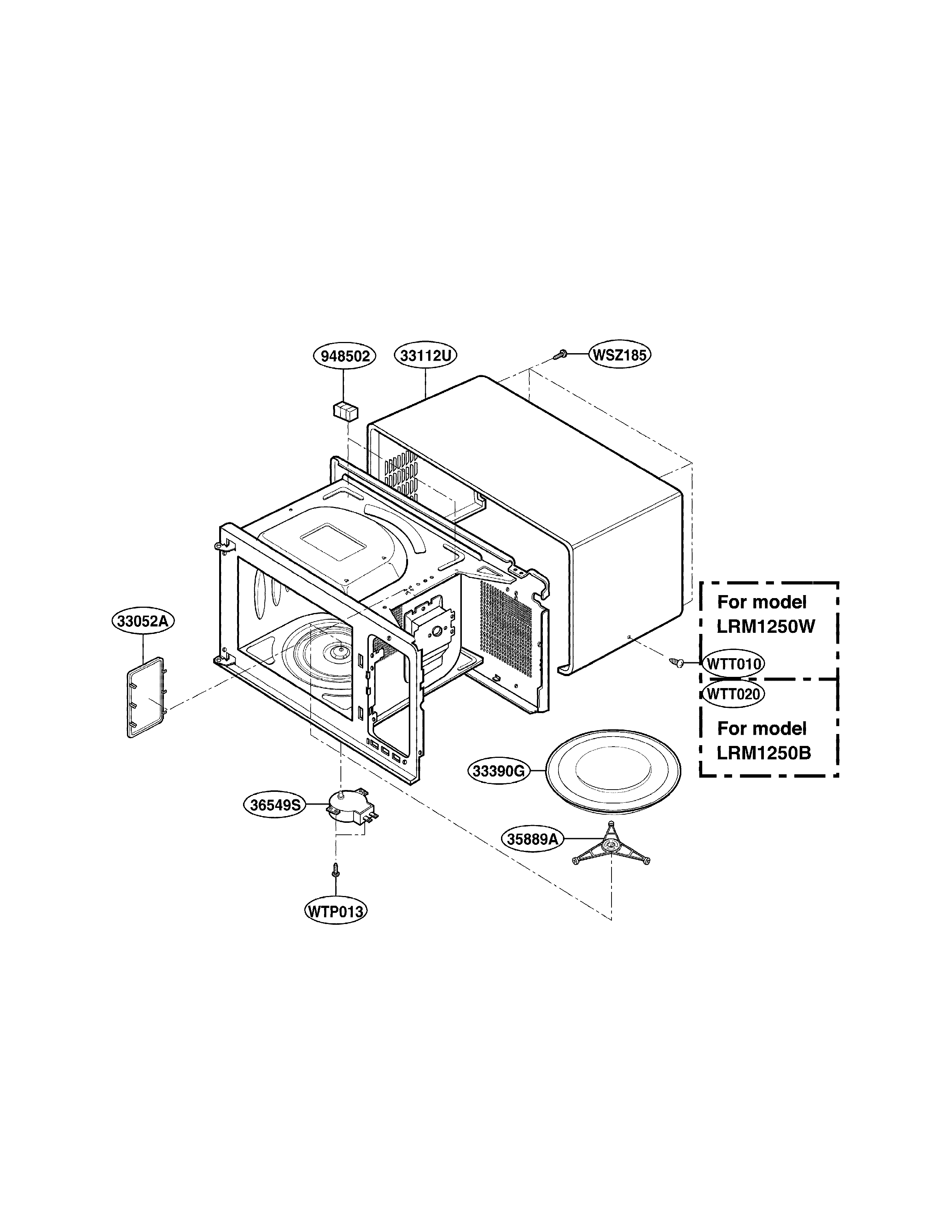

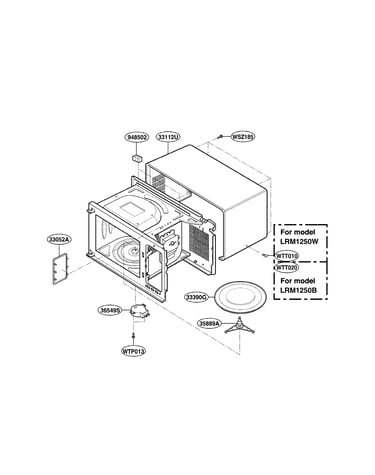

Oven cavity parts diagram

Microwave turntable motor (replaces 6549w1s011c, 6549w1s017a)

Part #6549W1S011B

BEST SELLER
This item is not returnable
$21.20 |
22% OFF Phone Price : $27.20
In Stock
Microwave Door Latch Lever (replaces 4510w3l002a) 4510W3L003A
#2451

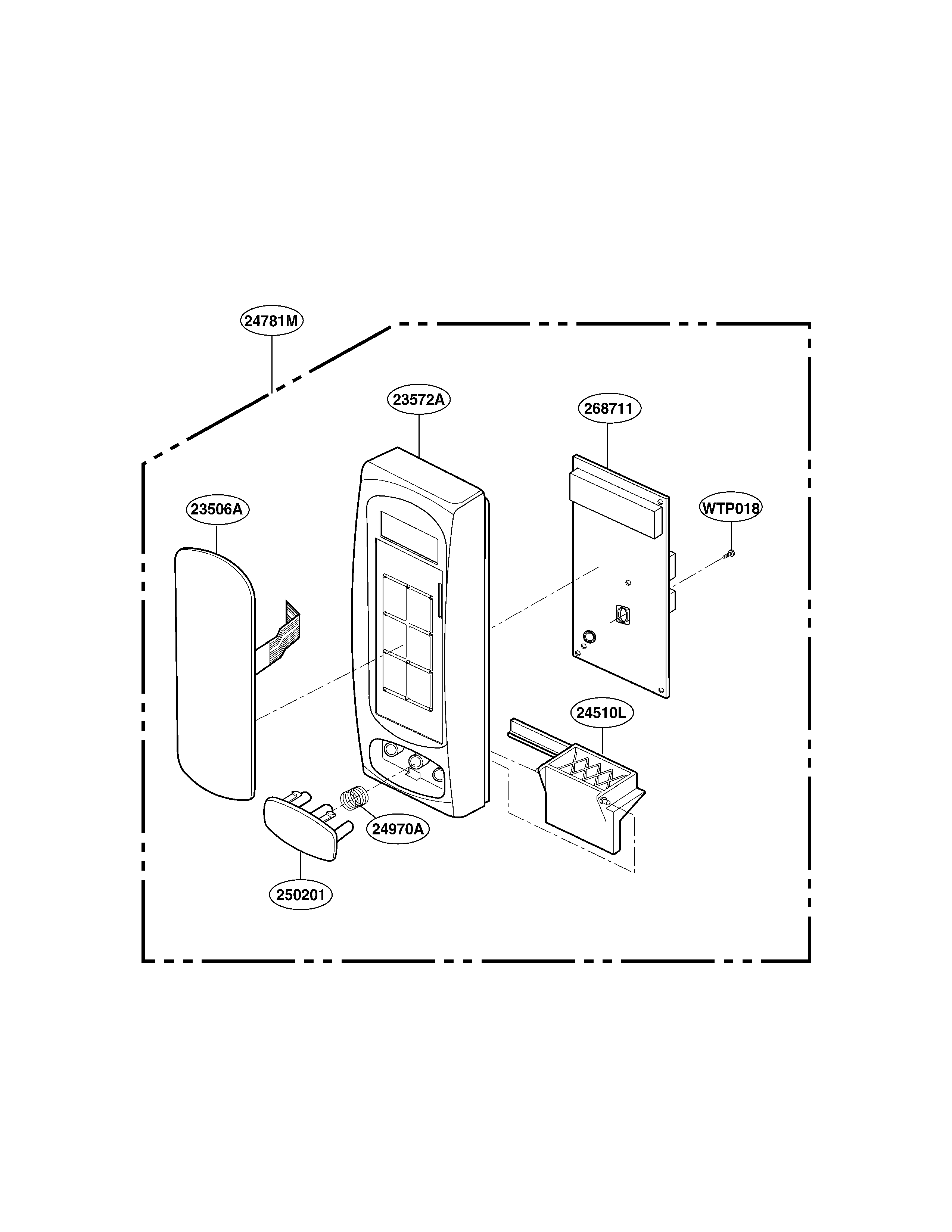

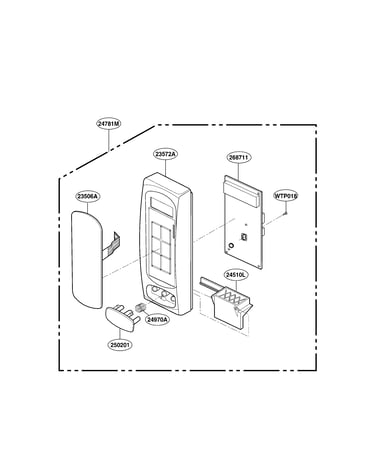

Controller parts diagram

Microwave door latch lever (replaces 4510w3l002a)

Part #4510W3L003A

This item is not returnable
$8.29
In Stock
Us Pressed Steel Microwave Door Latch Spring 4970WRA001E
#1497

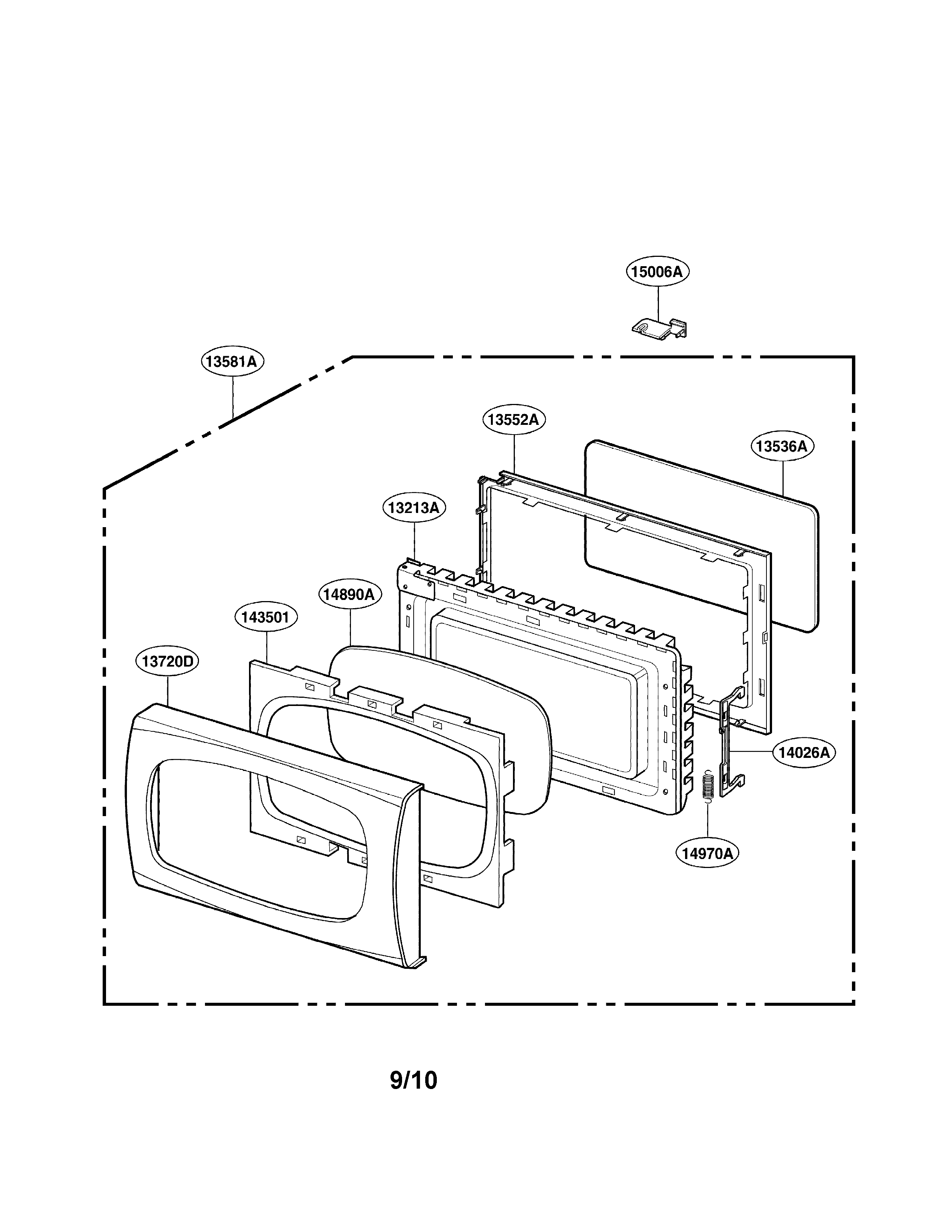

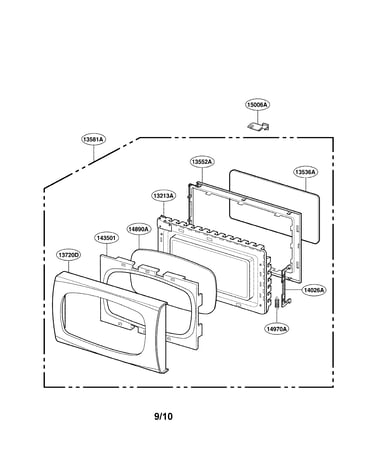

Door parts diagram

Us pressed steel microwave door latch spring

Part #4970WRA001E

This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Microwave Screw 1SBF0402418
Microwave screw

Part #1SBF0402418

This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
