Model # OC100-BH Official Amana oil-fired counterflow furnace

Here are the diagrams and repair parts for Official Amana OC100-BH oil-fired counterflow furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 153 parts  |
Door - Access - Center 306-5460
#9C

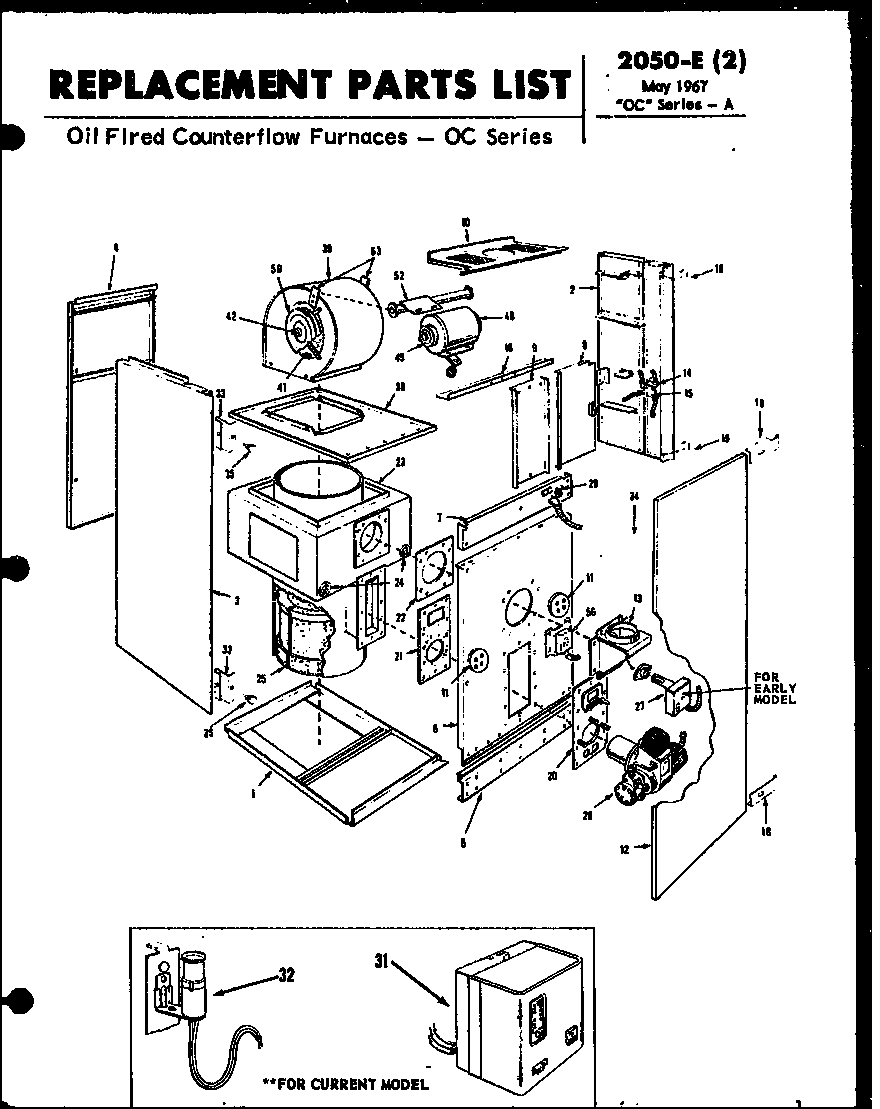

Replacement parts diagram

Door - access - center

Part #306-5460

The manufacturer no longer makes this part, and there's no substitute part

Motor Pulley 20-1520
#49B

Replacement parts diagram

Motor pulley

Part #20-1520

The manufacturer no longer makes this part, and there's no substitute part

Furnace Blower Shaft 20-5021
#42

Replacement parts diagram

Furnace blower shaft

Part #20-5021

The manufacturer no longer makes this part, and there's no substitute part

Oil Burner Relay (m-h R8184b1188) 21-0833
#31

Replacement parts diagram

Oil burner relay (m-h r8184b1188)

Part #21-0833

The manufacturer no longer makes this part, and there's no substitute part

Door - Access - Center 304-5460
#9A

Replacement parts diagram

Door - access - center

Part #304-5460

The manufacturer no longer makes this part, and there's no substitute part

Control - Primary (m-h) Ra-816a1173 Early Model 21-0486
#27

Replacement parts diagram

Control - primary (m-h) ra-816a1173 early model

Part #21-0486

The manufacturer no longer makes this part, and there's no substitute part

Bracket #12848a 102-54
#26K

Replacement parts diagram

Bracket #12848a

Part #102-54

The manufacturer no longer makes this part, and there's no substitute part

Blower Housing Assembly W/brkts. 980-1249
#39A

Replacement parts diagram

Blower housing assembly w/brkts.

Part #980-1249

The manufacturer no longer makes this part, and there's no substitute part

Blower Pulley 7 X 3/4 20-1560
#50A

Replacement parts diagram

Blower pulley 7 x 3/4

Part #20-1560

The manufacturer no longer makes this part, and there's no substitute part

Bracket #12848a 102-51
#26D

Replacement parts diagram

Bracket #12848a

Part #102-51

The manufacturer no longer makes this part, and there's no substitute part
