Carrier
Central Air Conditioner

Model # 38TSA030 SERIES300 Official Carrier condensing unit

Here are the diagrams and repair parts for Official Carrier 38TSA030-SERIES300 condensing unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

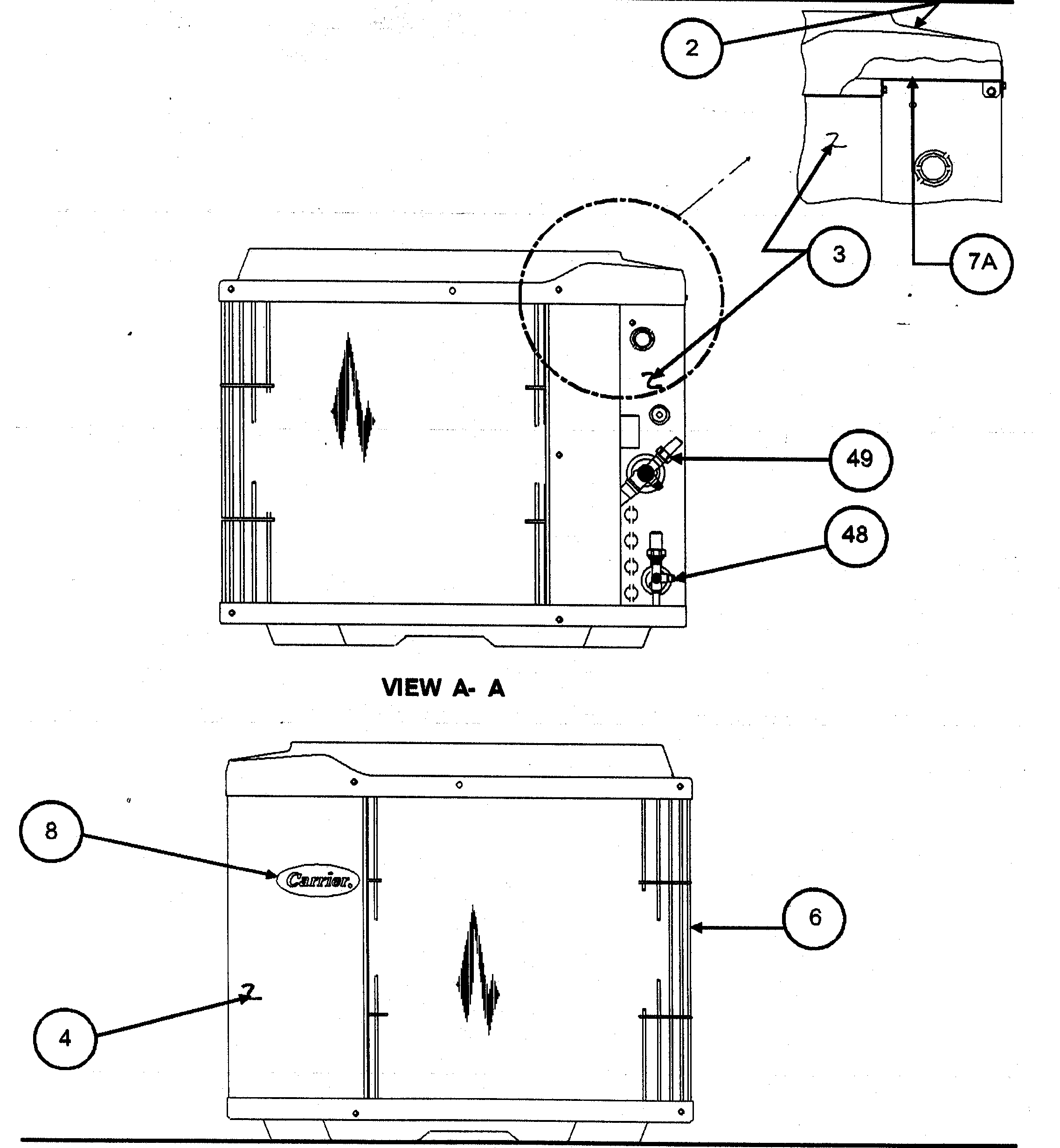

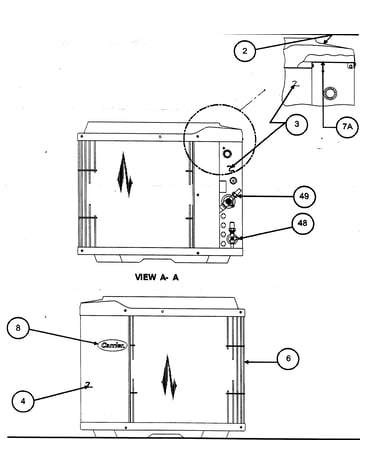

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |
Central Air Conditioner Condenser Fan Motor HC35GE237
#43

Control box diagram

Central air conditioner condenser fan motor

Part #HC35GE237

$369.36 |
$12.00 OFF Phone Price : $381.36
In Stock
Cap 320238-401
#7

Outlet grille/top cover diagram

Cap

Part #320238-401

Replaced by #330798-7011

?
Manufacturer substitution
This part replaces 320238-401. Substitute parts can look different from the original.
$29.24
In Stock
Heater P041-4443
#22

Compressor/condenser diagram

Heater

Part #P041-4443

$100.62
In Stock
Payne Central Air Conditioner Condenser Fan Motor Control 32LT660004
#NI

Outlet grille/top cover diagram

Payne central air conditioner condenser fan motor control

Part #32LT660004

$1092.97
In Stock
Central Air Conditioner Capacitor Strap 317739-302
#29

Control box diagram

Central air conditioner capacitor strap

Part #317739-302

$11.74
In Stock
Lug HY90AZ009
#31

Control box diagram

Lug

Part #HY90AZ009

$8.23
In Stock
Line Drier KH45LG140
#NI

Outlet grille/top cover diagram

Line drier

Part #KH45LG140

$123.62
In Stock
Paint 313974-751
#NI

Outlet grille/top cover diagram

Paint

Part #313974-751

$60.89
In Stock
Trim 320245-401
#7B

Control box diagram

Trim

Part #320245-401

$109.64
In Stock
Liquidline KH43LG074
#NI

Outlet grille/top cover diagram

Liquidline

Part #KH43LG074

$114.76
In Stock
