Hoover
Upright Vacuum

Model # UH70939 Official Hoover vacuum

Here are the diagrams and repair parts for Official Hoover UH70939 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |

Lower Hose 440004127
#23

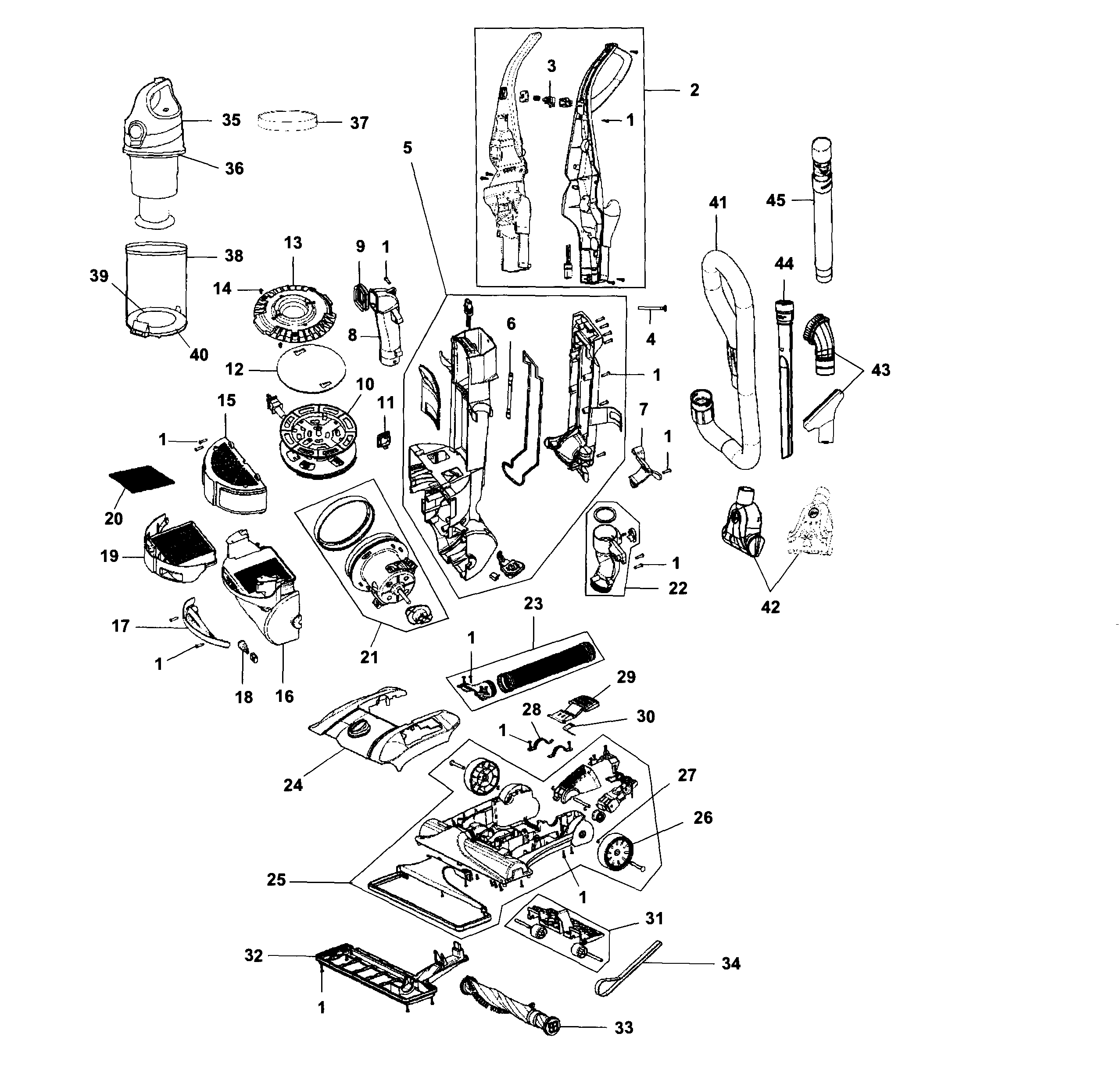

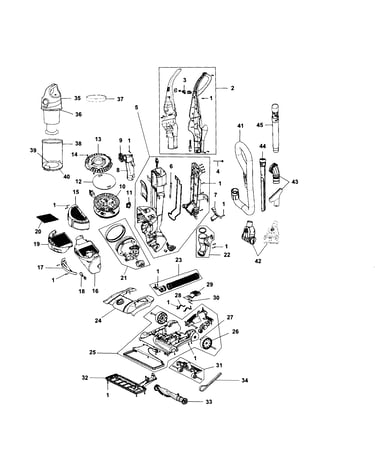

Main assy diagram

Lower hose

Part #440004127

The manufacturer no longer makes this part, and there's no substitute part

Vacuum On/off Switch 440004095
#3

Main assy diagram

Vacuum on/off switch

Part #440004095

The manufacturer no longer makes this part, and there's no substitute part

Lens Head 521064002
#17

Main assy diagram

Lens head

Part #521064002

The manufacturer no longer makes this part, and there's no substitute part

Inlet Cord 521090001
#11

Main assy diagram

Inlet cord

Part #521090001

The manufacturer no longer makes this part, and there's no substitute part

Cover 440004103
#16

Main assy diagram

Cover

Part #440004103

The manufacturer no longer makes this part, and there's no substitute part

Panel 440004122
#5

Main assy diagram

Panel

Part #440004122

The manufacturer no longer makes this part, and there's no substitute part

Dirt Cup 440004134
#38

Main assy diagram

Dirt cup

Part #440004134

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Cord Reel Assembly 440004123
#10

Main assy diagram

Vacuum cord reel assembly

Part #440004123

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel 440004107
#26

Main assy diagram

Vacuum wheel

Part #440004107

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Primary Filter 303903001
#37

Main assy diagram

Vacuum primary filter

Part #303903001

The manufacturer no longer makes this part, and there's no substitute part
