Model # ELURA2MCA Official Canon digital camcorder

Here are the diagrams and repair parts for Official Canon ELURA2MCA digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

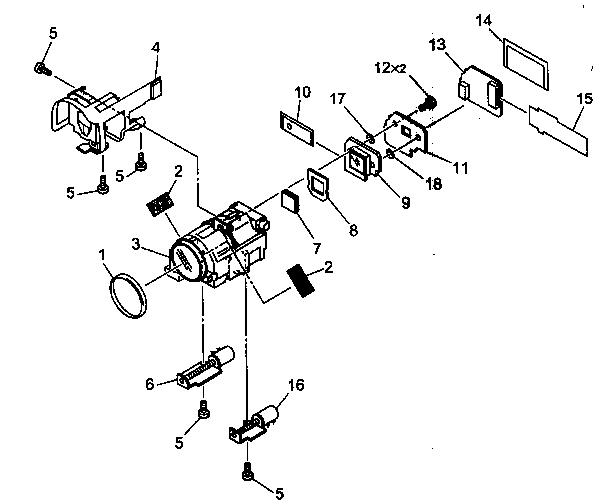

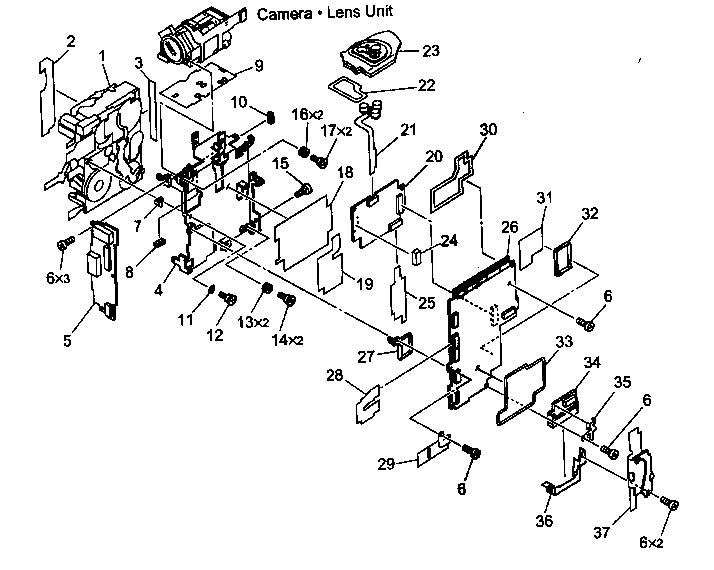

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Dial Plate DA2-0944-000
#14

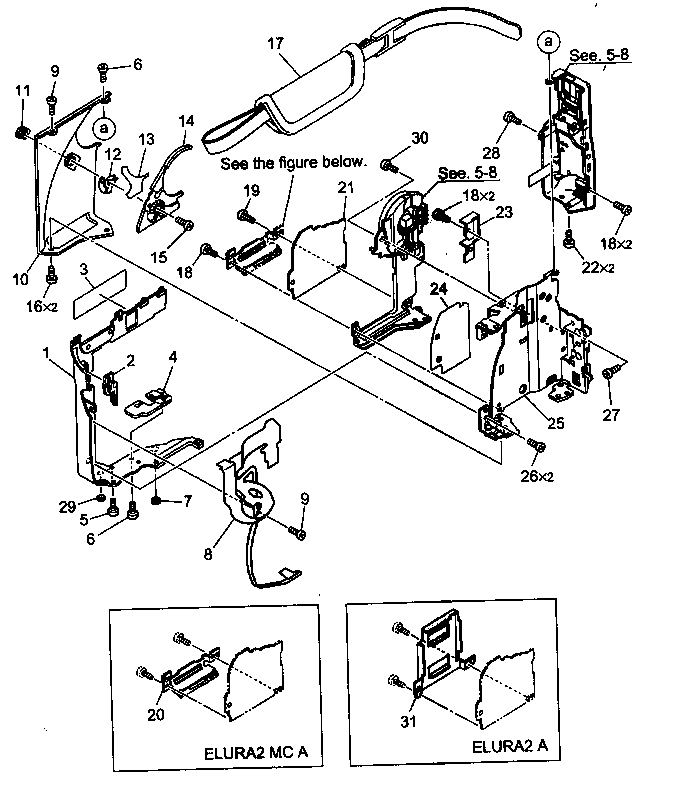

Lt cover assy diagram

Dial plate

Part #DA2-0944-000

The manufacturer no longer makes this part, and there's no substitute part

Cover DA2-0931-000
#6

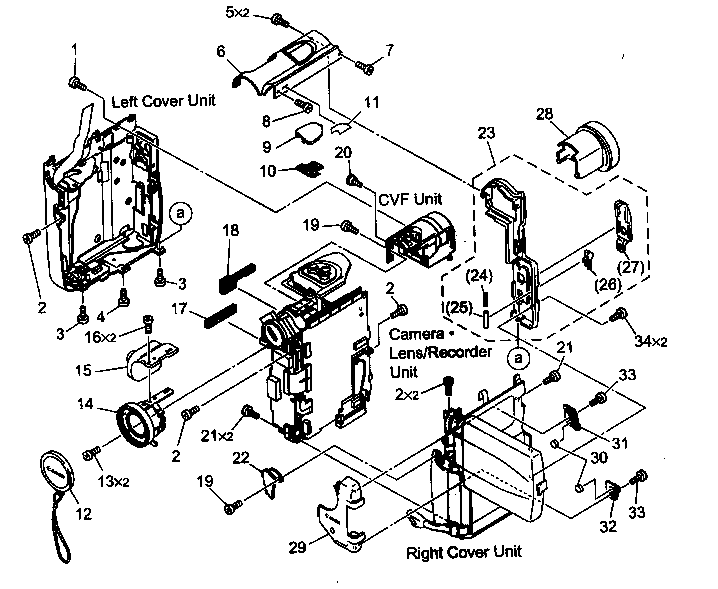

Casing parts diagram

Cover

Part #DA2-0931-000

The manufacturer no longer makes this part, and there's no substitute part

Holder DA2-0870-000
#10

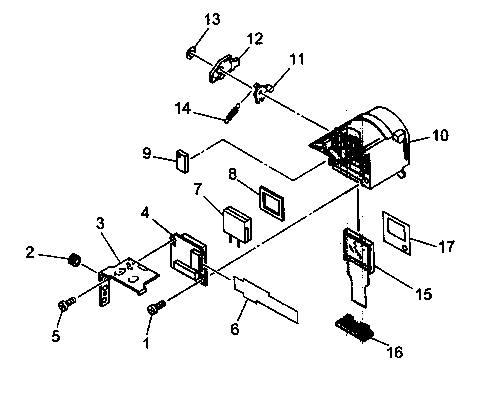

Cvf assy diagram

Holder

Part #DA2-0870-000

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly DG1-4027-000
#4

Cvf assy diagram

Pcb assembly

Part #DG1-4027-000

The manufacturer no longer makes this part, and there's no substitute part

Hand Strap DA2-0847-000
#17

Lt cover assy diagram

Hand strap

Part #DA2-0847-000

The manufacturer no longer makes this part, and there's no substitute part

Cover DA2-0971-000
#11

Main dial/rear cover diagram

Cover

Part #DA2-0971-000

The manufacturer no longer makes this part, and there's no substitute part

Flex Cable DH2-4055-000
#8

Lt cover assy diagram

Flex cable

Part #DH2-4055-000

The manufacturer no longer makes this part, and there's no substitute part

Chassis DY1-8210-000
#NI

Casing parts diagram

Chassis

Part #DY1-8210-000

The manufacturer no longer makes this part, and there's no substitute part

Cover DA2-0917-000
#17

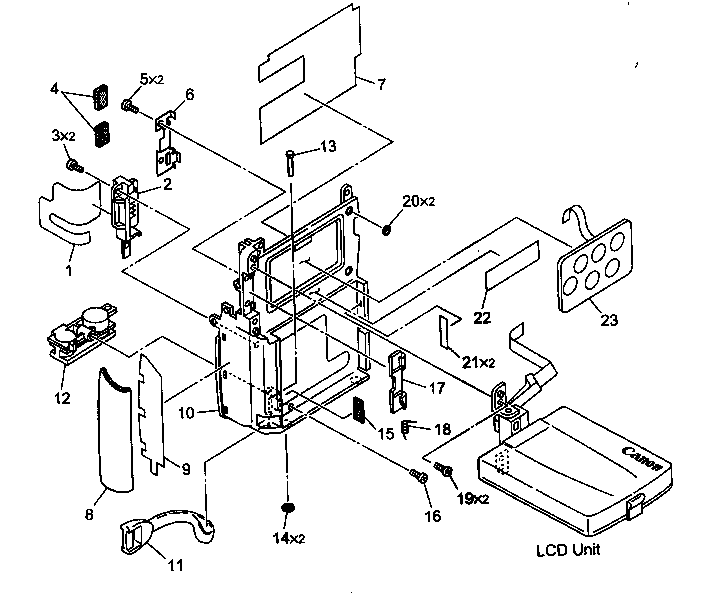

Rt cover assy diagram

Cover

Part #DA2-0917-000

The manufacturer no longer makes this part, and there's no substitute part

Cover DA2-0928-000
#21A

Lcd assy diagram

Cover

Part #DA2-0928-000

The manufacturer no longer makes this part, and there's no substitute part
