Maytag
Gas Water Heater

Model # HJ640NORTCGA Official Maytag water heater

Here are the diagrams and repair parts for Official Maytag HJ640NORTCGA water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Gas Conversion Kit Valve 66001004
#14

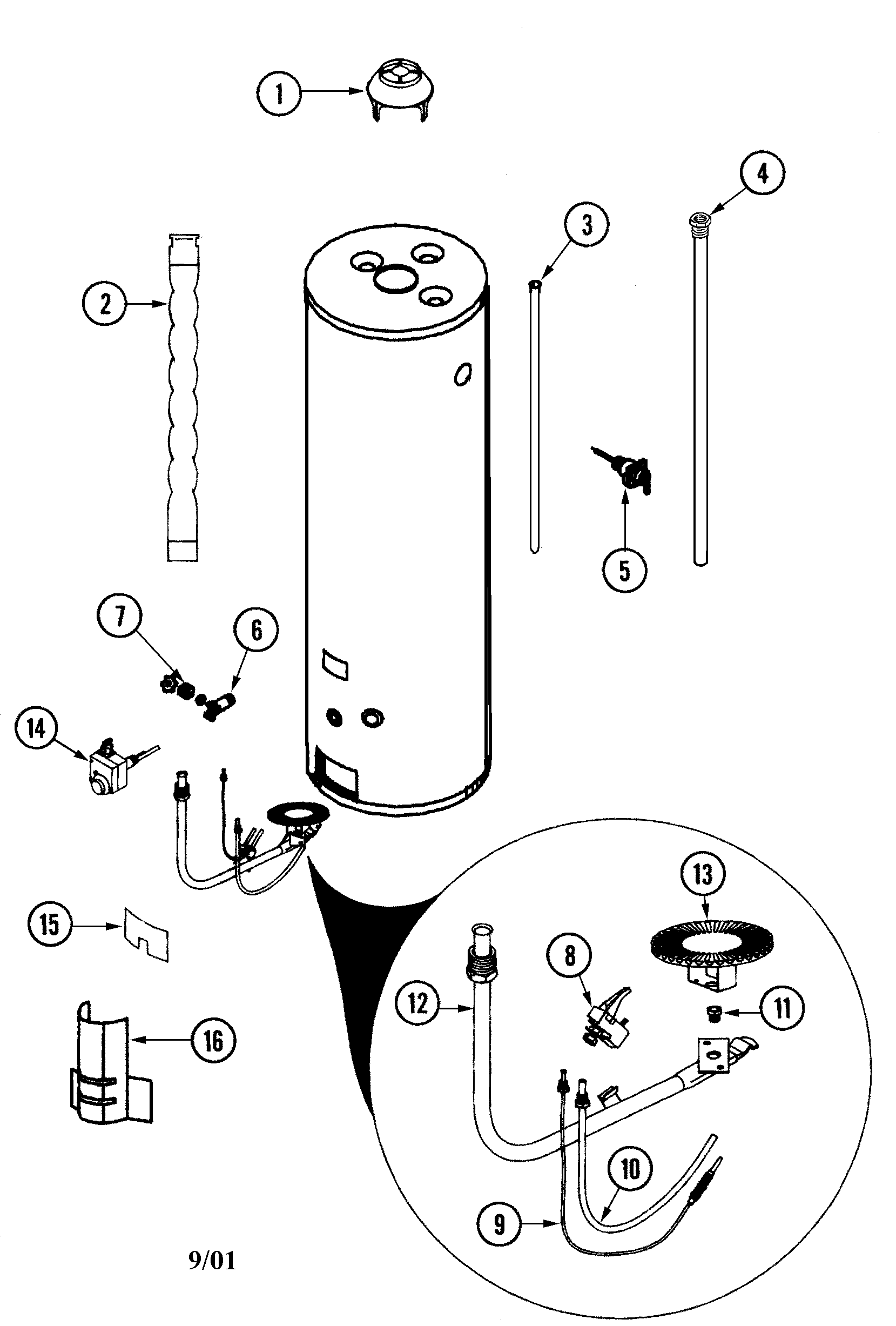

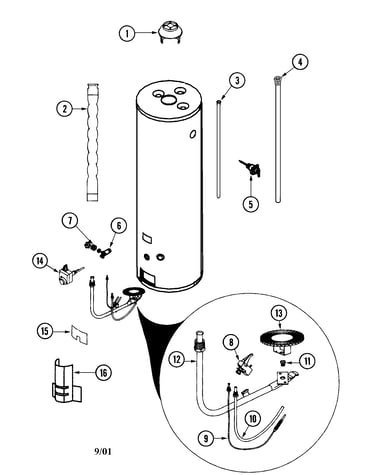

Body diagram

Gas conversion kit valve

Part #66001004

The manufacturer no longer makes this part, and there's no substitute part

Inner Door 66001029
#15

Body diagram

Inner door

Part #66001029

The manufacturer no longer makes this part, and there's no substitute part

Temperature Valve 66001079
#5

Body diagram

Temperature valve

Part #66001079

The manufacturer no longer makes this part, and there's no substitute part

Flue Baffle 66001382
#2A

Body diagram

Flue baffle

Part #66001382

The manufacturer no longer makes this part, and there's no substitute part

Pilot (lp) 66001193
#8A

Body diagram

Pilot (lp)

Part #66001193

The manufacturer no longer makes this part, and there's no substitute part

Anode Rod 66001189
#4

Body diagram

Anode rod

Part #66001189

The manufacturer no longer makes this part, and there's no substitute part

Burner 66001027
#13

Body diagram

Burner

Part #66001027

The manufacturer no longer makes this part, and there's no substitute part

Water Heater Temperature And Pressure Relief Valve 66001216
#5A

Body diagram

Water heater temperature and pressure relief valve

Part #66001216

The manufacturer no longer makes this part, and there's no substitute part

Manifold 66001324
#12

Body diagram

Manifold

Part #66001324

The manufacturer no longer makes this part, and there's no substitute part

Outer Door 66001186
#16

Body diagram

Outer door

Part #66001186

The manufacturer no longer makes this part, and there's no substitute part
