Maytag
Countertop Microwave

Model # DM16H-10 Official Maytag microwave

Here are the diagrams and repair parts for Official Maytag DM16H-10 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

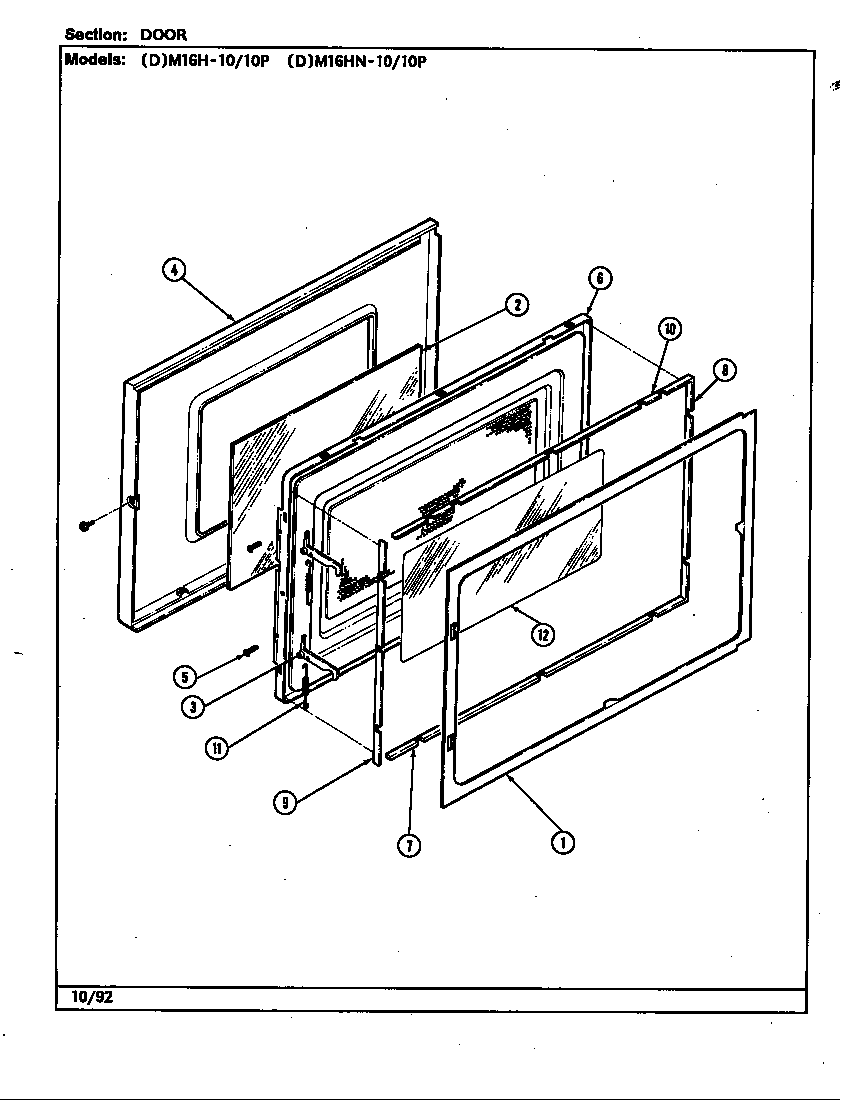

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Capacitor 01020020
#8

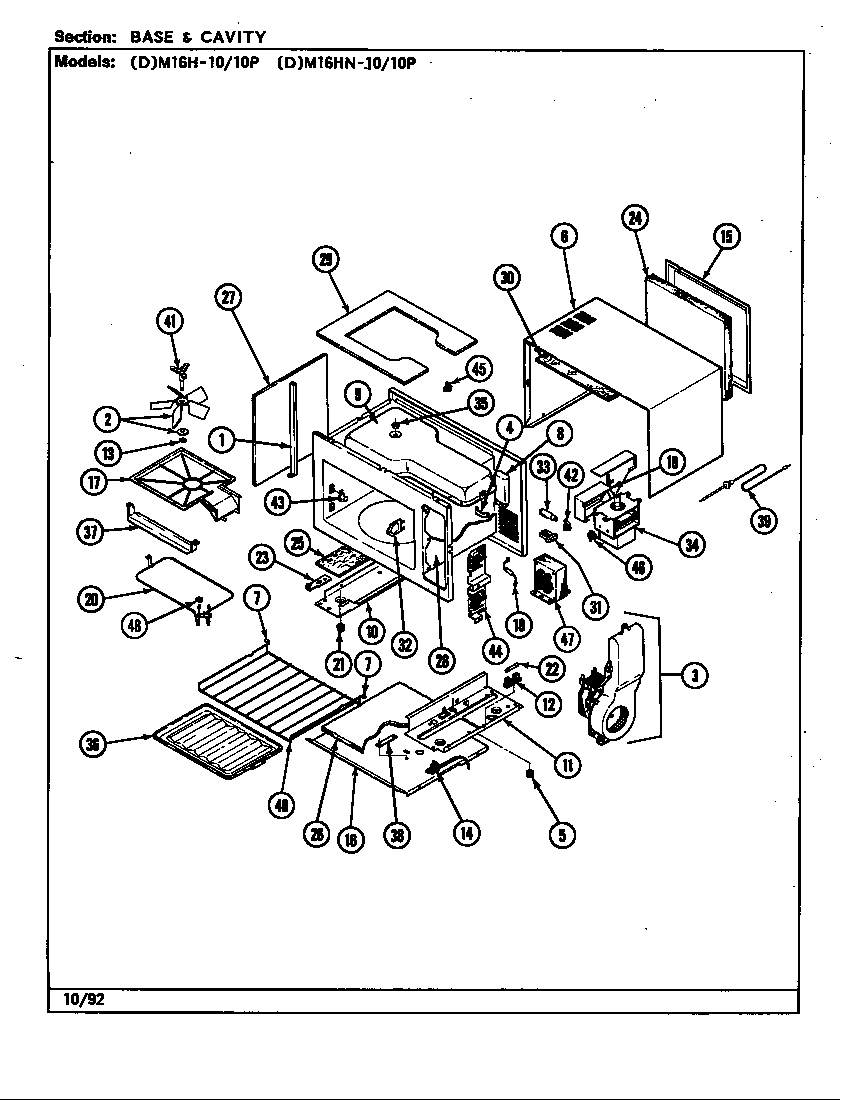

Base & cavity diagram

Capacitor

Part #01020020

Replaced by #WP59001168

?
Manufacturer substitution
This part replaces 01020020. Substitute parts can look different from the original.
$85.65 |
7% OFF Phone Price : $91.65
In Stock
Screw 03020079
#6B

Base & cavity diagram

Screw

Part #03020079

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 03020079. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 03020016
#3F

Base & cavity diagram

Screw

Part #03020016

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 03020016. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 03020068
#21A

Base & cavity diagram

Screw

Part #03020068

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 03020068. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 03020041
#10

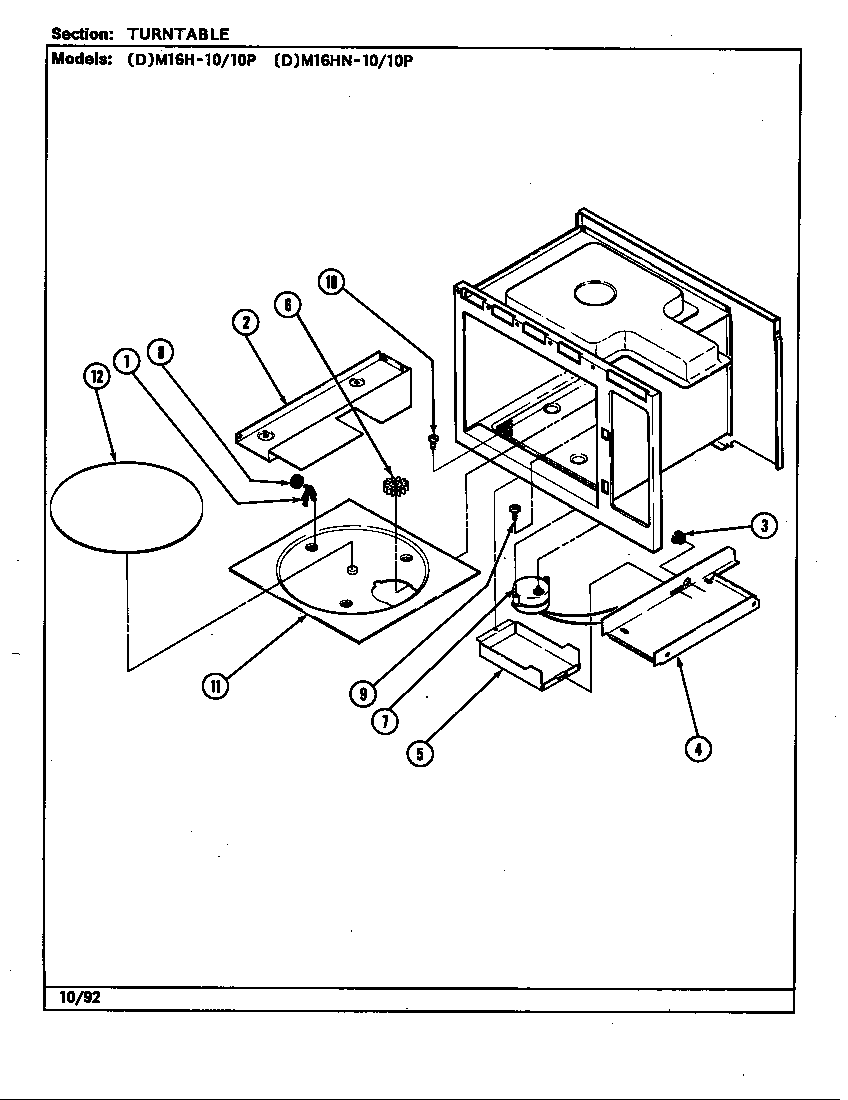

Turntable diagram

Screw

Part #03020041

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 03020041. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Screw 03010119
#23B

Base & cavity diagram

Screw

Part #03010119

Replaced by #WP250830

?
Manufacturer substitution
This part replaces 03010119. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Door Plate C 04021520
Door plate c

Part #04021520

The manufacturer no longer makes this part, and there's no substitute part

Transformer 01130033
#47

Base & cavity diagram

Transformer

Part #01130033

The manufacturer no longer makes this part, and there's no substitute part

Lens Bulb 02400007
#32

Base & cavity diagram

Lens bulb

Part #02400007

The manufacturer no longer makes this part, and there's no substitute part

Diode Assembly 04010219
#18

Base & cavity diagram

Diode assembly

Part #04010219

The manufacturer no longer makes this part, and there's no substitute part
