Model # VDR-M55PP Official Panasonic dvd video camera & recorder

Here are the diagrams and repair parts for Official Panasonic VDR-M55PP dvd video camera & recorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

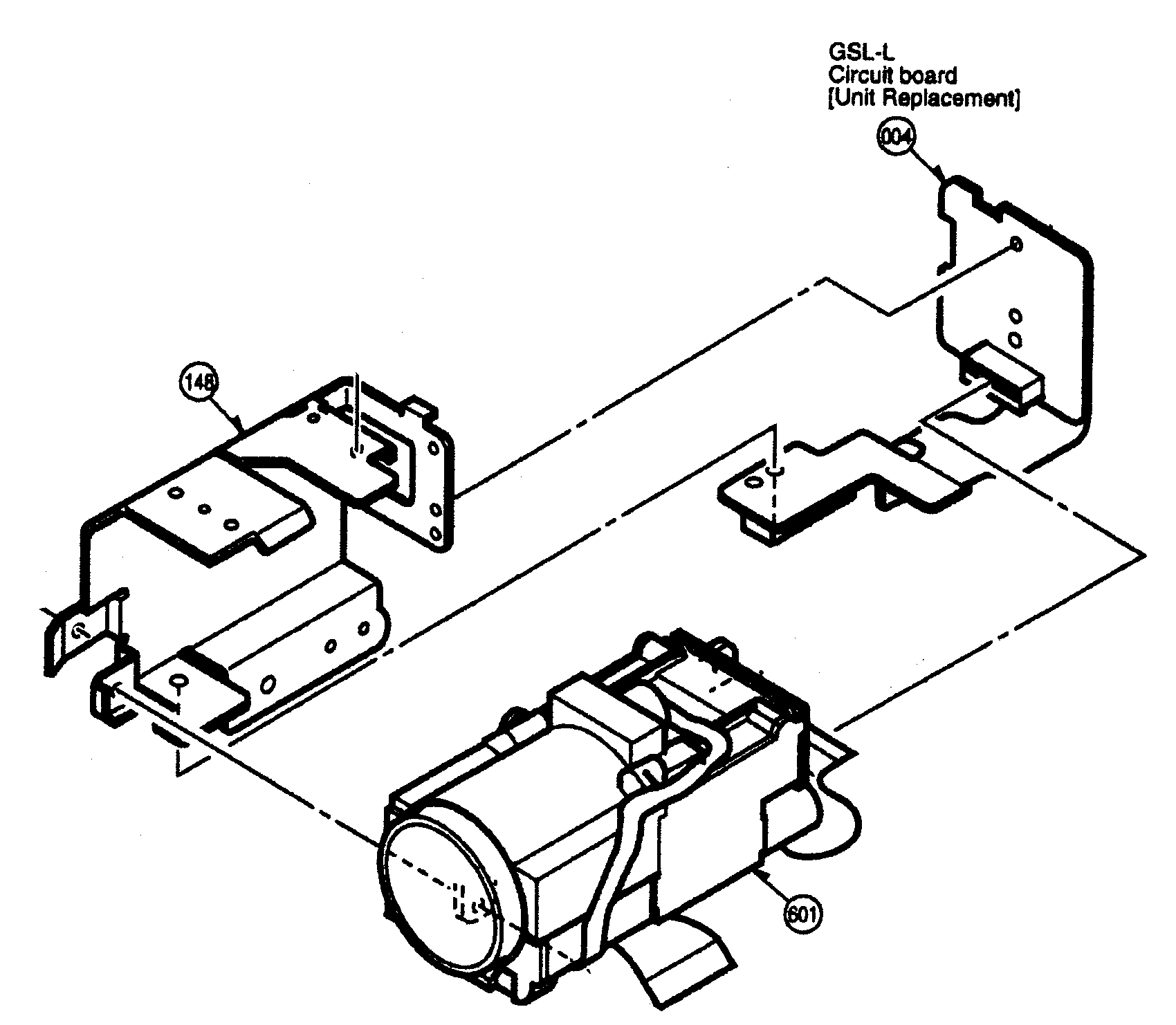

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Lcd Unit DB11041
#155

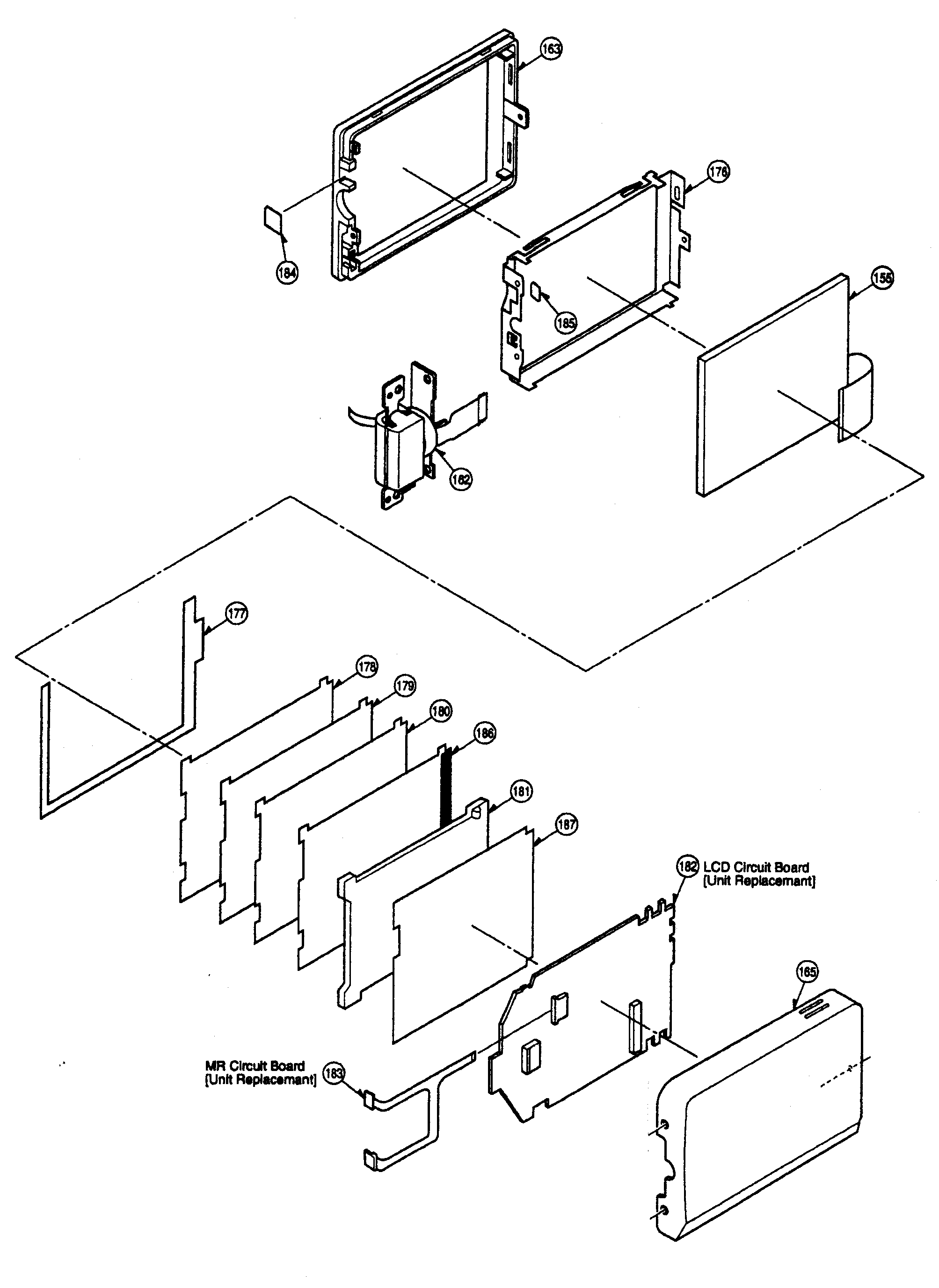

Lcd assy diagram

Lcd unit

Part #DB11041

The manufacturer no longer makes this part, and there's no substitute part

Spring KL15901
#114

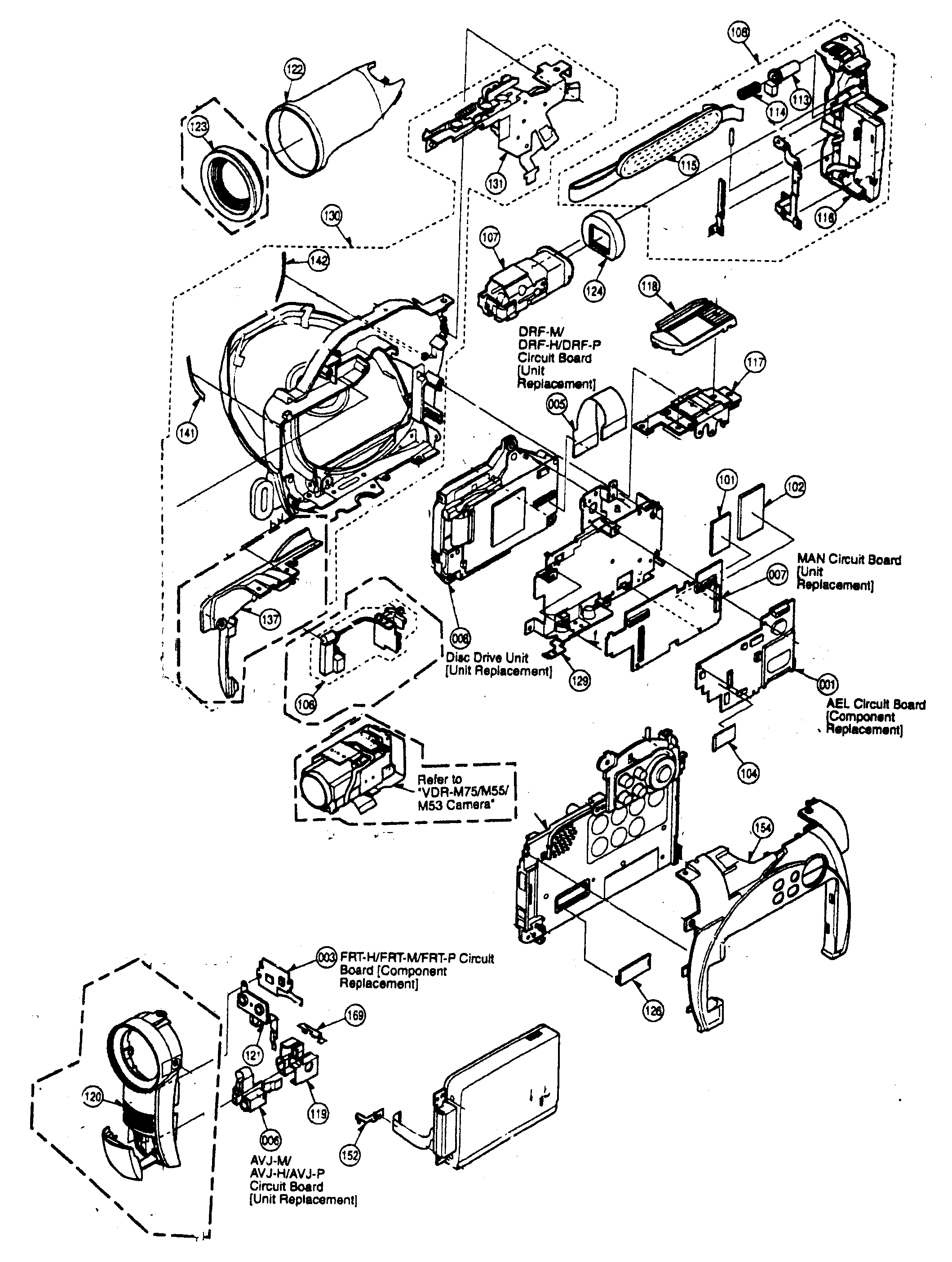

Cabinet parts diagram

Spring

Part #KL15901

The manufacturer no longer makes this part, and there's no substitute part

Camcorder Power Cord EV11004
#NI

Cabinet parts diagram

Camcorder power cord

Part #EV11004

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual VQT0R00
#NI

Cabinet parts diagram

Owner's manual

Part #VQT0R00

The manufacturer no longer makes this part, and there's no substitute part

Button PC19931
#113

Cabinet parts diagram

Button

Part #PC19931

The manufacturer no longer makes this part, and there's no substitute part

Lock NX27101
#131

Cabinet parts diagram

Lock

Part #NX27101

The manufacturer no longer makes this part, and there's no substitute part

Side Case QD41473
#130

Cabinet parts diagram

Side case

Part #QD41473

The manufacturer no longer makes this part, and there's no substitute part

Audio Video Cord EW12525
#NI

Cabinet parts diagram

Audio video cord

Part #EW12525

The manufacturer no longer makes this part, and there's no substitute part

Hand Strap,vdrm53/55pp FV10471
#115

Cabinet parts diagram

Hand strap,vdrm53/55pp

Part #FV10471

The manufacturer no longer makes this part, and there's no substitute part

Mech Frame NA34741
#129

Cabinet parts diagram

Mech frame

Part #NA34741

The manufacturer no longer makes this part, and there's no substitute part
