Model # SCD107 Official Samsung video camcorder

Here are the diagrams and repair parts for Official Samsung SCD107 video camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 127 parts  |
Lens Cover AD97-08447A
#NI

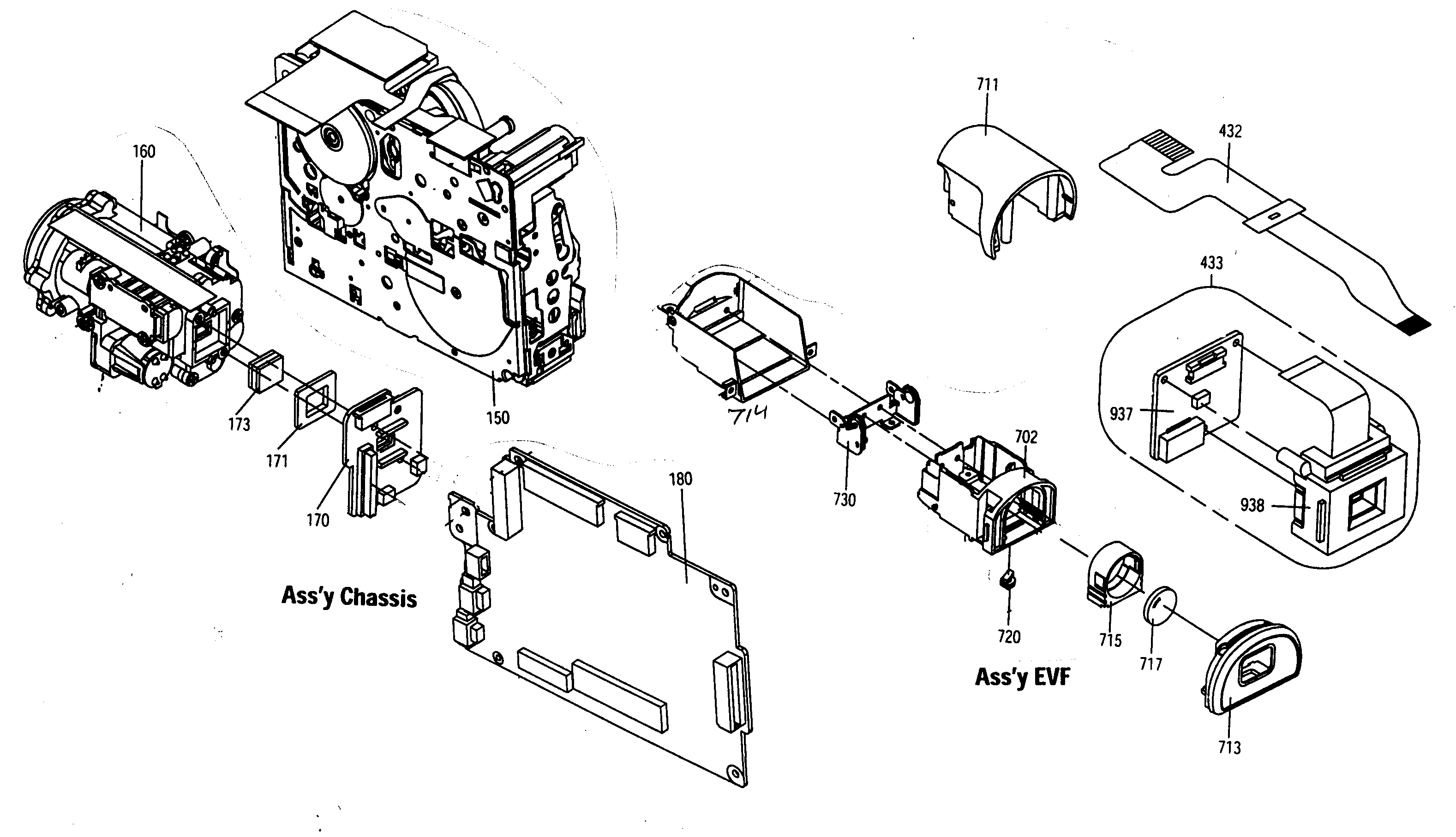

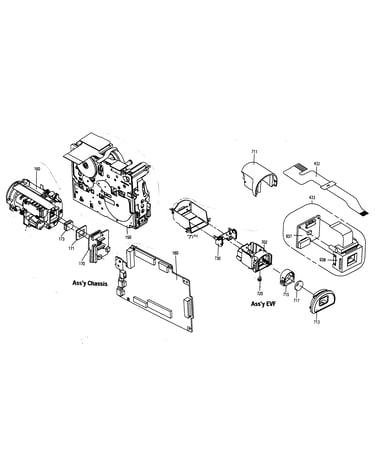

Chassis/evf assy diagram

Lens cover

Part #AD97-08447A

The manufacturer no longer makes this part, and there's no substitute part

Holder AD61-01617A
#209

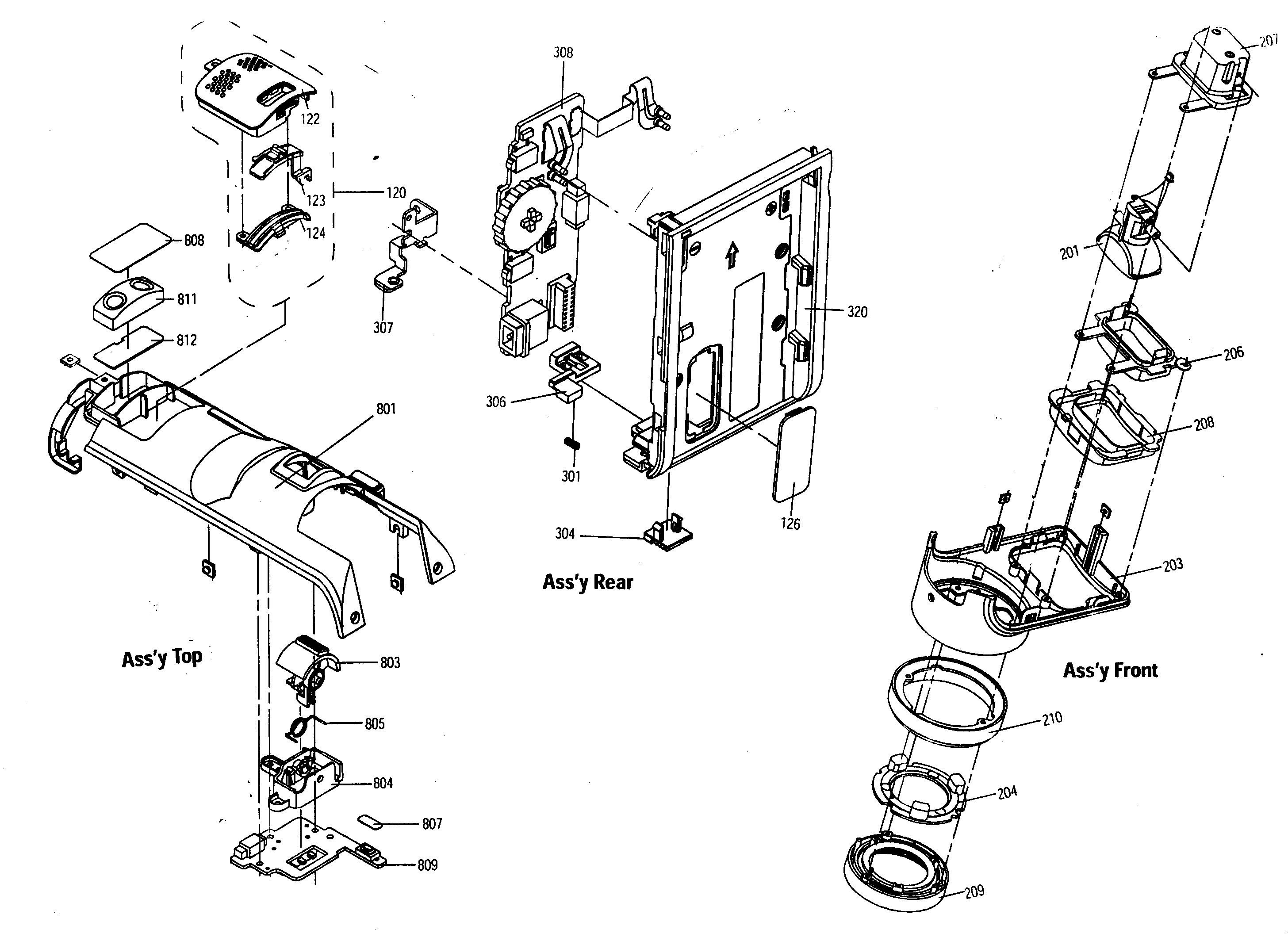

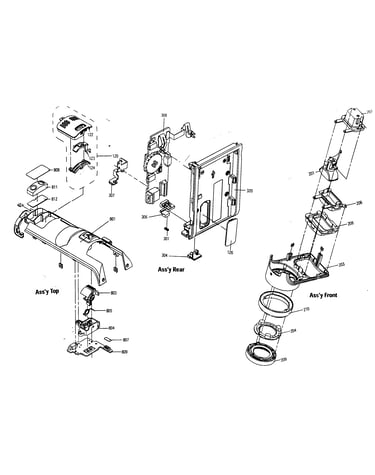

Top/rear/front assy diagram

Holder

Part #AD61-01617A

The manufacturer no longer makes this part, and there's no substitute part

Cover L AD97-08465E
#520

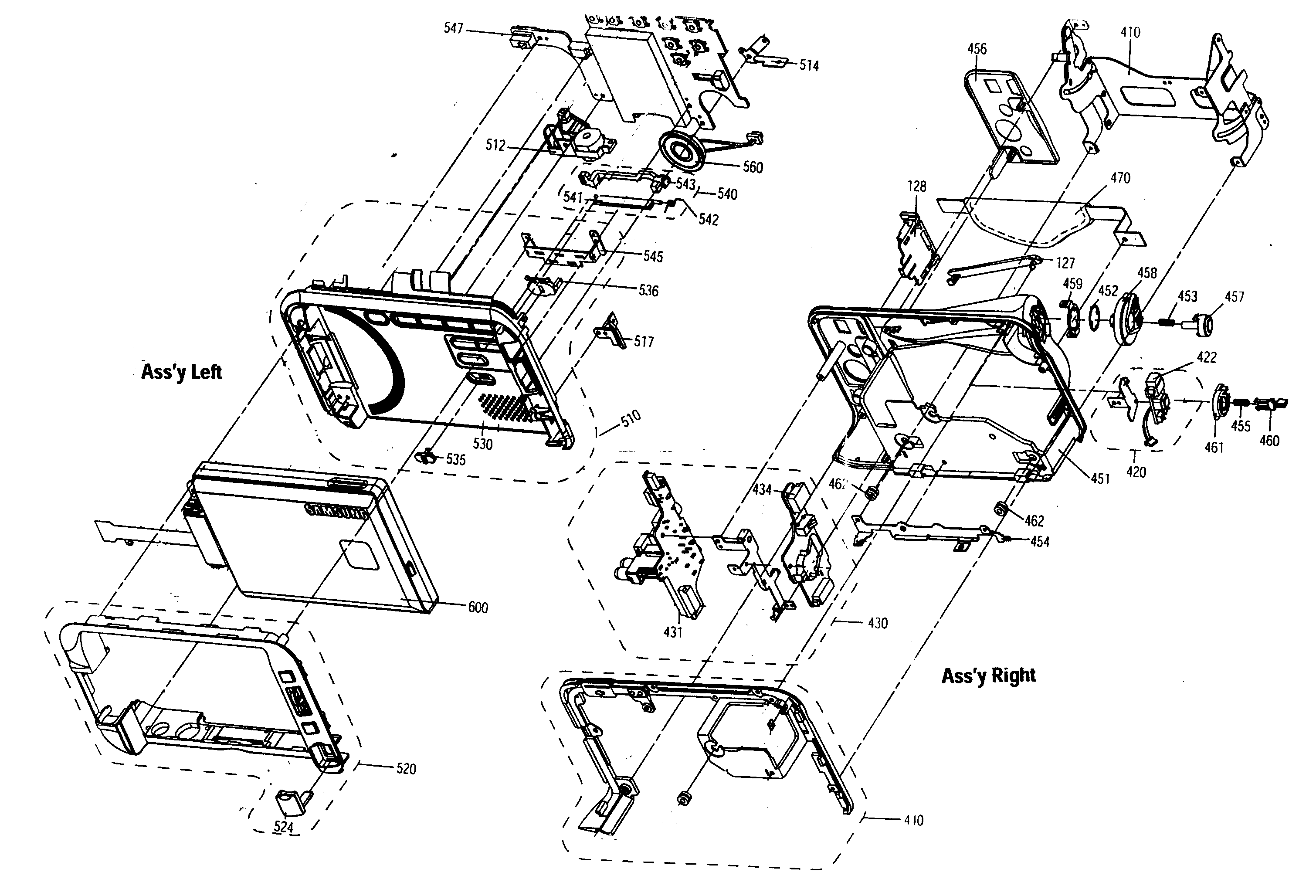

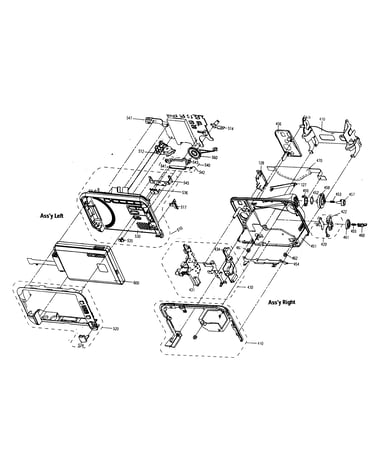

Cabinet left/right assy diagram

Cover l

Part #AD97-08465E

The manufacturer no longer makes this part, and there's no substitute part

Ms Door AD97-08467A
#540

Cabinet left/right assy diagram

Ms door

Part #AD97-08467A

The manufacturer no longer makes this part, and there's no substitute part

Bracket AD61-01595A
#514

Cabinet left/right assy diagram

Bracket

Part #AD61-01595A

The manufacturer no longer makes this part, and there's no substitute part

Cover AD63-00572A
#612

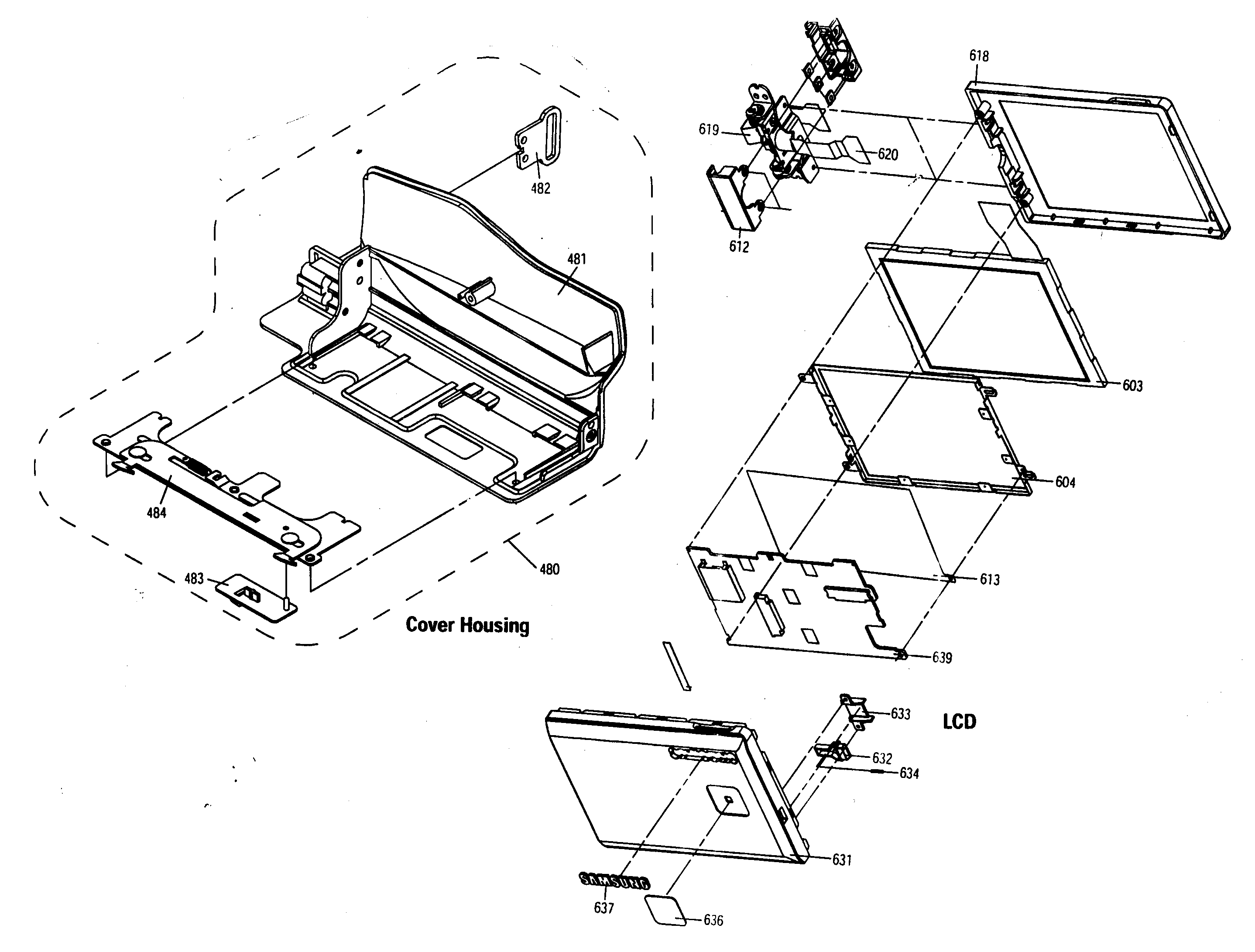

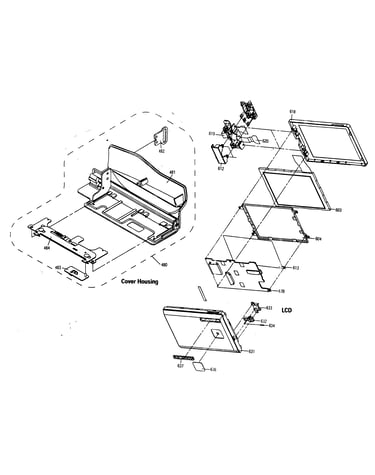

Cover housing/lcd diagram

Cover

Part #AD63-00572A

The manufacturer no longer makes this part, and there's no substitute part

Main Pcb AD97-08405C
#180

Chassis/evf assy diagram

Main pcb

Part #AD97-08405C

The manufacturer no longer makes this part, and there's no substitute part

Case Front AD61-01598A
#203

Top/rear/front assy diagram

Case front

Part #AD61-01598A

The manufacturer no longer makes this part, and there's no substitute part

Knob,evf AD64-01165A
#720

Chassis/evf assy diagram

Knob,evf

Part #AD64-01165A

The manufacturer no longer makes this part, and there's no substitute part

Fuse 3601-001331
#NI

Chassis/evf assy diagram

Fuse

Part #3601-001331

The manufacturer no longer makes this part, and there's no substitute part
